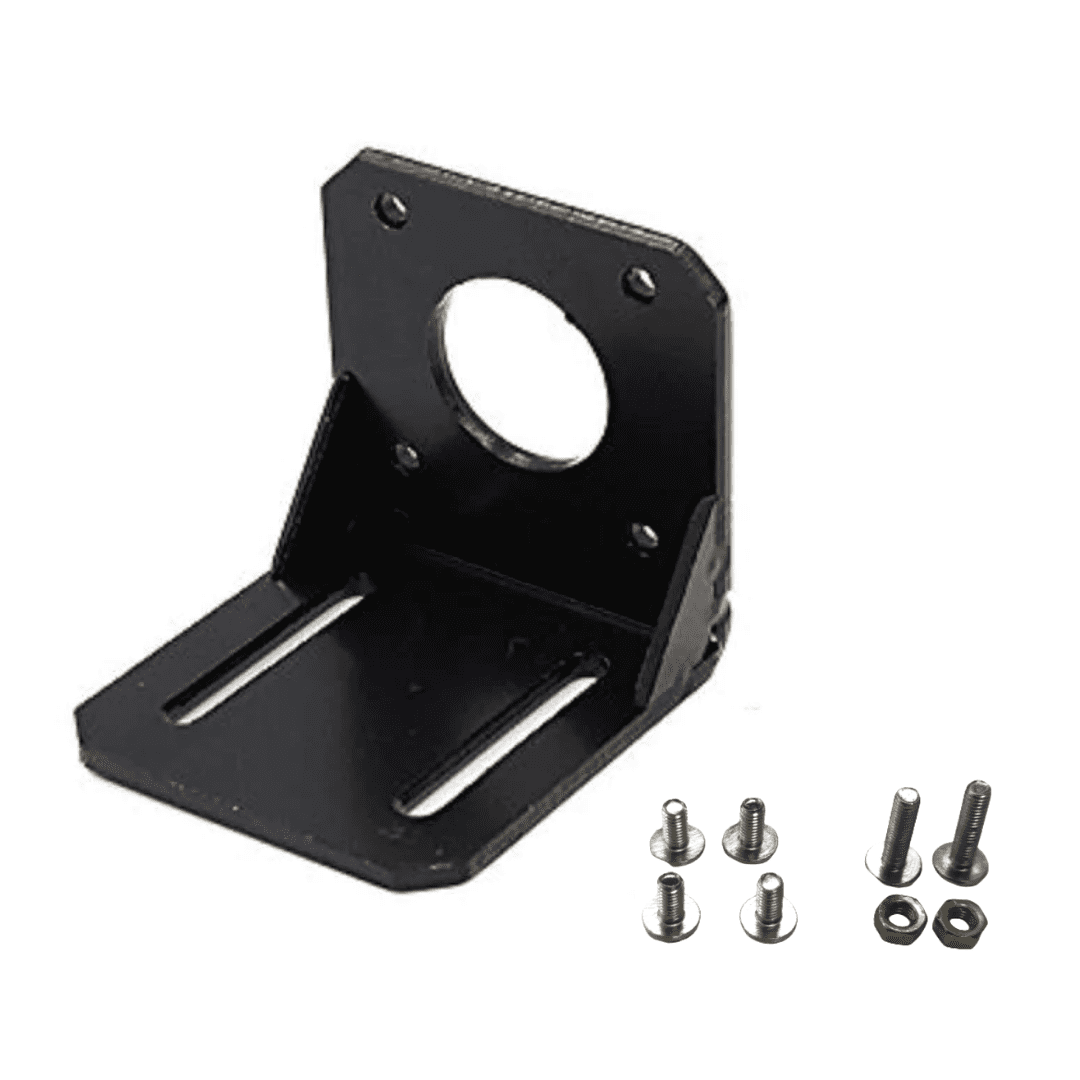

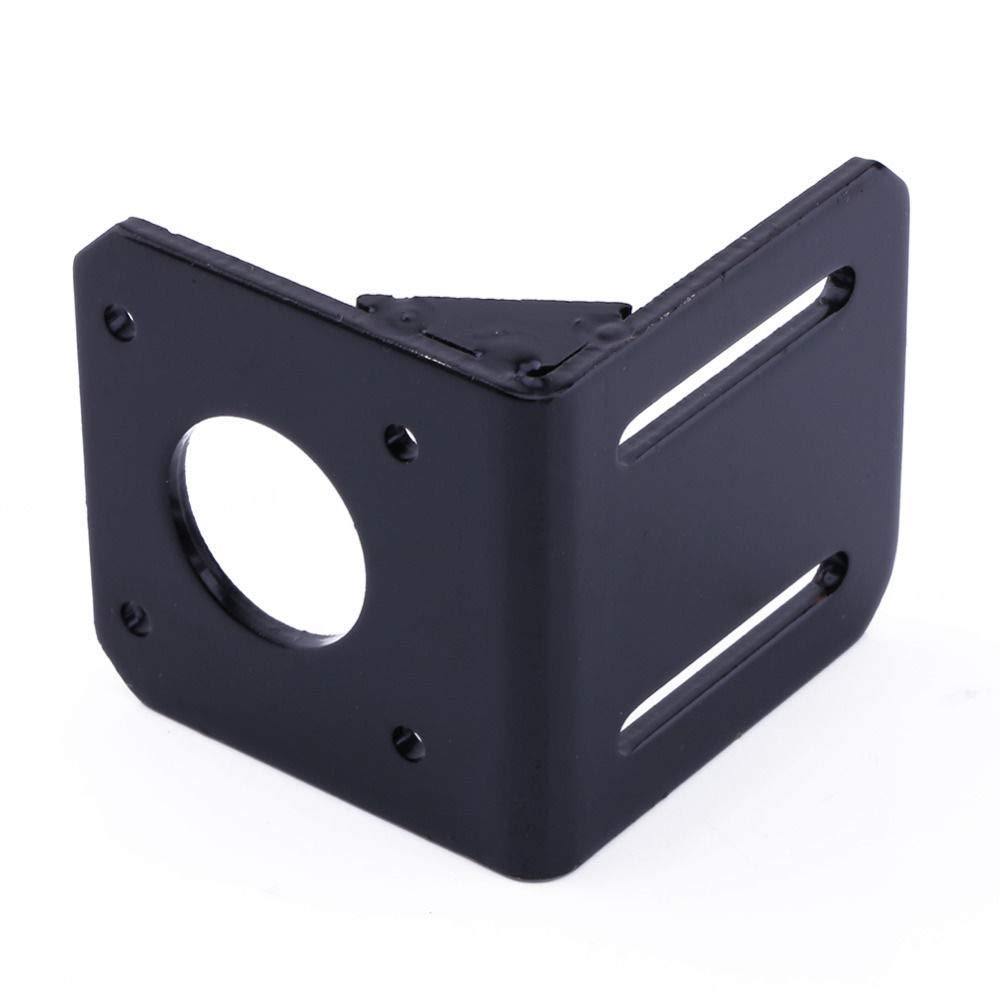

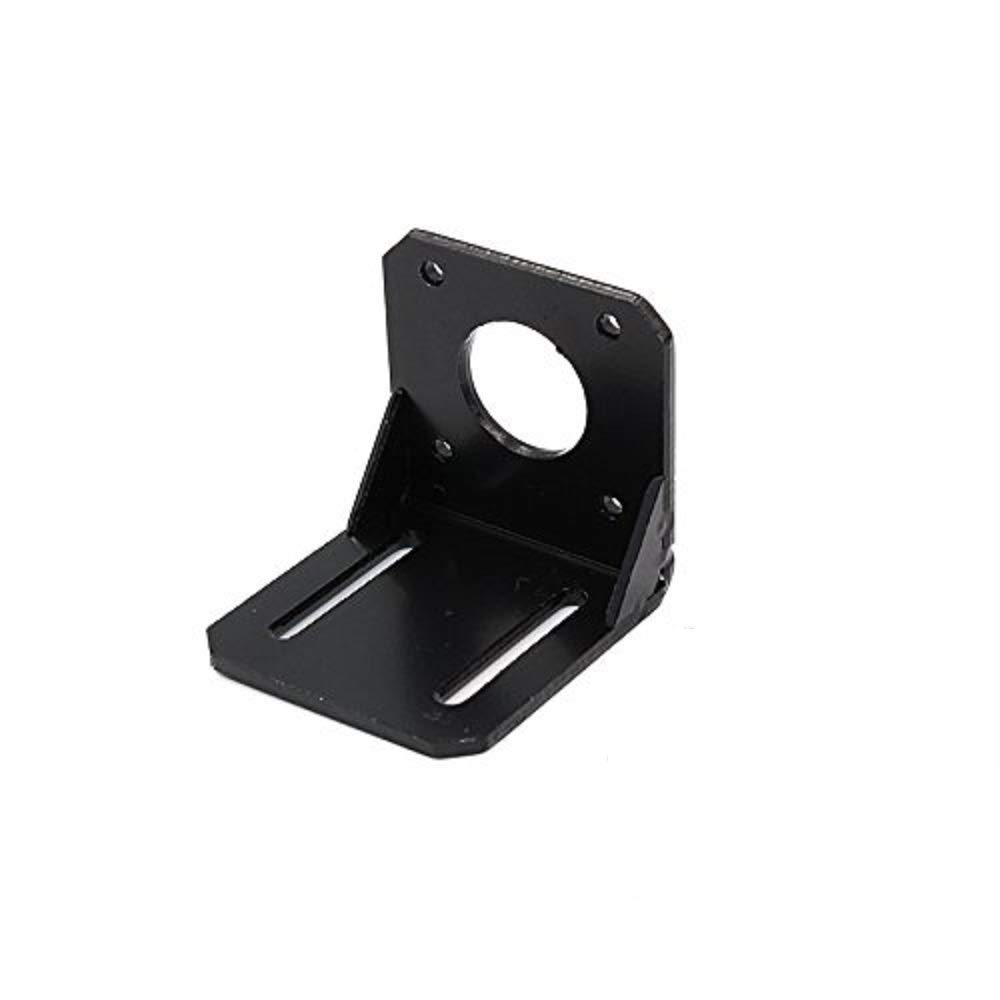

NEMA 17 Mounting L Bracket for Stepper Motor for 3d printer
NEMA 17 Mounting L Bracket for Stepper Motor for 3d printer
Regular price
Rs. 47
Regular price
Rs. 149
Sale price
Rs. 47
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 1 hours and 53 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The NEMA 17 Stepper Motor Brackets Ideal for many hobby and replacement applications.
- Most accurate design for NEMA17 Stepper Motor.
- NEMA mount brackets are designed to be compatible with specific NEMA motor sizes and shapes, and they provide a secure and stable connection between the motor and the mounting surface.
- NEMA mount brackets are typically made of metal, such as aluminum or steel, and they may include mounting holes, slots, or other features to facilitate installation and attachment to the mounting surface
Related Tags
NEMA 17 Mounting L Bracket for Stepper Motor for 3d printer

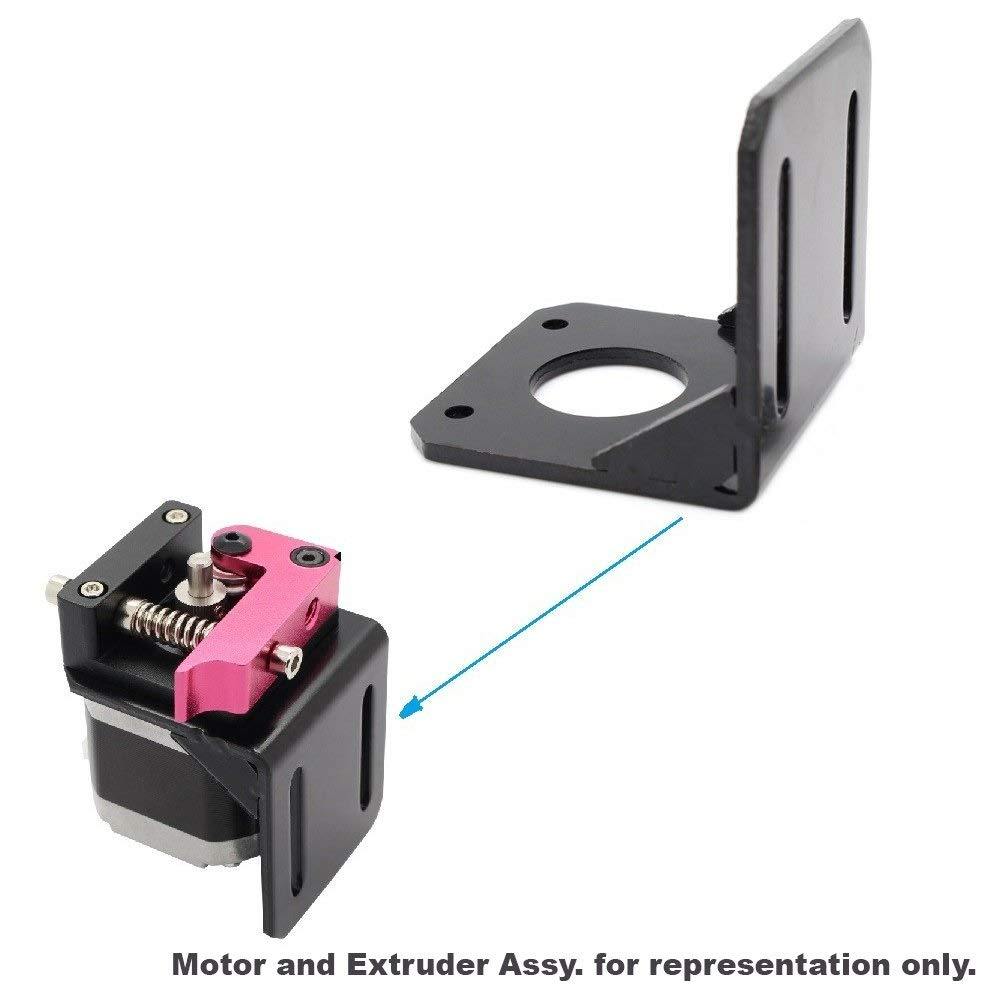

An L bracket is a type of mounting bracket that is often used to attach a Nema 17 stepper motor to a 3D printer. The L bracket is typically used to support and guide the movement of the motor, and it helps to keep the motor in place while it is operating.
NEMA mount brackets are typically made of metal, such as aluminum or steel, and they may include mounting holes, slots, or other features to facilitate installation and attachment to the mounting surface. NEMA mount brackets are commonly used in a variety of applications, including industrial machinery, automated manufacturing equipment, and robotics.
To mount the L bracket on a Nema 17 stepper motor, you will need to follow these steps:
-

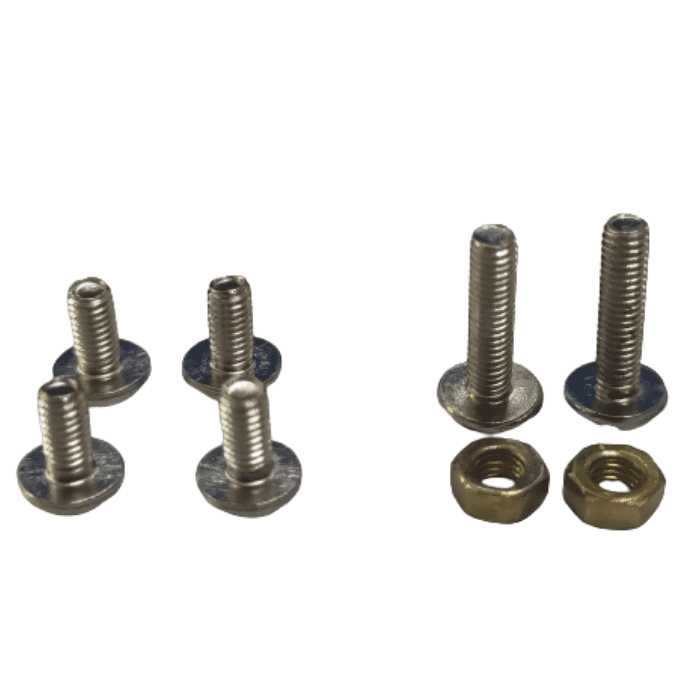

Gather the necessary materials: You will need the L bracket, screws or other fasteners, and any tools required to attach the bracket to the motor.
-
Position the L bracket: Hold the L bracket up to the motor and position it in the desired location. Make sure that the bracket is properly aligned and that it will not interfere with the operation of the motor.
-
Mark the mounting holes: Use a pen or other marking tool to mark the location of the mounting holes on the motor.
-
Drill or tap the mounting holes: If the motor does not have pre-drilled mounting holes, you will need to drill or tap the holes in the appropriate locations.
-
Attach the L bracket: Use screws or other fasteners to attach the L bracket to the motor. Make sure that the bracket is securely fastened and that it is properly aligned with the motor.
Applications:
- 3D printing
- Machine tools
- Automation and robotics
- Industrial equipment
- Medical equipment
Package Includes:
- 1 x NEMA 17 Stepper Motor L Mount Bracket.
Specifications:
| Motor Type | NEMA 17 Stepper Motor |
| Material | Mild Steel |
| Dimensions | 50x62x64mm |
| Weight | 100g |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1.What are L brackets used for?
- An L bracket is a type of mounting bracket that is commonly used to attach a Nema 17 stepper motor at a 90-degree angle to a 3D printer. They are typically made of metal, such as steel or aluminium, with a "L" shaped cross-section and two mounting screw holes. The L bracket is commonly used to support and guide the movement of the motor, as well as to keep the motor in place while it is running.
2.How strong is an L bracket?
- The strength of an L bracket depends on a number of factors, including the material it is made of, the size and thickness of the bracket, and the type of load it is subjected to. In general, L brackets made of metal, such as steel or aluminum, are stronger and more durable than those made of plastic or other materials. The size and thickness of the bracket also play a role in its strength. The type of load that the L bracket is subjected to is also important. L brackets are typically designed to handle loads applied in a perpendicular direction, such as the weight of an object resting on a shelf. They may not be as effective at handling loads applied in other directions, such as lateral or bending loads.
3.What is the NEMA 17?
- NEMA 17 is a size specification for stepper motors, which are electric motors that move in discrete steps rather than continuously. NEMA 17 stepper motors are square-shaped motors with a faceplate size of about 1.7 inches (43 mm) on each side. They are relatively small and lightweight, but they have high torque and are capable of precise control, making them well-suited for a wide range of applications. NEMA 17 stepper motors are commonly used in 3D printing, robotics, and precision motion control systems, as well as a variety of other applications. They are easy to control and interface with, and they can be used with a variety of driver and controller options.
4.Is NEMA 17 bipolar?
- Yes, NEMA 17 stepper motors are typically bipolar. Bipolar stepper motors have two phase windings that are activated in a specific sequence to produce rotational motion. Each phase winding has two leads, and the motor can be controlled by switching the current to each lead in a specific order. Bipolar stepper motors are relatively simple and inexpensive to control, but they require more complex drive circuitry compared to unipolar stepper motors. There are also some NEMA 17 stepper motors that are unipolar. Unipolar stepper motors have a single phase winding with four or more leads, and they can be controlled by applying current to one or more of the leads. Unipolar stepper motors are typically easier to drive than bipolar motors, but they are less efficient and have lower torque.
