Waveshare USB to CAN-A Adapter with STM32 Chip Solution

Waveshare USB to CAN-A Adapter with STM32 Chip Solution

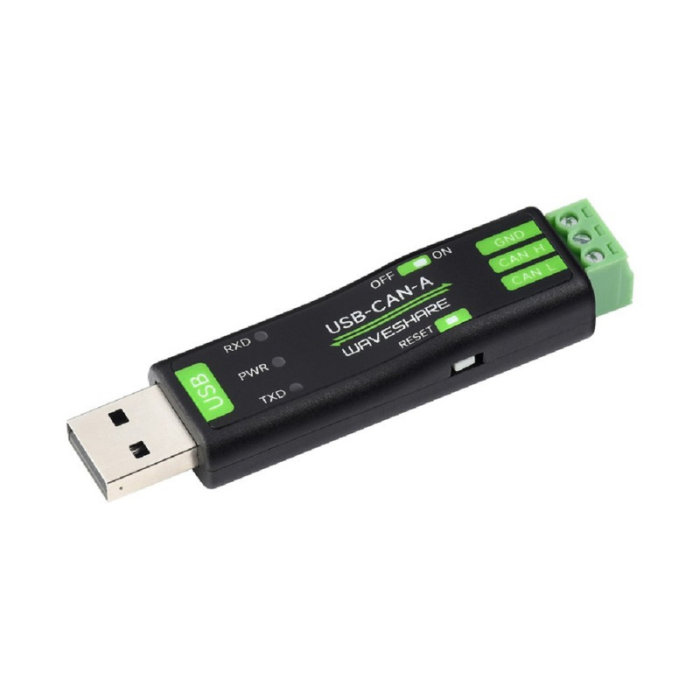

The Waveshare USB to CAN-A Adapter is a high-performance USB CAN adapter designed with an STM32 chip solution, offering robust and reliable CAN bus communication.

This versatile adapter supports multiple working modes, including standard, silent, loopback, and listen-only modes, making it ideal for various CAN bus applications such as data collection, monitoring, analysis, and transceiver control.

With its USB CAN adapter STM32 chip architecture, it ensures stable operation and efficient data exchange between the CAN bus and your PC. The device is compatible with multiple operating systems, providing flexibility for developers and engineers working on CAN bus networks.

Whether for industrial automation, vehicle networking, or research projects, the Waveshare USB to CAN-A Adapter STM32 chip delivers a seamless solution for real-time CAN bus data acquisition and management.

This All-new version Adapter supports Windows XP/7/8/10/11 And Linux Systems Such as Raspberry Pi OS and Ubuntu Under Jetson Nano, Support Secondary Development.

Features:

• Supports both CAN2.0A (regular frame) and CAN2.0B (extended frame).
• CAN baud rate is adjustable in the range of 5Kbps to 1Mbps
• Supports four operating modes: standard mode, loopback mode, quiet mode, and silent loopback mode.
• Multiple CAN data transmission modes are supported, including manual, regular, and cyclic transmitting.
• Supports several CAN data receiving modes: can be configured to exclusively accept data from a specific ID, or specify ID to automatically respond to the configured data
• Data can be stored as either TXT or Excel.
• Supports CAN bus detection for status checks.
• Sending/receiving CAN data with time scale enables sequential display.
• The USB virtual COM port's baud rate can be set between 9600 and 2000000bps (the default is 2000000bps).
• Configure working parameters via software or serial command, which can be saved even after power off.
• The STM32 chip solution ensures robust and dependable connection.
• The onboard TVS (Transient Voltage Suppressor) effectively reduces surge voltage and transient spike voltage in the circuit.
• Comes with master computer software for Windows system, simple to use.
• Easy secondary development; simply tweak the sending and receiving commands.

Package Includes:

• 1 x Waveshare USB to CAN-A Adapter

Specifications:
