Waveshare UPS HAT (E) for Raspberry Pi 5 | 5V 6A, 21700

Name: Waveshare UPS HAT (E) for Raspberry Pi with 5V 6A Output, 4× 21700 Battery Support & Pogo Pins
Brand: Robocraze
SKU: TIFDC0116
Price: 4069 INR
Availability: OutOfStock
Rating: 4.56 (9 reviews)

Waveshare UPS HAT (E) for Raspberry Pi with 5V 6A Output, 4× 21700 Battery Support & Pogo Pins

Rs 4,069/-

- 35%

Rs 4,069/-

~~Rs 6,266/-~~

Save Rs 2,197/-

🪙

RC REWARDS Earn 40 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFDC0116

Provides uninterrupted backup power for Raspberry Pi 5, 4B, and 3B+.
Delivers stable power for demanding Raspberry Pi projects and connected peripherals.
Designed for higher battery capacity and longer backup runtime. Batteries are not included.
USB Type-C supports fast charging and simultaneous power output.
Powers the Raspberry Pi without occupying its GPIO pins.
Uses I2C communication to monitor voltage, current, power, and remaining battery capacity.
Seamlessly switches to battery power when external power is unavailable.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare UPS HAT (E) for Raspberry Pi with 5V 6A Output, 4× 21700 Battery Support & Pogo Pins

~~Rs 6,266/-~~ Rs 4,069/-

Quantity:

Waveshare UPS HAT (E) for Raspberry Pi with 5V 6A Output, 4× 21700 Battery Support & Pogo Pins

~~Rs 6,266/-~~ Rs 4,069/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Waveshare UPS HAT (E) for Raspberry Pi with 5V 6A Output, 4× 21700 Battery Support & Pogo Pins

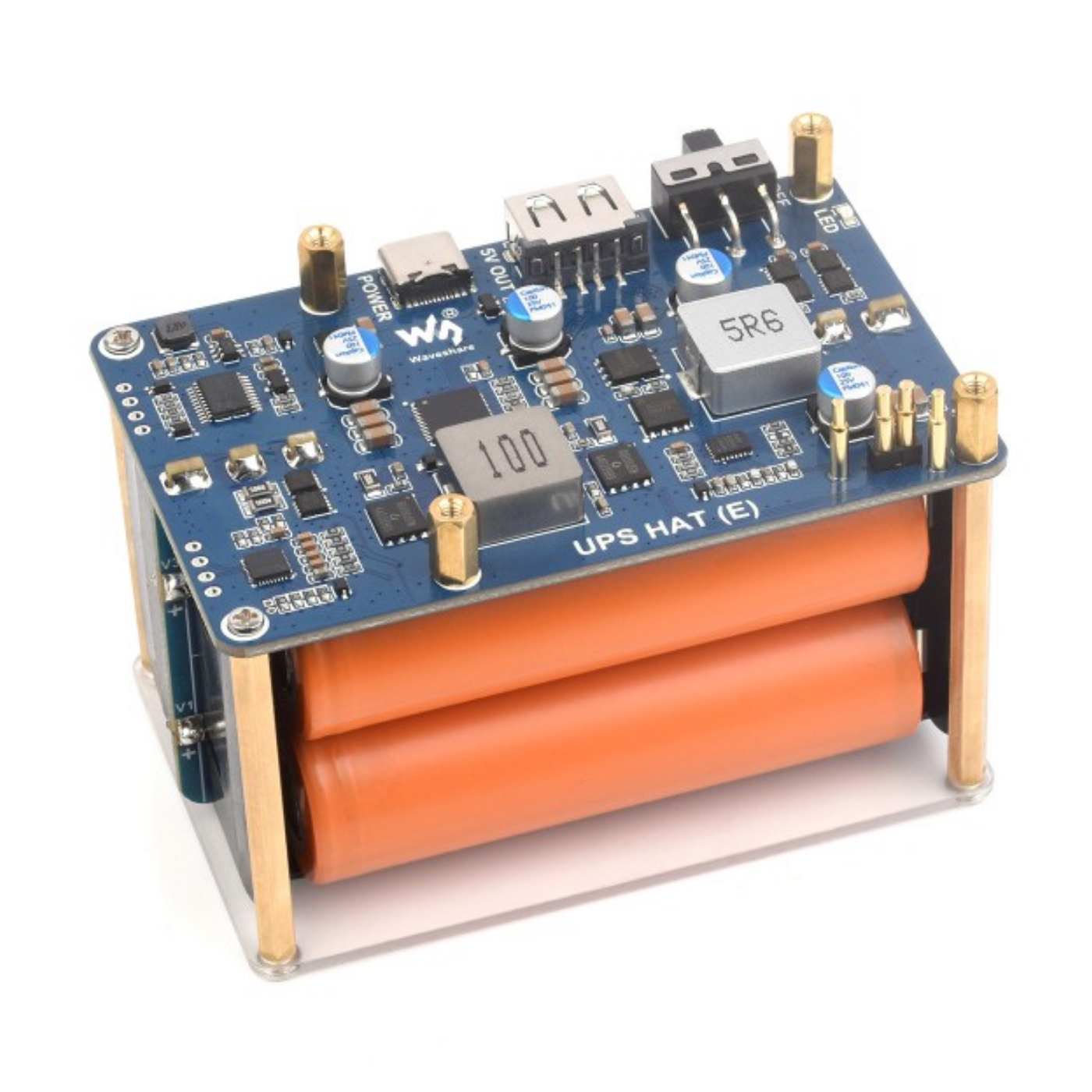

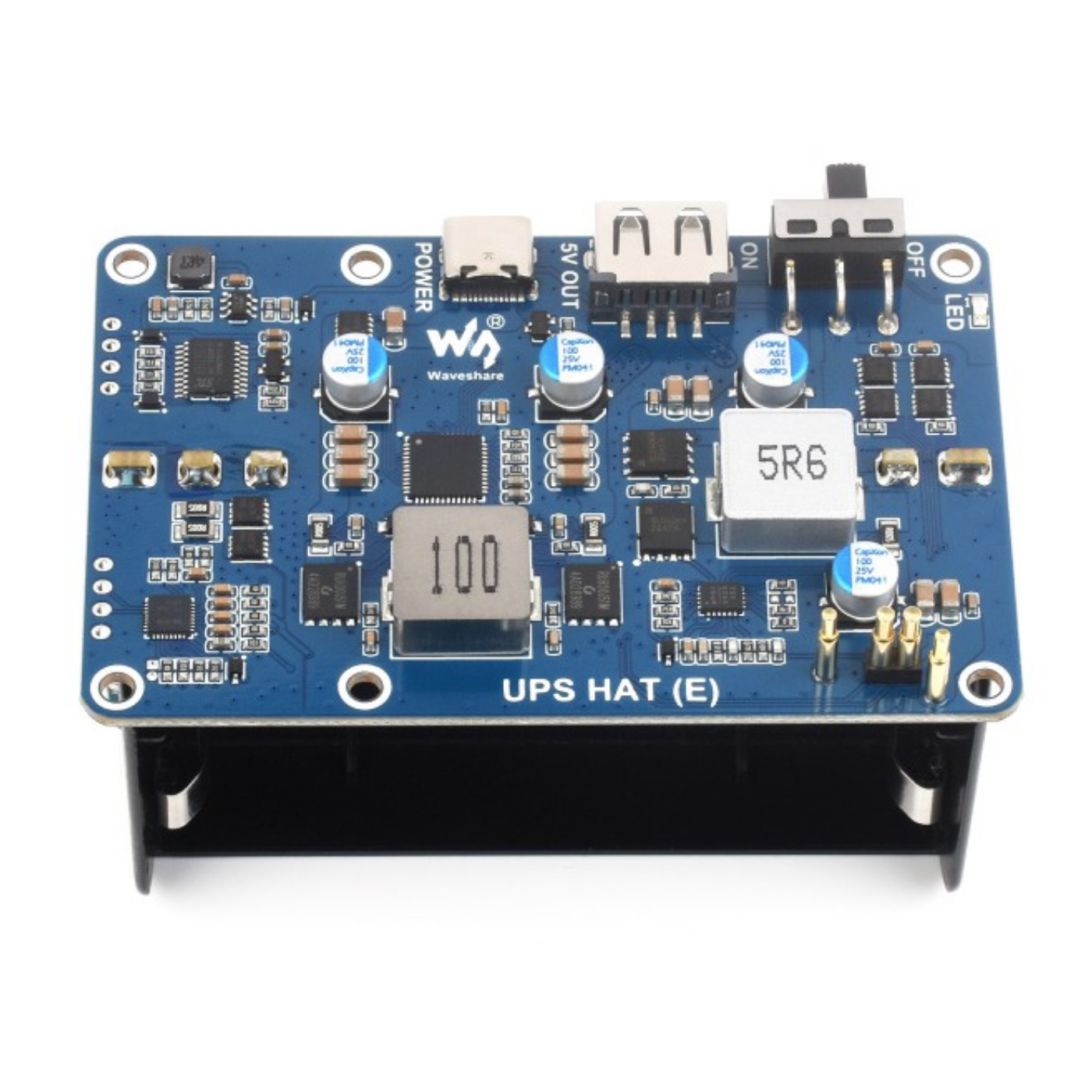

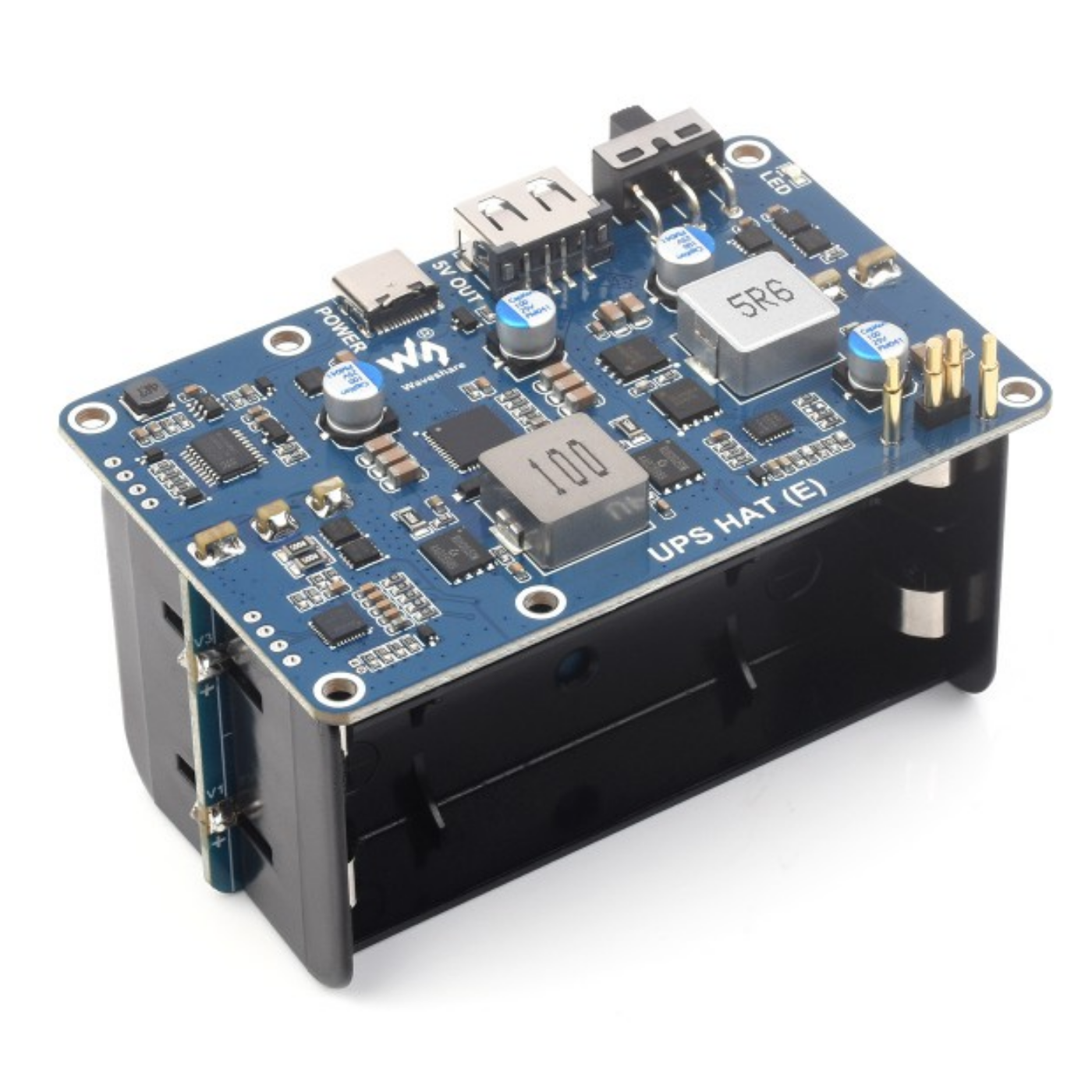

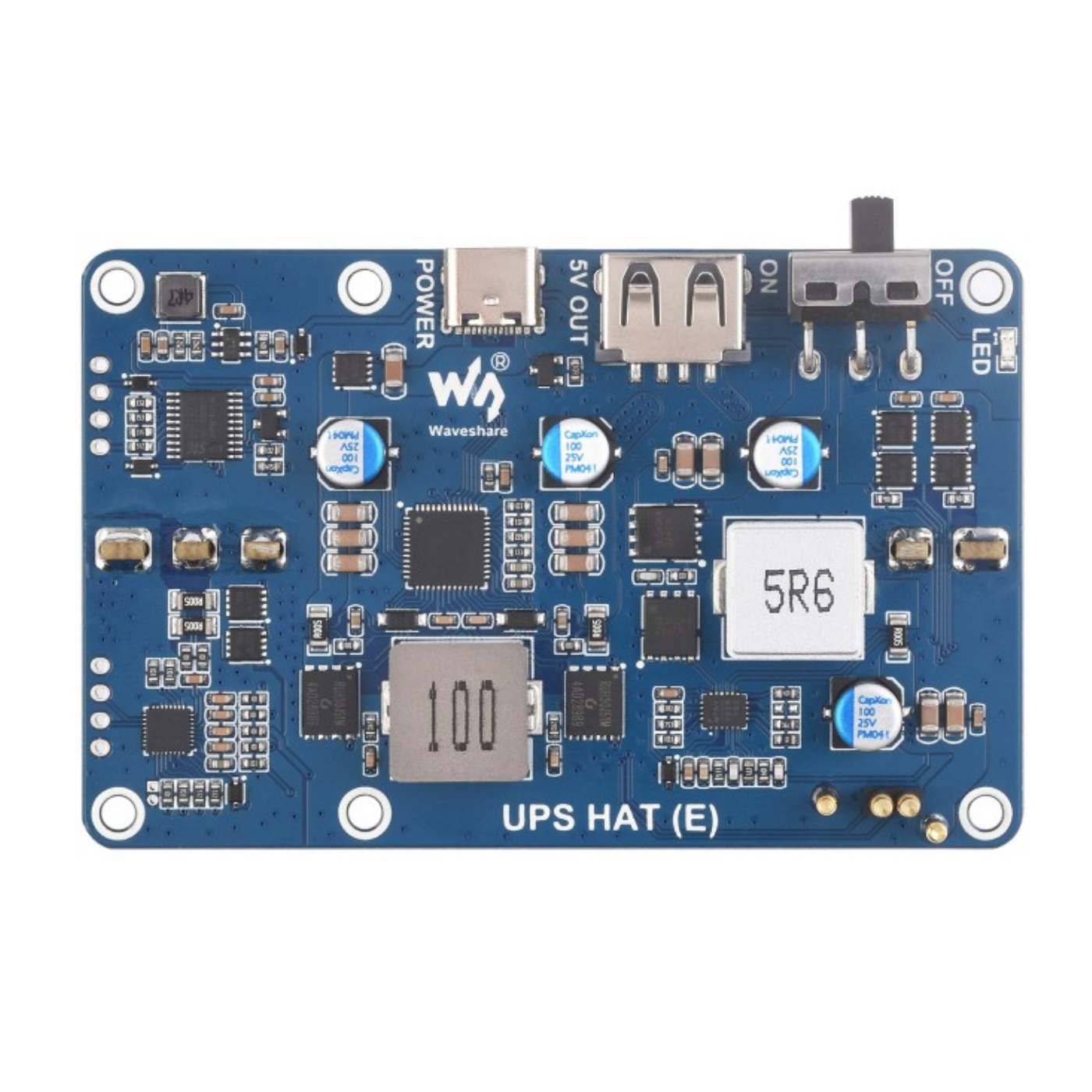

The Waveshare UPS HAT (E) is a high-performance Raspberry Pi UPS expansion board designed to keep your Raspberry Pi powered even when the main power supply is interrupted. It supports up to four 21700 rechargeable Li-ion batteries, providing greater capacity and longer backup time for continuous-use applications.

With a stable 5V 6A power output, a high-power buck converter, and a pogo pin connector, the HAT can power compatible Raspberry Pi boards without using GPIO resources. Its USB Type-C interface supports bi-directional fast charging up to 40W, allowing the batteries to charge while the system is operating.

An onboard battery fuel gauge and I2C interface provide real-time monitoring of battery voltage, current, power, and remaining capacity, while the MCU can detect external power and manage automatic switching and shutdown functions. This makes the Raspberry Pi 5 UPS HAT a practical choice for Raspberry Pi servers, IoT systems, automation projects, portable computing, and other applications where reliable backup power is important.

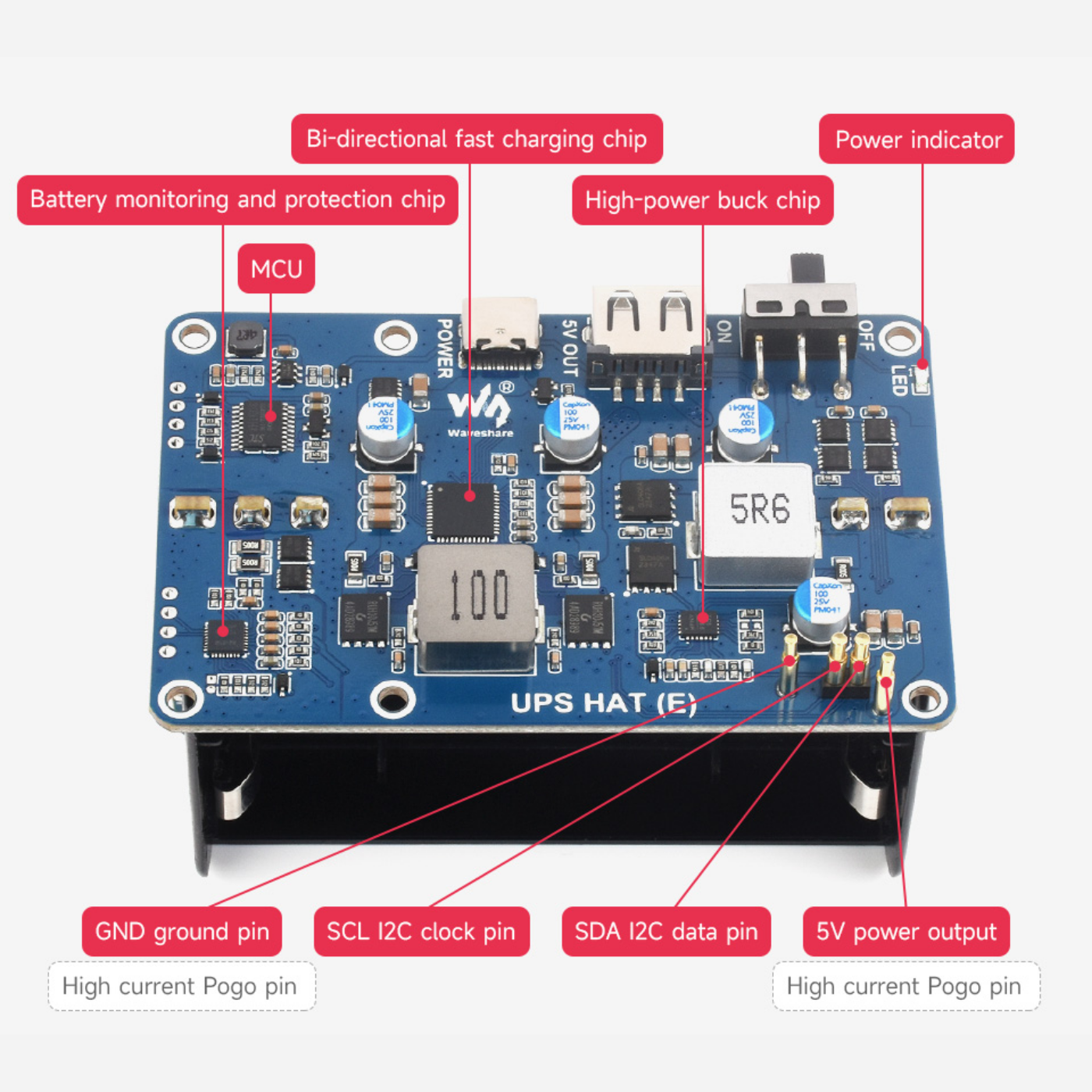

Features:

Adopts a pogo pin connector design, compatible with Raspberry Pi 5 / 4B / 3B+
Onboard Type-C port with bidirectional fast charging, supports numerous charging input/output protocols such as PD3.0, and up to 40W charging power.
Onboard battery fuel gage IC displays battery voltage, current, power, remaining capacity, and other parameters.
Supports I2C bus communication to monitor the functioning status of the Type-C port and batteries in real-time.
Supports four 21700 Li batteries (not supplied) for increased capacity and longer battery life.
Onboard high-power buck chip for reliable 5V/6A power output.
Onboard MCU management facilitates recognizing the power connection and booting the Raspberry Pi.
Supports displaying battery levels on the system, making it easier to check the HAT's functioning state.
comes with online development materials and a documentation.

Safety Cautions:

Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery.
Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Specifications

Package Includes:

1 x UPS HAT (E)
1 x Acrylic protection panel
1 x Screws pack

Specifications:

Specification	Details
Control Bus	I2C
Battery Support	21700 Li Battery × 4 (in series, not included)
Type-C Power	Bi-directional input/output fast charging, up to 40W charging power
Output Power	5V 6A

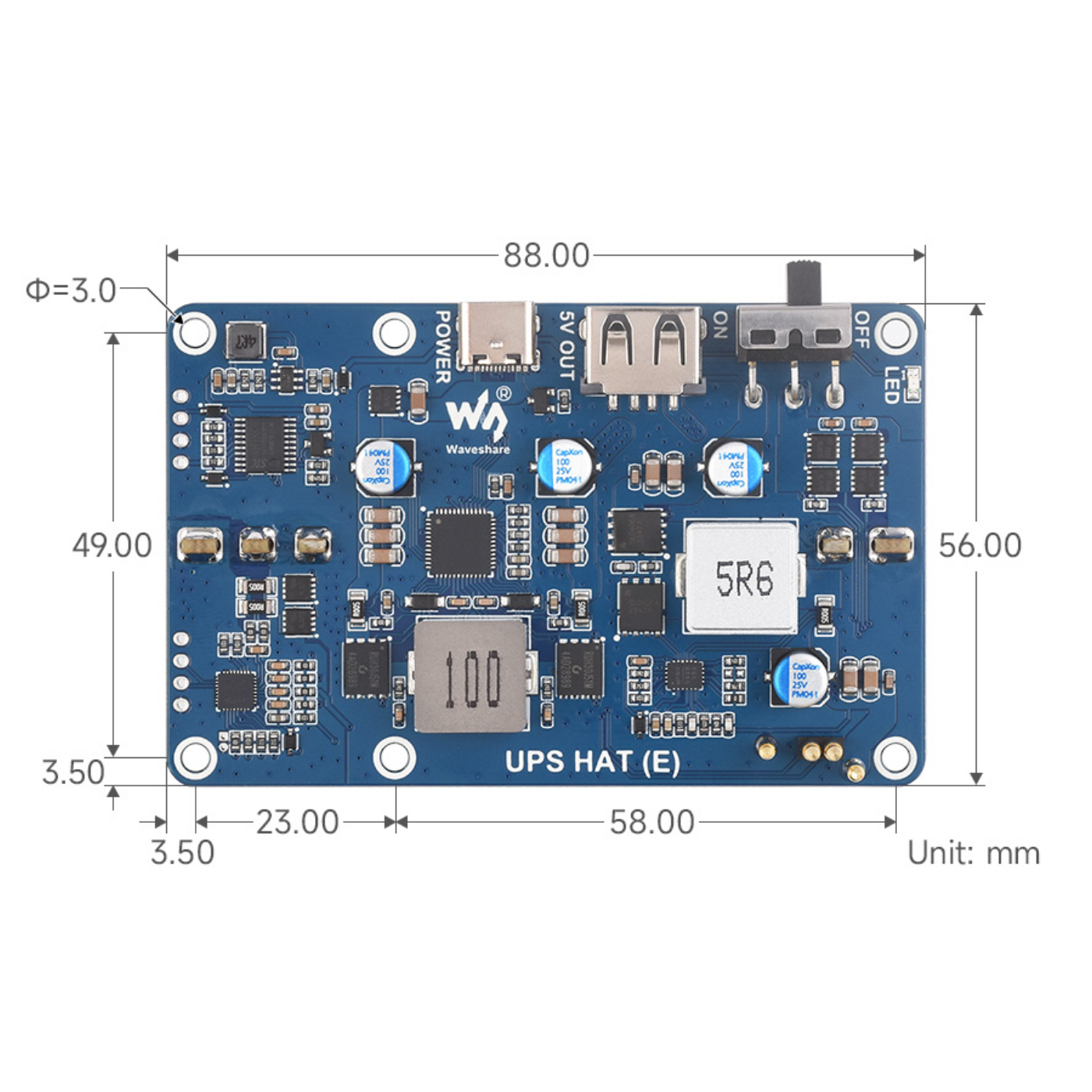

Dimensions	56 × 88 mm
Mounting Hole Size	3.0 mm
