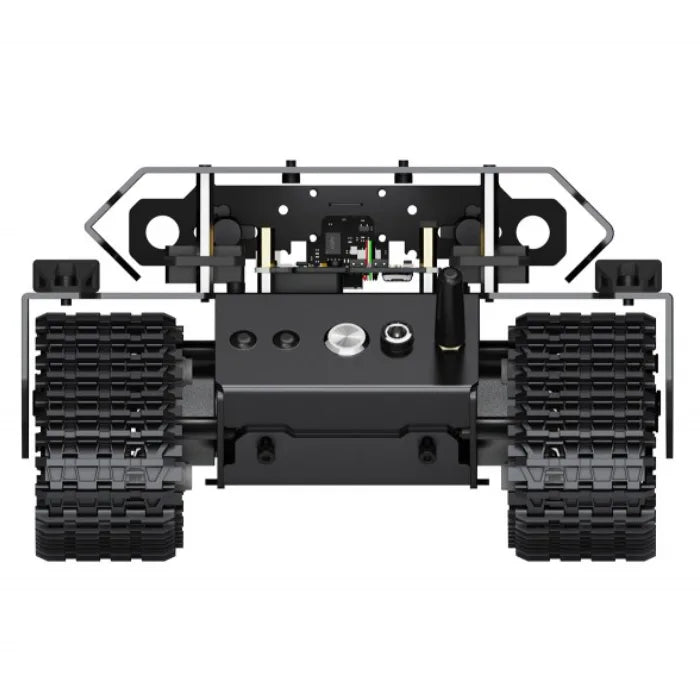

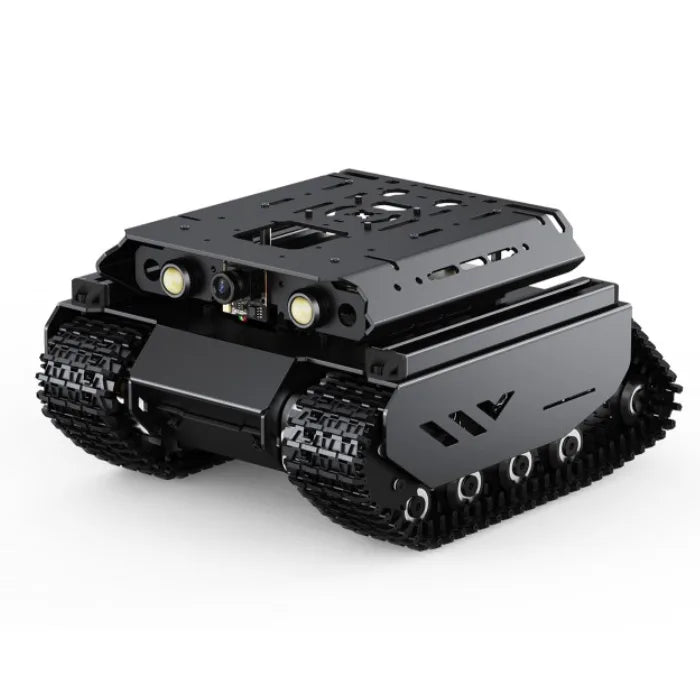

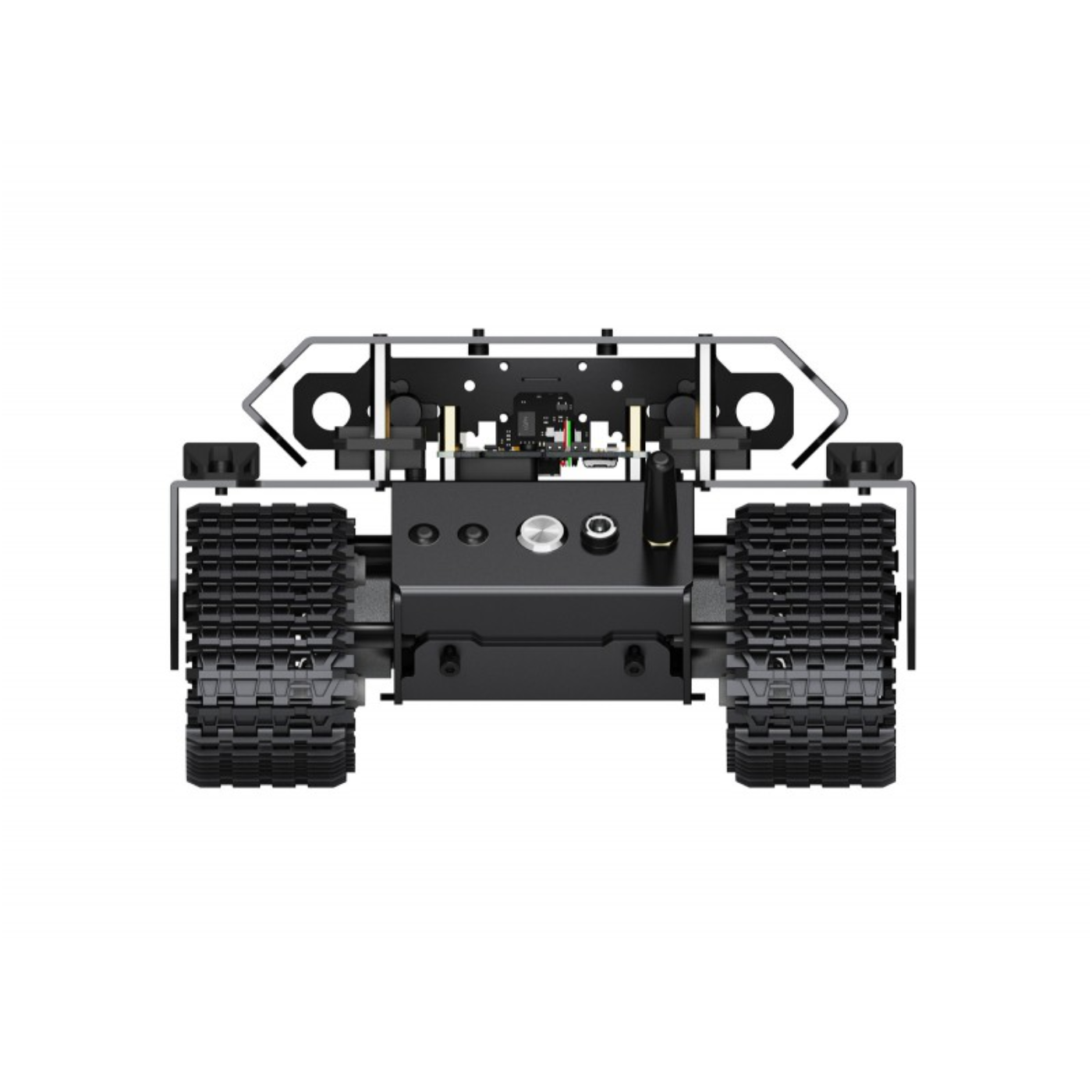

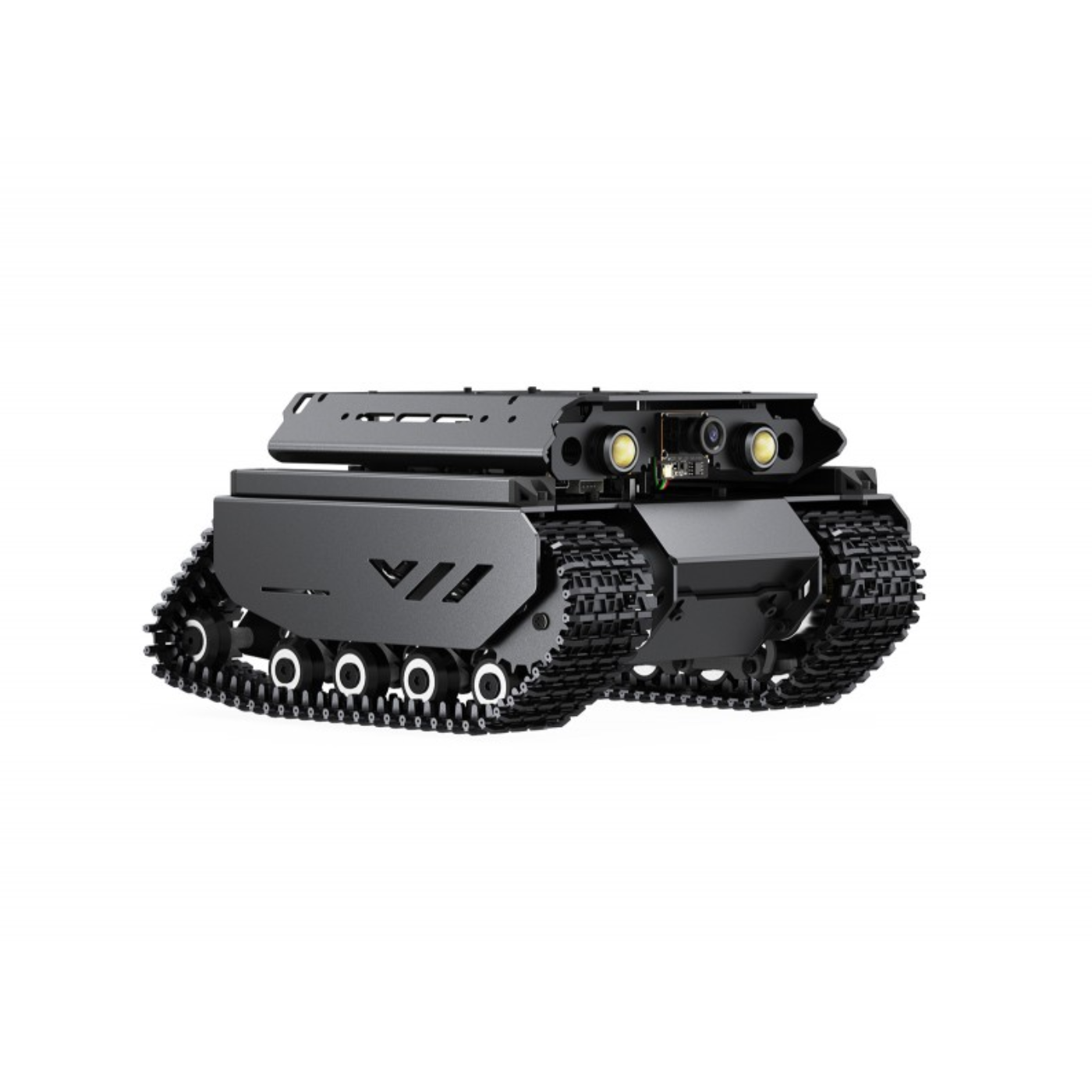

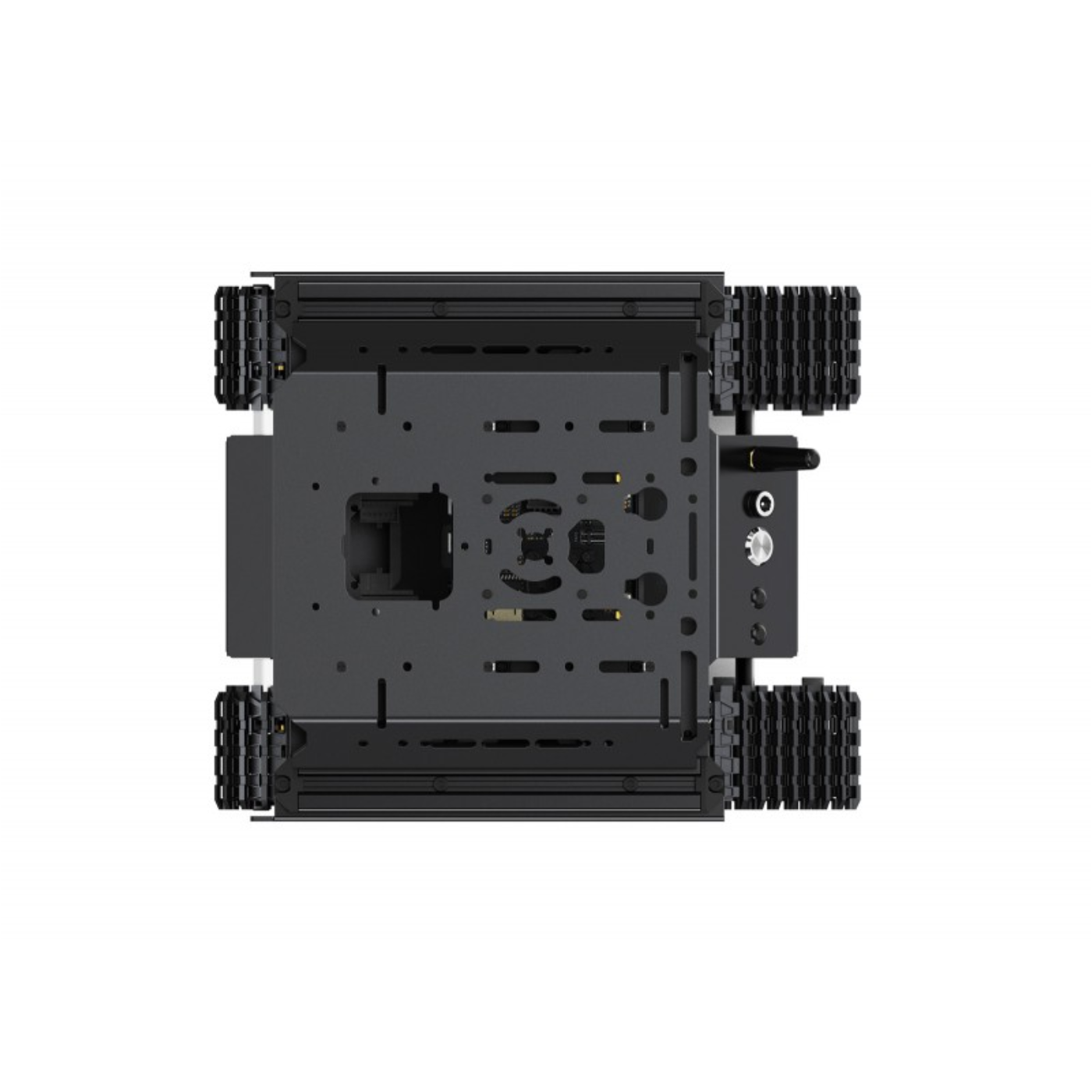

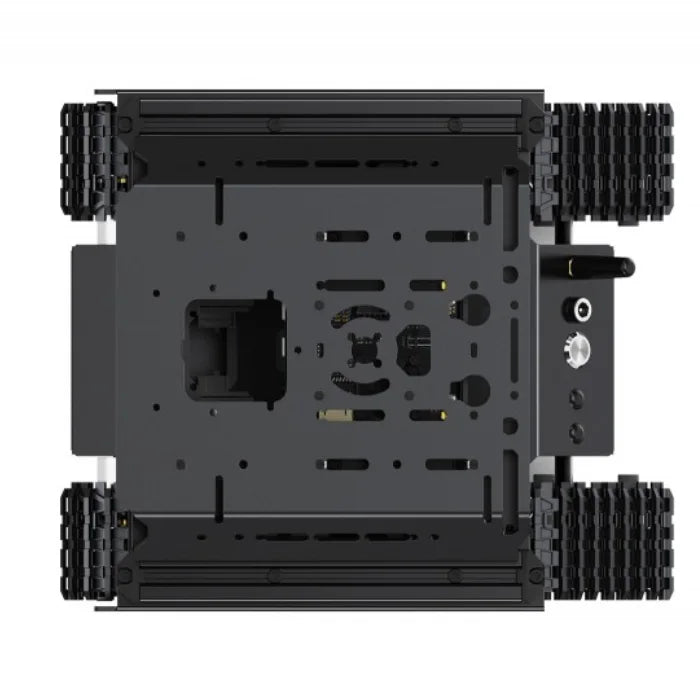

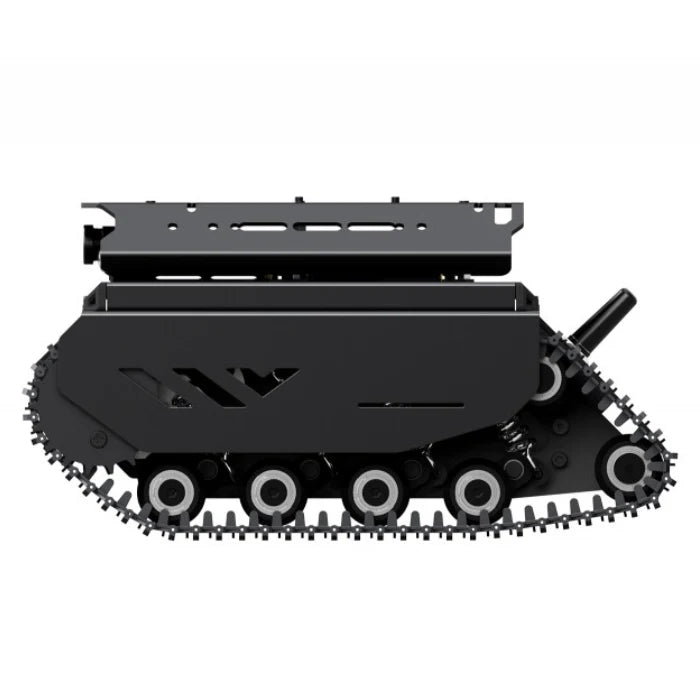

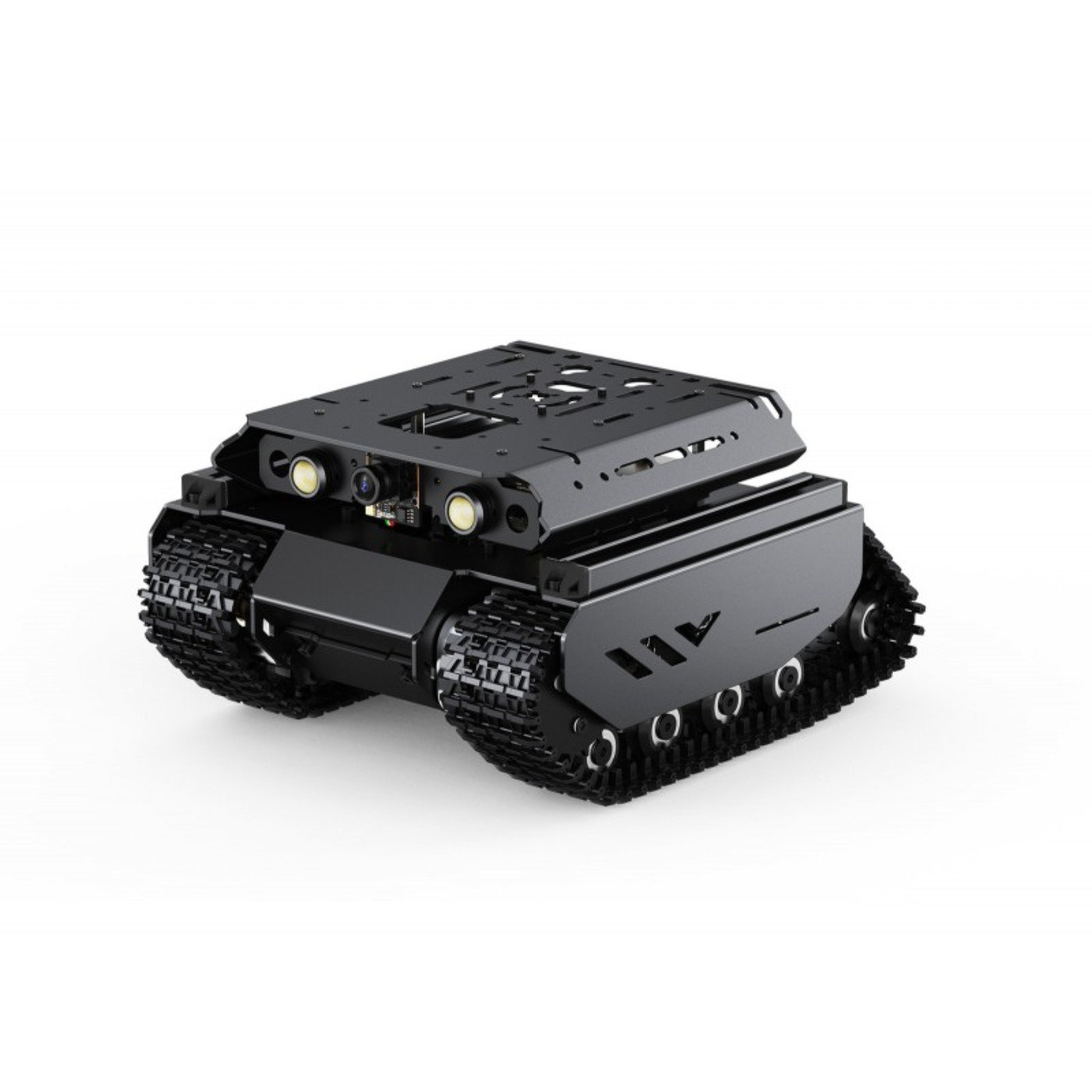

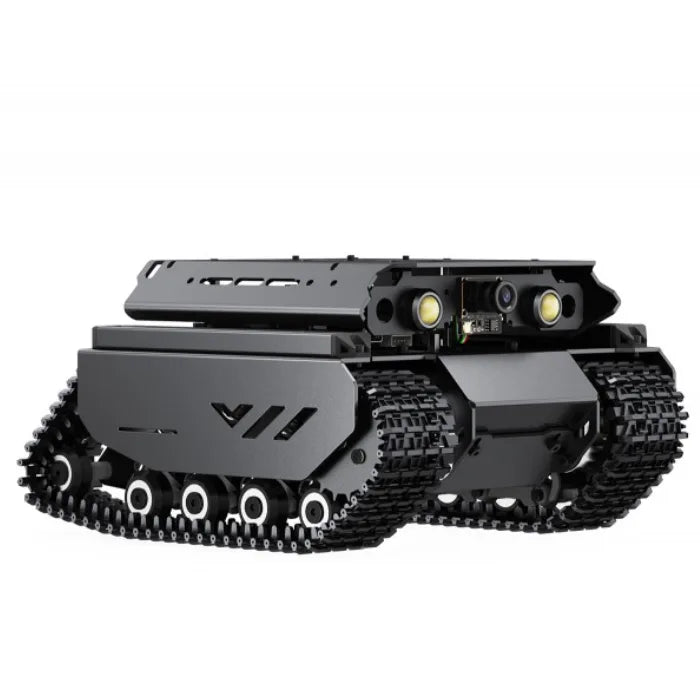

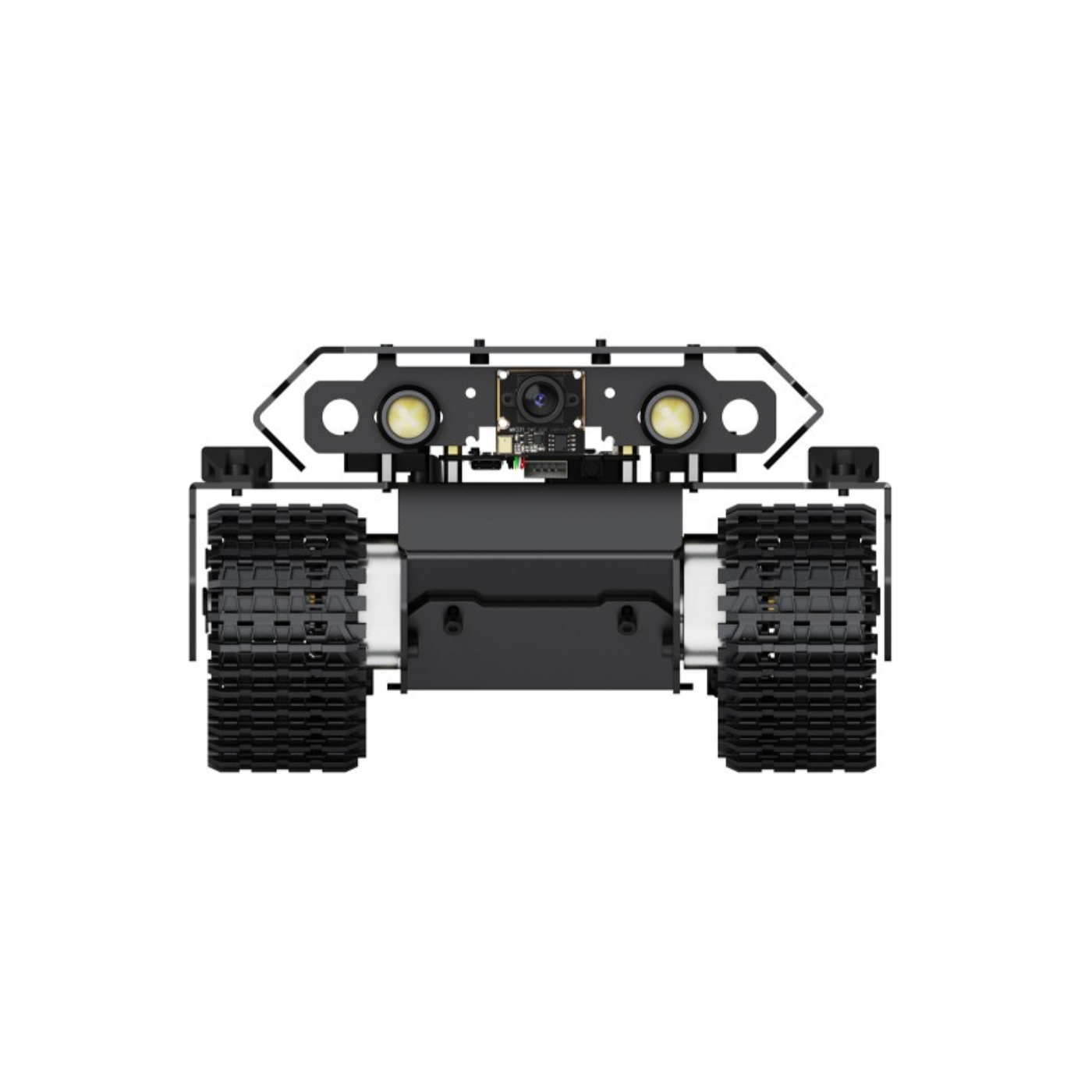

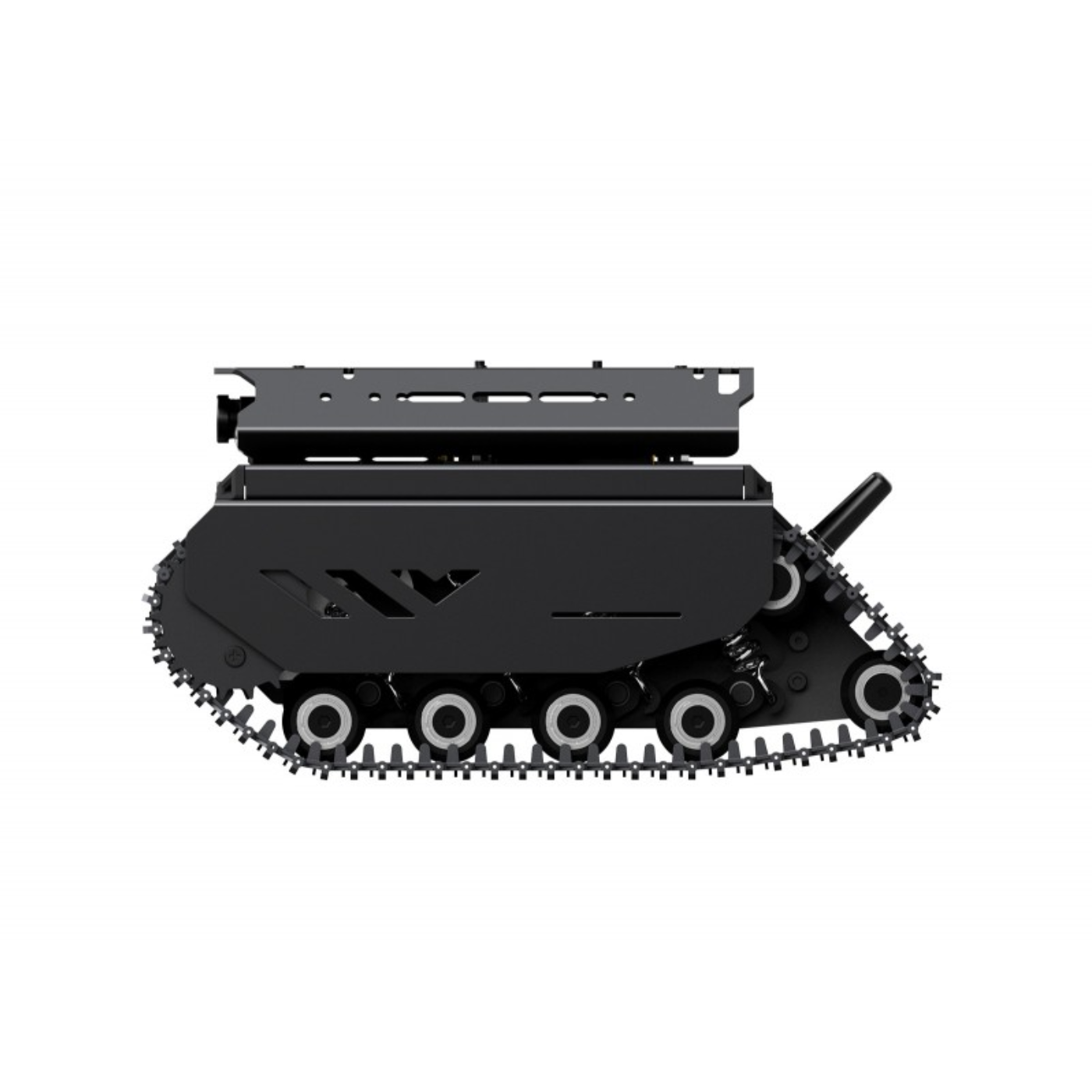

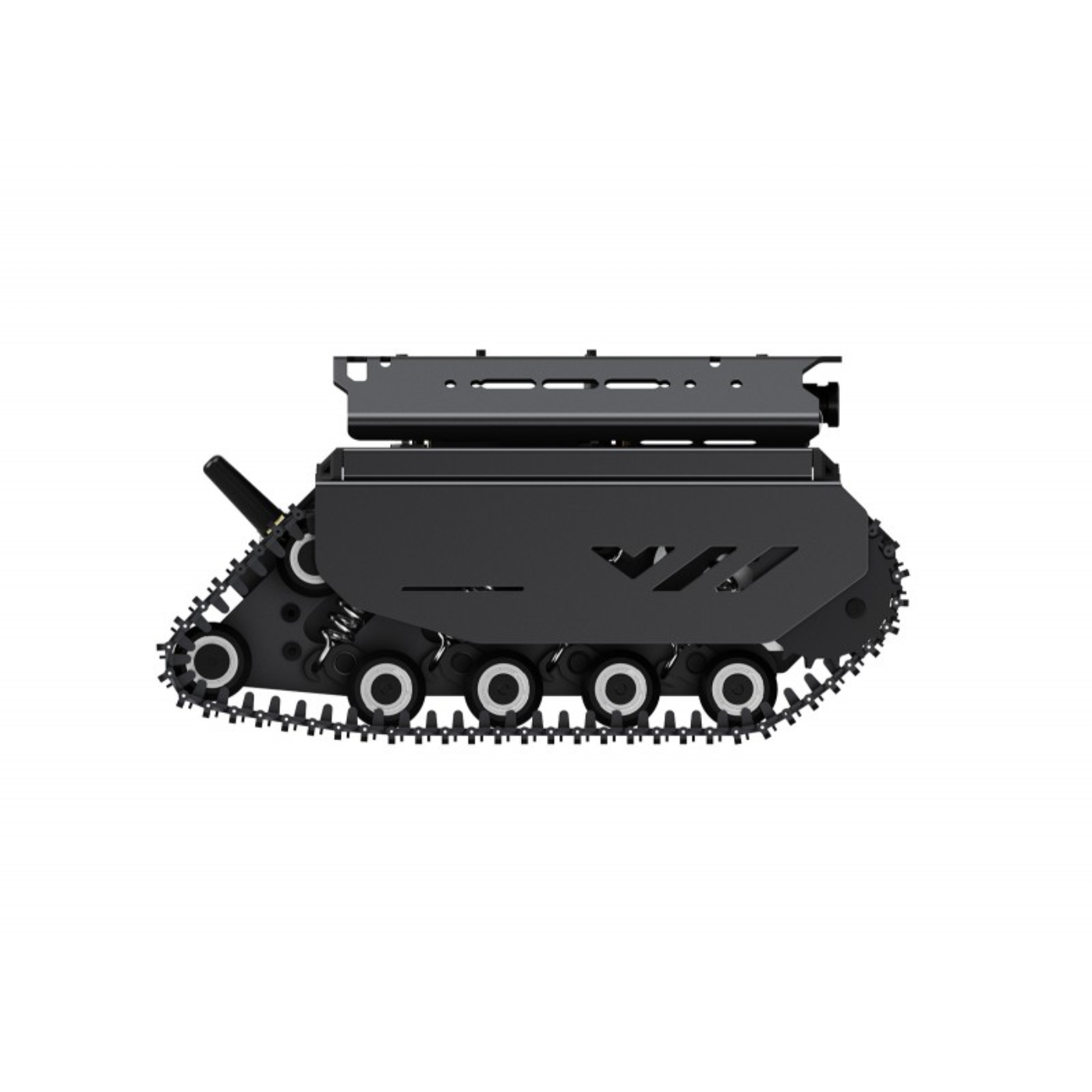

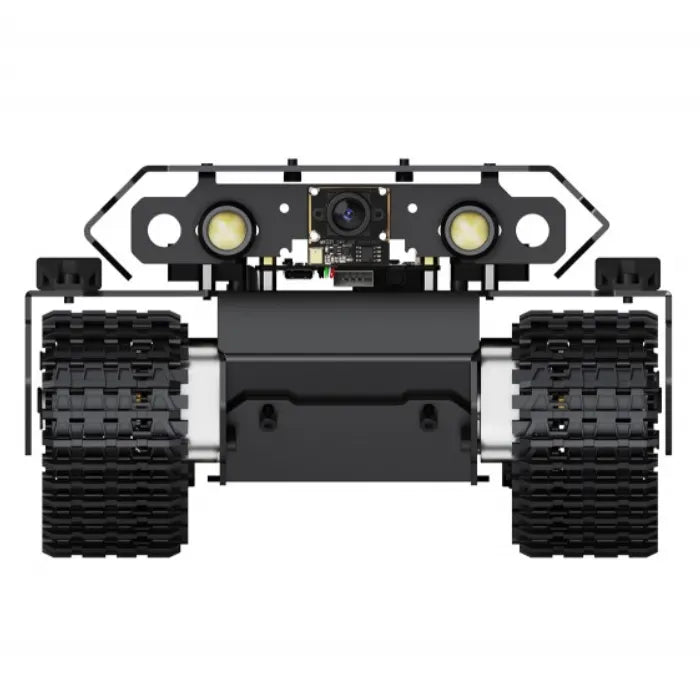

Waveshare UGV Beast Open-Source Off-Road AI Robot Chassis Kit Suitable for Raspberry Pi 4B/Pi 5 - PI4B AI Kit Acce
Couldn't load pickup availability
The UGV Beast is an advanced AI Robot Kit built for exploration and innovation, offering excellent expansion options. It’s an ideal DIY car kit for tech enthusiasts, makers, and beginners eager to explore intelligent robotics and STEM learning.
With a high-performance Raspberry Pi AI computer, it efficiently manages complex tasks while fostering creativity. Its dual-controller system combines AI vision processing in the host controller with high-speed operations in the sub-controller, ensuring precise and seamless performance.

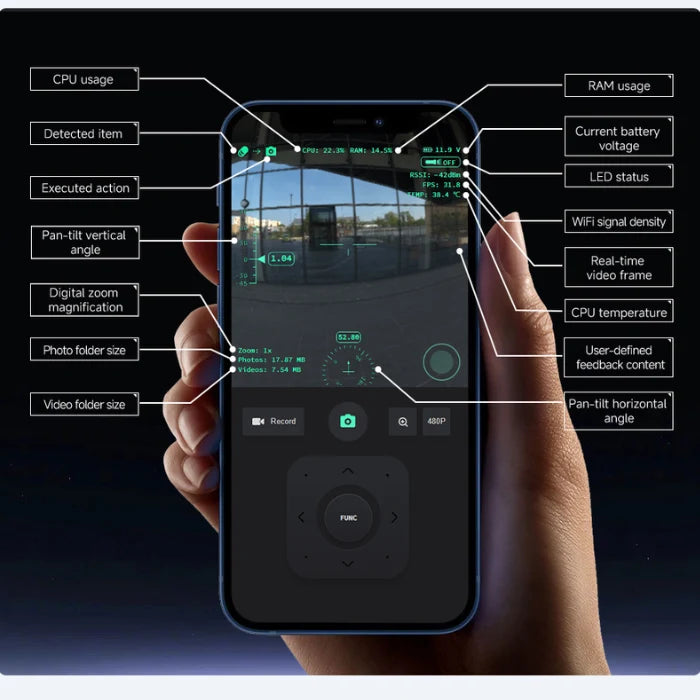

Featuring a durable robot car chassis kit, this STEM kit is perfect for robotics research, AI development, and secondary programming projects. Easily control it through a browser-based Web Application without installing any software. With real-time video streaming and AI-powered automation, the UGV Beast provides the perfect platform for bringing ideas to life.
Note: Raspberry Pi 4 is not included in the package. If you need it for advanced AI applications, you must purchase it separately.
Compatible with Raspberry Pi 4B, delivering high-performance computing for enhanced capabilities.
Uses only the UART interface for communication, keeping the 40PIN GPIO header available for additional peripherals and expansion.
Integrated audio driver board, dual-track speakers, and an onboard microphone. Includes a 3.5mm audio jack for text-to-speech and media playback.
Comes with a wireless gamepad for flexible operation. Connects via a USB receiver to a PC for remote control over the Internet. Open-source demos allow custom interaction methods
Features a high-efficiency onboard UPS module supporting simultaneous charging and discharging for continuous operation.
Supports larger lithium battery packs with an XH2.54 interface, offering a customizable power solution. Open-source drawings provide detailed dimension references.
Equipped with high-speed motors and high-frequency PID closed-loop speed control, ensuring fast response and smooth operation without burdening the host controller.
| Specification | Details |
|---|---|
| Model | UGV Beast PI4B AI Kit |
| Dimensions | 232 × 197 × 122 mm |
| Weight | 2034 ±5 g |
| Chassis Height | 26 mm |
| Host Controller | Raspberry Pi 4B - 4GB RAM (Not Included) |
| Host System Support | Debian Bookworm |
| ROS2 Version | ROS2-HUMBLE-LTS |
| Camera FOV | 160° |
| Power Supply | 3S UPS Module |
| Battery Support | 18650 lithium battery × 3 (NOT included) |
| Control Methods | Web application / Jupyter Lab interactive programming |
| Max Speed (Default) | 0.35 m/s |
| Number of Driving Wheels | 2 |
| Suspension Material | Stainless steel |
| Track Width | 40 mm |
| Minimum Turning Radius | 0M (In-situ rotation) |
