Designed for Raspberry Pi boards with a standard 40-pin GPIO header
Features an RP2040 dual-core microcontroller running up to 133 MHz
Supports 5V USB and 3.3–4.2V PH2.0 power input
Built-in PCF85063 RTC for accurate real-time clock information
Provides real-time voltage and current monitoring
Supports timed power on/off and safe shutdown functions
Includes anti-reverse and counter-current protection
Features an MP28167-A buck-boost DC chip for fast load transient response
Compact 56.5 × 65.0 mm board with 3.0 mm mounting holes

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare Power Management HAT (B) for Raspberry Pi – Power Management Module

~~Rs 3,679/-~~ Rs 2,389/-

Quantity:

Waveshare Power Management HAT (B) for Raspberry Pi – Power Management Module

~~Rs 3,679/-~~ Rs 2,389/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Waveshare Power Management HAT (B) for Raspberry Pi – Power Management Module

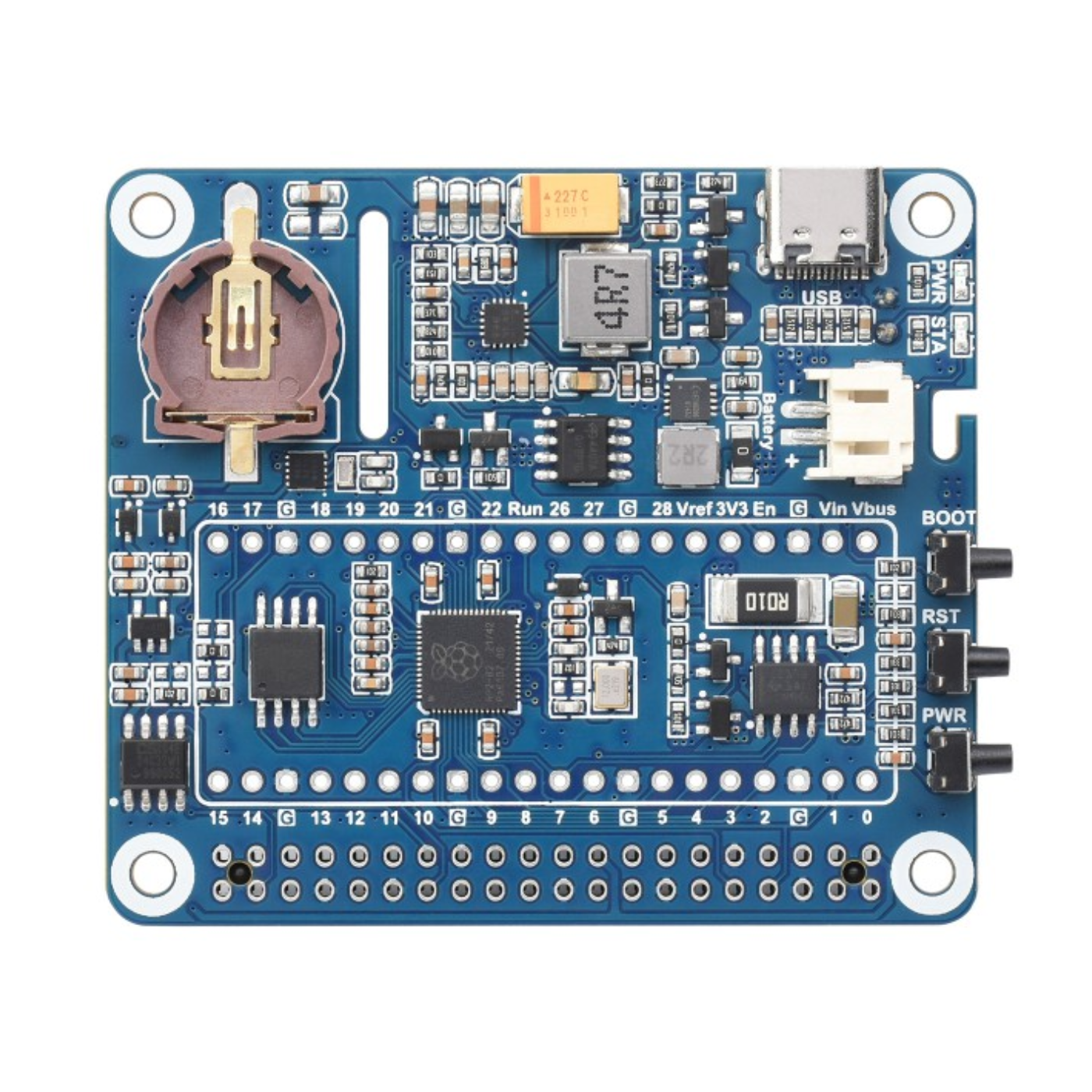

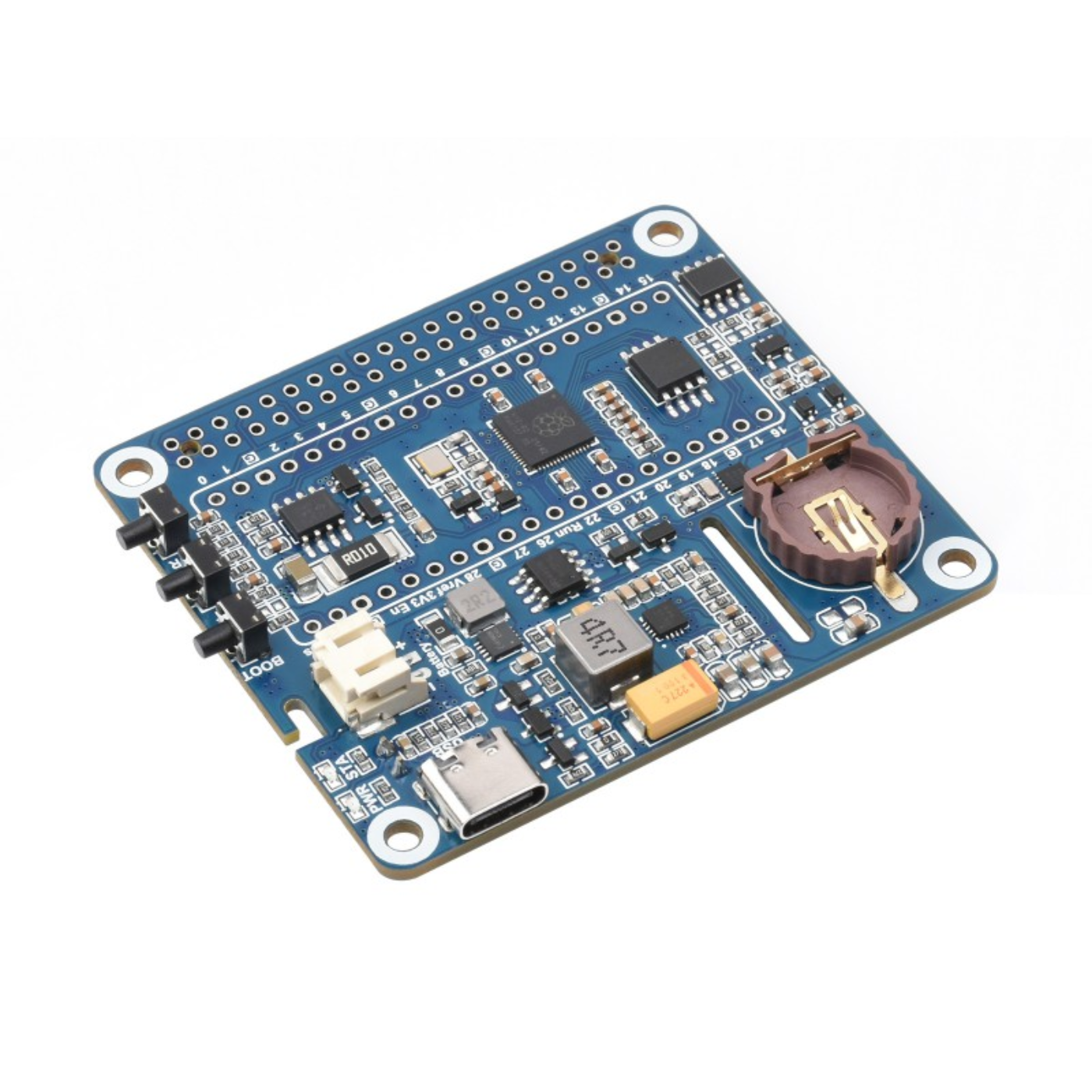

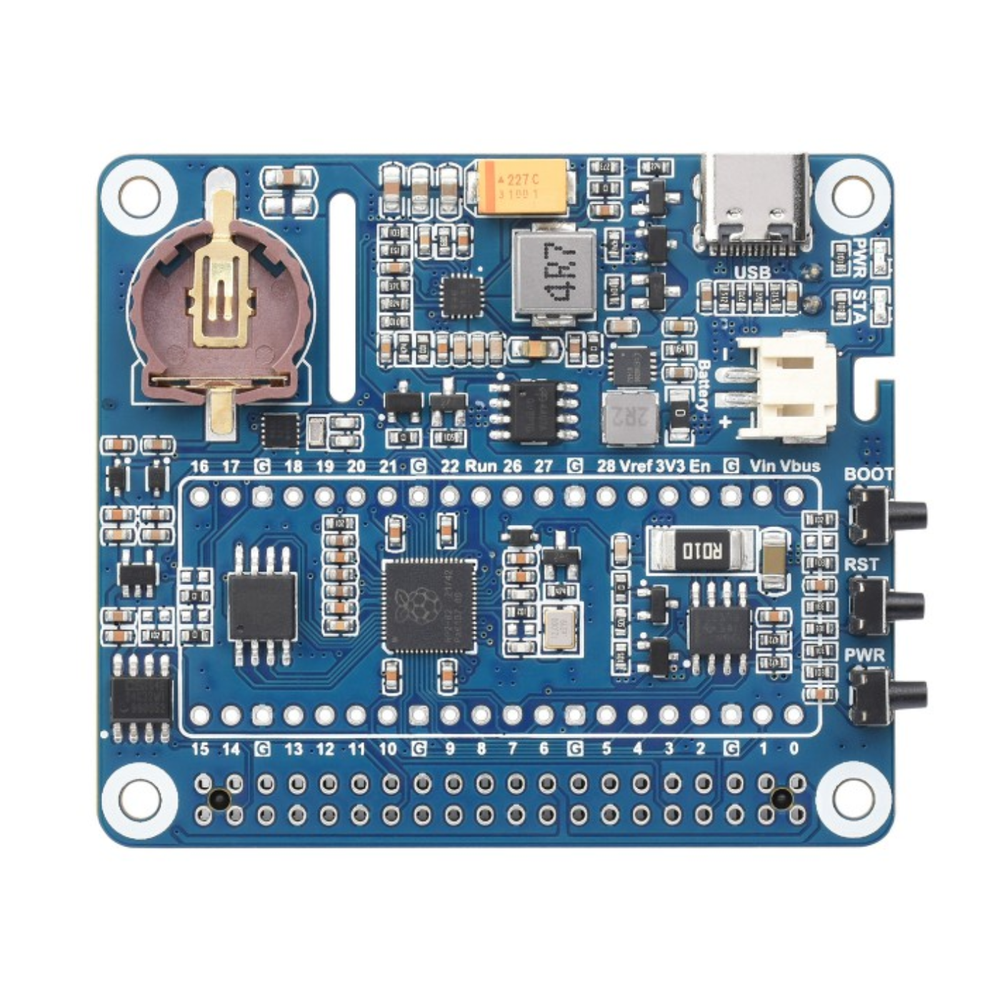

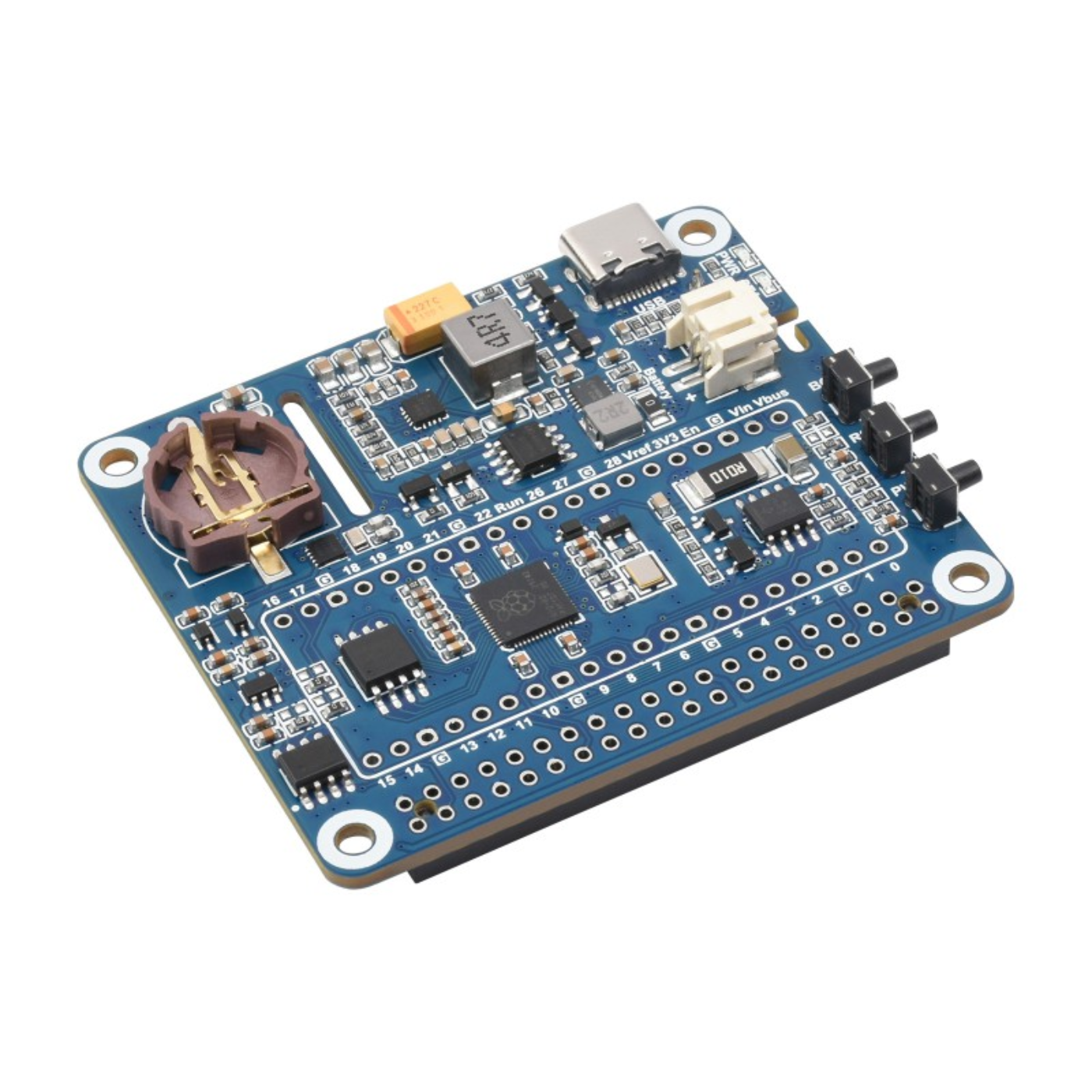

The Waveshare Power Management HAT (B) for Raspberry Pi is a compact power management and control board designed to provide more reliable and flexible power control for Raspberry Pi projects. It uses an RP2040 dual-core Arm Cortex M0+ processor with a clock speed of up to 133 MHz and communicates with the Raspberry Pi through UART + GPIO, with a default baud rate of 115200 bps.

The board supports 5V USB power input or 3.3–4.2V through the PH2.0 connector, suitable for a 3.7V lithium battery. Its onboard PCF85063 RTC provides accurate timekeeping, while the MP28167-A buck-boost DC chip enables fast load transient response when switching between power sources.

A dedicated voltage/current monitoring circuit allows the Raspberry Pi operating voltage and current to be monitored in real time. The HAT also includes power supply anti-reverse and counter-current protection, along with a user-defined button for functions such as startup and safe shutdown.

Measuring 56.5 × 65.0 mm with 3.0 mm mounting holes, this Raspberry Pi power management HAT is well suited for embedded systems, automation projects, portable Raspberry Pi applications, and projects that require controlled power operation.

Features:

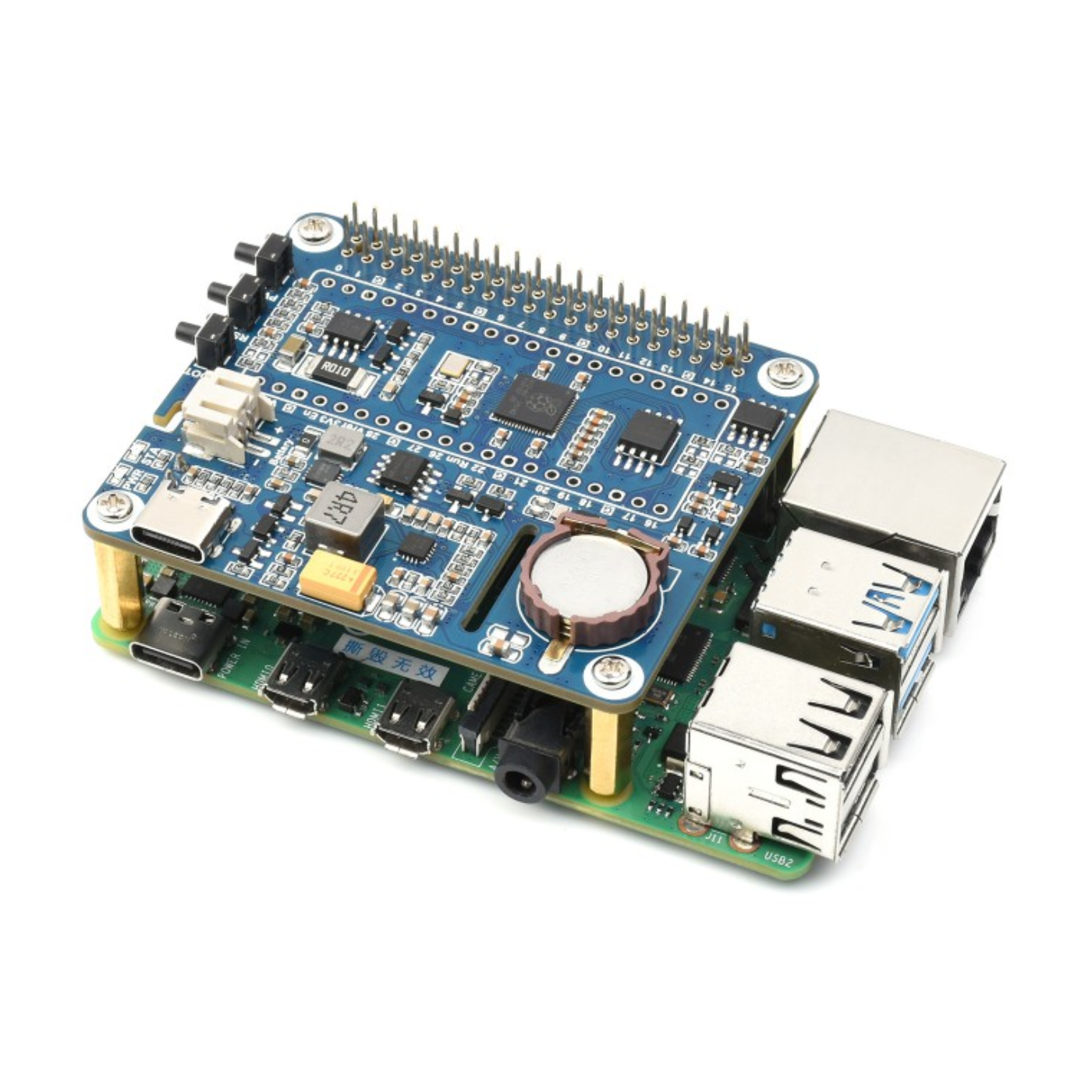

Standard Raspberry Pi 40PIN GPIO extension header, supports the Raspberry Pi series boards.
Dual-core Arm Cortex M0+ CPU with variable clock speeds of up to 133 MHz.
The onboard PCF8523 RTC chip offers exact RTC information.
Onboard MP28167-A buck-boost DC chip for rapid load transient response.
Onboard user-defined button, can be used for Raspberry Pi start up, safety shutdown, or other customized functions.
Protection circuits, such as power supply anti-reverse, counter current proof, etc., ensure steady and safe operation.
The voltage/current monitoring circuit monitors the Raspberry Pi's operating voltage and current in real time.
Includes entire materials and handbook.

Specifications

Package Includes:

1 x Power Management HAT (B)
1 x 2x20PIN female header
1 x USB cable type A male port to Type C male port
1 x Screws pack

Specifications:

Specification	Details
Main Controller	RP2040
Communication Interface	UART + GPIO
Communication Baud Rate	115200 bps by default (configurable)
Power Supply Interface	USB port or PH2.0 connector
USB Power Input Voltage	5V
PH2.0 Power Input Voltage	3.3 ~ 4.2V (3.7V lithium battery)
Embedded Circuits	Battery anti-reverse, counter-current protection, voltage/current monitoring

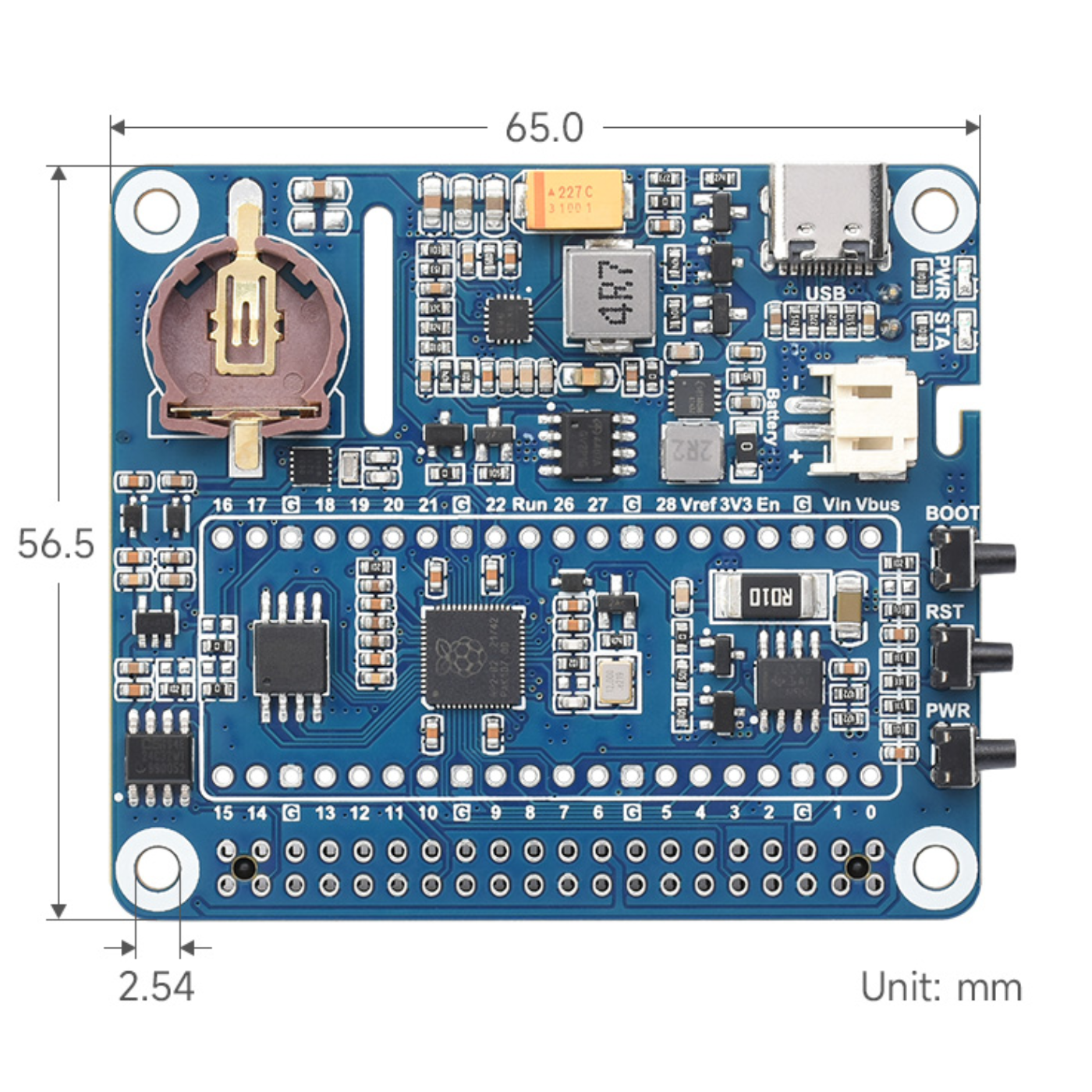

Dimensions	56.5 × 65.0 mm
Mounting Hole Diameter	3.0 mm
