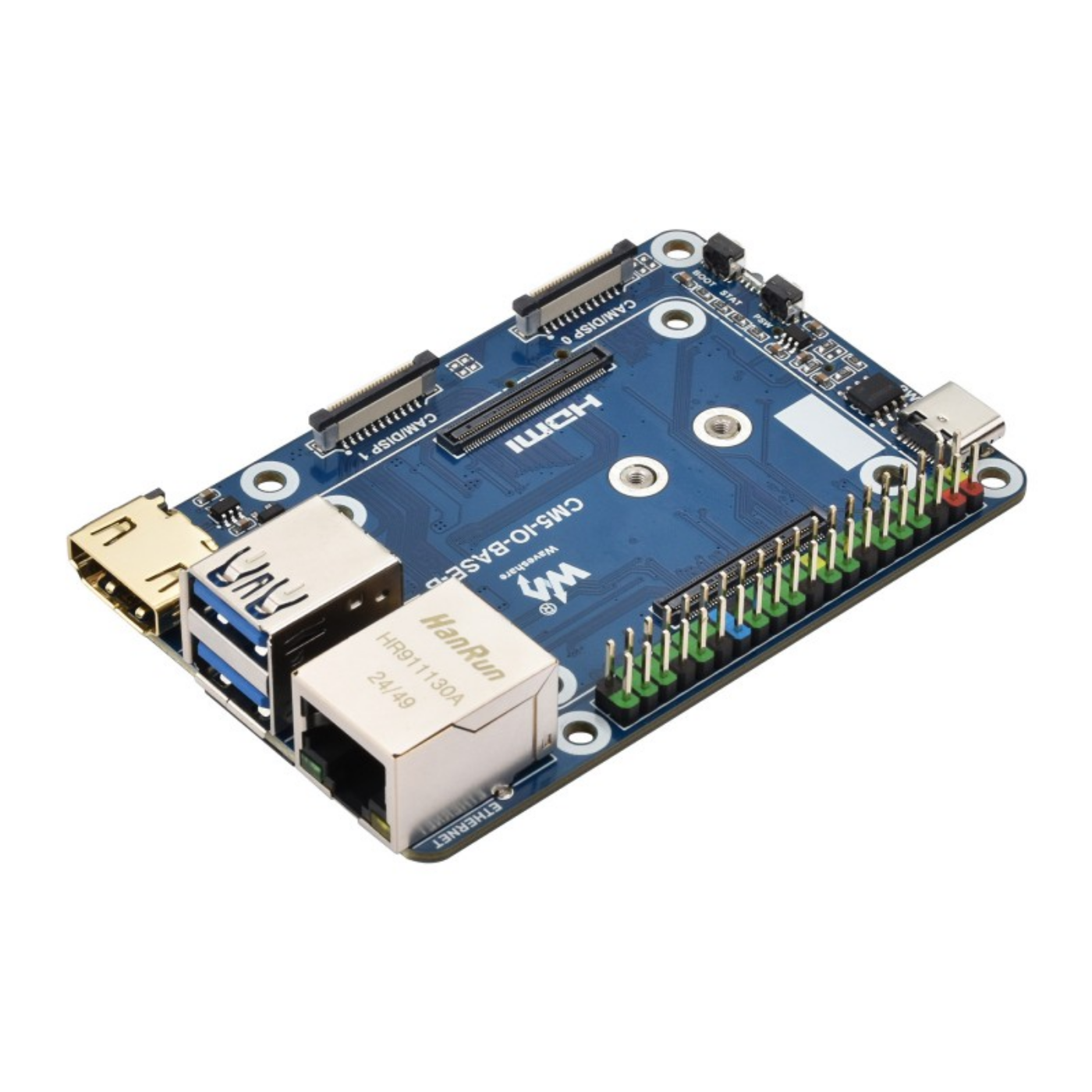

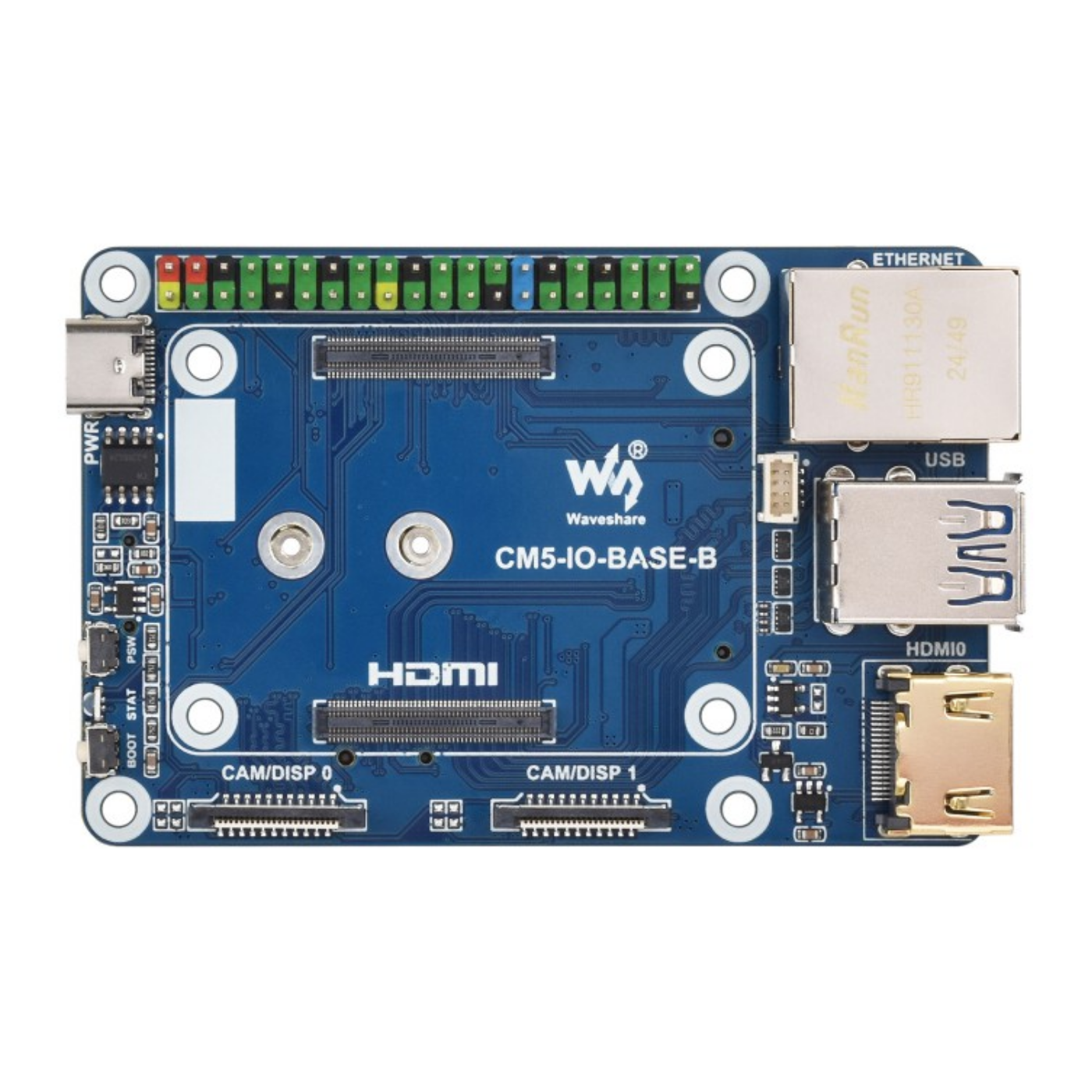

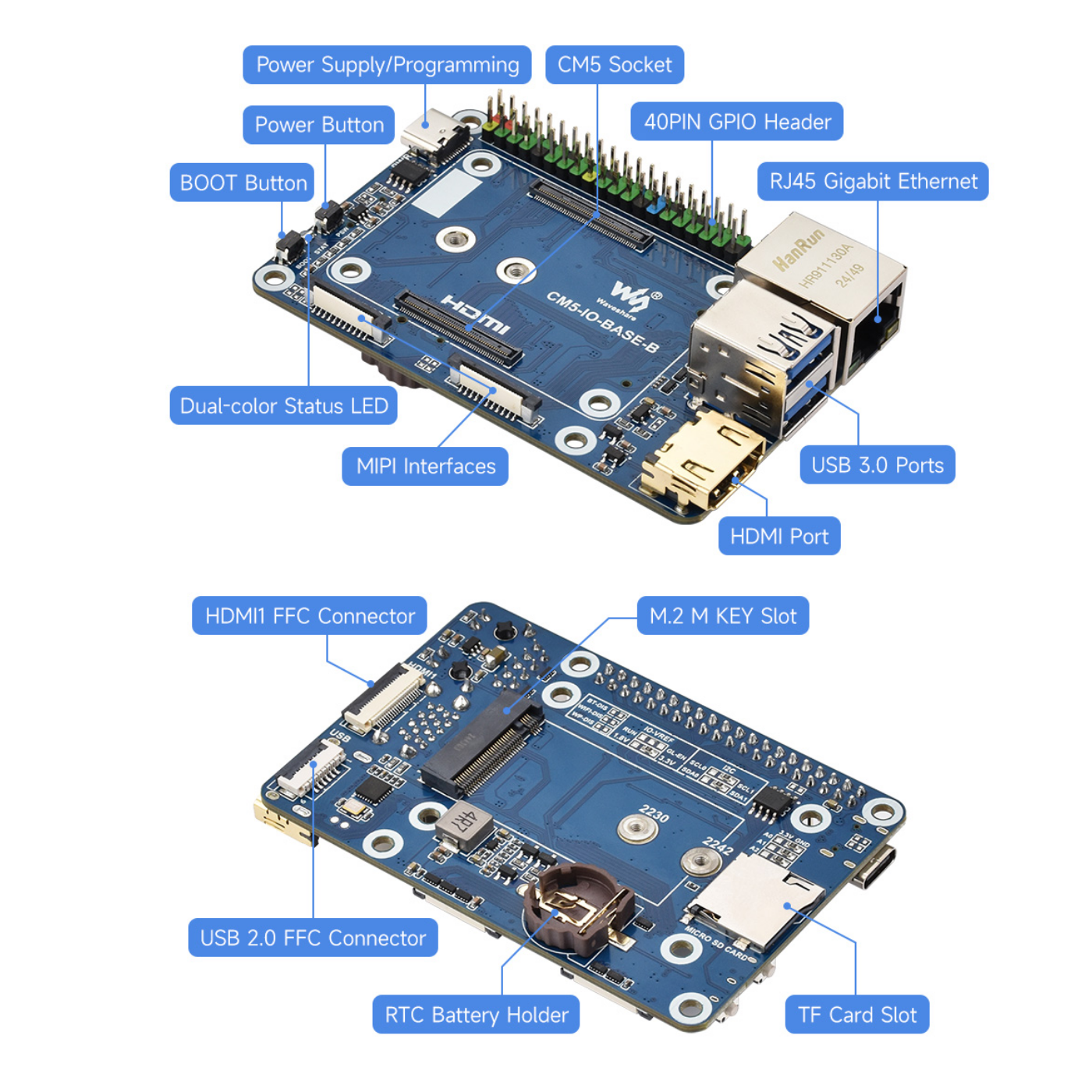

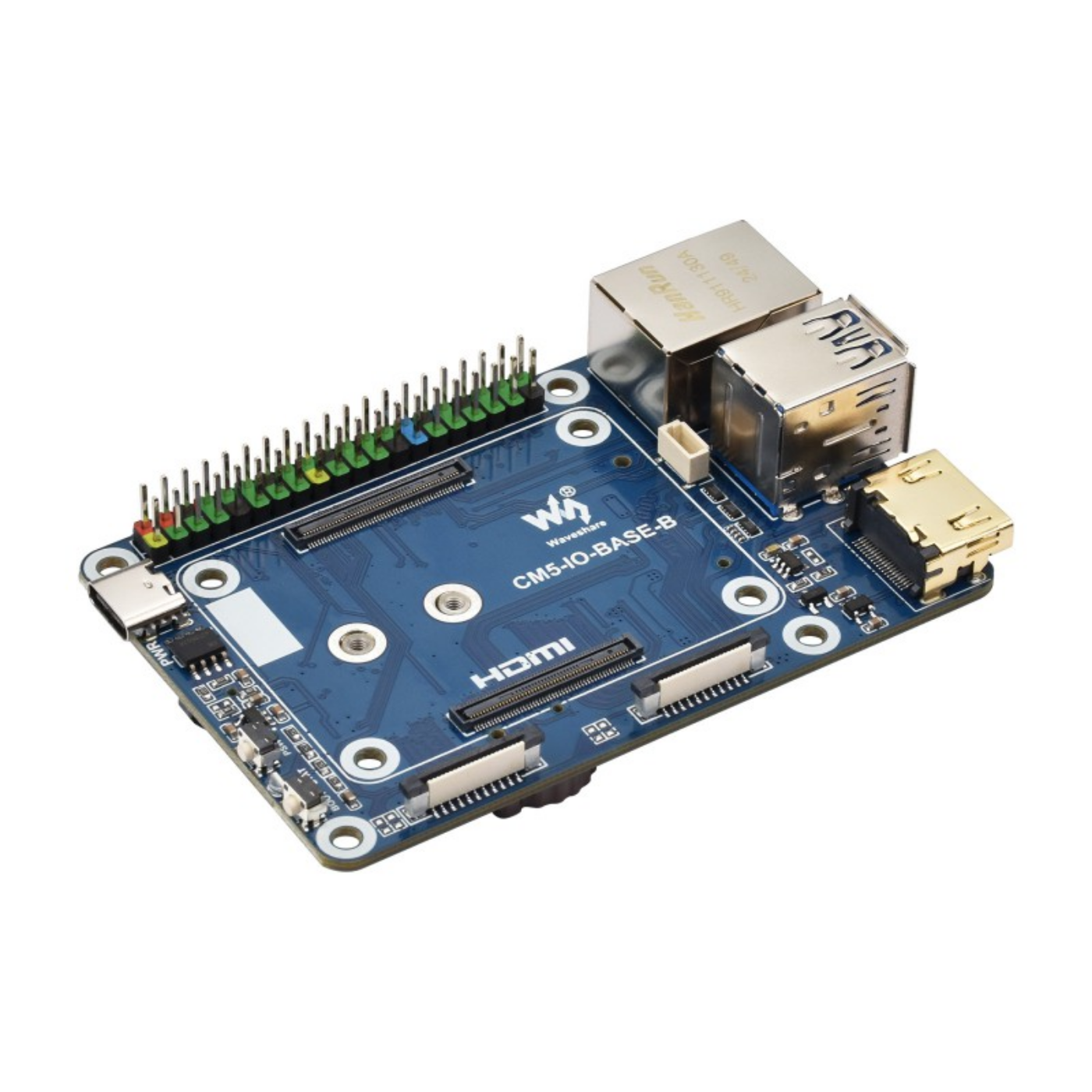

The Waveshare Mini Base Board (B) for Raspberry Pi Compute Module 5, also known as the CM5-IO-BASE-B, is a compact and feature-rich expansion board designed to turn the Raspberry Pi Compute Module 5 into a versatile mini-computer. It supports all variants of the Raspberry Pi CM5 and provides a wide range of connectivity options, including two USB 3.2 Gen 1 ports, USB 2.0, Gigabit Ethernet, a 40-pin GPIO header, dual MIPI interfaces, and dual 4K display outputs.

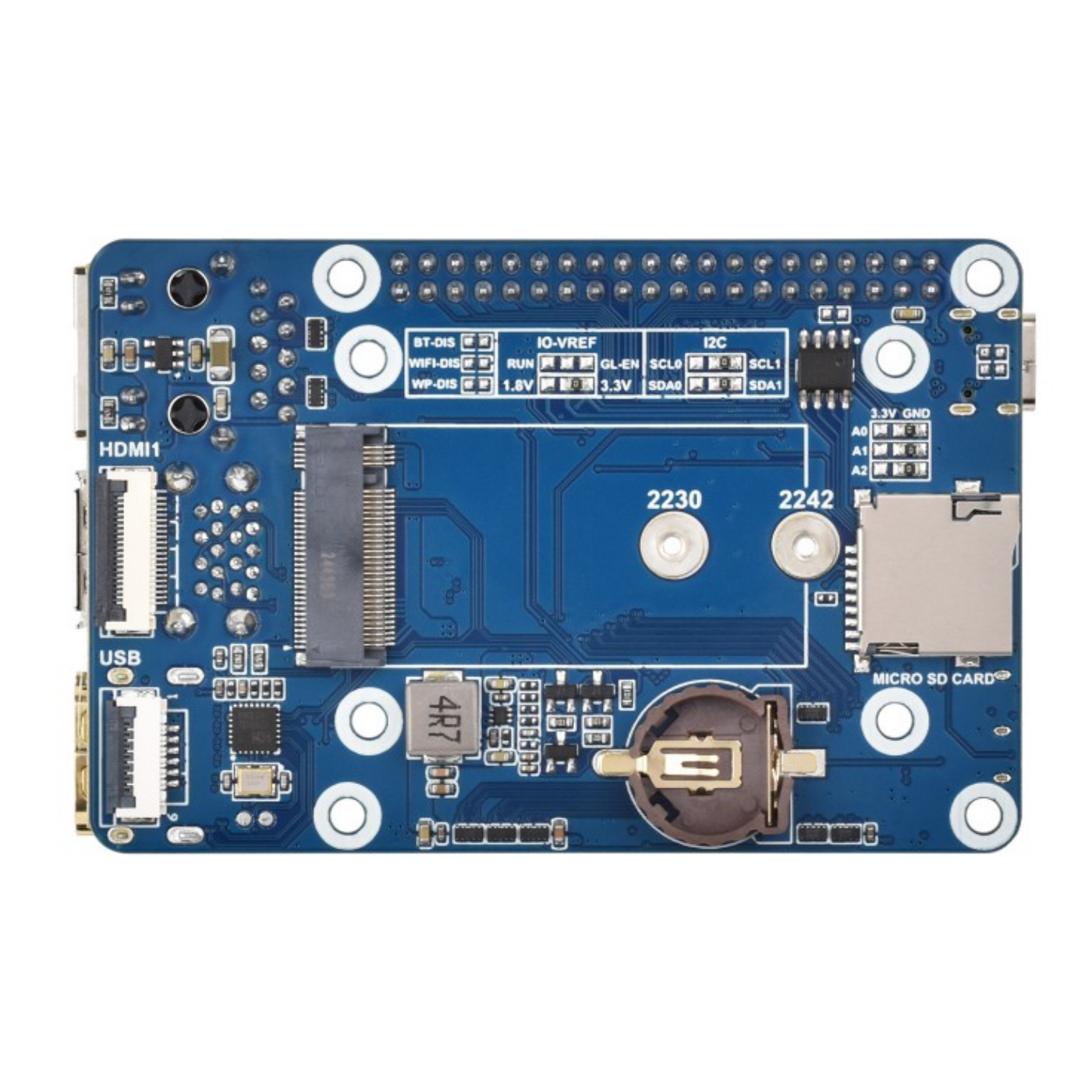

The board also features an M.2 M-Key slot for 2230/2242 NVMe SSDs, a TF card slot for CM5 Lite variants, a PWM cooling fan header, RTC battery holder, and onboard EEPROM and ATSHA204 encryption chip. With its compact 85 × 56 mm form factor, this Raspberry Pi Compute Module 5 base board is well suited for embedded systems, edge computing, robotics, IoT applications, development projects, and custom Raspberry Pi-based computing solutions.
| Specification | Details |
|---|---|
| CM5 Socket | Suitable for all variants of Raspberry Pi Compute Module 5 |
| Networking | Gigabit Ethernet RJ45 connector |
| Storage Interface | M.2 M-Key slot, supports 2230 / 2242 SSDs |
| GPIO | Raspberry Pi 40-pin GPIO header |
| USB | 2 × USB 3.2 Gen 1 Type-A; 2 × USB 2.0 via 6-pin 1 mm FFC connector |
| MIPI | 2 × 4-lane MIPI interfaces via 22-pin 0.5 mm FFC connectors |
| Video Output | 2 × HDMI ports, including 1 via FFC connector; supports dual 4K output |
| Storage | TF card slot for Compute Module 5 Lite variants without eMMC |
| Fan Header | 5V, 4-pin JST-SH PWM connector |
| Others | Onboard EEPROM and encryption chip |
| Power Input | DC 5V / 5A |

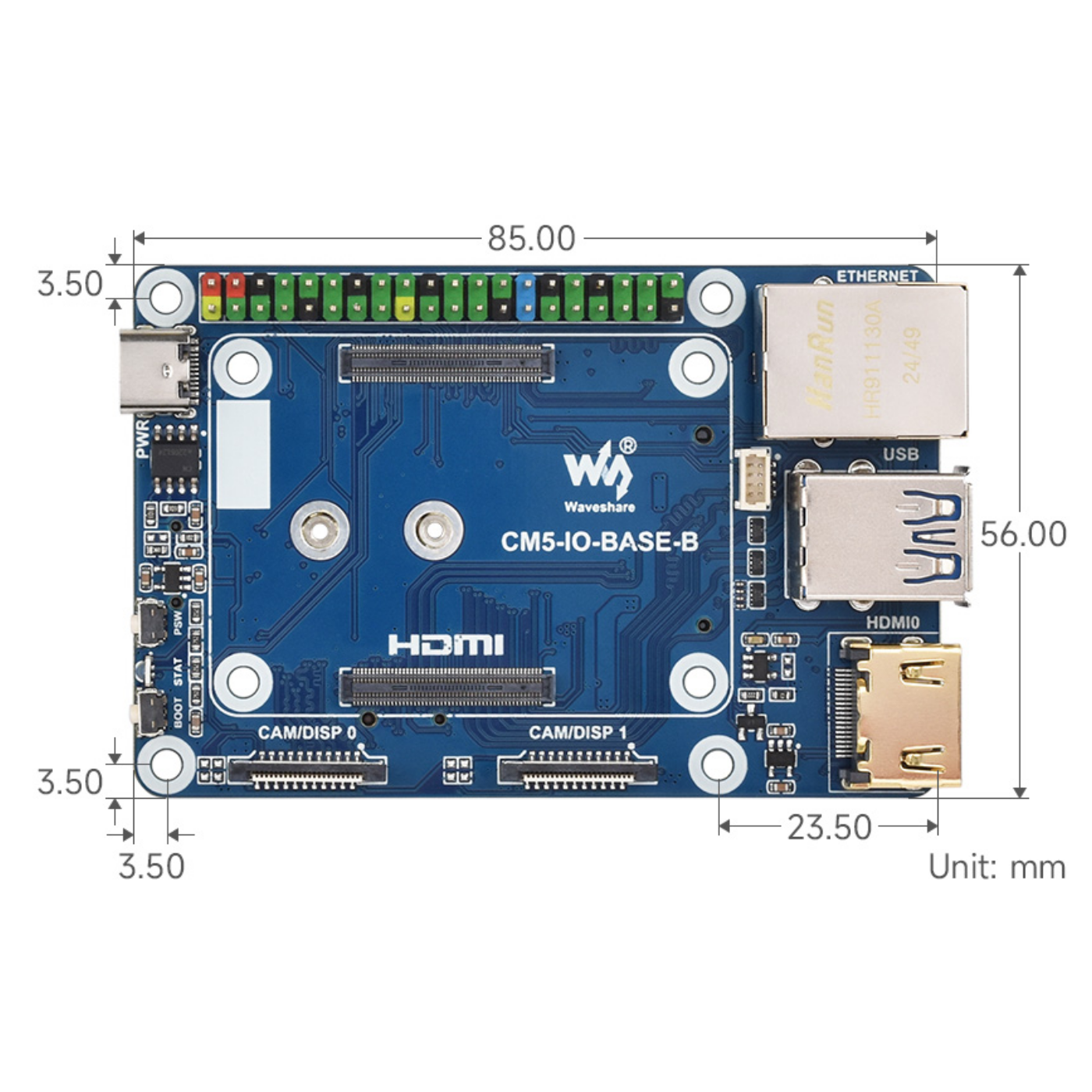

| Dimensions | Base board: 85 × 56 mm |
| Dimensions with Metal Case | 90 × 68 mm |
