Waveshare Jetson Orin Nano & Orin NX Dual Ethernet Base Board
Waveshare Jetson Orin Nano & Orin NX Dual Ethernet Base Board
Waveshare Jetson Orin Nano & Orin NX Dual Ethernet Base Board

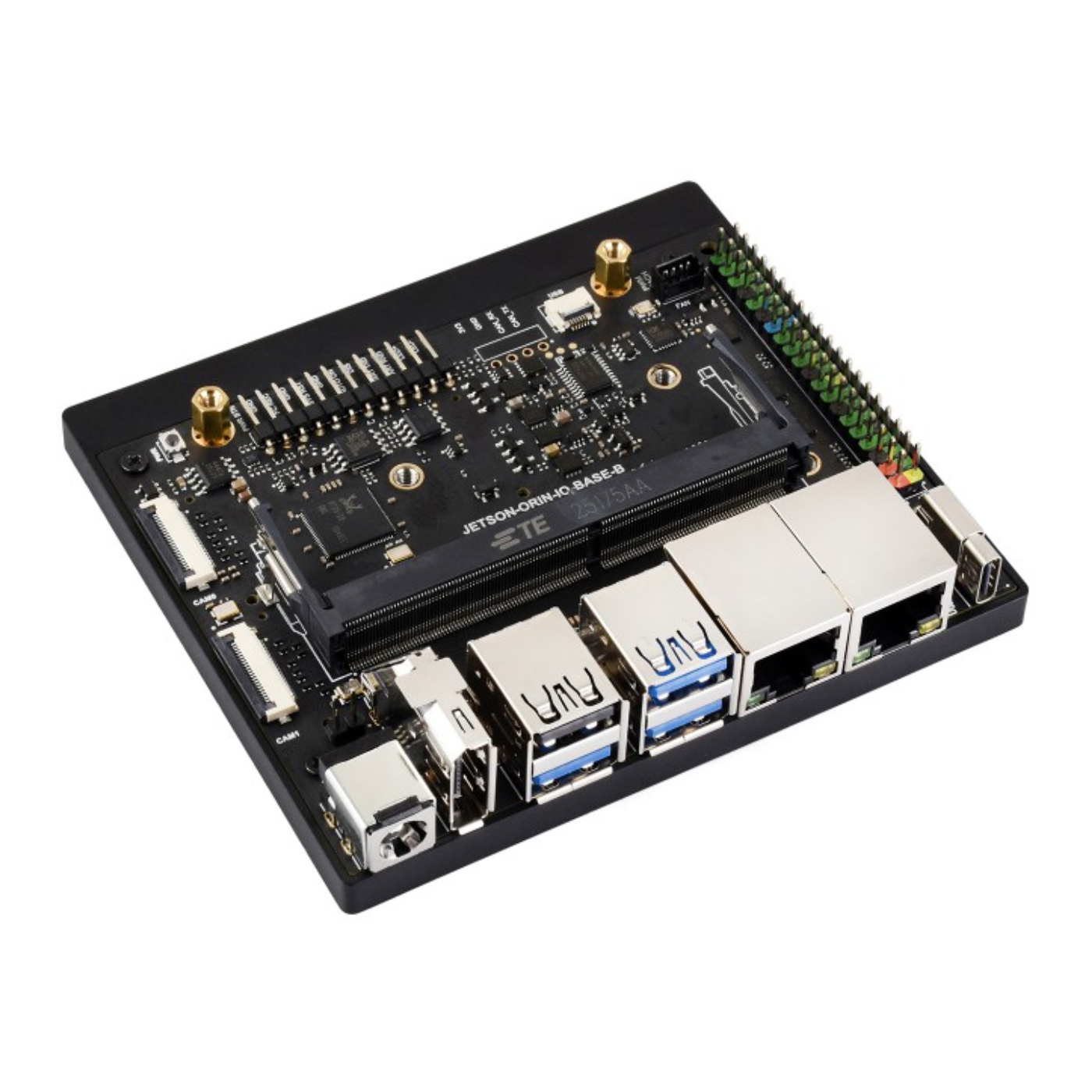

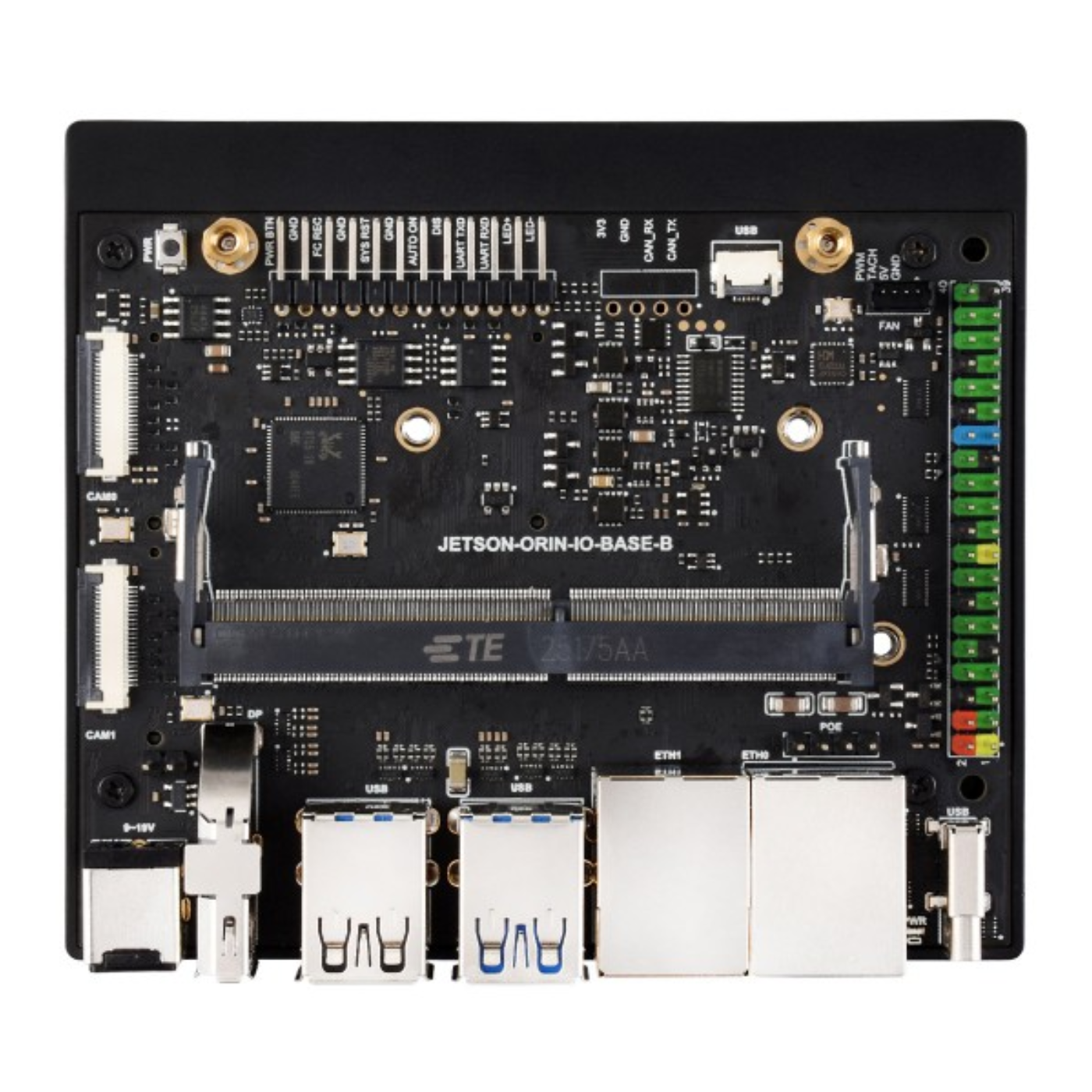

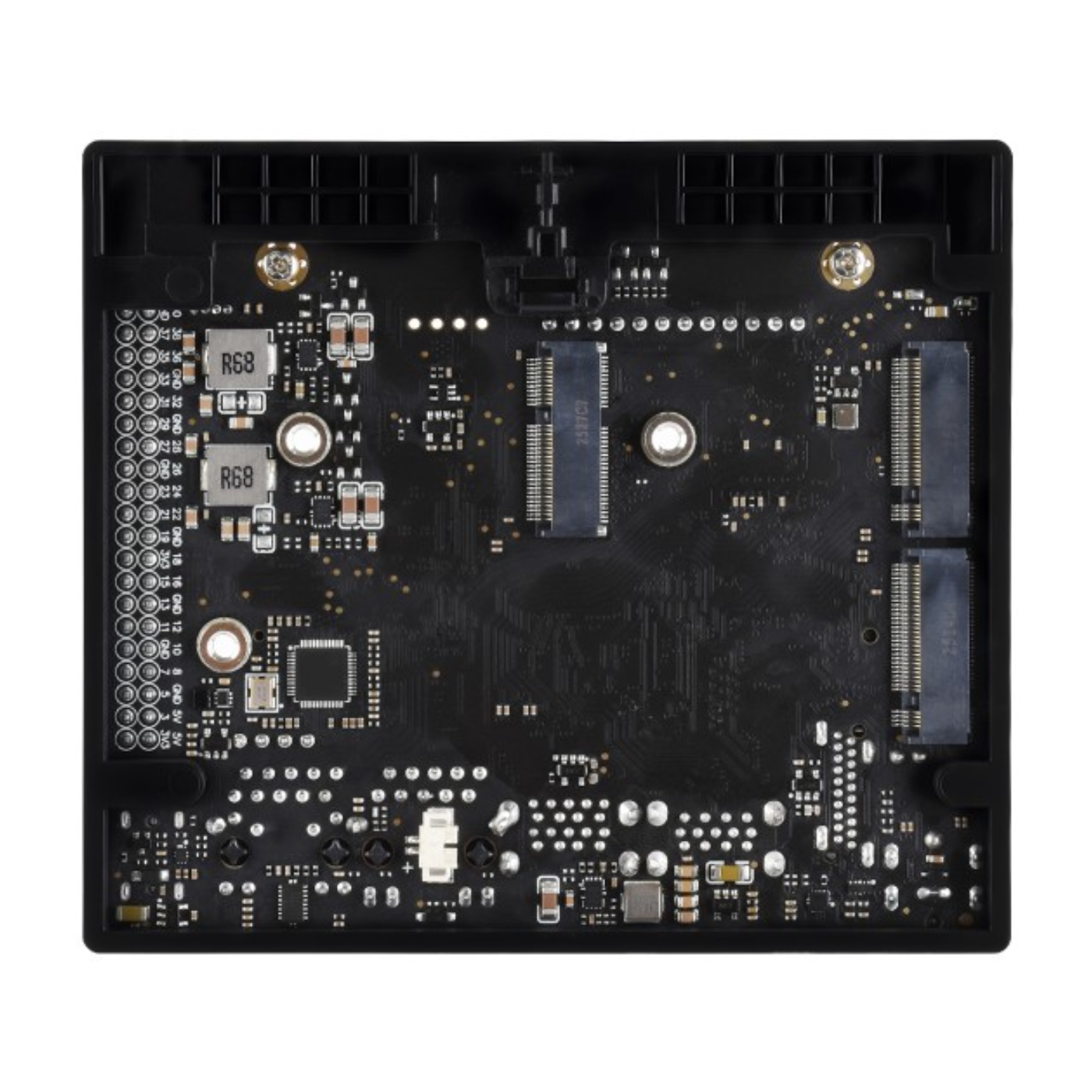

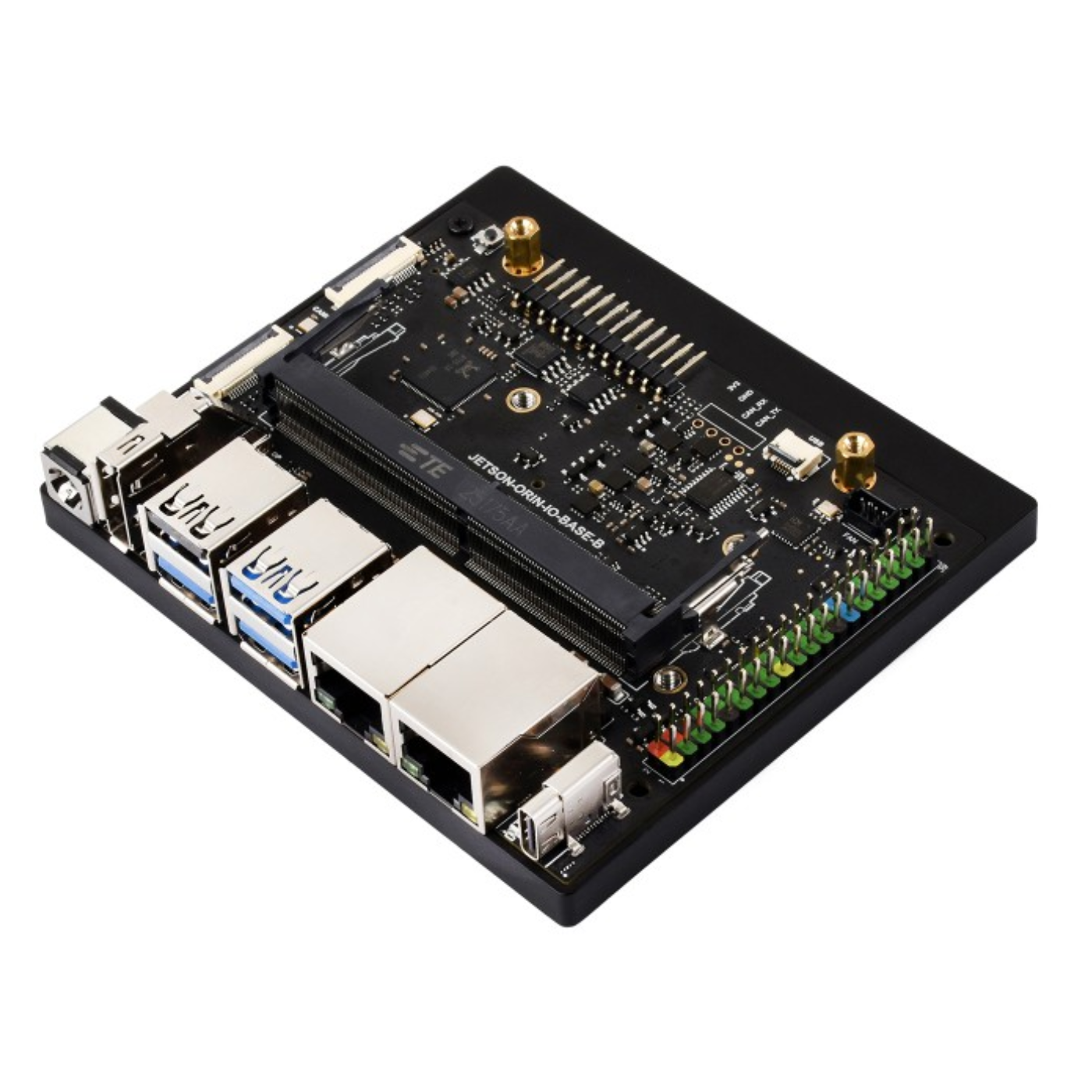

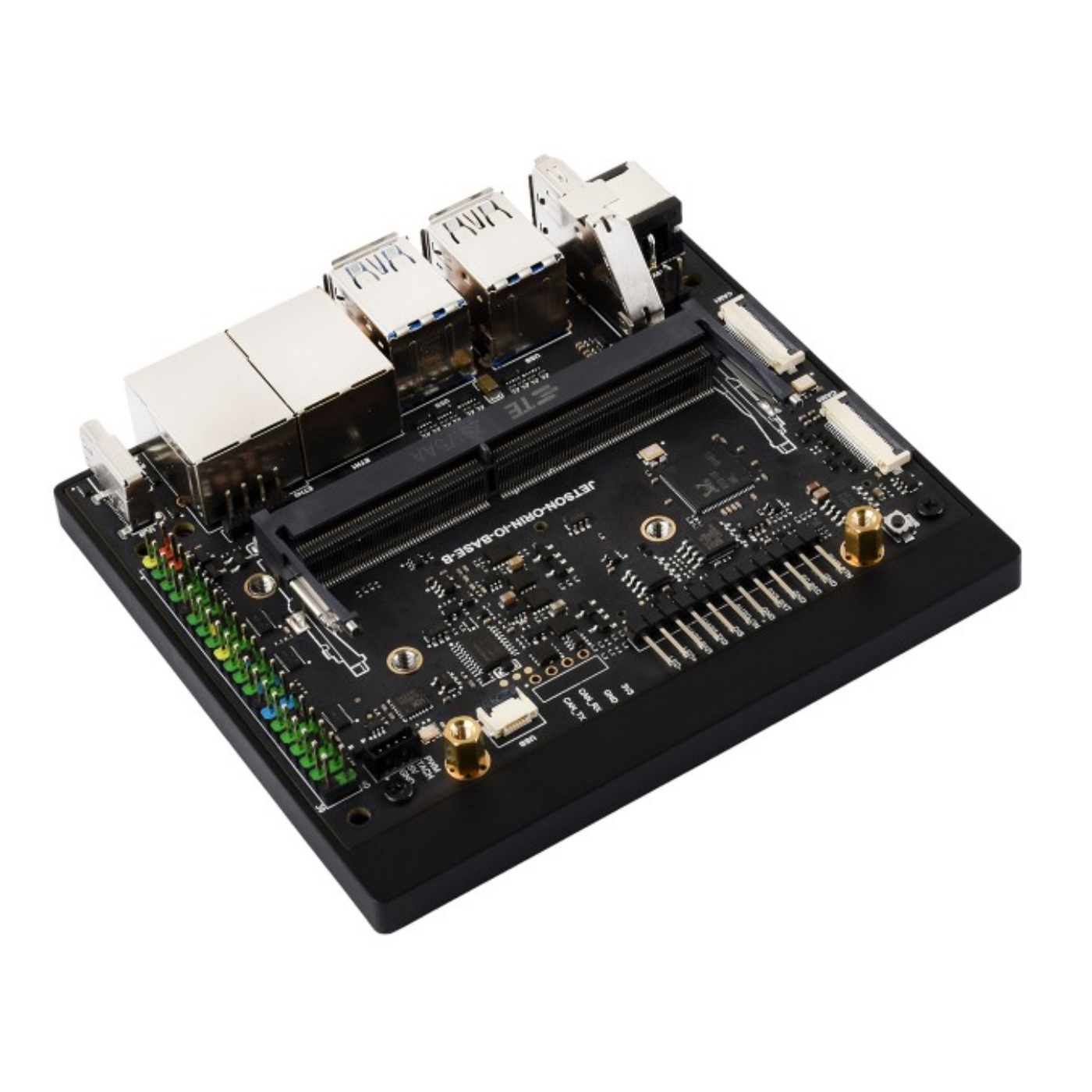

The main function of the Waveshare Jetson Orin Dual Ethernet Base Board is to act as a carrier and expansion board for Jetson Orin Nano and Jetson Orin NX modules, providing essential interfaces for networking, cameras, storage, USB peripherals, displays, wireless connectivity, and GPIO-based hardware control.
Its dual Ethernet ports, multiple camera interfaces, NVMe expansion, and extensive I/O make it particularly suitable for edge AI, computer vision, robotics, autonomous systems, and industrial embedded applications.
Features:
- Supports NVIDIA Jetson Orin Nano and Orin NX modules.
- Includes 1 × 2.5Gbps RJ45 and 1 × Gigabit Ethernet port for reliable networking.
- Offers 3 × USB 3.2 Gen 2 ports with up to 10Gbps data transfer.
- Features 2 × 22-pin MIPI CSI 4-lane interfaces for AI vision and camera applications.
- Provides 2 × M.2 Key M slots for high-speed NVMe SSD storage.
- Supports 4K video output through the DisplayPort interface.
- Provides I²C, SPI, I²S, UART, and GPIO interfaces for hardware expansion.
- Supports 9V–19V DC input for flexible embedded and robotics applications.
Package Includes:
- 1 x JETSON-ORIN-IO-BASE-B
- 1 x Screws pack
Specifications:
| Specification | Details |
|---|---|
| Compatible Modules | Jetson Orin Nano, Jetson Orin NX |
| Ethernet | 2.5G + Gigabit Ethernet |
| USB | USB 3.2 Gen 2, USB 2.0, USB Type-C |
| Camera Interface | 2 × MIPI CSI |
| Storage | 2 × M.2 Key M |
| Expansion | 40-Pin GPIO, M.2 Key E |
| Display | DisplayPort, up to 4K |
| Power Input | 9V–19V DC |

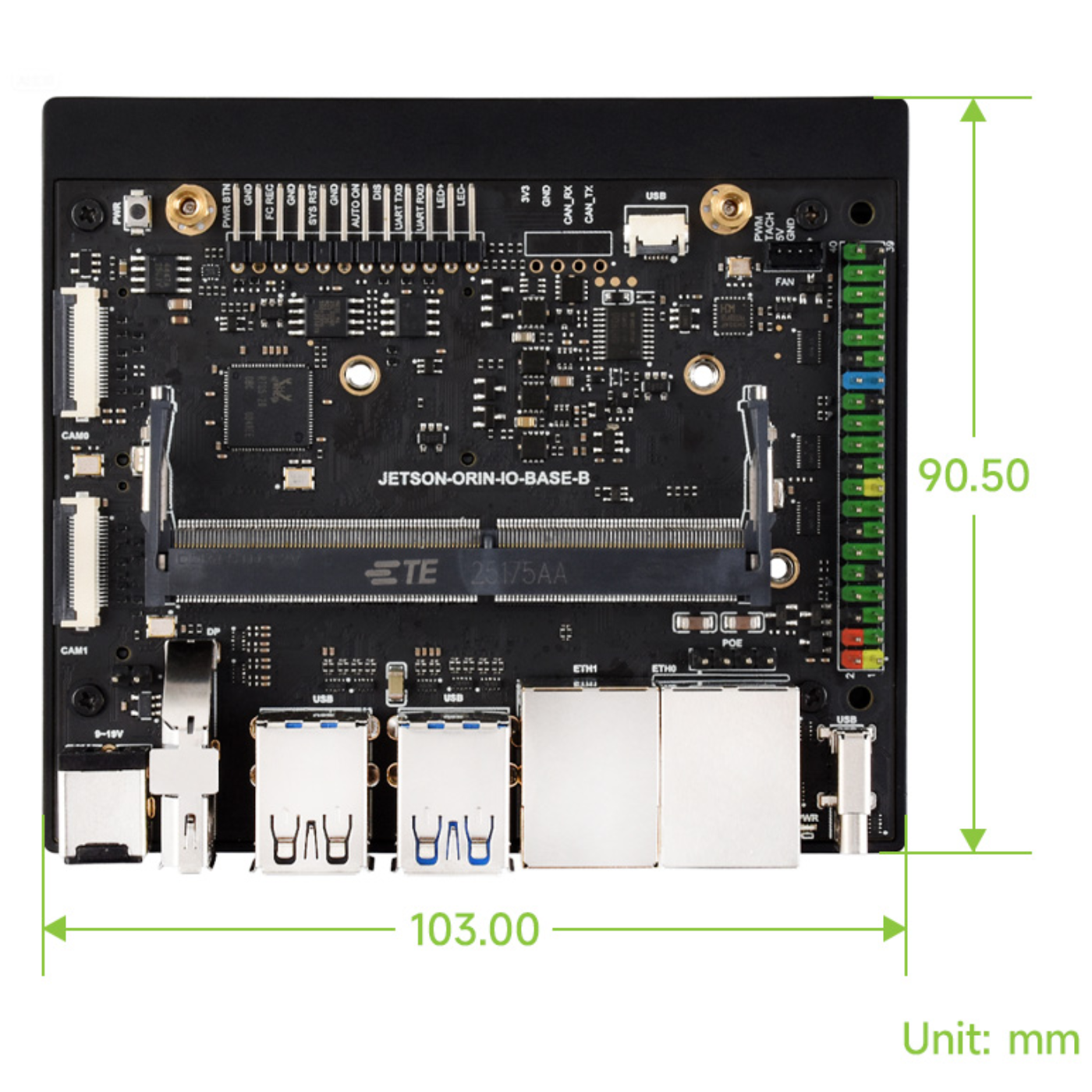

| Board Size | 90.5 × 103 mm |
