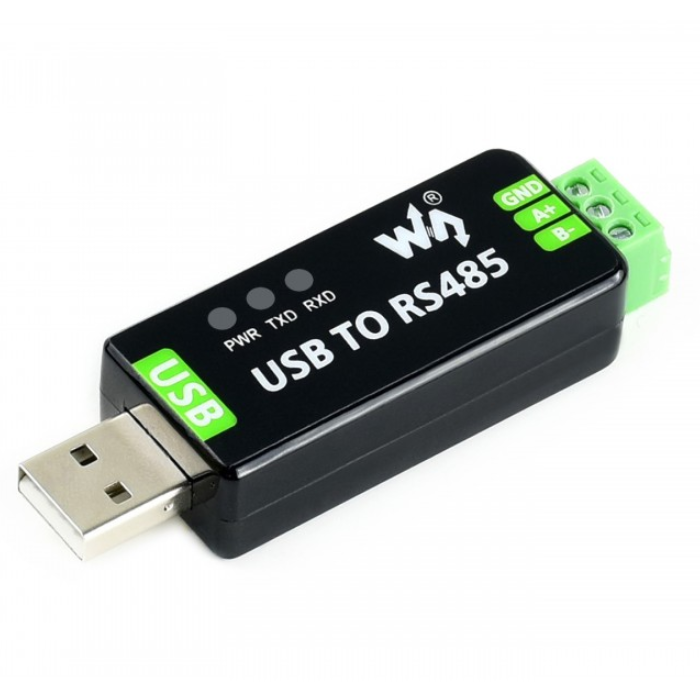

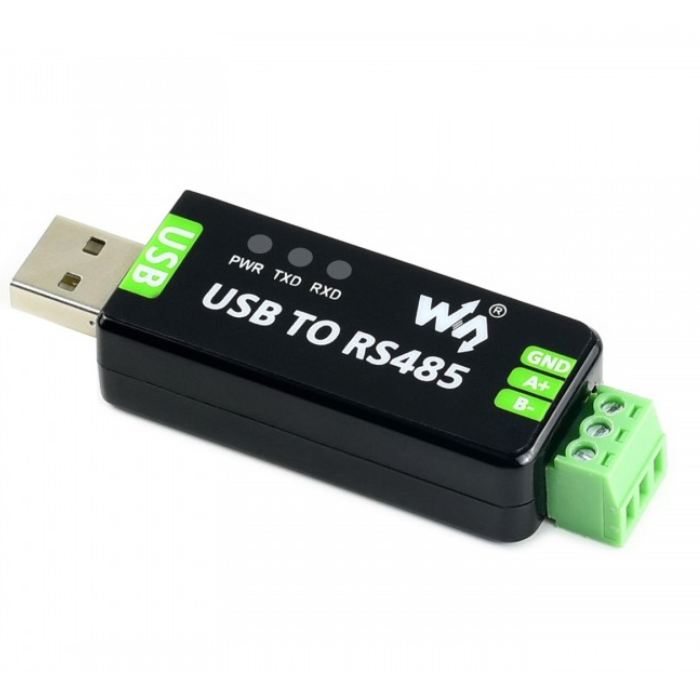

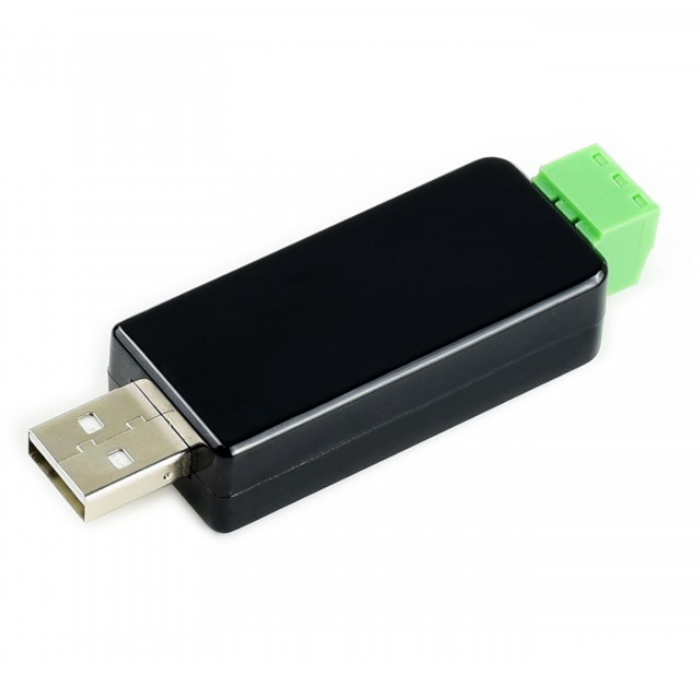

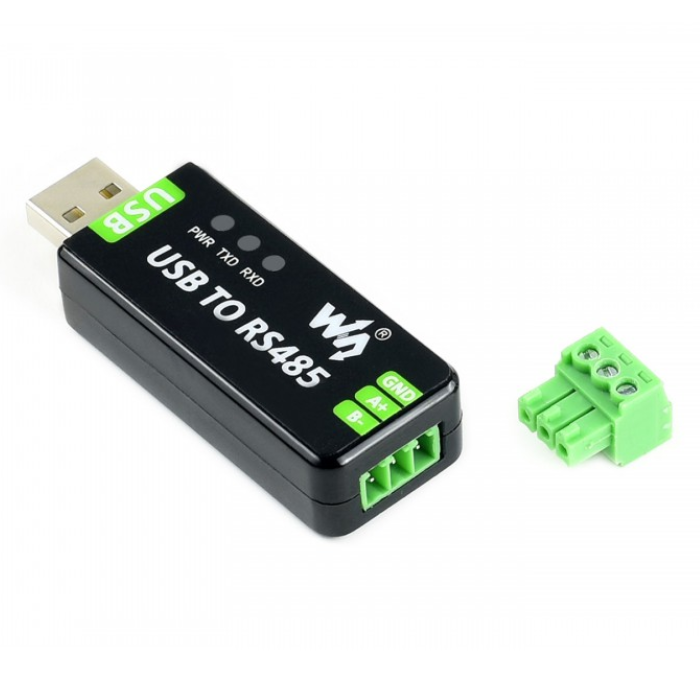

Waveshare Industrial USB to RS485 Bidirectional Converter
Couldn't load pickup availability
The Waveshare Industrial USB to RS485 Bidirectional Converter is a robust and reliable communication interface designed for industrial applications. Featuring the original CH343G USB bus adapter chip and high-performance SP485EEN transceivers, this converter ensures stable, high-speed communication with excellent compatibility.
It converts USB signals into balanced differential RS485 signals, offering transmission speeds from 300bps up to 3Mbps and a communication range of up to 1.2km for RS485 and 5 meters for USB.
Built-in protection circuits, including lightning-proof tube, resettable fuse, ESD, and TVS protection, enhance durability and safeguard against harsh electrical environments.
Supporting automatic baud rate recognition up to 115200bps, the converter allows easy integration of traditional serial devices or microcontrollers into modern USB interfaces, making it an ideal solution for industrial automation, monitoring systems, and other serial communication projects.
| Specification | Details |
|---|---|
| Model Type | Converter |
| Operating Voltage | 5V |
| Host Port | USB |
| Device Port | RS485 |
| Baud Rate | 300bps ~ 3Mbps |
| Connector Type | USB-A |
| Transmission Distance | Up to 5 meters (USB), up to 1.2km (RS485) |
| Protection Features | 200mA self-recovery fuse, ESD protection, TVS diode, lightning-proof tube |
| Operating Humidity | 5%RH ~ 95%RH |
| Transmission Mode | Point-to-multipoint (up to 32 nodes; use repeaters for 16+ nodes) |
| Status Indicators | TXD: Red LED (USB data transmission) RXD: Red LED (RS485 data reception) |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
