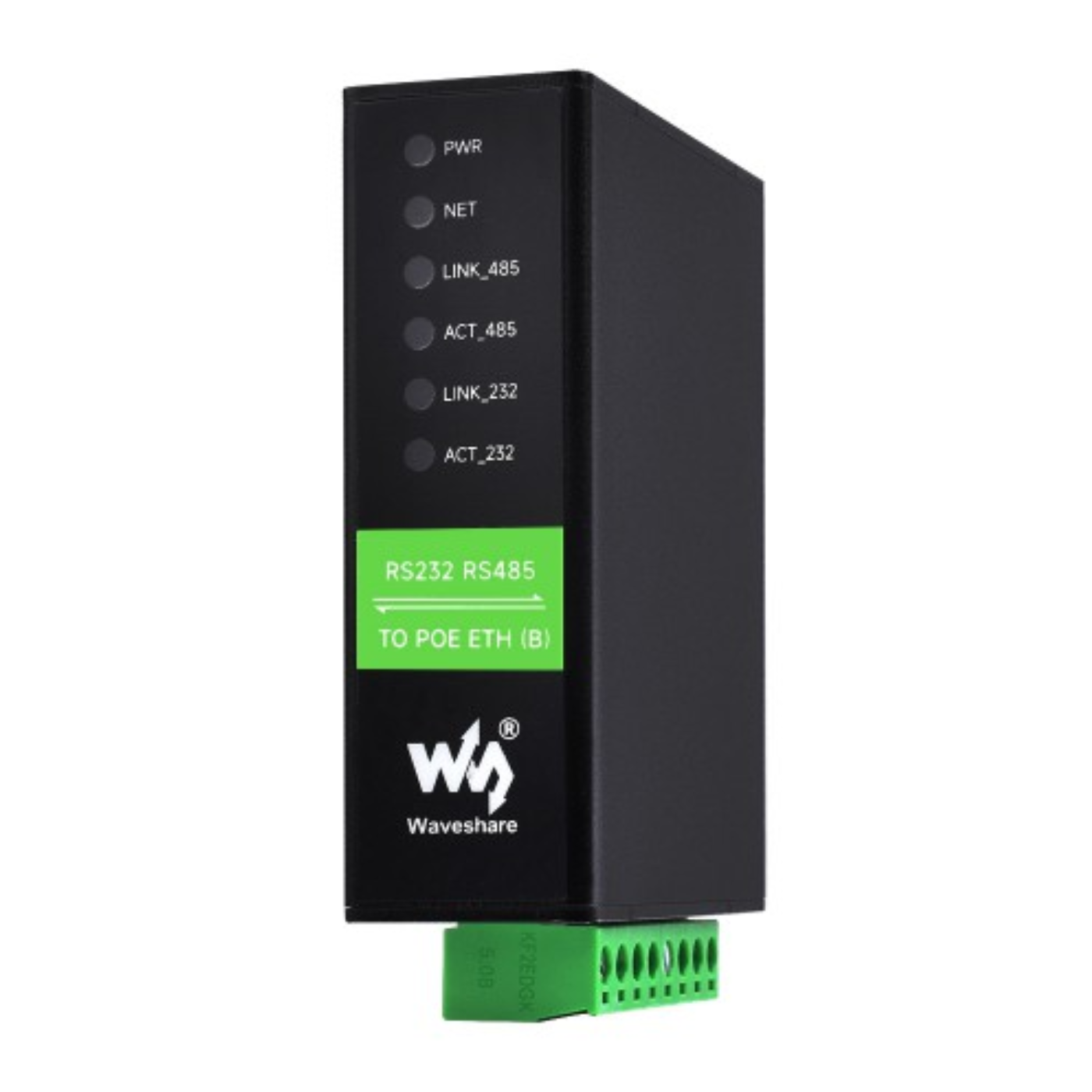

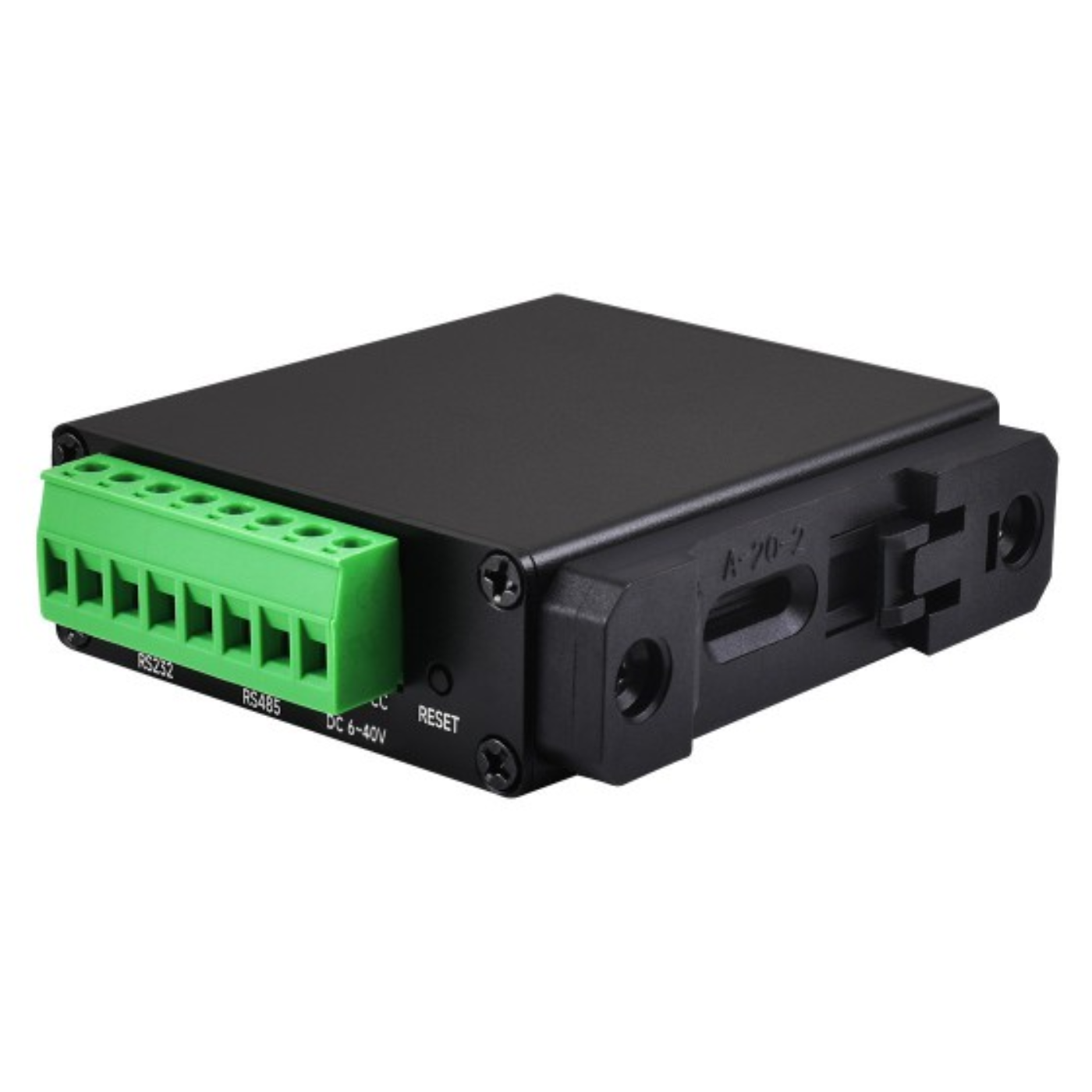

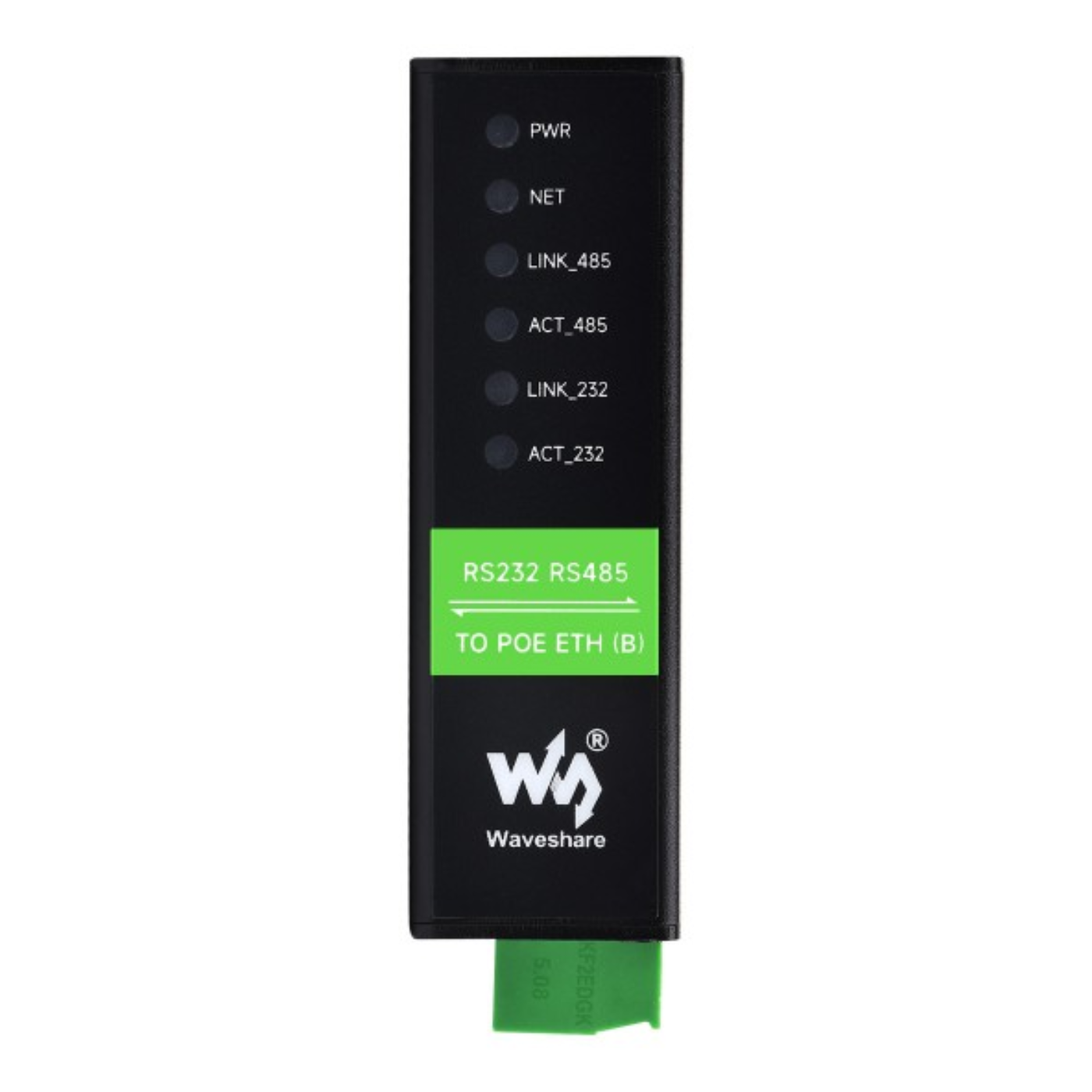

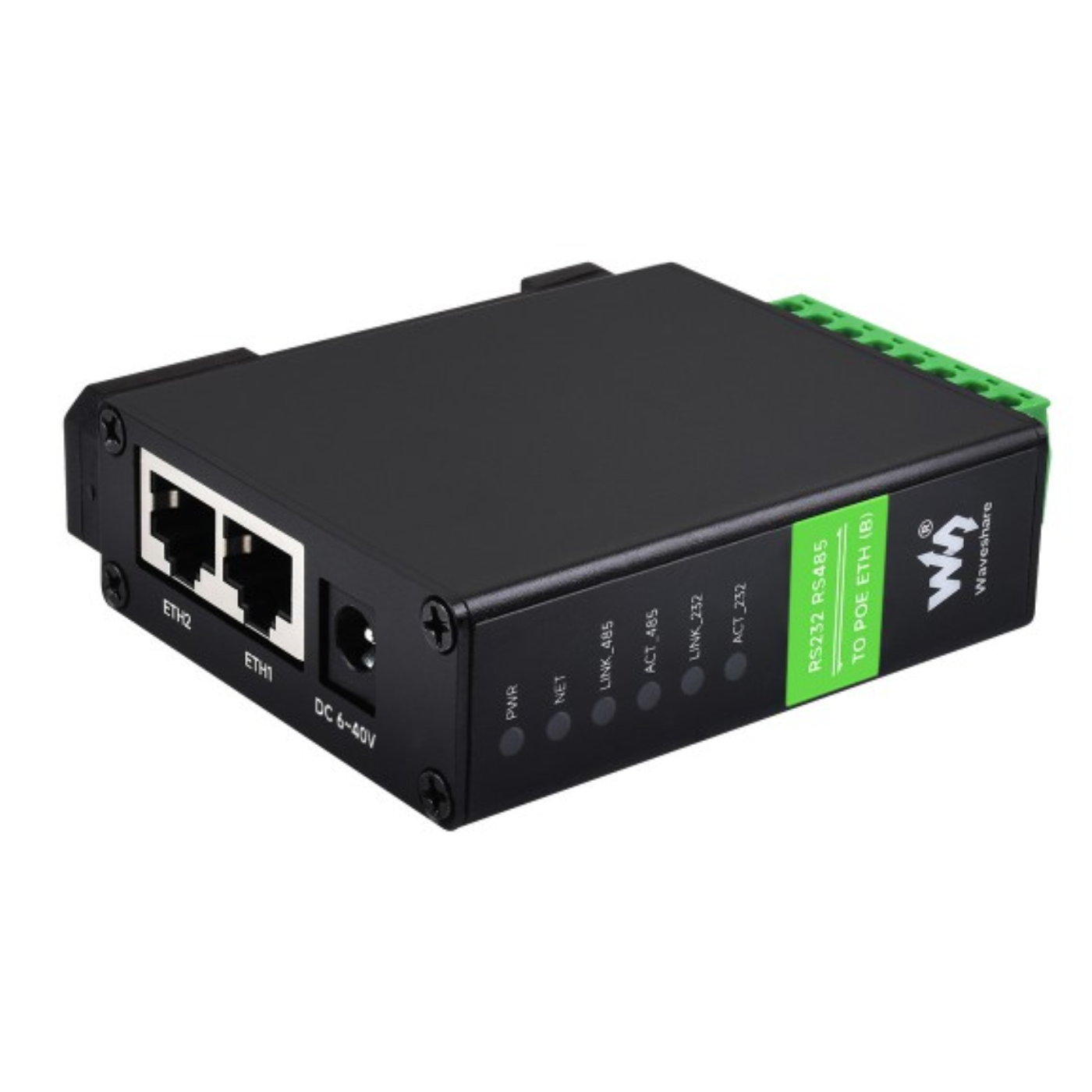

Waveshare Industrial Isolated RS232/RS485 to PoE Ethernet Serial Server (B) with Dual RJ45 Ports
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability

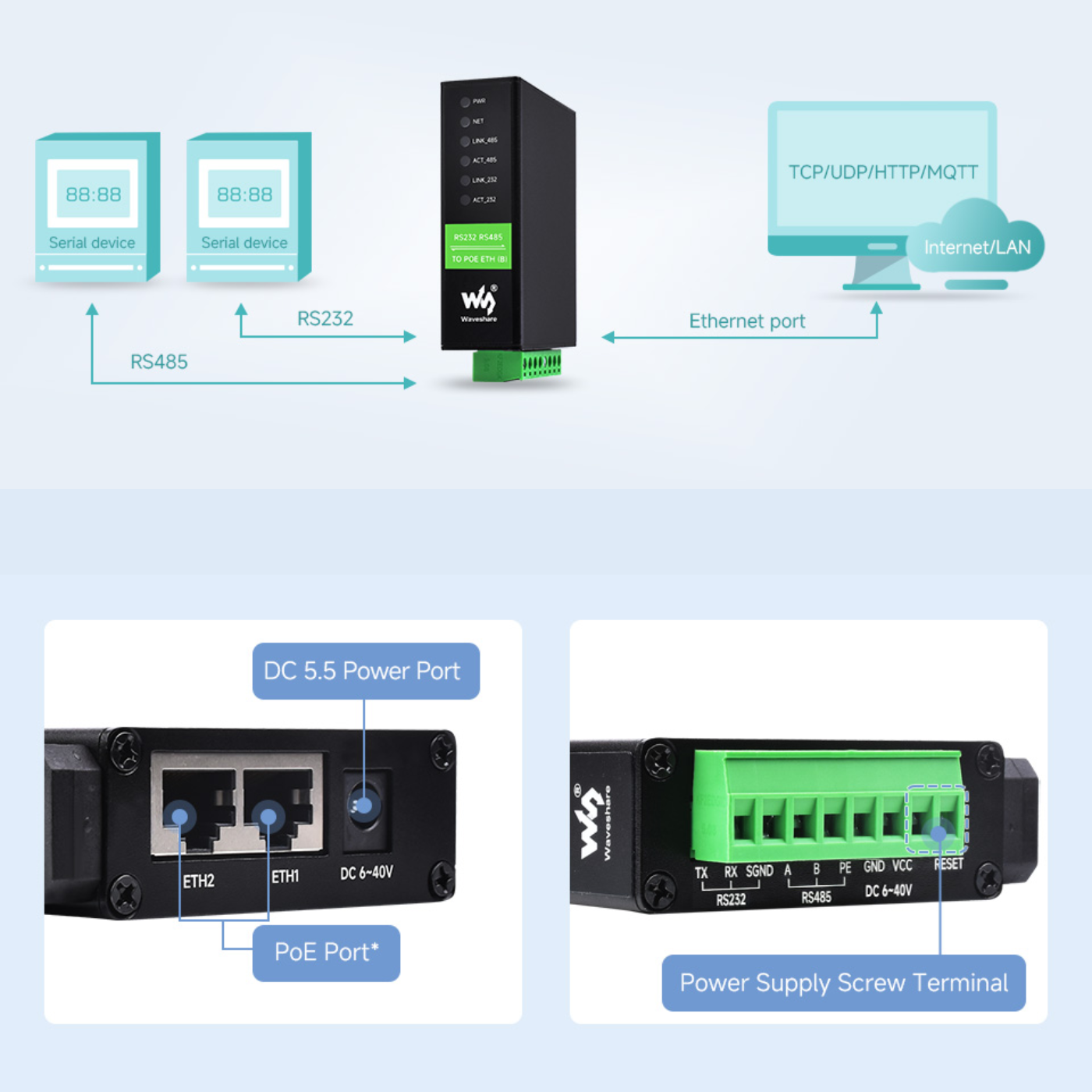

The Waveshare Industrial Isolated RS232/RS485 to PoE Ethernet Serial Server (B) is a compact dual-channel serial-to-Ethernet converter designed to connect RS232 and RS485 devices to an Ethernet network for industrial data communication and remote monitoring. It features 1 × isolated RS232 port, 1 × isolated RS485 port, and 2 × RJ45 Ethernet ports, allowing both serial channels to transmit and receive data independently at the same time.
The PoE Ethernet version supports IEEE 802.3af, while power can also be supplied through the 5.5 mm DC power port or 6–40V DC screw terminal. The device supports 10/100M Ethernet, 300–115200 bps baud rates, TCP Server, TCP Client, UDP and UDP Multicast modes, as well as Modbus Gateway, MQTT Gateway and RS232/RS485-to-JSON functions.
One RJ45 port can also be used for Ethernet cascading, with up to 8 modules supported in a cascade when each module is powered individually. With power and signal isolation, 2 KV surge protection, an operating temperature range of -40°C to 85°C, and dimensions of 78.0 × 72.5 × 24.2 mm, it is well suited for industrial automation, data acquisition, IoT gateways, intelligent instrument monitoring and network upgrades.
| Specification | Details |
|---|---|
| Product Type | Serial Server, Modbus Gateway, MQTT Gateway |
| Basic Function | Bi-directional transparent data transmission between RS232/RS485 and Ethernet |

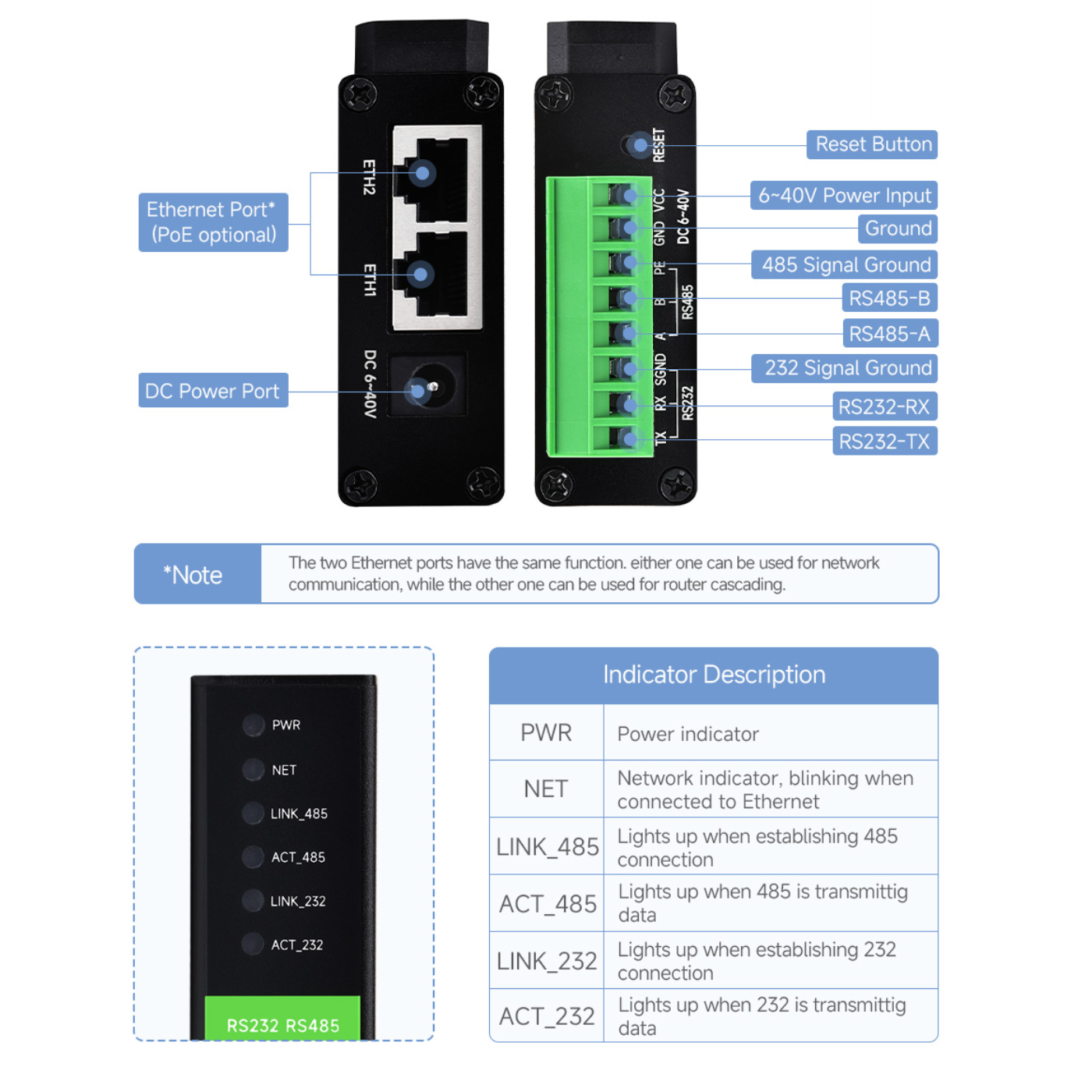

| Communication Interface | RS232 × 1, RS485 × 1, Ethernet × 2 |
| Power Supply | DC 5.5 power port, 6–40V DC screw terminal, or PoE port |
| Isolation Protection | Power isolation, Signal isolation |
| Ethernet | 10/100M auto-negotiation RJ45 × 2 |
| PoE Support | IEEE 802.3af compliant |
| Surge Protection | 2 KV |
| Serial Port | Isolated RS232 and RS485; both channels can receive and transmit independently at the same time |
| Baud Rate | 300–115200 bps |
| Parity Bit | None, Odd, Even, Mark, Space |
| Data Bits | 5–9 bits |
| Flow Control | N/A |
| Protocols | Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
| Configuration | Host, Web Browser, Device Management Functions Library |
| Communication Method | TCP/IP Direct Communication, VCOM |
| Operating Mode | TCP Server, TCP Client, UDP, UDP Multicast |
| Operating Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% RH |

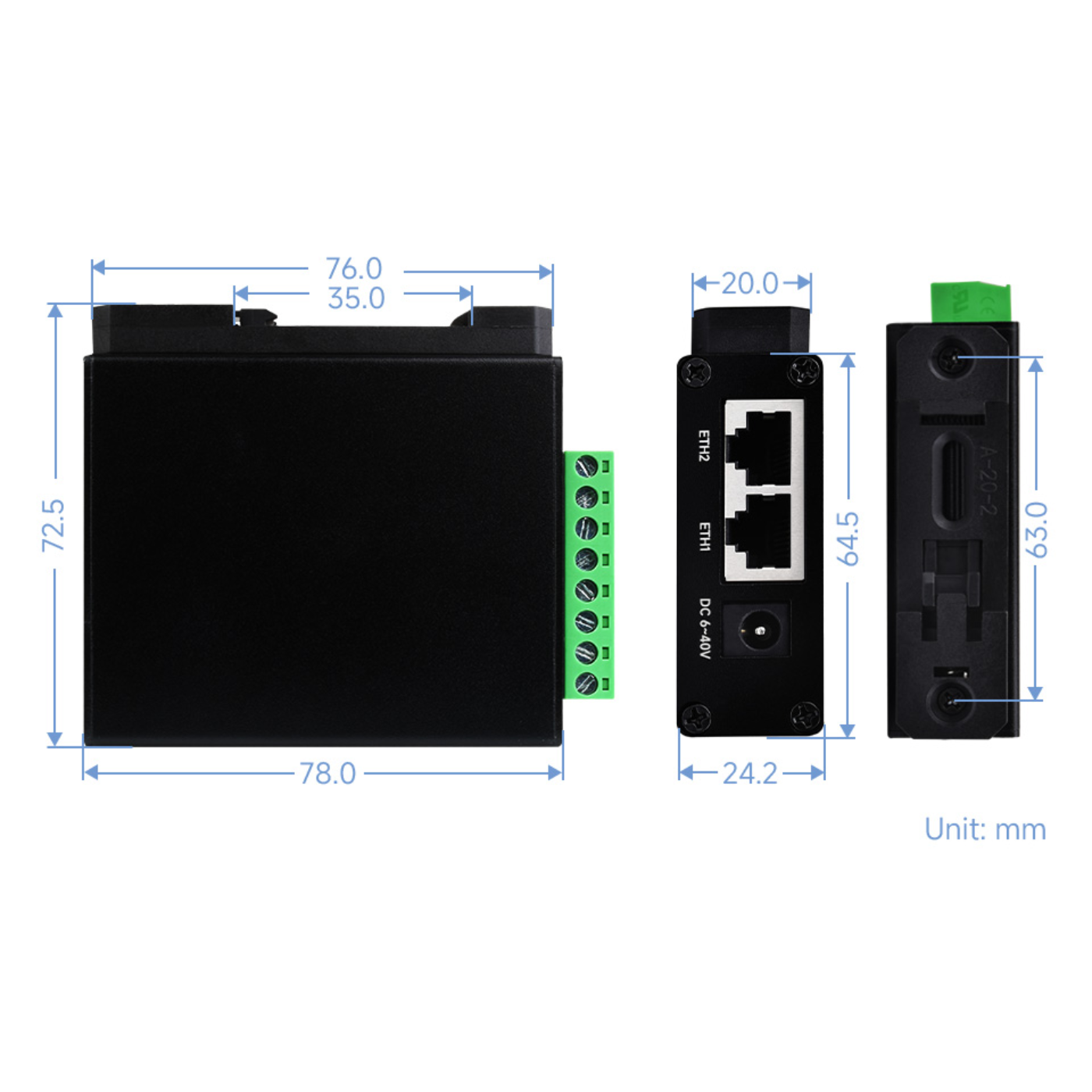

| Dimensions | 78.0 × 72.5 × 24.2 mm (L × W × H) |
