Waveshare 10.1inch HDMI IPS Raspberry Pi Touchscreen Display 1280×800
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

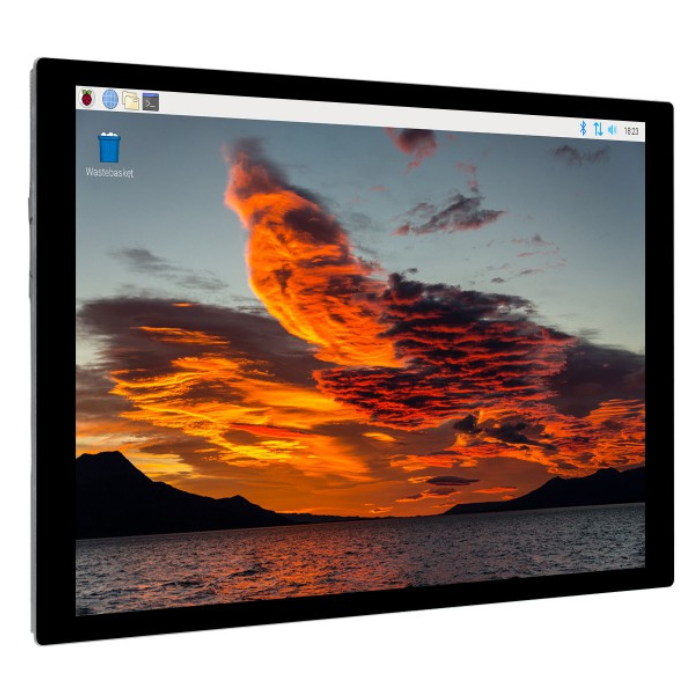

This is a high-performance raspberry pi display 10 inch, a 10.1inch HDMI IPS Raspberry Pi capacitive touchscreen Waveshare display designed for superior visual clarity and responsive touch interaction.
Featuring a resolution of 1280×800 pixels and IPS panel technology, it offers vibrant color reproduction, wide viewing angles, and a high contrast ratio, making it suitable for diverse applications such as industrial control systems, digital signage, embedded development, and gaming interfaces.
This Waveshare 10.1inch HDMI LCD incorporates optical bonding—a process that eliminates the air gap between the touch panel and the toughened glass—to enhance touch accuracy, reduce glare and reflection, and increase overall durability.
Its HDMI interface ensures easy connectivity with a variety of devices, including Raspberry Pi, PCs, and other HDMI-compatible platforms, making it a reliable 10 inch display for Raspberry Pi projects and professional applications.
If you're looking for a reliable 10 inch display for Raspberry Pi, this model stands out with its IPS panel, optical bonding, and durable design. The Waveshare display ensures excellent compatibility and performance across multiple operating systems, making it ideal for both hobbyists and industrial users.
The Waveshare 10.1inch HDMI LCD is especially suitable for projects requiring high touch accuracy and clear visuals, such as IoT dashboards, control panels, and portable computing setups.
| Specification | Details |
|---|---|
| Model Type | Display |
| Touch Type | Capacitive |
| Display Size | 10.1 inch |
| Viewing Angle | 178° |
| Resolution | 1280 × 800 pixels |
| Display Area | 135.36 (H) × 216.58 (V) mm |
| Pixel Pitch | 0.1175 (H) × 0.1088 (V) mm |
| Color Gamut | 58% NTSC |
| Brightness | 350 cd/m² |
| Contrast Ratio | 800:1 |
| Refresh Rate | 60 Hz |
| Power Port Output | 5V via Type-C |
| Input Current | 750–800 mA |
| Power Consumption | 4W |
A 10.1-inch HDMI IPS touch display is commonly used as an external display for computers, Raspberry Pi, and other development boards. It offers high-resolution visuals and responsive touchscreen control, making it ideal for DIY projects, embedded systems, digital signage, home automation, and interactive kiosks. The IPS technology ensures wide viewing angles and vivid colors for a superior user experience.
Yes, the Waveshare 10.1-inch HDMI IPS touch display is fully compatible with Raspberry Pi and NVIDIA Jetson Nano. It can be connected easily via the HDMI interface for video output and USB for touch functionality. This makes it perfect for developing interactive applications or creating custom dashboards on these popular single-board computers.
Optical bonding improves display clarity by reducing internal reflections, giving you better visibility and vibrant colors. Toughened glass adds an extra layer of durability and scratch resistance, protecting the touch screen during regular use. These features ensure the 10.1-inch HDMI IPS display remains robust and easy to view in bright environments or demanding applications.
Yes, this 10.1-inch HDMI IPS touch display supports multi-touch, allowing for gestures like pinch-to-zoom and scrolling, enhancing interactivity. It also features plug-and-play functionality, so you simply connect the HDMI and USB cables—no drivers required for most systems. This makes setup quick and easy for both beginners and advanced users.
Absolutely, the 10.1-inch HDMI touch screen can be used as a secondary monitor for a PC. Just connect the display to your computer via HDMI for visuals and USB for touch input, and it will function as an additional interactive screen. This is great for multitasking, presentations, or expanding your workspace.
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
