W1209 Digital Temperature Controller Thermostat Module

W1209 Digital Temperature Controller Thermostat Module

Regular price Rs. 87
Regular price Rs. 162 Sale price Rs. 87
Sale Sold out 46% off Best Price Guaranteed
You save Rs. 75 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 10 hours and 34 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

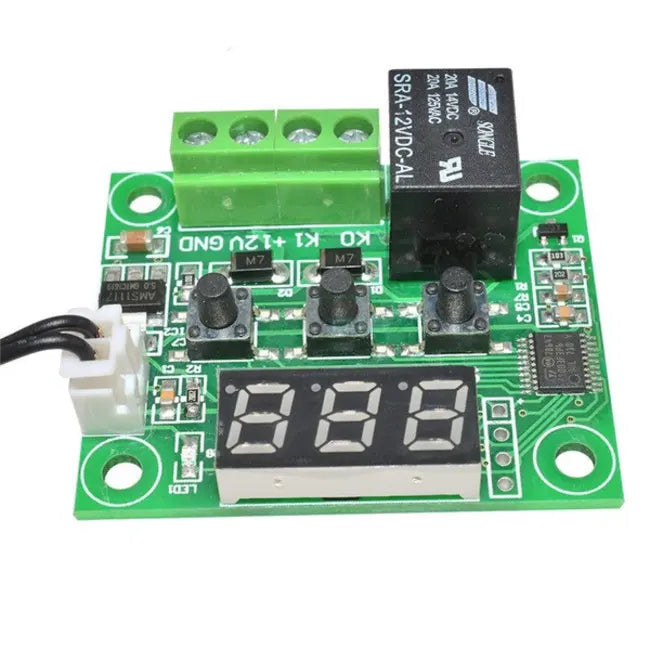

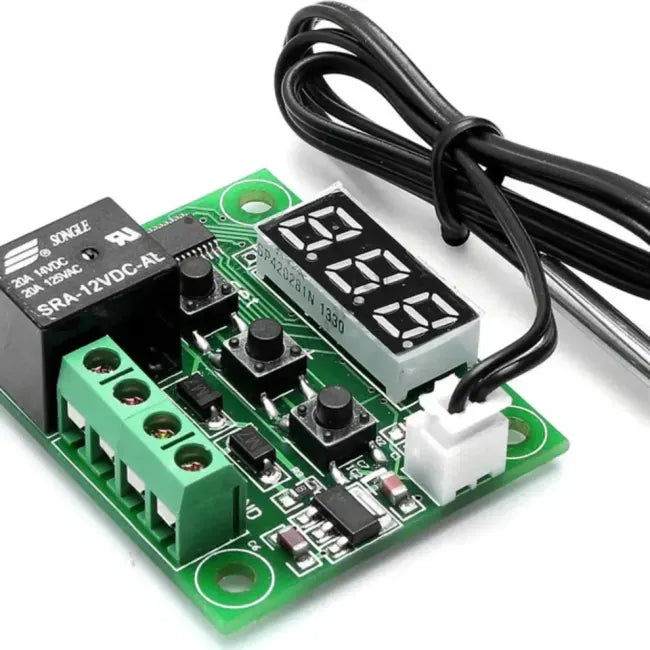

  • The XH-W1209 12V Digital Temperature Controller Module W/ Display and NTC Waterproof Temperature Sensor is an incredibly low cost yet highly functional thermostat controller.
  • With this W1209 thermostat controller, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor.
  • Note: This doesn't come with case, you need to get W1209 case
Trust Badge 1 Trust Badge 2 Trust Badge 3

W1209 Digital Temperature Controller Thermostat Module

The W1209 digital temperature controller thermostat module is a small, standalone device that allows you to control the temperature of a system or process using a digital interface. It typically includes a temperature sensor, a control algorithm, and an output mechanism to control the temperature. The W1209 module may have inputs for setting the temperature setpoint and control parameters, as well as outputs for controlling devices such as heating elements or cooling fans. It may also have a display for showing the current temperature, setpoint, and other information. The module is designed to be easily integrated into a larger system or device

How simple would it be for your fan to turn on/off automatically when the temperature rises or falls? Setting a trigger temperature to determine when the fan should turn on or off is all that is required. Utilizing the extremely functional W1209 thermostat, which can assist you in creating such simple yet fantastic home automation!

Also, read our blog W1209 Temperature Controller Setting detailing the variety of W1209 Setting Modes.

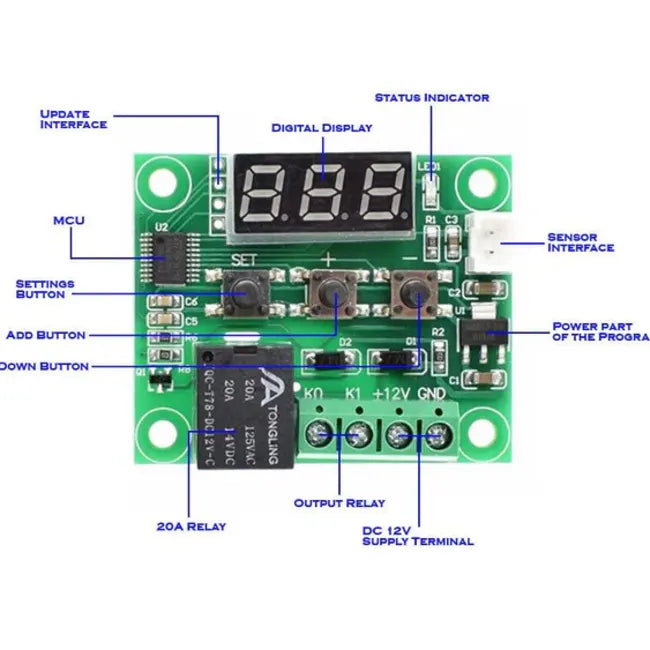

Pin Diagram of W1209:

Pin Diagram of W1209

With this W1209 Digital thermostat controller , you can intelligently control power to most types of electrical devices based on the temperature sensed by the included high-accuracy NTC temperature sensor.

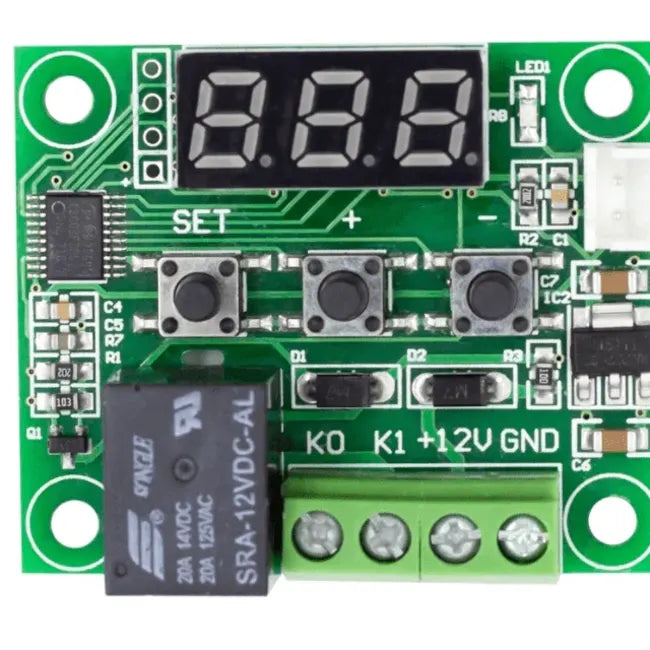

Temperature sensors, keys, 7 segment LED display, relays, and a DC 12V power supply are all features of the W1209 thermostat controller. It is a cost-effective thermostat controller of high quality. It requires W1209 case  to protect the thermostat controller from any damage,

Thermostats are tools that monitor a system's temperature to keep it at or close to the desired set point. The module's NTC temperature sensor enables intelligent temperature-based control of a variety of electrical components. The resistance of an NTC thermistor lowers as temperature rises because of its negative temperature coefficient. Because the W1209 thermostat has an embedded microcontroller built-in, little programming experience is needed. The W1209 has three switches that can be used to set up the different parameters, such as the ON and OFF trigger temperatures. The relay can be turned on at voltages as high as 240V AC at 5A or 14V DC at 10A. The state is displayed with the aid of the LED on the W1209 thermostat, and the temperature is displayed in degrees Celsius with the aid of a 7-segment display and a relay.

Displaying the current temperature: The Thermostat will display the current temperature in °C by default. When in any other mode making no input for approximately 5 seconds will cause the thermostat to return to this default display.

Setting the trigger temperature: To set the trick to a temperature press the button marked 'SET'. The seven-segment display will flash. You can now set a trigger temperature ( in °C) using the '+' and '-' buttons in 0.1° increments. If no buttons are pressed for approximately 2 seconds the trigger temperature will be stored and the display will return to the current temperature.

Setting the parameters for the W1209 Digital Temperature Controller Thermostat Module :

To set any parameter, first long press the 'SET' button for at least 5 seconds. The seven-segment display should now display 'P0'. This represents parameter P0. Pressing the '+' or '-' buttons will cycle through the various parameters ( P0 to P6). Pressing the 'SET' button whilst any of these parameters are displayed will allow you to change the value for that parameter using the '+' and '-' buttons. When finished setting a parameter press the set button to exit that option. If no buttons are pressed for approximately 5 seconds that thermostat will exit the perimeter options and will return to the default temperature display.

  • Heating Parameter P0: P0 has two settings, C and H. As the relay energizes when the temperature is reached, the default setting C can be utilized to connect to an air conditioner. When the required temperature is found, setting H results in de energizing the relay. Any heating apparatus can be controlled by it.
  • Hysteresis Parameter P1: The temperature range that must alter before a relay will change status is determined by this parameter.
  • Parameter P2 (Upper Limit Temperature): P2 limits the maximum trigger temperature that can be set. It serves as a safety feature that prevents the user from setting a trigger temperature that is too high.
  • Parameter P3 (Lower Limit Temperature): P3 limits the minimum trigger temperature that can be set. As a safety measure, it prevents the user from setting a low triggering temperature.
  • Offset Correction Parameter P4: If there is a discrepancy between the displayed temperature and the actual temperature measurement using this parameter, changes can be made.
  • Delay Parameter P5: The delay parameter P5 can be used to control how long the relay switches after the trigger temperature has been attained. It can be set for up to ten minutes at a time, in one-minute intervals.
  • Alarm Parameter P6: When the temperature exceeds the specified level, this parameter causes the relay to shut off. As a warning, the display will flash "---" when an alarm condition exists. When the temperature reaches this point, the relay will not re-energize.

Settings Chart:

  1. Long press the “SET” button to activate the menu.
  2. Code Description Range Default Value
  3. P0 Heat C/H C
  4. P1 Backlash Set 0.1-15 ( 2)
  5. P2 Upper Limit 110 ( 110)
  6. P3 Lower Limit -39 ( -39)
  7. P4 Correction -7.0 ~( 0 )
  8. P5 Delay Start Time 0-10 mins( 0)
  9. P6 High-Temperature Alarm 0-110 (OFF)
  10. Long pressing +- will reset all values to their default.

Features:

  • Temperature Control Range: -50°C to 110°C
  • Measurement Accuracy: 0.1°C
  • Input Voltage: 12V DC
  • Output: 1 Channel Relay Output (240V AC/12V DC, 10A)
  • Display: Digital display for current temperature and settings
  • Controls: Three tactile switches for setting parameters and trigger temperatures
  • Sensor: High-precision NTC temperature sensor
  • Compact Design: Small and easy to integrate into various projects
  • Applications: Suitable for incubators, temperature-controlled fans, and other temperature-regulation devices

Applications:

  • To measure on-display temperature
  • To turn any application ON/ OFF based on temperature reading ( both AC and DC)

  • W1209 100 Egg Incubator
  • Digital Temperature Controller with Waterproof Probes for Aquarium Temperature Control
  • Indoor Room Temperature Control

Also check acrylic case designed for the XH-W1209 temperature controller

Also check the XH-W1219 12V Digital Temperature Controller

Package Includes:

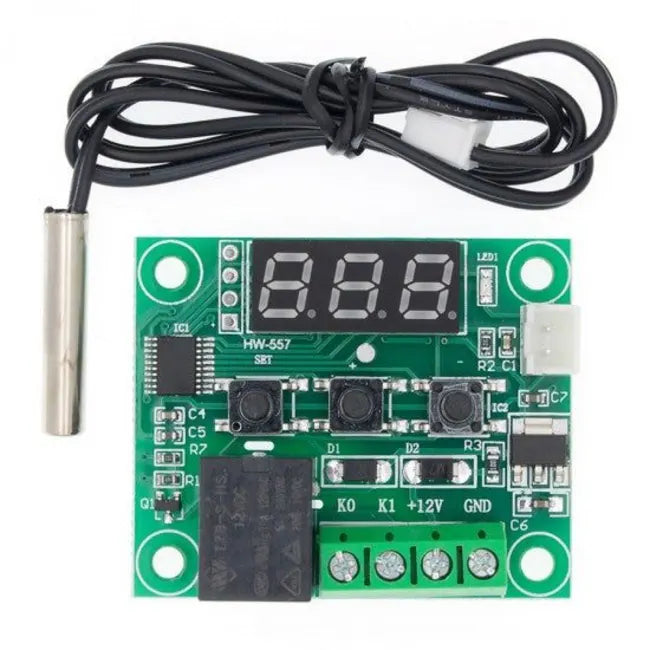

  • 1 x W1209 Digital Temperature Controller Thermostat Module

Specifications:

Supply Voltage 12V
Accuracy 0.1°C
Static Current

 <=35mA

Current <=65mA
Humidity 20 - 85%
Temperature Control Range -50 ~ 110 Celsius
Measuring Inputs NTC10K
Cable Length 0.5 Meter
Dimensions  5 x 4 x 3 cm
Weight  50 grams
