7Semi VL53L1X ToF Distance Sensor Breakout with 4 Meter Range-Sensors-Distance Sensors-Robocraze

7Semi FREE SHIPPING BEST PRICE GUARANTEED

VL53L1X ToF Distance Sensor Breakout with 4 Meter Range - 7Semi - Buy Online in India

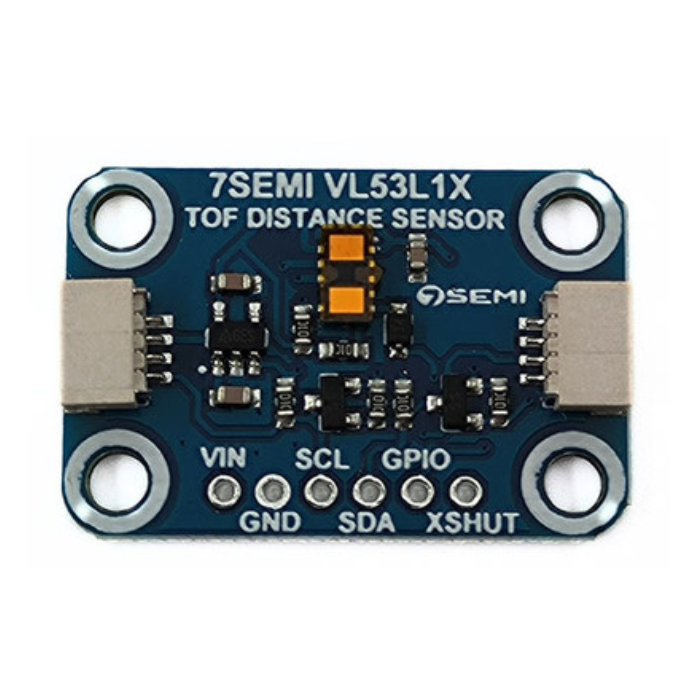

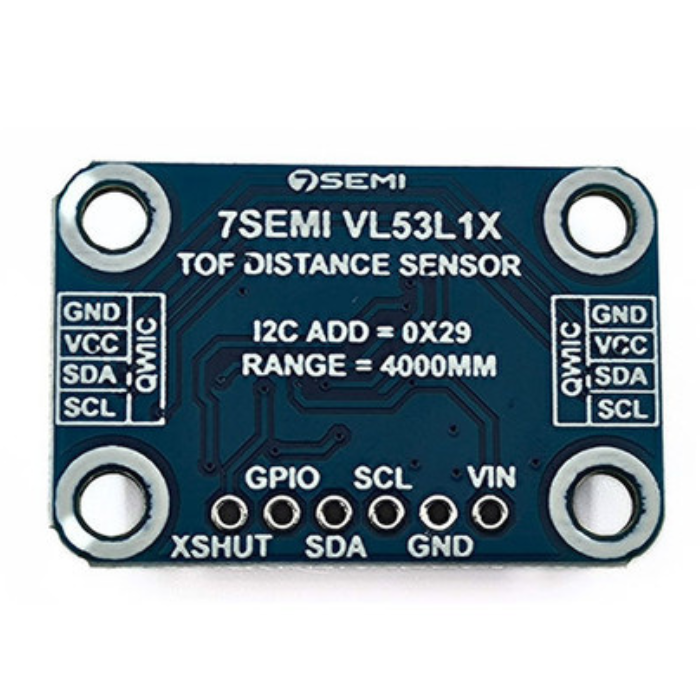

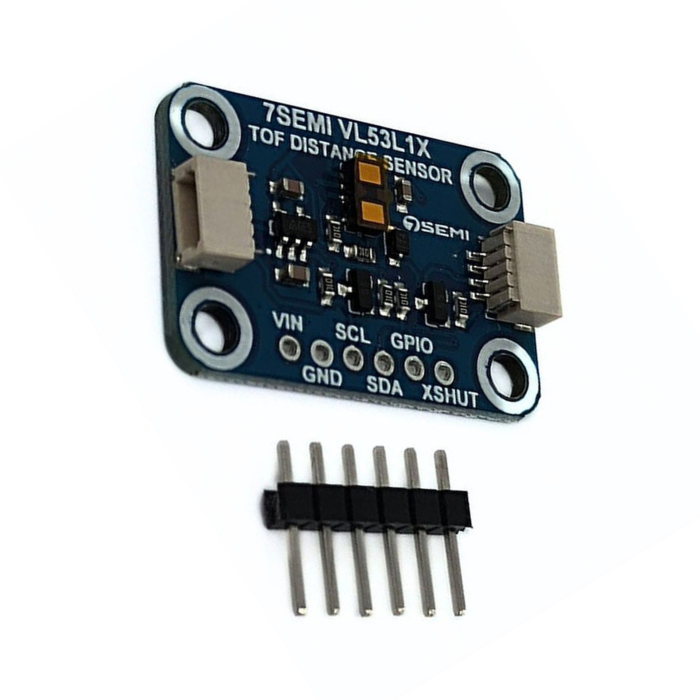

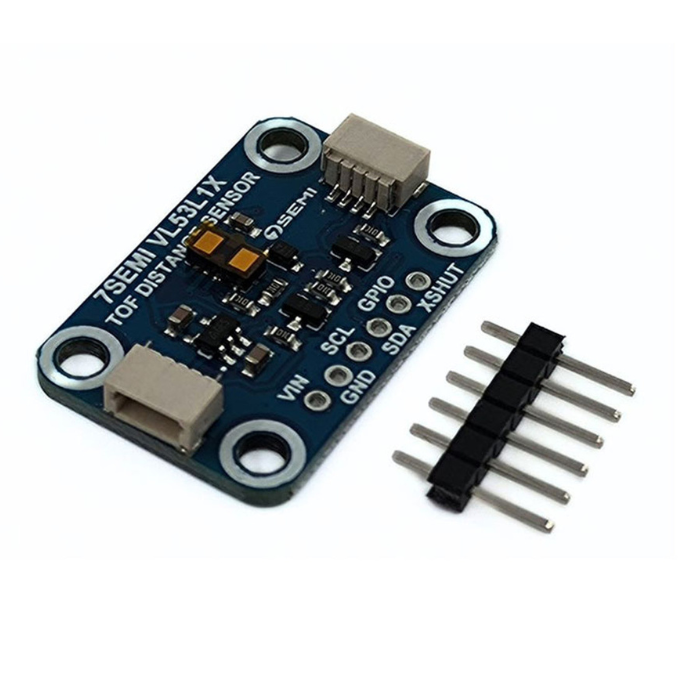

VL53L1X ToF Distance Sensor Breakout with 4 Meter Range - 7Semi

Rs. 689; ~~Rs. 894~~; Rs. 689
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

SKU: TIFSS0297

Time-of-Flight (ToF) sensor for accurate distance measurement
Up to 4 meters measuring range
High-speed ranging at up to 50Hz
Invisible 940nm Class 1 laser emitter
Reliable under various lighting conditions
1mm resolution with ±5% measurement accuracy
I2C interface for easy integration
Hardware I2C address: 0x29 (requires Mux for multiple sensors)

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

VL53L1X ToF Distance Sensor Breakout with 4 Meter Range - 7Semi

~~Rs. 894~~ Rs. 689

Quantity:

VL53L1X ToF Distance Sensor Breakout with 4 Meter Range - 7Semi

~~Rs. 894~~ Rs. 689

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

VL53L1X ToF Distance Sensor Breakout with 4 Meter Range - 7Semi

The 7Semi VL53L1X ToF Distance Sensor Breakout brings advanced laser-ranging technology into a compact, easy-to-use module. Powered by the VL53L1X Time-of-Flight sensor, it offers precise distance measurements up to 4 meters with a high refresh rate of up to 50Hz. The sensor leverages a 940nm invisible Class 1 laser emitter, SPAD receiving array, and optical filtering to deliver reliable readings even in varied ambient lighting conditions.

Unlike traditional IR sensors, the VL53L1X provides absolute distance measurements independent of the target’s color or reflectance. With a hardware I2C address (0x29), the sensor requires a multiplexer when multiple units are connected to a single bus. Its built-in I2C interface ensures seamless communication with microcontrollers and computers, making it ideal for real-time monitoring, robotics, drones, and autonomous vehicles.

Compact yet powerful, the VL53L1X achieves 1mm resolution and ±5% accuracy, offering dependable data for a wide range of high-precision applications. Whether you're developing robots, building drones, or crafting autonomous navigation systems, this breakout board provides the performance you need.

VL53L1X ToF Distance Sensor Arduino Connection Circuit Diagram

Features:

Precision ToF Measurement: Accurately measures distances up to 4 meters, unaffected by target color or reflectivity.
High-Speed Performance: Provides millimeter-level resolution with rapid refresh rates.
Versatile I2C Interface: Enables easy integration with microcontrollers and computers for real-time data transmission.
Compact Breakout Design: Small and lightweight, perfect for a wide range of embedded and DIY projects.

Specifications

Package Includes:

1 x 7Semi VL53L1X ToF Distance Sensor Breakout with 4 Meter Range

Specifications:

Specification	Details
Brand	7Semi
Operating Voltage	3V / 5V
Power Consumption	20 mW @10Hz
Measurement Range	~40mm to 4000mm
Resolution	±1mm
Light Source	Class 1 940nm VCSEL
I2C Address	0x29
Dimensions (LxWxH)	3 x 2 x 0.5 cm
Weight	8 gm
Field of View	15° to 27°
Maximum Read Rate	50Hz

Specifications:
