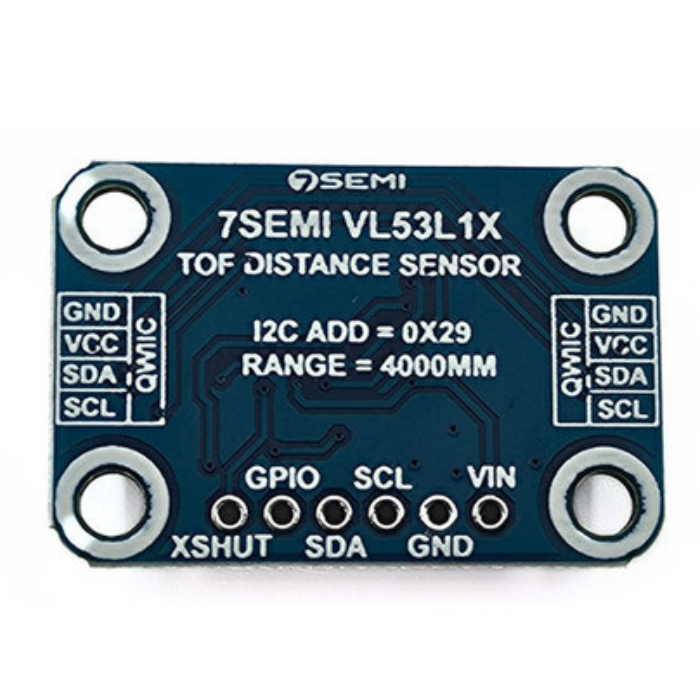

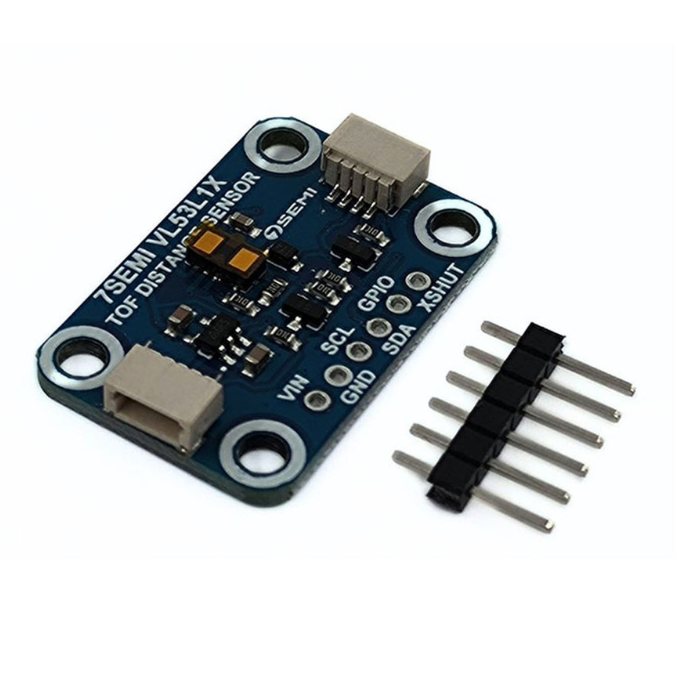

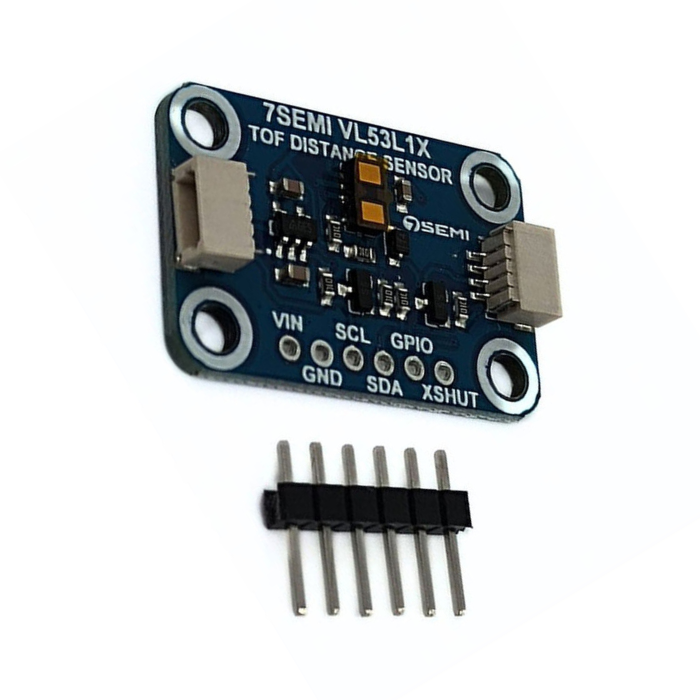

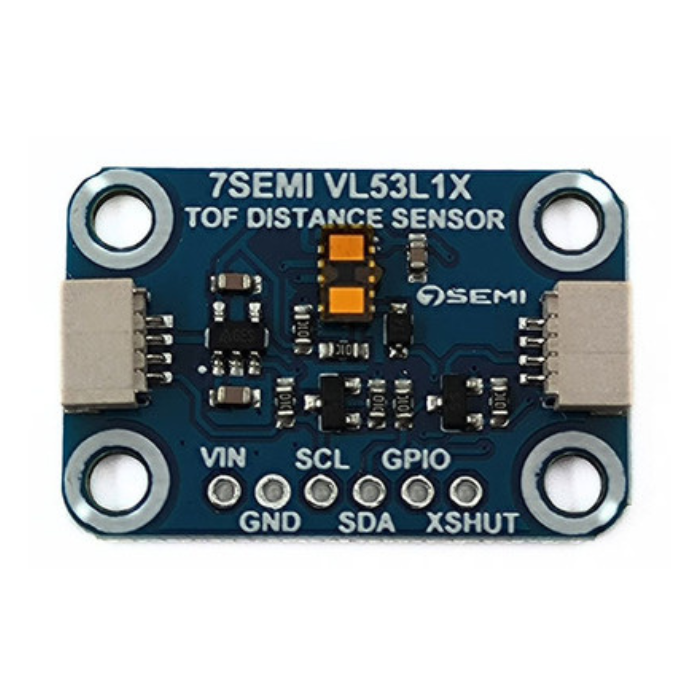

The 7Semi VL53L1X ToF Distance Sensor Breakout brings advanced laser-ranging technology into a compact, easy-to-use module. If you are looking for a reliable VL53L1X ToF sensor in India, this breakout board is engineered for precision. It offers accurate distance measurements up to 4 meters with a high refresh rate of up to 50Hz, making it an ideal laser distance sensor (4m) for demanding applications.
Powered by the STMicroelectronics VL53L1X sensor, it leverages a 940nm invisible Class 1 laser emitter, a SPAD receiving array, and advanced optical filtering to deliver reliable readings even in varied ambient lighting conditions. Unlike traditional IR sensors, this time of flight sensor for Arduino and other microcontrollers provides absolute distance measurements that are independent of the targetβs color or reflectance.
With a fixed hardware I2C address (0x29), the sensor requires a multiplexer when multiple units are connected to a single bus. Its built-in I2C interface ensures seamless communication, making it perfect for real-time monitoring, robotics, drones, and autonomous navigation systems. Compact yet powerful, the VL53L1X achieves 1mm resolution and Β±5% accuracy, giving you the dependable data you need to build smarter projects.
Which ToF Sensor is Right for Your Project?
If you are deciding between the older VL53L0X and the newer VL53L1X, here is a quick breakdown to help you choose:
| Feature | VL53L0X ToF Sensor | VL53L1X ToF Sensor (This Product) |
|---|---|---|
| Max Range | Up to 2 meters | Up to 4 meters |
| Field of View (FoV) | 25Β° | Programmable (15Β° to 27Β°) |
| Resolution | ~1mm | 1mm |
| Accuracy | Β±3% | Β±5% |
| Best For | Short-range proximity, basic gesture detection | Longer-range robotics, drones, precise obstacle avoidance |
Easy Integration with Qwiic & Standard I2C
The VL53L1X breakout is designed for plug-and-play simplicity. It is compatible with standard Qwiic/Stemma QT ecosystems (with an adapter) or direct breadboard wiring.

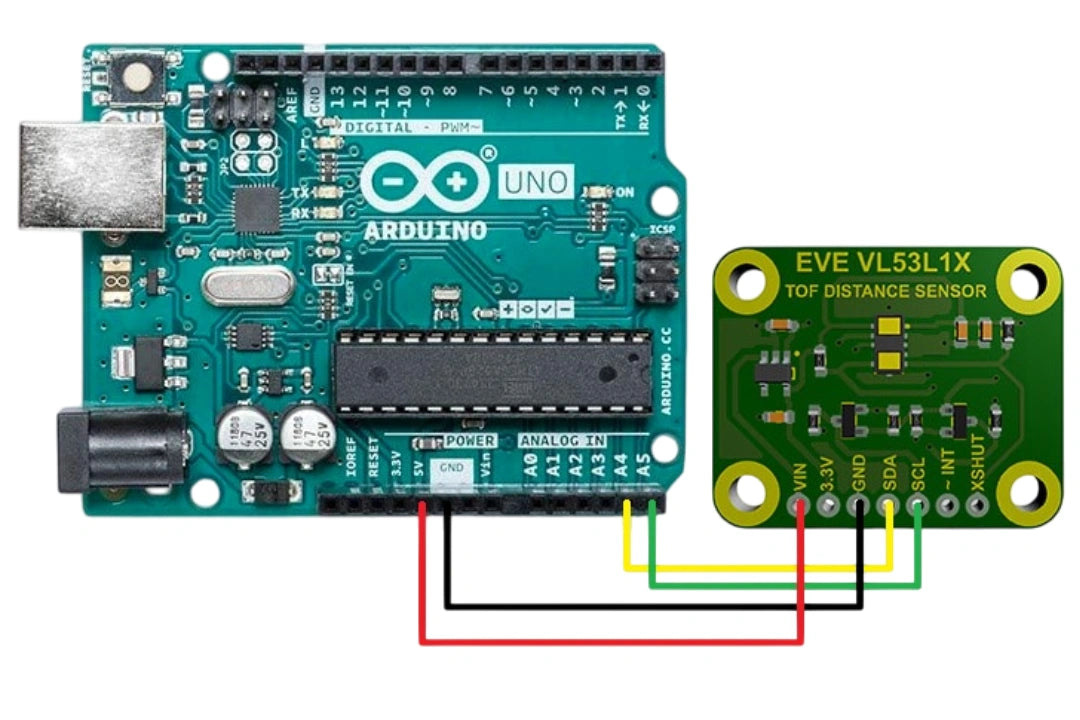

Typical Arduino Wiring:
Note: For Qwiic-enabled boards (like SparkFun RedBoard or certain Raspberry Pi hats), simply plug in a Qwiic cable. For multiple sensors, remember to insert an I2C multiplexer (like the TCA9548A) between the microcontroller and the sensors.
| Specification | Details |
|---|---|
| Brand | 7Semi |
| Operating Voltage | 3V / 5V |
| Power Consumption | 20 mW @10Hz |
| Measurement Range | ~40mm to 4000mm |
| Resolution | Β±1mm |
| Light Source | Class 1 940nm VCSEL |
| I2C Address | 0x29 |
| Dimensions (LxWxH) | 3 x 2 x 0.5 cm |
| Weight | 8 gm |
| Field of View | 15Β° to 27Β° |
| Maximum Read Rate | 50Hz |
The VL53L1X ToF sensor is designed with a 940nm invisible Class 1 laser emitter and built-in optical filtering, allowing it to deliver reliable distance readings even in varied ambient lighting, including moderate sunlight. For extreme outdoor sunlight, we recommend maximizing the sensor's integration time in your code and ensuring the target surface has good reflectivity for the best results.
Yes, absolutely. The VL53L1X communicates via standard I2C and is fully compatible with Arduino, Raspberry Pi, ESP32, and other popular microcontrollers. Libraries like Adafruit_VL53L1X make setup and coding straightforward.
Yes, but because the VL53L1X has a fixed hardware I2C address (0x29), you cannot connect them directly to the same bus. You will need to use an I2C multiplexer (such as the TCA9548A) to switch between the sensors seamlessly.
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
