V3 Version 863MHz-928MHz SX1262 ESP32 WIFI bluetooth Lora with 0.96 OLED Display

Name: V3 Version 863MHz-928MHz SX1262 ESP32 WIFI bluetooth Lora with 0.96 OLED Display
Brand: Robocraze
SKU: TIFCC0193
Price: 1,804 INR
Availability: InStock

Rs. 1,804

~~Rs. 1,999~~ Rs. 1,804

Sale Sold out 10% off Best Price Guaranteed

You save Rs. 195 | Eligible for Free Shipping

Incl. GST (No Hidden Charges)

Product variants

Quantity

Currently, people are actively viewing.

Product will be SHIPPED TODAY, if ordered within 2 hours and 35 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

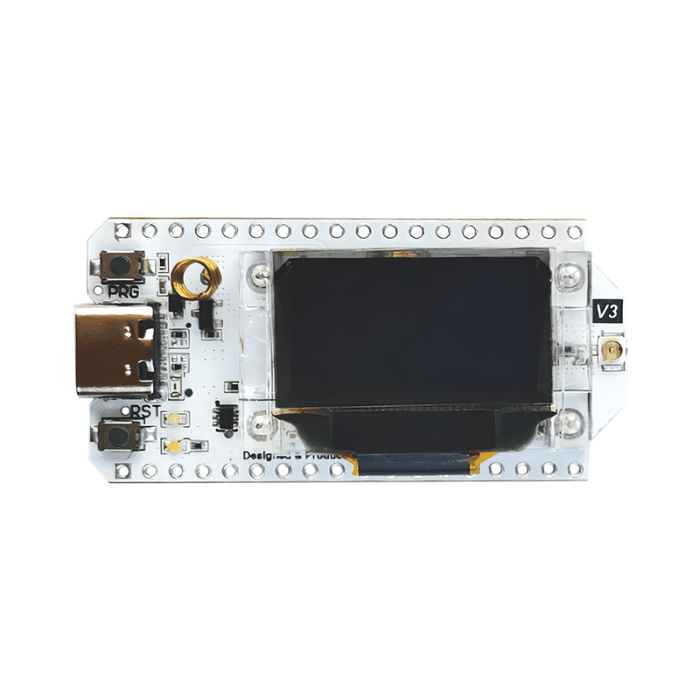

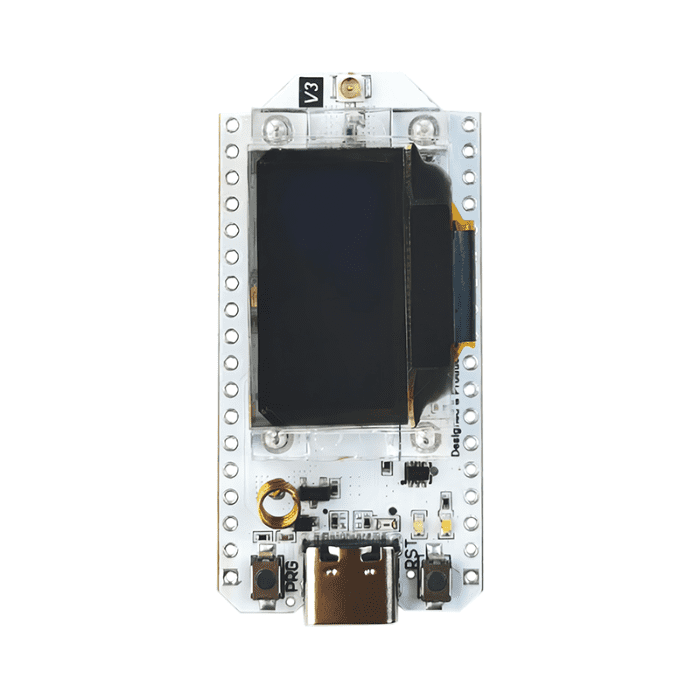

This is V3 Version 863MHz-928MHz SX1262 ESP32 WIFI bluetooth Lora with 0.96 OLED Display
Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

Related Tags

ESP

IOT & Wireless

LORA

New Arrivals

V3 Version 863MHz-928MHz SX1262 ESP32 WIFI Bluetooth Lora with 0.96 OLED Display

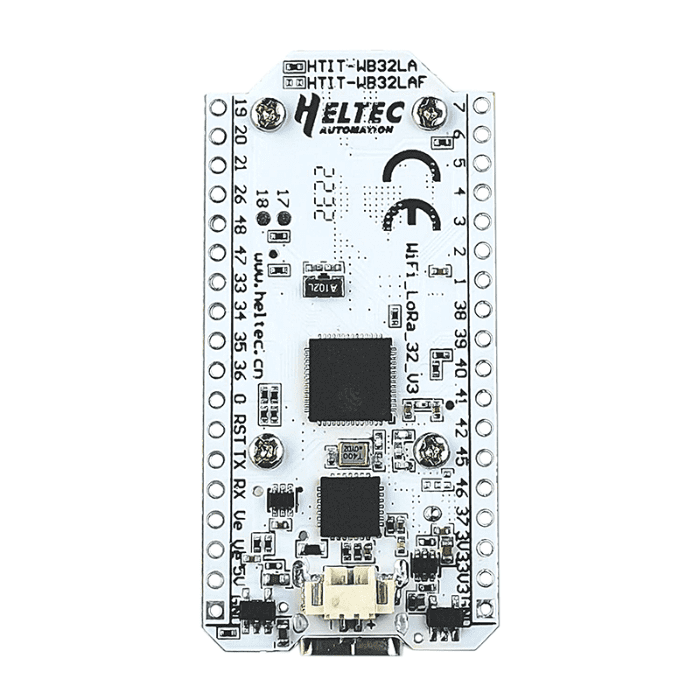

The ESP32 LoRa SX1262 0.96 Inch OLED Display Bluetooth WiFi Module for Arduino is a new development of the cost-effective networking program. The ESP 32 WiFi LoRa is a classic IoT dev-board designed & produced by Heltec Automation. Since its launch in 2017, it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.

This loRa module has Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.

check out : MKS TFT-WIFI V1.0 ESP8266 WIFI Module

Pinout:

Pinout Of V3 ESP32 WIFI Bluetooth Lora With 0.96 OLED Display

Package Includes:

1 x V3 Version 863MHz-928MHz SX1262 ESP32 WIFI Bluetooth Lora with 0.96 OLED Display

Specifications:

Master Chip	ESP32-53FN8 (Xtensa 32-bit lx7 dual core processor)
LoRa Chipset	SX1262
USB to Serial Chip	CP2102
Frequency	470 510 MHz, 863~928 MHz
Max. TX Power	21 + 1 dBm
Max. Receiving sensitivity	-139 dBm
Battery	3.7V lithium battery power supply and charging
Operating temperature	-20~70 °C
Dimensions	50.2x25.5x10.2 mm
Weight	5g
