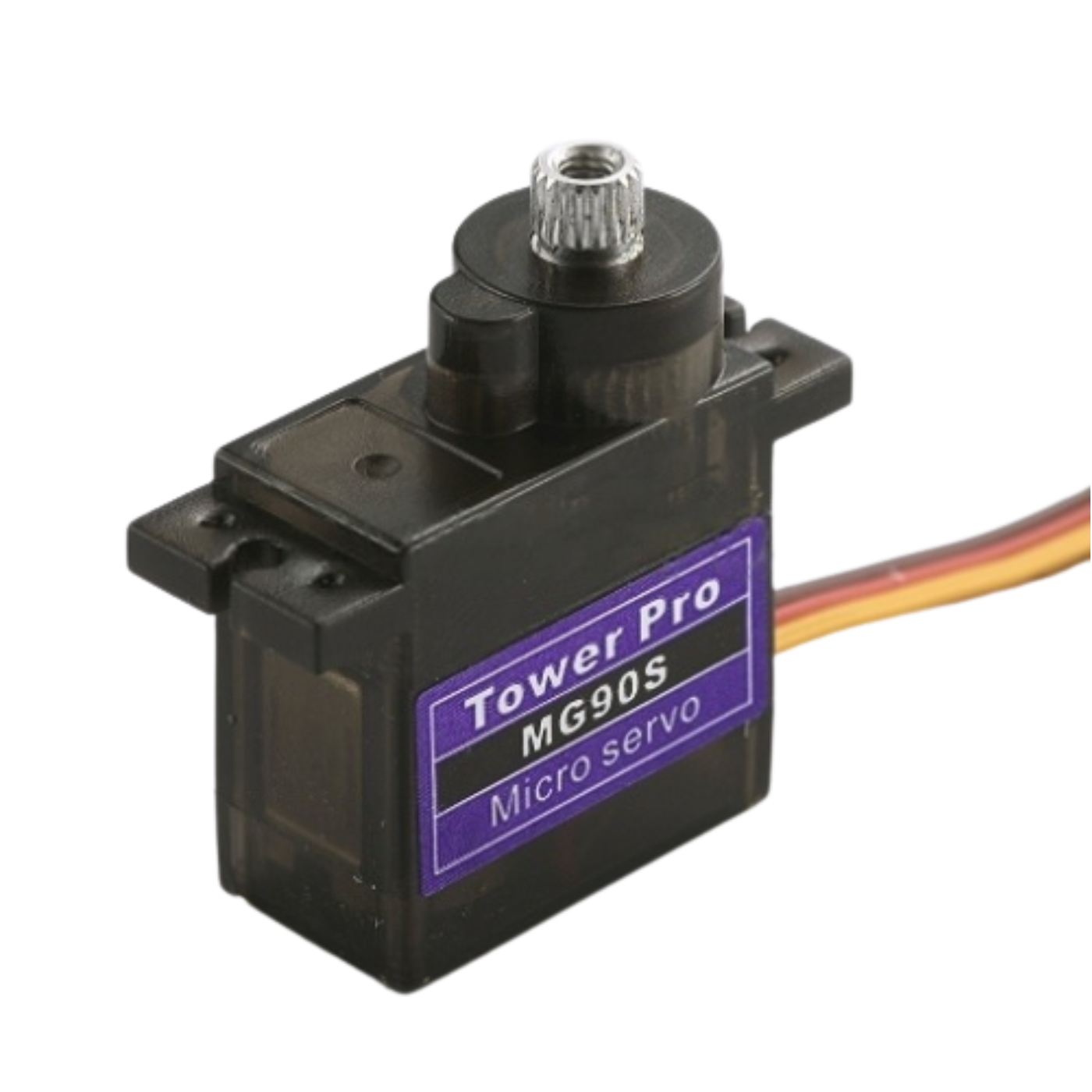

Towerpro MG90S Micro Servo Motor with 360° Rotation
Couldn't load pickup availability
The Towerpro MG90S micro servo motor (360° continuous rotation) is a compact and high-quality digital servo designed for precision and reliability.
Built to deliver smooth performance, it is perfect for a variety of applications, including RC aircraft, cars, robotics, and creative DIY projects.
Its lightweight design and robust construction make it an excellent choice for both hobbyists and professionals seeking an affordable yet dependable servo motor solution.
Whether you’re building a competitive robot, upgrading your RC vehicle, or experimenting with unique automation ideas, the Towerpro MG90S offers the control and versatility you need.
| Specification | Details |
|---|---|
| Item Type | TowerPro Servo Motor |
| Model Series | MG Series |
| Rotation (Degree) | 360 |
| Torque Rating (kg-cm) | 1.8 to 2.2 |
| Model No. | MG90S |
| Diameter of Rotor (mm) | 4.8 |
| Operating Voltage (VDC) | 4.8 ~ 6.6 |
| Operating Speed @ 4.8V | 0.10 sec/60° |
| Operating Speed @ 6.6V | 0.08 sec/60° |
| Stall Torque @ 4.8V (kg-cm) | 1.8 |
| Stall Torque @ 6.6V (kg-cm) | 2.2 |
| Operating Temperature (°C) | 0 to 55 |
| Gear Type | Metal |
| Servo Plug Type | JR |
| Cable Length (cm) | 25 |
| Length (mm) | 32 |
| Width (mm) | 12 |
| Height (mm) | 33 |
| Weight (g) | 13 |
