STM32F103C6T6A Board STMicroelectronics ARM Microcontrollers
STM32F103C6T6A Board STMicroelectronics ARM Microcontrollers
Regular price
Rs. 112
Regular price
Rs. 249
Sale price
Rs. 112
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- It has a operating Voltage of 2.7V – 3.6V
- 72 MHz Operating Frequency (max.)
- Internal USB Interface
- Supported Communication Protocols: I2C, SPI, UART, CAN, USB (2x SPI, 3x USART, 2x I2C, 1x CAN)

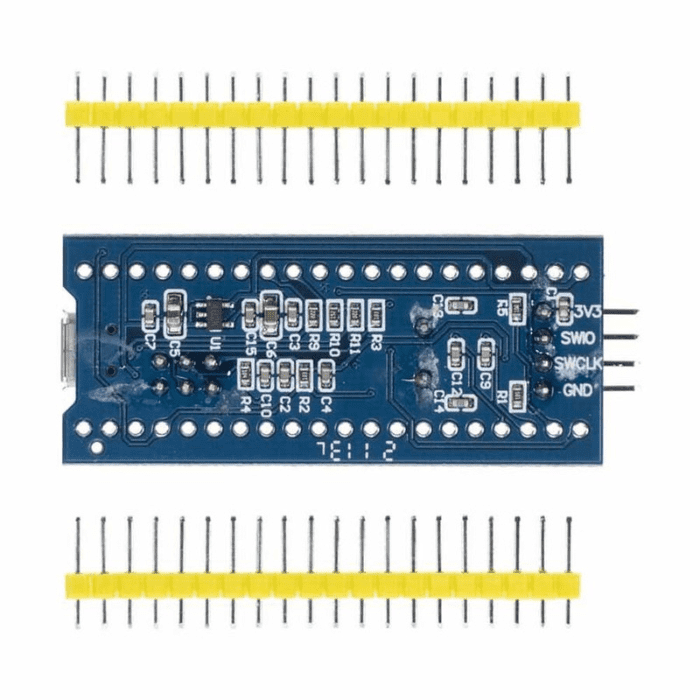

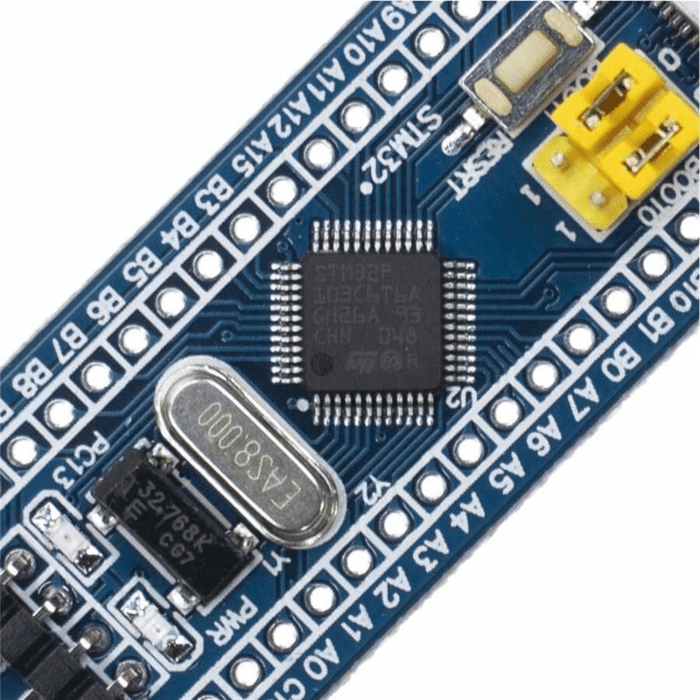

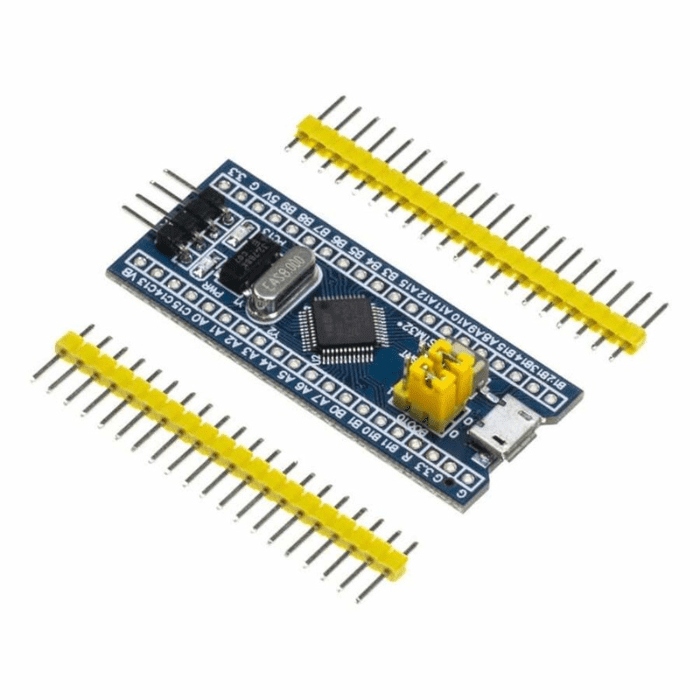

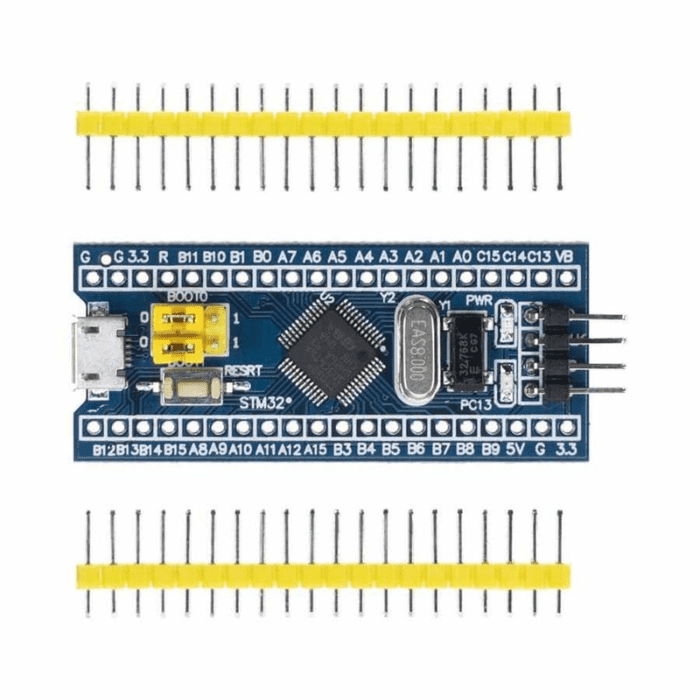

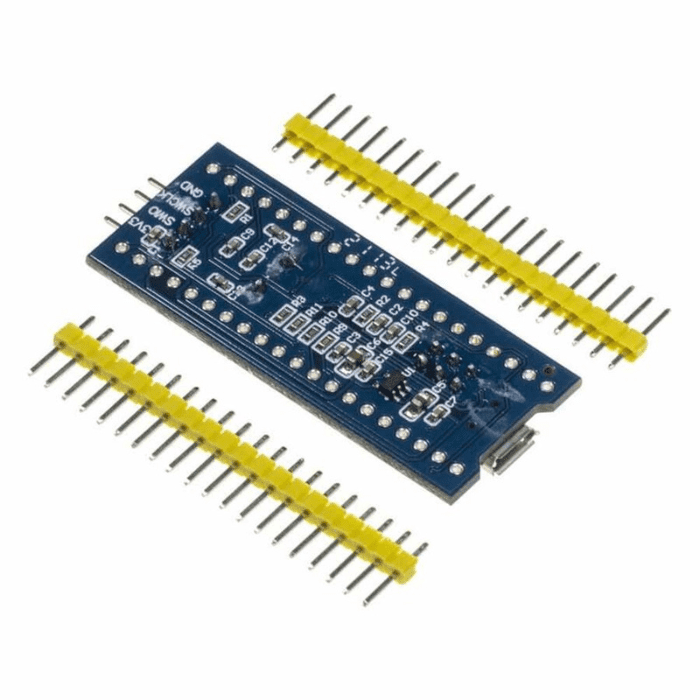

STM32F103C6T6A Board STMicroelectronics ARM Microcontrollers
The STM32F103C6T6A Board is a microcontroller development board based on the Arduino Nano size. The microcontroller has a 32-bit ARM Cortex-M3 core. It is a powerful and economical solution for those who want to improve themselves in the field of embedded systems.
The STM32F1 series is the name of the entry-mid-level microcontroller family produced by the ST company. STM32F103C6T6A is a powerful microcontroller suitable for many of your projects. You can program the board with compilers like Keil or IAR using ST-LINK.
There are headers connected to microcontroller pins on the board, 3.3V-5V outputs, a USB interface, an internal SMD LED, and jumpers for operating programming mode. With its lean design, it meets the requirements of a development board. The board comes with unsoldered headers. It is an excellent starting point for those who aim to improve themselves by getting to know the ARM architecture.
Application:
- Handheld equipment
- A/V receivers and digital TV
- PC peripherals
- Gaming platforms
- E-bikes
- consumer appliances
- Printers, scanners
- Alarm systems
- Video intercoms
- HVACs
Package Includes:
- 1 x STM32F103C6T6A Board
- 2 x Headers
Specification:
| Core | ARM 32 Cortex-M3 CPU |
| Operating Voltage | 2.7V – 3.6V |
| Analog Inputs | 10 (12-bit) |
| Digital IO Pins | 37 |
| Dimensions | 40x30x8mm |
| Weight | 5g |
