ST-Link V2 Debugger and Programmer USB
ST-Link V2 Debugger and Programmer USB
Out of stock
Regular price
Rs. 149
Regular price
Rs. 259
Sale price
Rs. 149
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Equipped with a 500MA internal resettable fuse.
- Has a red and blue LED indicator to observe the working condition.
- Aluminum alloy shell design, easy to carry, safe, and reliable.
- Supports full range of STM32 SWD 4-wire interface debug interface.
- Supports full range of STM8 SWIM download debugging.
- Supported software versions as follows: ST-LINK Utility 2.0 and 4.2.1 above, STVD and above, STVP 3.2.3 and above, IAR EWARM V6.20 and above, IAR EWSTM8 V1.30 and above, KEIL RVMDK V4.21 and above.
- Internal motherboard with 500MA self-recovery fuse.
- Increase 5V power output.
- Output I / O ports are protected.
ST-LINK/V2 Debugger and Programmer USB

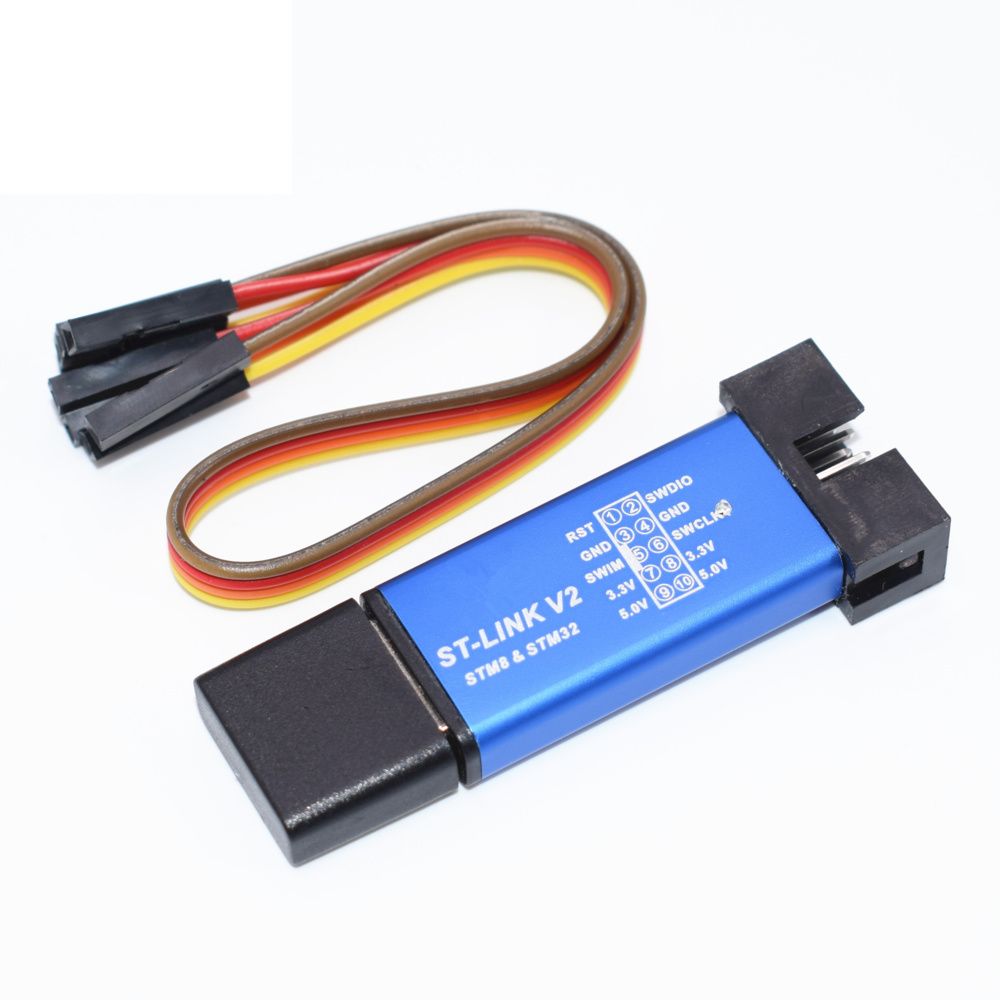

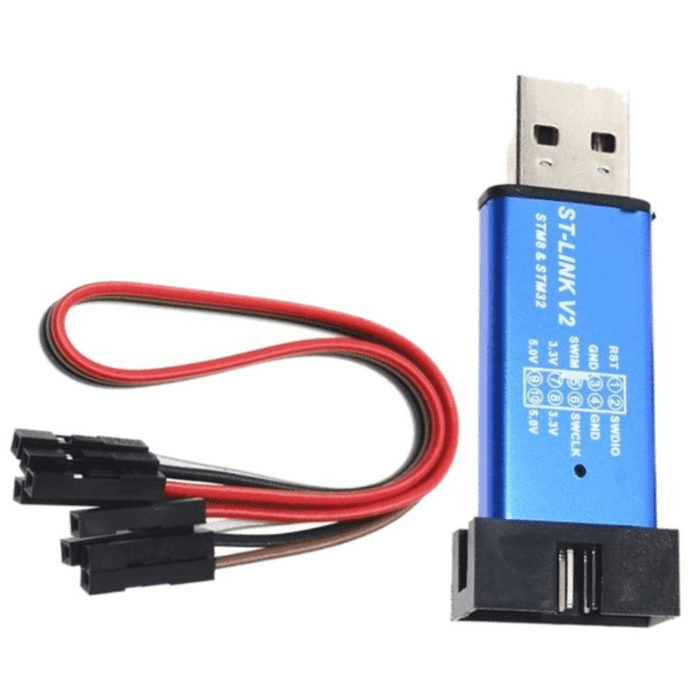

The ST-Link V2 debugger and programmer is designed for STM8 and STM32 and is manufactured with PCB installed inside of aluminum alloy U disk shell. This factory firmware has been upgraded to support the full-range STM32 SWD and a full-range STM8 SWIM.
This ST-Link programmer is equipped with a 500MA internal resettable fuse that provides complete protection for your expensive computer motherboard. This programmer has a programming speed rate of 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed. It has a red and blue LED indicator that allows users to observe the working condition of the Programmer.

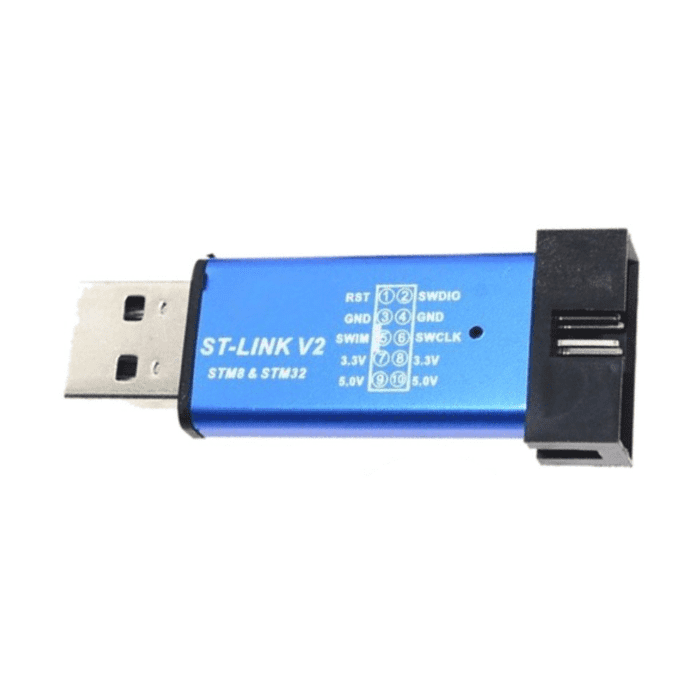

The ST-Link device can be used to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. It contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST), and GND. With the help of the USB connector, it can connected to a computer.
Click here to download the Drivers.
Package Includes:
- 1 x ST Link V2 Programmer
Specifications:
| Case Material | Aluminium Alloy |
| Input Voltage | 3.3V - 5V |
| Programming Speed | 9.7 Kbytes/s - 12.8 Kbytes/s |
| Operating temperature | 0 to 50°C |
| Fuse | 500MA |
| Dimensions | 5.5 x 1.5 x 0.5cm |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is ST-Link V2 programmer used for?
- The ST Link V2 programmer device can be used to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. This ST Link V2 contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST) and GND. With the help of the USB connector, it can connected to a computer.
