Square Force-Sensitive Resistor - Original

Square Force-Sensitive Resistor - Original

Out of stock

Regular price Rs. 399
Regular price Rs. 449 Sale price Rs. 399
Sale Sold out 11% off Best Price Guaranteed
You save Rs. 50 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Just Connect a resistor to form a voltage devider and meassure the voltage at the junction to find the force applied.
  • These sensors are simple to set up and great for sensing pressure, but they aren't incredibly accurate.
  • Use them to sense if it's being squeezed, but you may not want to use it as a scale.
Trust Badge 1 Trust Badge 2 Trust Badge 3

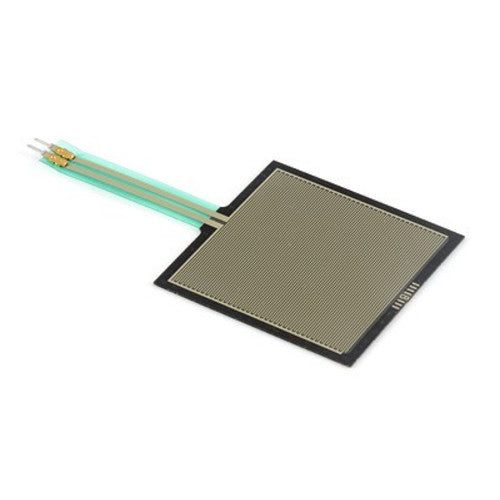

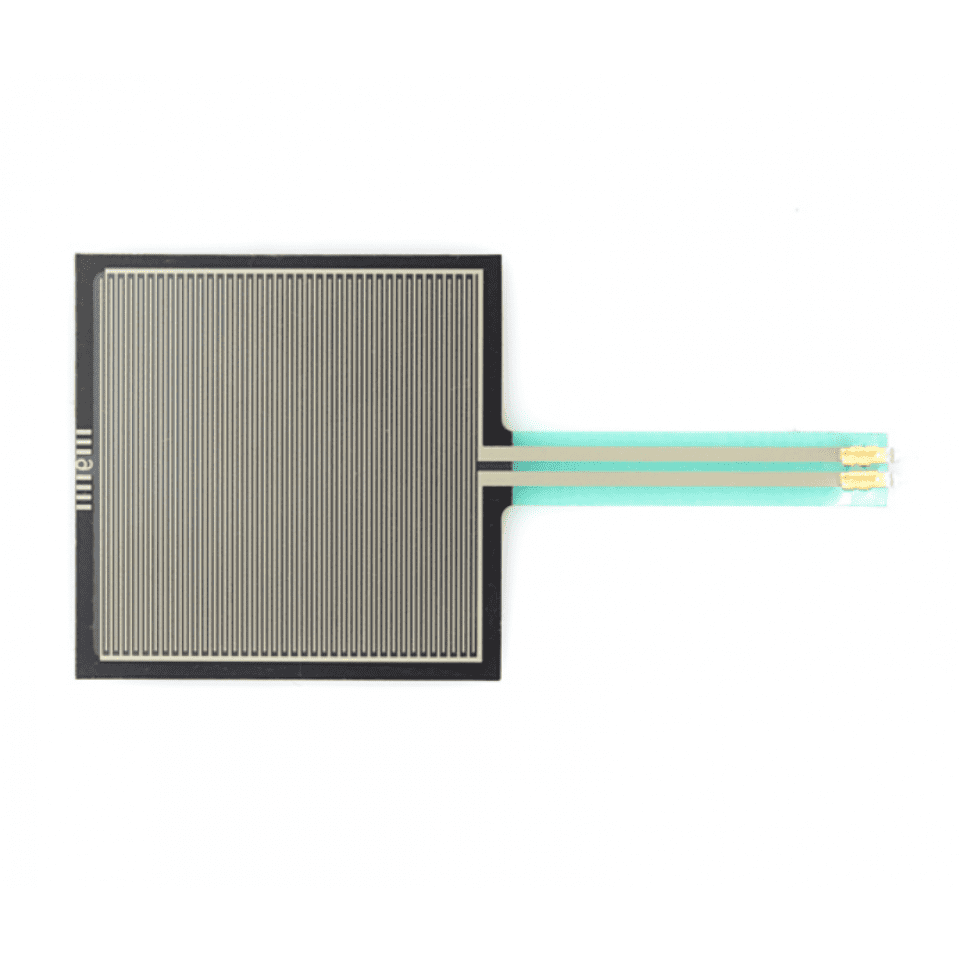

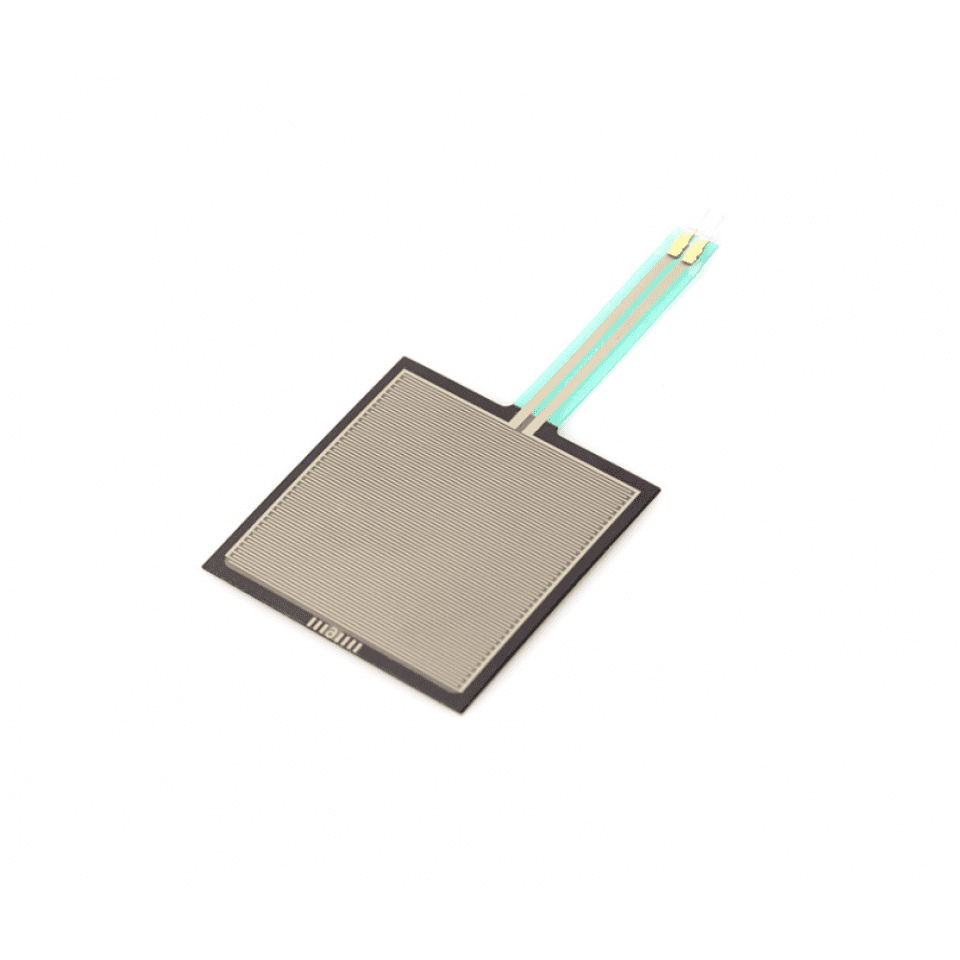

Square Force-Sensitive Resistor

FSR 400 series is part of the single zone Force Sensing Resistor family. The model 406 FSR is a single-zone Force Sensing Resistor optimized for use in human touch control of electronic devices such as automotive electronics, medical systems, and in industrial and robotics applications. FSRs are two-wire devices. They are robust polymer thick film (PTF) sensors that exhibit a decrease in resistance with increase in force applied to the surface of the sensor. It has a 39.6mm square active area and is available in 4 connection options.

This FSR 406 force sensor will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg. Two pins extend from the bottom of the sensor with 0.1" pitch making it bread board friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.

Also check Spectra Symbol 12.7 mm Circular Force sensor. It is a force-sensitive resistor with a round, 0.5″ diameter sensing area. The resistance of this FSR varies based on the amount of pressure applied to its sensing area. When no pressure is applied, its resistance is larger than 1MΩ. The FSR can sense forces in the range of 100g to 10kg.

Package Includes:

  • 1 x Square Force-Sensitive Resistor

Specifications

Brand  Spectra Symbol
Shape  Square
Sensor Type  Force Sensor
Dimensions  3.5 x 1.75 inch
Sensing Area 1.75 x 1.5 inch
Weight  25 grams
