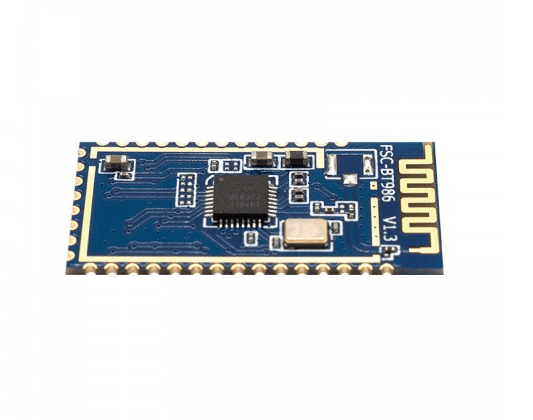

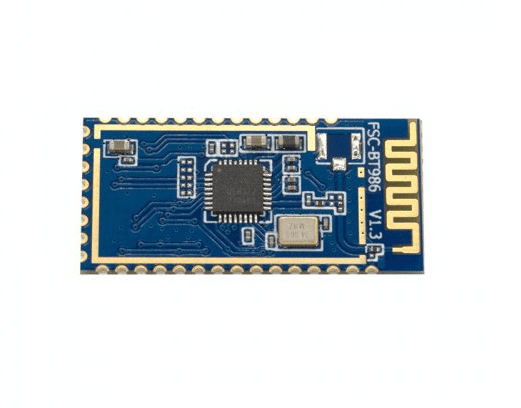

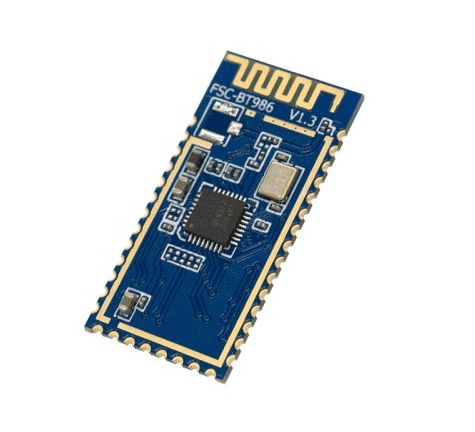

Bluetooth 5.0 Dual Mode BLE (Feasycom)
Bluetooth 5.0 Dual Mode BLE (Feasycom)
Regular price
Rs. 313
Regular price
Rs. 406
Sale price
Rs. 313
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
- This is Bluetooth 5.0 Dual Mode BLE (Feasycom)
- Operates on the 2400MHz to 2480Mhz ISM frequency band
- High performance based on the latest Bluetooth 5.0 standard
- Low power consumption of 5mA working current, suitable for battery-powered devices
- Low cost, making it affordable for various applications
- Built-in PCB antenna for easy use without additional hardware
- Supports external antenna to improve range and performance
- Supports many other Bluetooth apps, making it compatible with a wide range of devices
Bluetooth 5.0 Dual Mode BLE (Feasycom)
The Bluetooth 5.0 Dual Mode BLE (Feasycom) is a high-performance, highly integrated Bluetooth 5.0 BR/EDR/BLE dual-mode module. It operates on the 2400MHz to 2480Mhz ISM frequency band and has a low power consumption of 5mA working current. It is also low cost with excellent performance. The module has a built-in PCB antenna and supports an external antenna. It is the best alternative for the Bluetooth HC05 chip as it has been obsoleted. The Bluetooth module supports communicating with the FeasyBlue app and many other Bluetooth apps.
The Bluetooth 5.0 Dual Mode BLE (Feasycom) has a number of features that make it ideal for a variety of applications, including:
Features:
- High performance: The module is based on the latest Bluetooth 5.0 standard, which provides significant improvements in range, speed, and power efficiency over previous versions of Bluetooth.
- Low power consumption: The module has a low power consumption of 5mA working current, which makes it ideal for battery-powered devices.
- Low cost: The module is low cost, making it an affordable option for a variety of applications.
- Built-in PCB antenna: The module has a built-in PCB antenna, which makes it easy to use and requires no additional hardware.
- Supports external antenna: The module supports external antenna, which can be used to improve the range and performance of the module.
- Communicates with the FeasyBlue app: The module communicates with the FeasyBlue app, which makes it easy to configure and use the module.
- Supports many other Bluetooth apps: The module supports many other Bluetooth apps, which makes it compatible with a wide range of devices.
The Bluetooth 5.0 Dual Mode BLE (Feasycom) is a versatile and powerful module that is ideal for a variety of applications. It is a high-performance, low-power, and low-cost module that is easy to use and supports a wide range of features.
Applications:
- Printer
- Health Thermometer
- Heart Rate
- Blood Pressure
- Proximity
Package Includes:
- 1 x Bluetooth 5.0 Dual Mode BLE (Feasycom)
Specifications:
|
Bluetooth module model
|
FSC-BT986
|
|
Bluetooth version
|
Bluetooth 5.0 dual mode
|
|
Certifications
|
CE、FCC、IC、KC、NCC
|
|
Interfaces
|
UART
|
|
Profiles
|
SPP, GATT
|
|
Frequency
|
2.400-2.480 GHz
|
|
Transmit power
|
0 dBm (Maximum)
|
|
Power supply
|
2.2-5.5V
|
|
Antenna
|
Built-in PCB Antenna(Default), supports external antenna(Optional)
|
|
Power Consumption
|
Working current 5mA
|
|
Storage Temperature
|
-30℃ to +95℃
|
|
Operating Temperature
|
-20℃ to +85℃
|
|
Dimensions
|
13 x 26.9 x 2.4mm
|
| Weight | 25gm |
