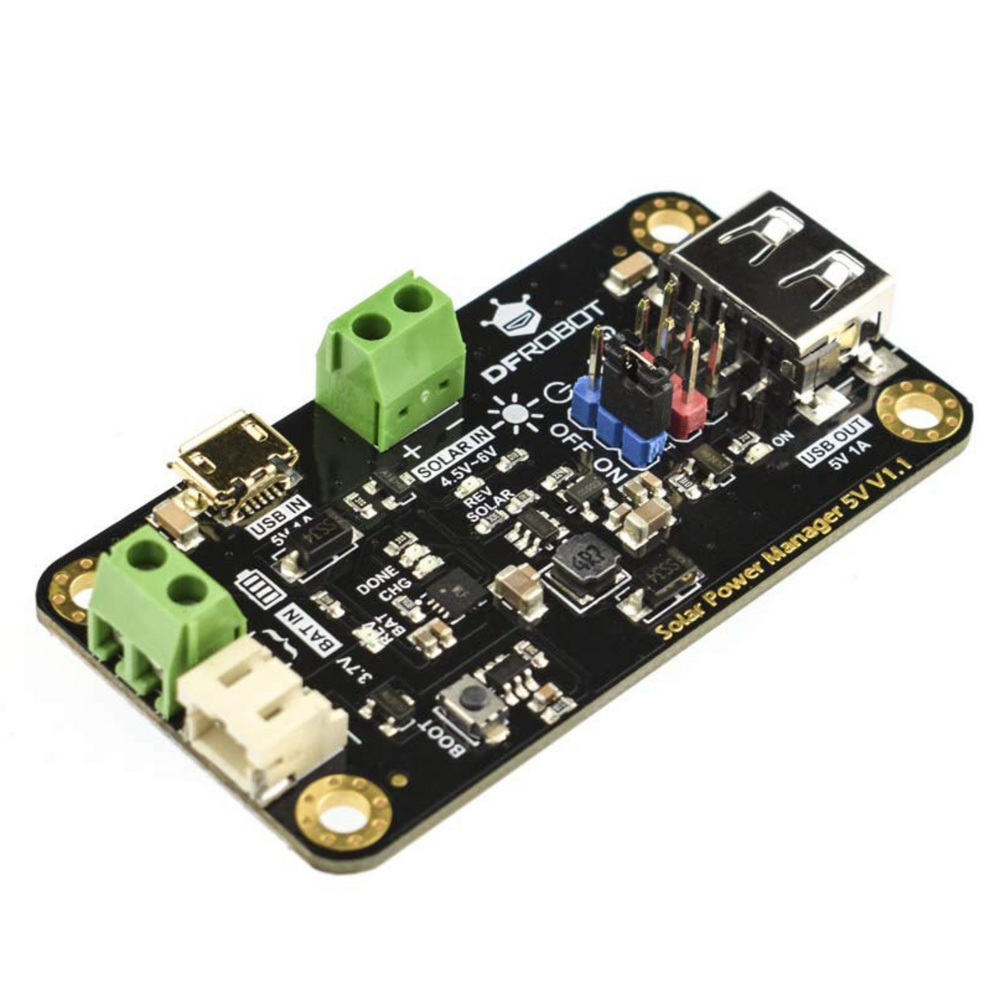

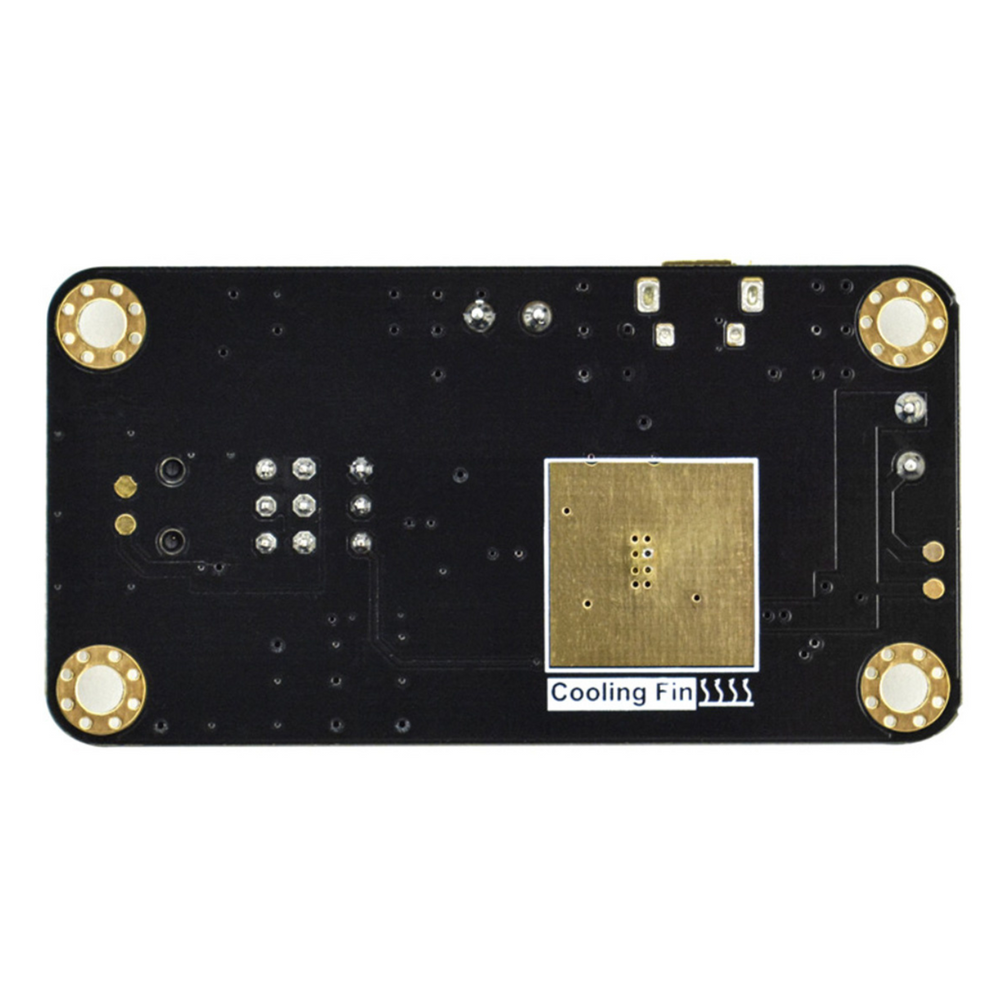

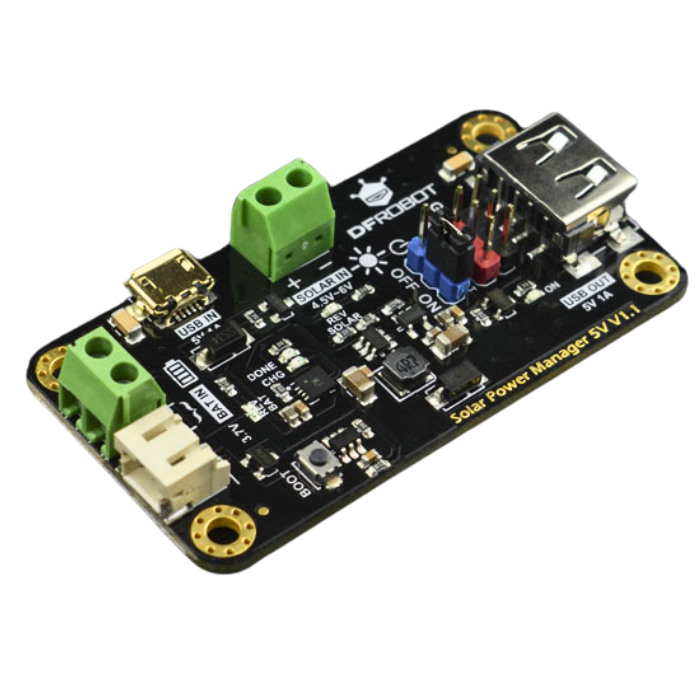

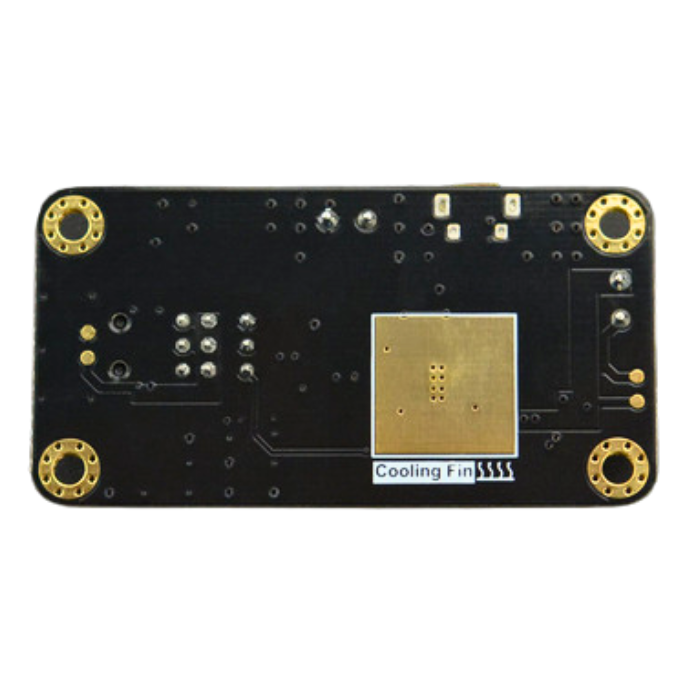

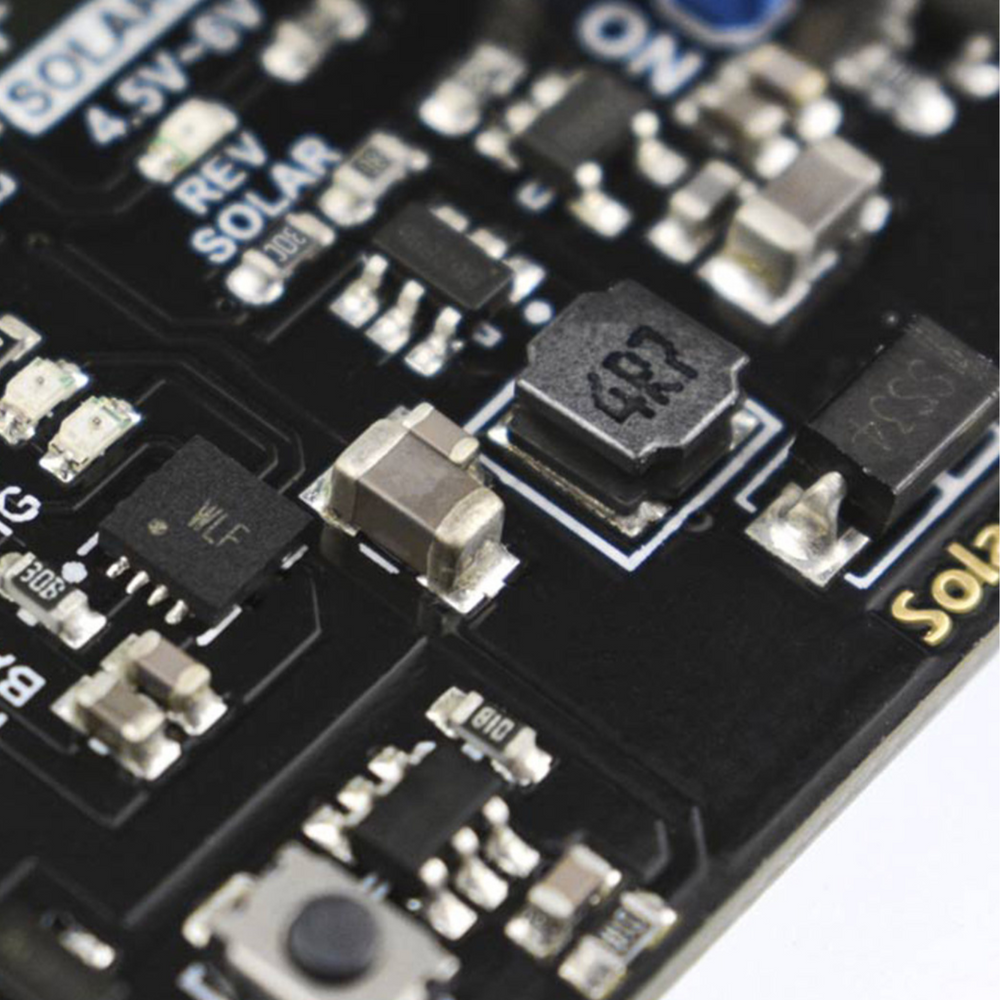

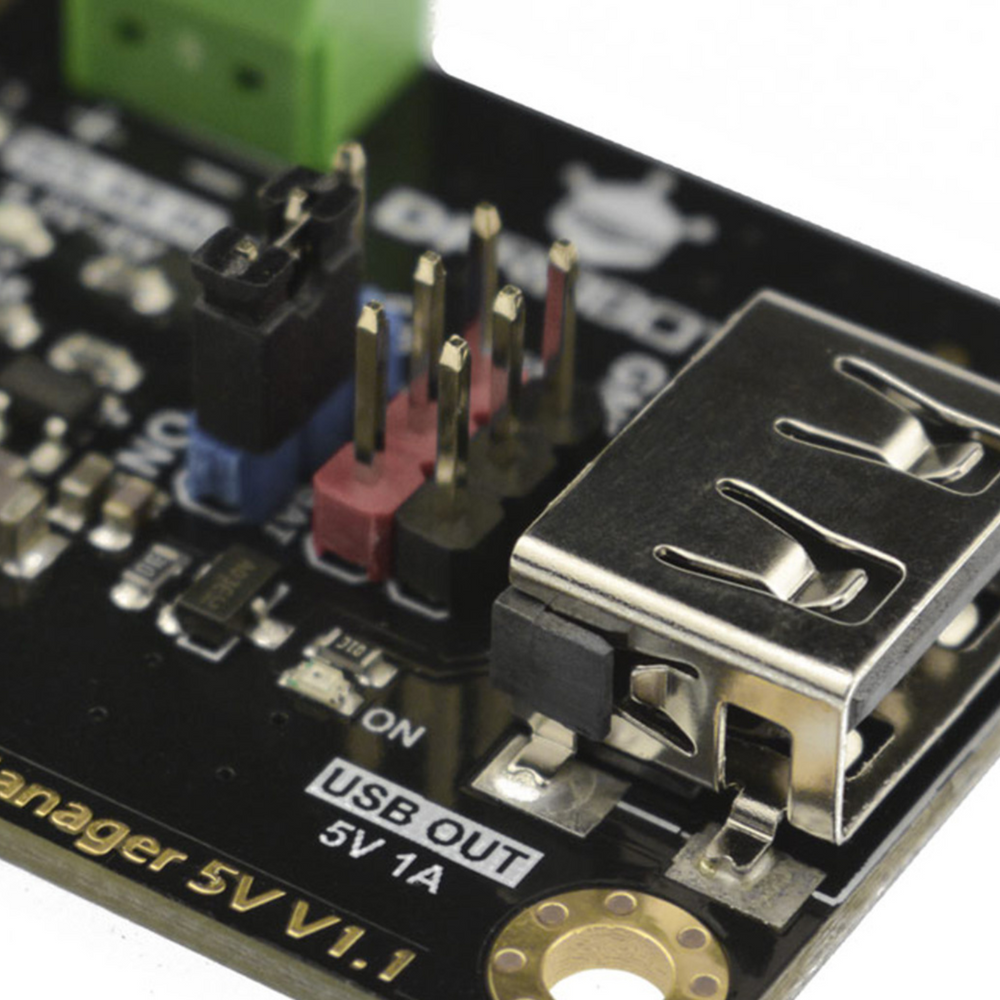

Solar Power Manager 5V

Regular price Rs. 788
Regular price Rs. 1,249 Sale price Rs. 788
Sale Sold out 37% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 12 Hours and 50 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Efficient Solar Panel Management: Solar Power Manager 5V features MPPT for maximum solar panel efficiency.
  • Versatile Charging Options: Supports solar and USB charging with a maximum charge current of 900mA.
  • Regulated Power Supply: Provides a controllable 5V 1A output for various low-power applications.
  • Comprehensive Protection: Ensures safety with overcharge, over-discharge, overcurrent, and reverse connection protection.
  • Wide Range of Applications: Perfect for small solar street lamps, solar-powered robots, solar power banks, and more.
  • User-Friendly Design: Easy-to-use, compact, and suitable for 5V solar panels within 10W.
  • High-Quality Construction: Crafted for durability and consistent output, suitable for diverse applications.

Solar Power Manager 5V

Solar Power Manager 5V is the ultimate solution for efficient solar panel management. Featuring MPPT technology, this module maximizes the performance of your 5V solar panel, making it ideal for a variety of IoT projects and renewable energy applications. Designed to provide up to 900mA charging current to a 3.7V Li battery through USB or solar panel, it ensures a reliable power supply.

The ON/OFF controllable DC-DC converters with a 5V 1A output cater to the needs of different solar power projects and low-power applications. Safety is paramount, and Solar Power Manager 5V incorporates various protection functions for the battery, solar panel, and output. This enhances the stability and safety of your solar projects, making it a dependable choice for makers and application engineers.

Crafted with precision, Solar Power Manager 5V is perfect for small solar street lamps, solar-powered robots, and solar power banks. Its user-friendly design, efficient charging options, and versatile applications make it an indispensable component for your projects.

Features:

  • Constant voltage MPPT algorithm, maximizing solar panel efficiency
  • Designed for 5V solar panel
  • Double charging mode: solar/USB charger (900mA max charge current)
  • 5V ON/OFF controllable regulated power supply for low-power applications
  • All-round protection functions
  • USB connector with ESD shell

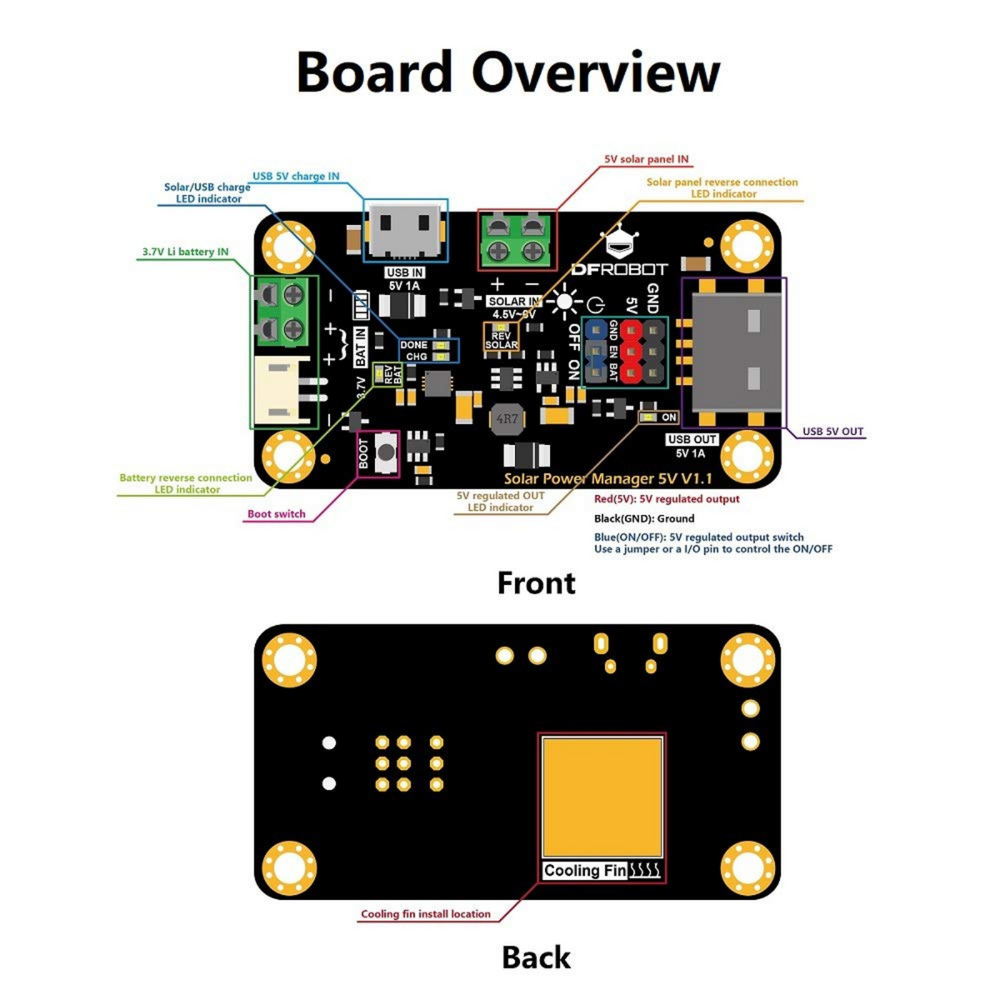

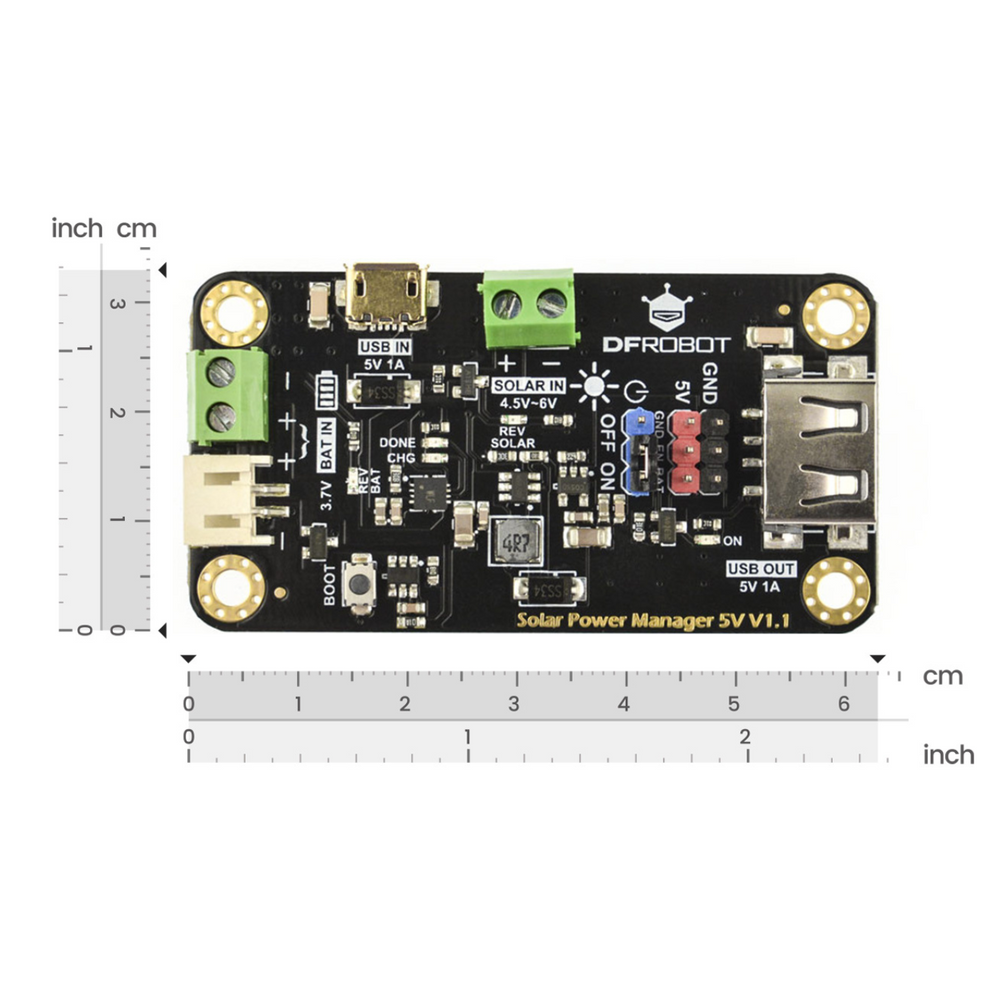

Pin Diagram:

DFRobot Solar Power Manager 5V Pin Diagram

Applications:

  • Smart solar environment monitor system
  • Solar powered robot
  • Small solar street lamp
  • Solar power bank

Solar Cells and Panels with Arduino

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

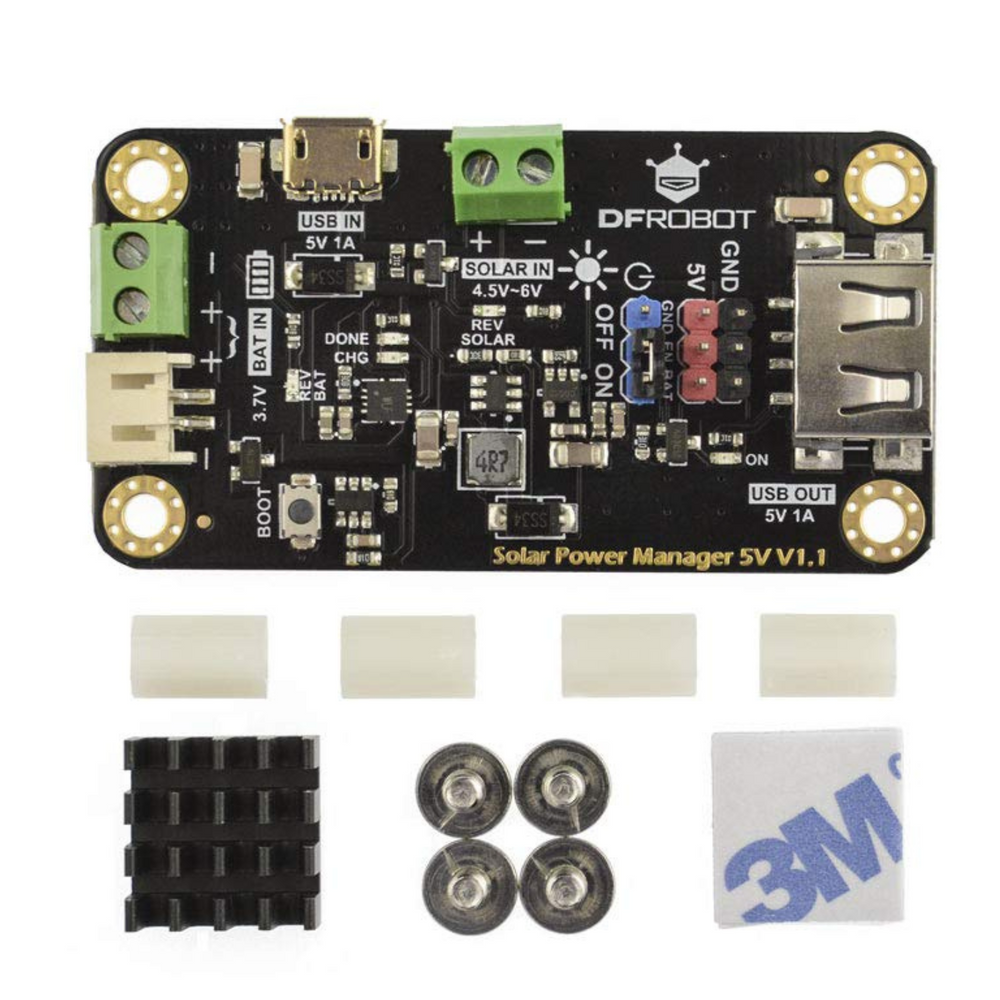

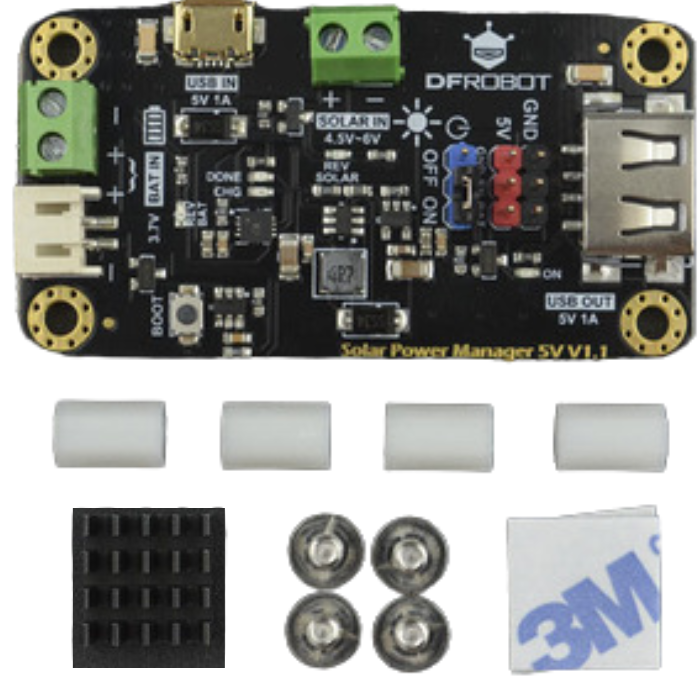

Package Includes:

  • 1 x Solar Power Manager 5V

Specifications:

Solar Power Management IC CN3165
Solar Input Voltage 4.5V~6V
Battery Input (BAT IN) 3.7V Single cell Li-polymer/Li-ion Battery
Charge Current (USB/SOLAR IN) 900mA Max trickle charging, constant current, constant voltage three phases charging
Charging Cutoff Voltage (USB/SOLAR IN) 4.2V±1%
Regulated Power Supply 5V 1A
Regulated Power Supply Efficiency (3.7V BAT IN) 86%@50% Load
USB/Solar Charge Efficiency 73%@3.7V 900mA BAT IN
Quiescent Current <1 mA
Operation Temperature -40??85?
