SmartElex TLV493D Triple-Axis Magnetometer Sensor with I2C Interface - Buy Online in India

SmartElex TLV493D Triple-Axis Magnetometer Sensor with I2C Interface

Rs 185/-
- 43%
Rs 185/-
Rs 325/-
Save Rs 140/-
🪙
RC REWARDS Earn 1 RC Coin on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 4 left in stock

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCC0262
  • Enables 3D motion and position tracking for magnets and objects.
  • Compact design makes it easy to integrate into DIY and IoT projects.
  • Provides high precision for robotics, automation, and sensing systems.
  • Supports both 3.3V and 5V systems, making it versatile and beginner-friendly.
  • Offers reliable digital output through I2C, simplifying wiring and setup.
  • Ideal for creating custom joysticks, lid detectors, or magnetic switches.
Robocraze Academy Limited Time Offer
SmartElex TLV493D Triple-Axis Magnetometer Sensor with I2C Interface -Robocraze
SmartElex TLV493D Triple-Axis Magnetometer Sensor with I2C Interface
Rs 325/- Rs 185/-

SmartElex TLV493D Triple-Axis Magnetometer Sensor with I2C Interface

Rs 325/- Rs 185/-

SmartElex TLV493D Triple-Axis Magnetometer Sensor with I2C Interface

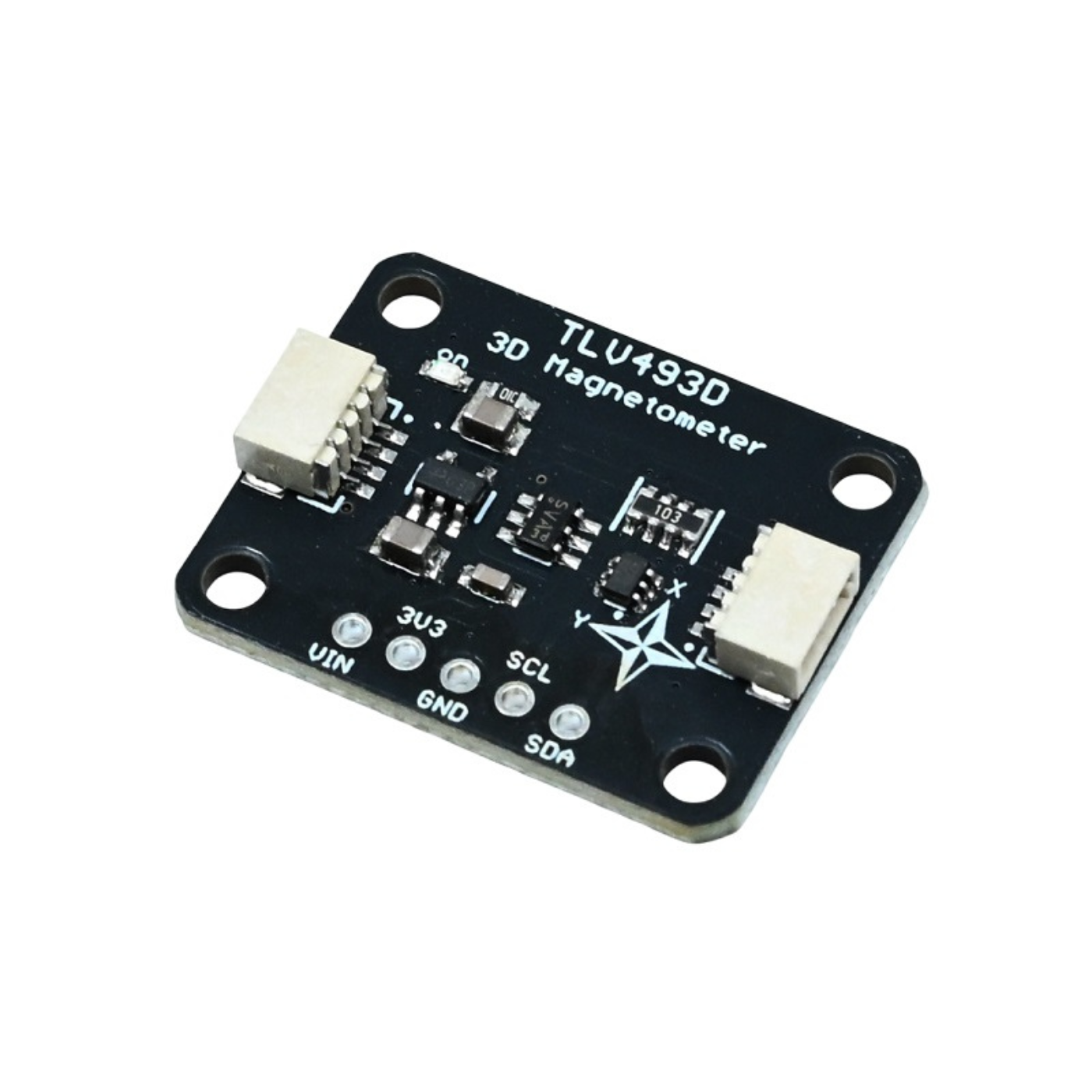

The SmartElex TLV493D Triple-Axis Magnetometer Sensor is a compact and precise 3D magnetic sensor designed to measure magnetic fields along the X, Y, and Z axes.

This makes it ideal for detecting magnets in three dimensions, enabling innovative applications like joystick controls, object detection, or motion-based triggers.

With I2C communication, the sensor offers reliable digital output and 12-bit data resolution per axis, ensuring smooth and accurate readings.

Whether you’re building a motion detection sensor, position tracker, or a smart IoT device, the TLV493D delivers consistent performance with low power consumption and a user-friendly interface for makers and engineers alike.

Features:

  • Measures magnetic fields in three dimensions (X, Y, and Z axes).
  • Supports I2C interface with speeds up to 1 Mbit/sec for easy communication.
  • Provides 12-bit resolution for each axis, ensuring high accuracy.
  • Detects magnetic fields up to +130mT for detailed 3D sensing.
  • Excellent X/Y matching for reliable angle and position detection.
  • Operates on 3.3V or 5V logic levels for flexible compatibility.
  • Compact and lightweight design, ideal for embedded applications.

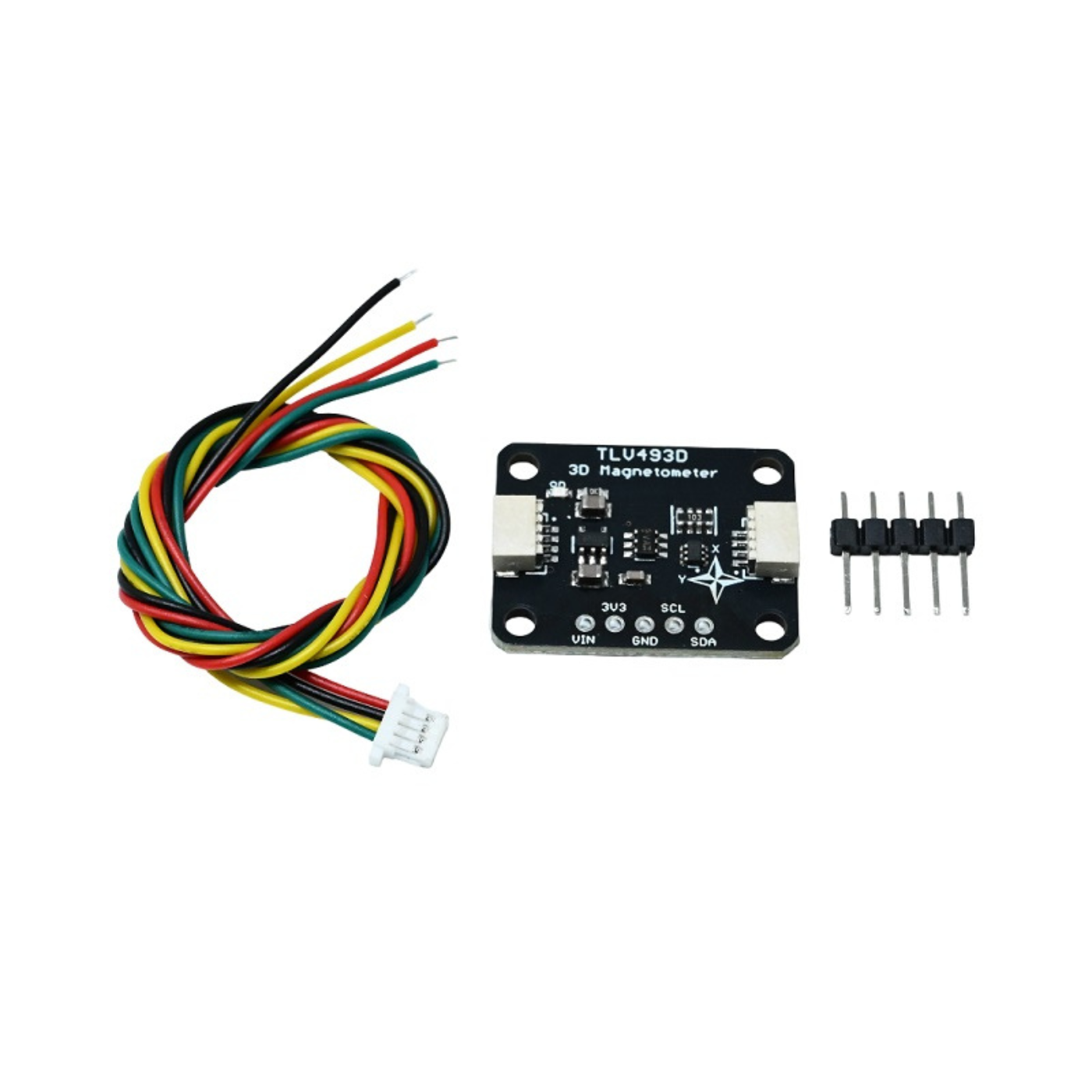

Package Includes:

  • 1 x SmartElex TLV493D Triple-Axis Magnetometer Sensor

Specifications:

Specification Details
Model Magnetometer
Model No. TLV493D
Voltage Rating (V) 3.3 to 5
Communication Mode I2C
Length (mm) 26.54
Width (mm) 20.83

Warranty Coverage:

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.

Warranty Void If:

In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
