SmartElex RLS-06 Analog & Digital 6 IR Line Sensor Array with Potentiometer
Couldn't load pickup availability
The SmartElex RLS-06 Analog & Digital 6 IR Line Sensor Array with Potentiometer is a highly reliable solution for building line-following robots and reflective surface detection systems.

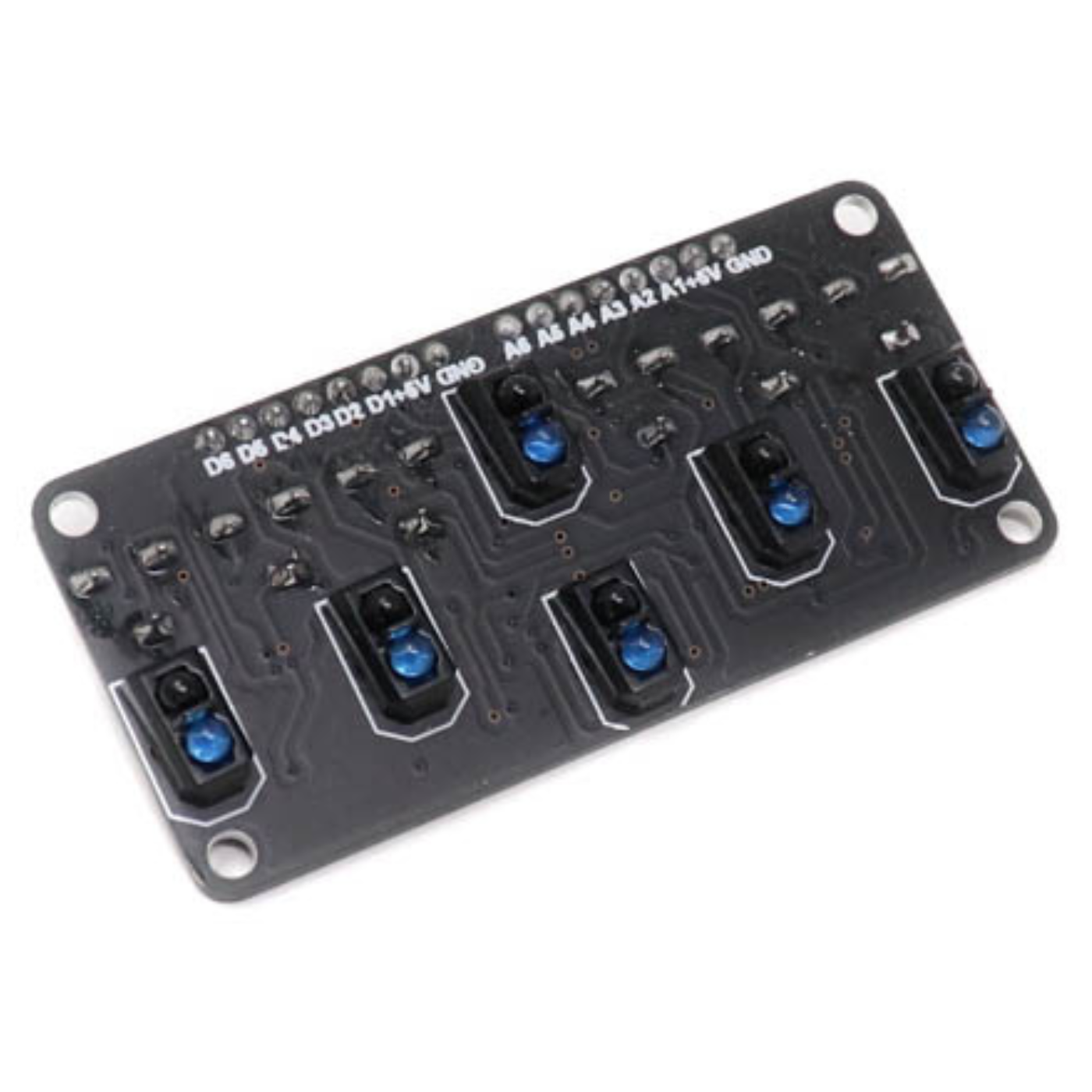

Featuring six pairs of IR LEDs and phototransistors, this IR sensor array delivers both analog and digital sensor outputs for flexible performance.

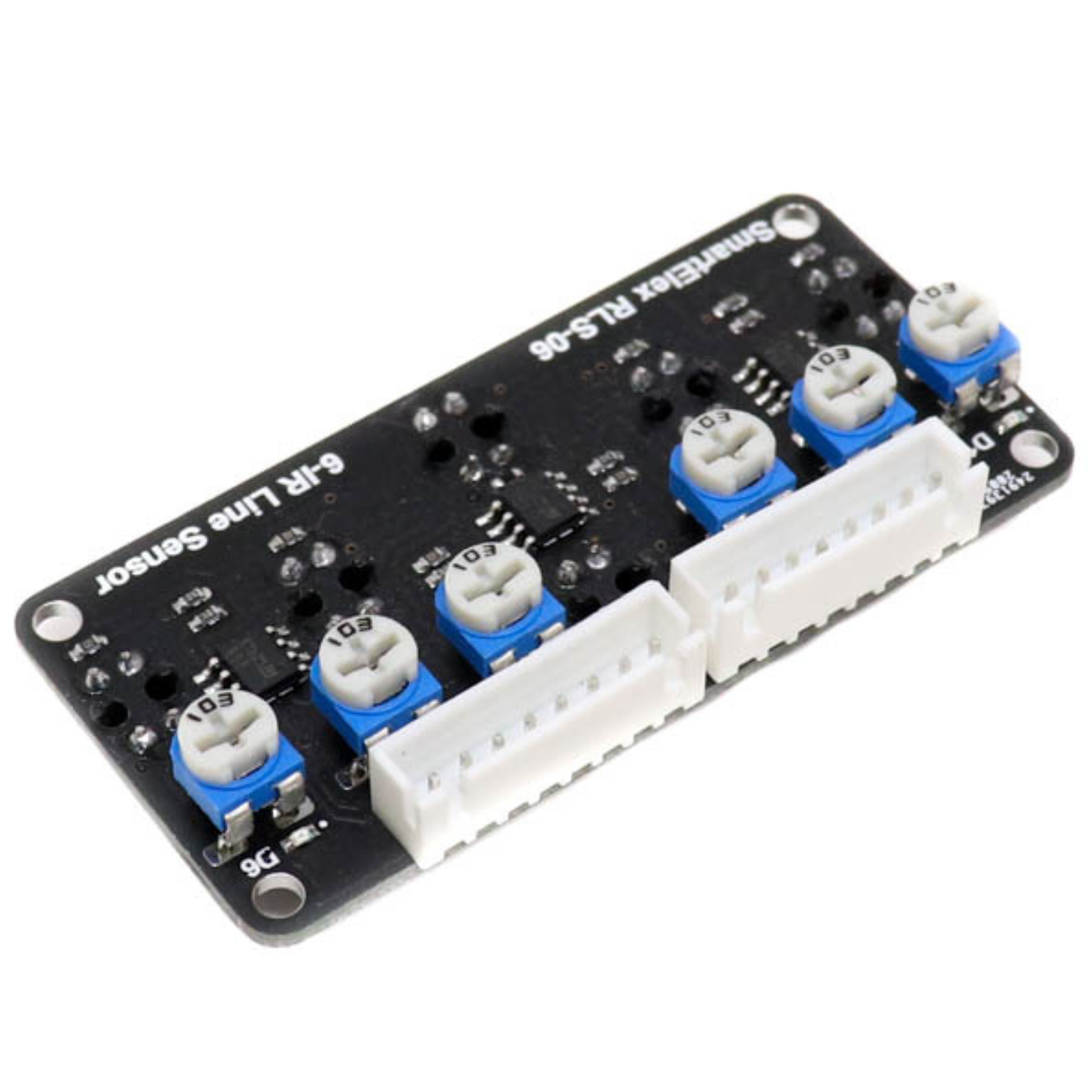

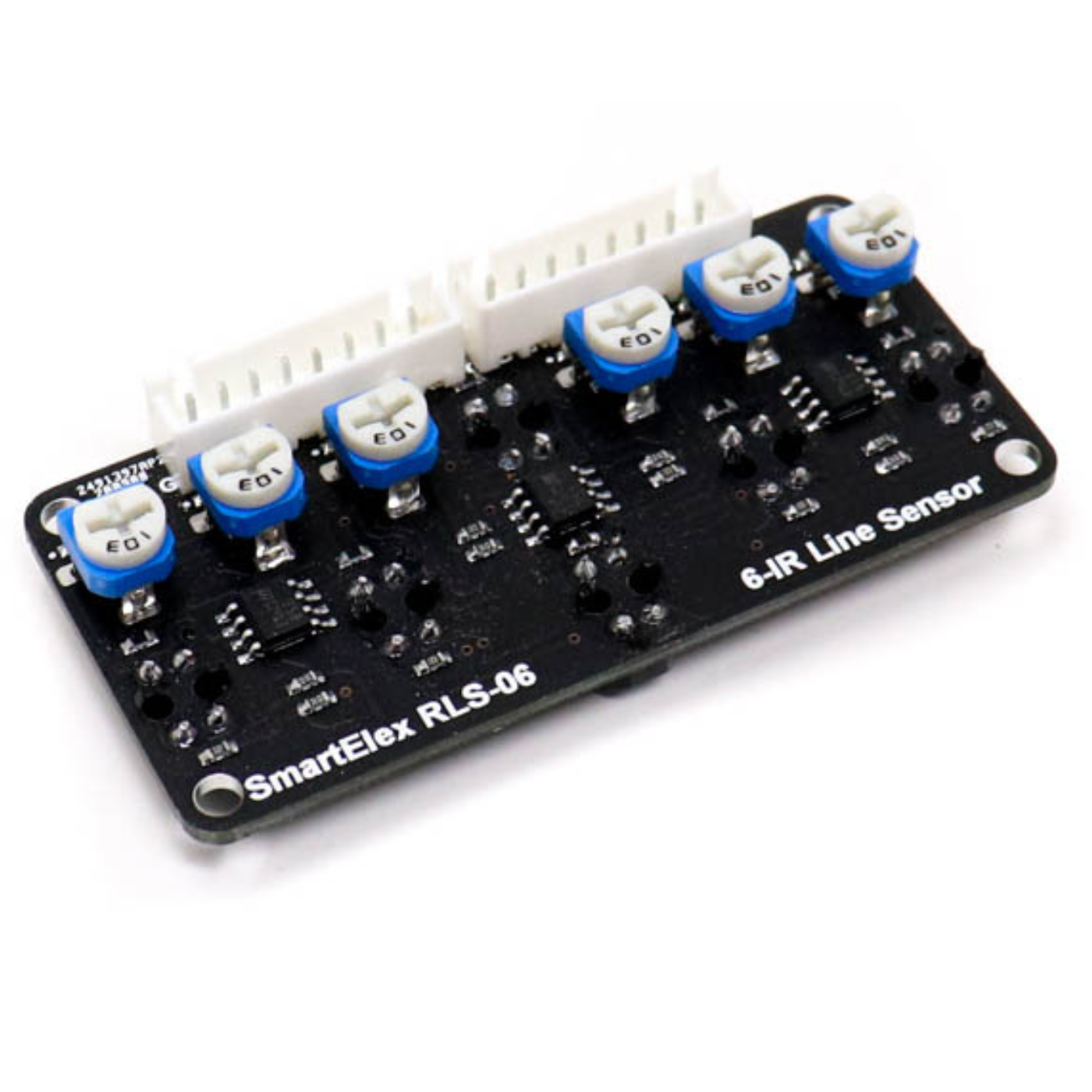

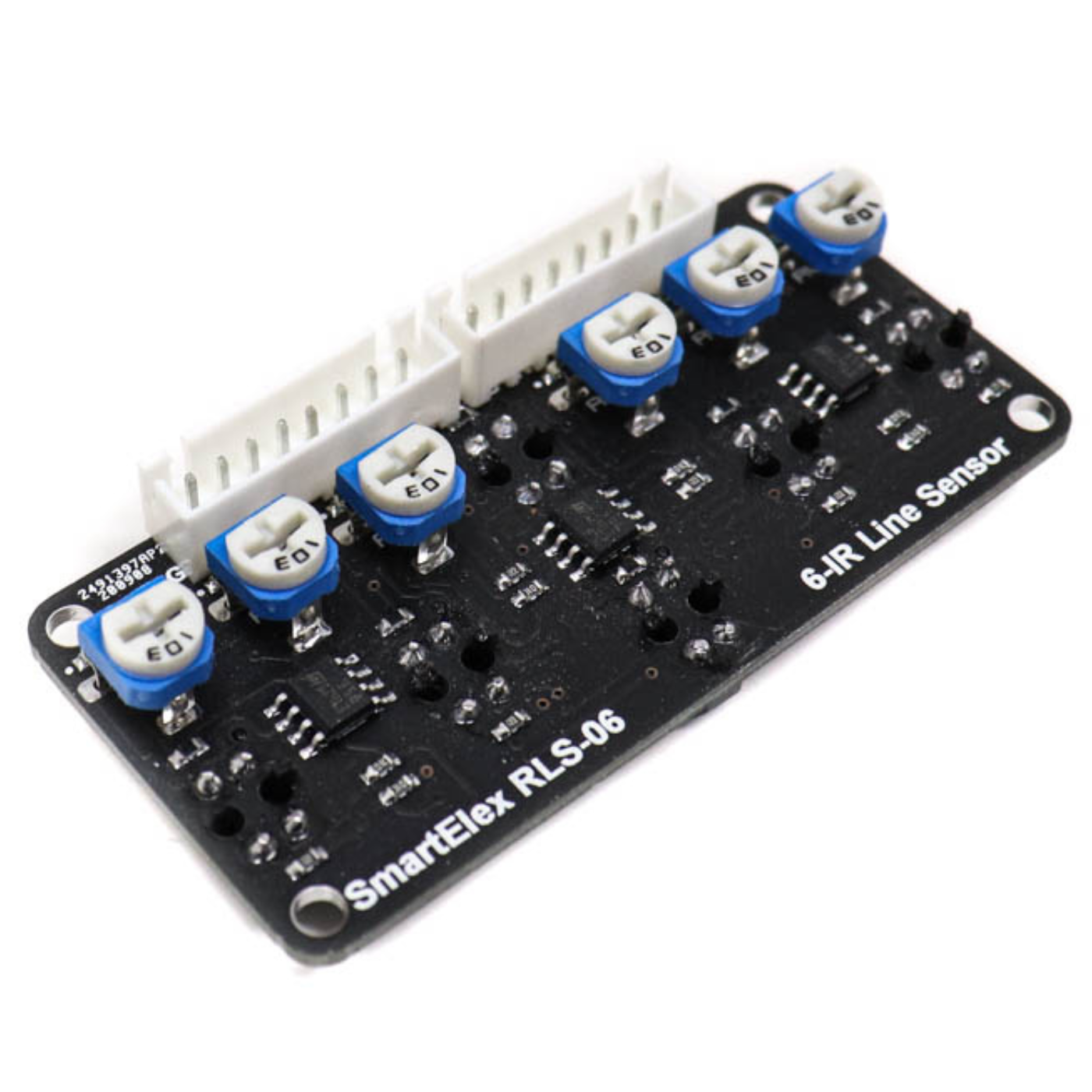

Each sensor’s sensitivity can be fine-tuned using the onboard potentiometer, ensuring accurate readings under varying surface conditions.
Built around the TCRT5000 reflectance sensor, it offers stable detection of dark and light lines or nearby objects.
The module’s MOSFET-controlled LED design helps minimize power consumption, while its dual-stage resistors enable operation at both 5V and 3.3V.
Compact, efficient, and precise — the SmartElex RLS-06 is ideal for robotics, automation, and DIY electronics applications.
| Specification | Details |
|---|---|
| Model | Analog and Digital Line Sensor |
| Model No. | RLS06 |
| Voltage Rating (V) | 4.5 to 5.0 |
| Supply Current (A) | 0.1 |
| Output Format | 6 Analog and Digital Voltages |
| Optimal Sensing Distance (mm) | 3 |
| Max. Sensing Distance (mm) | 6 |
| Mounting Hole (mm) | 3 |
| Length (mm) | 34 |
| Width (mm) | 70 |
| Height (mm) | 10 |
| Weight (g) | 14 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
