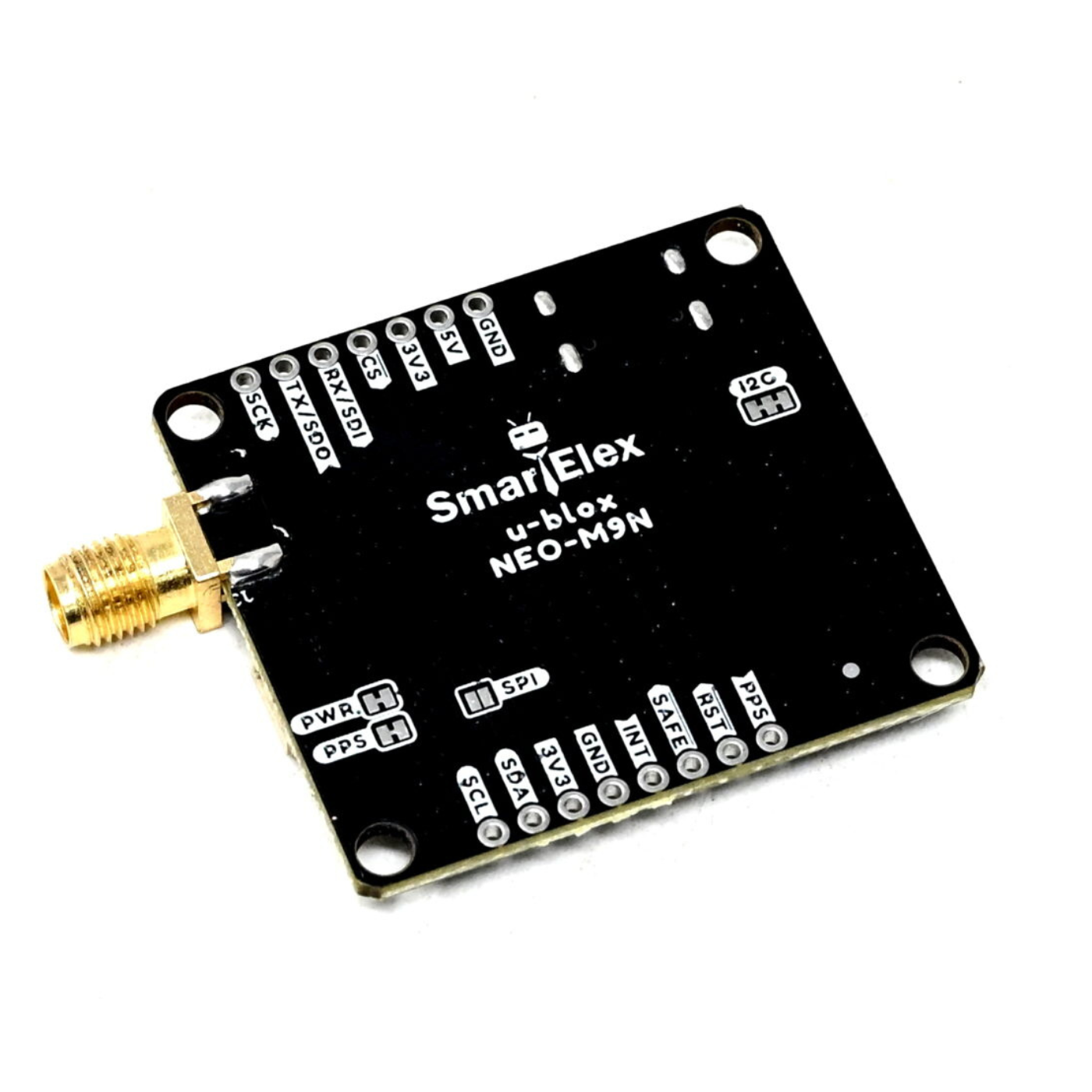

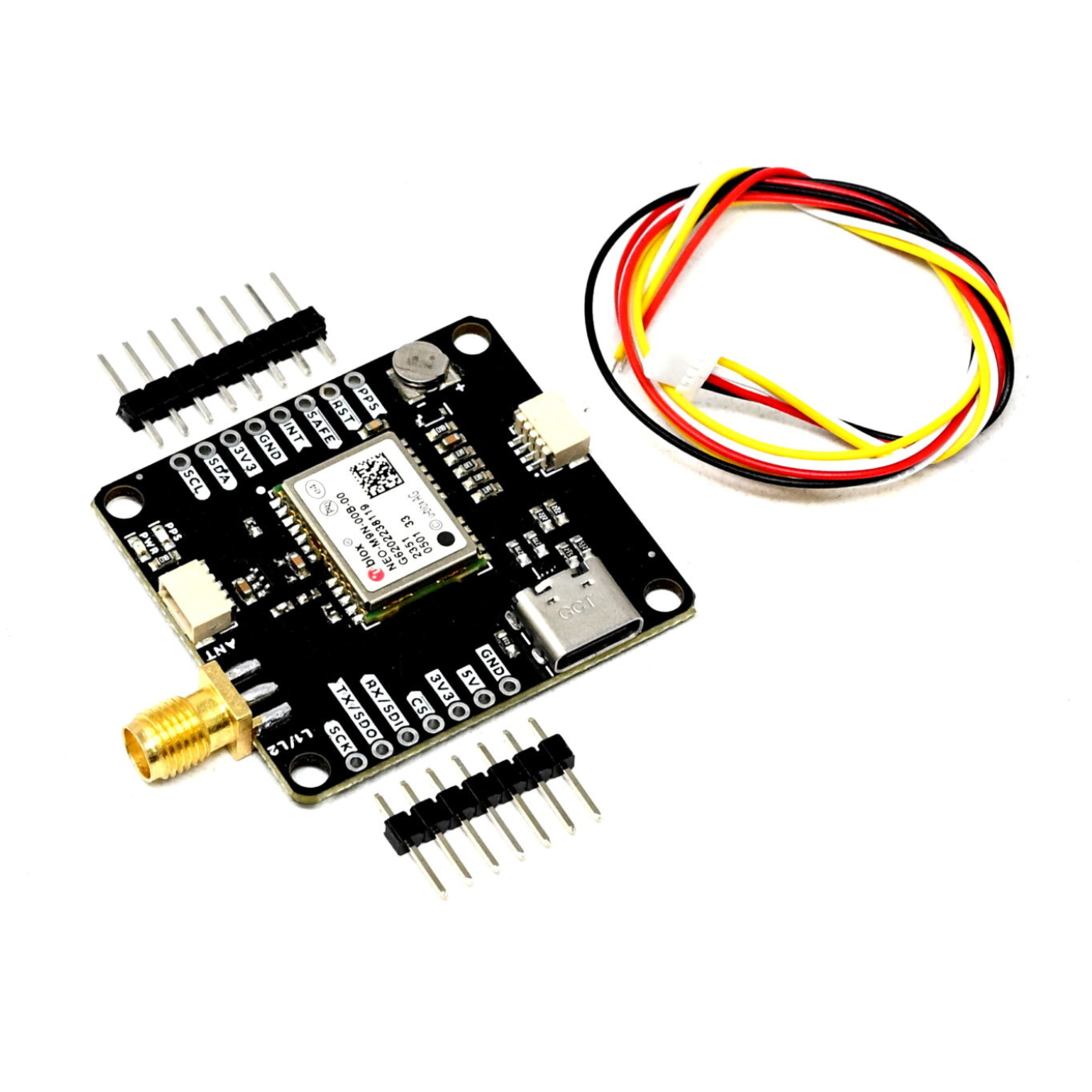

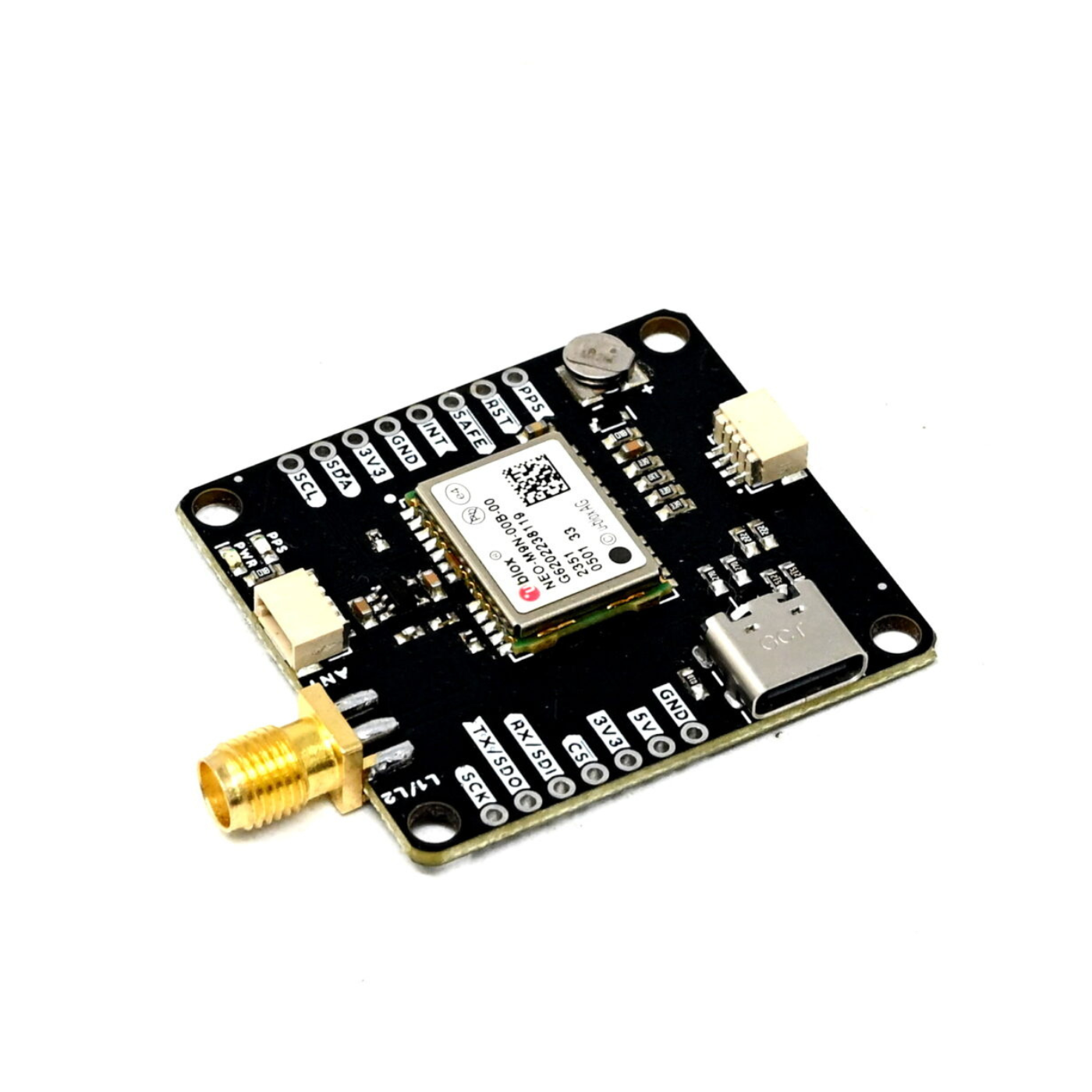

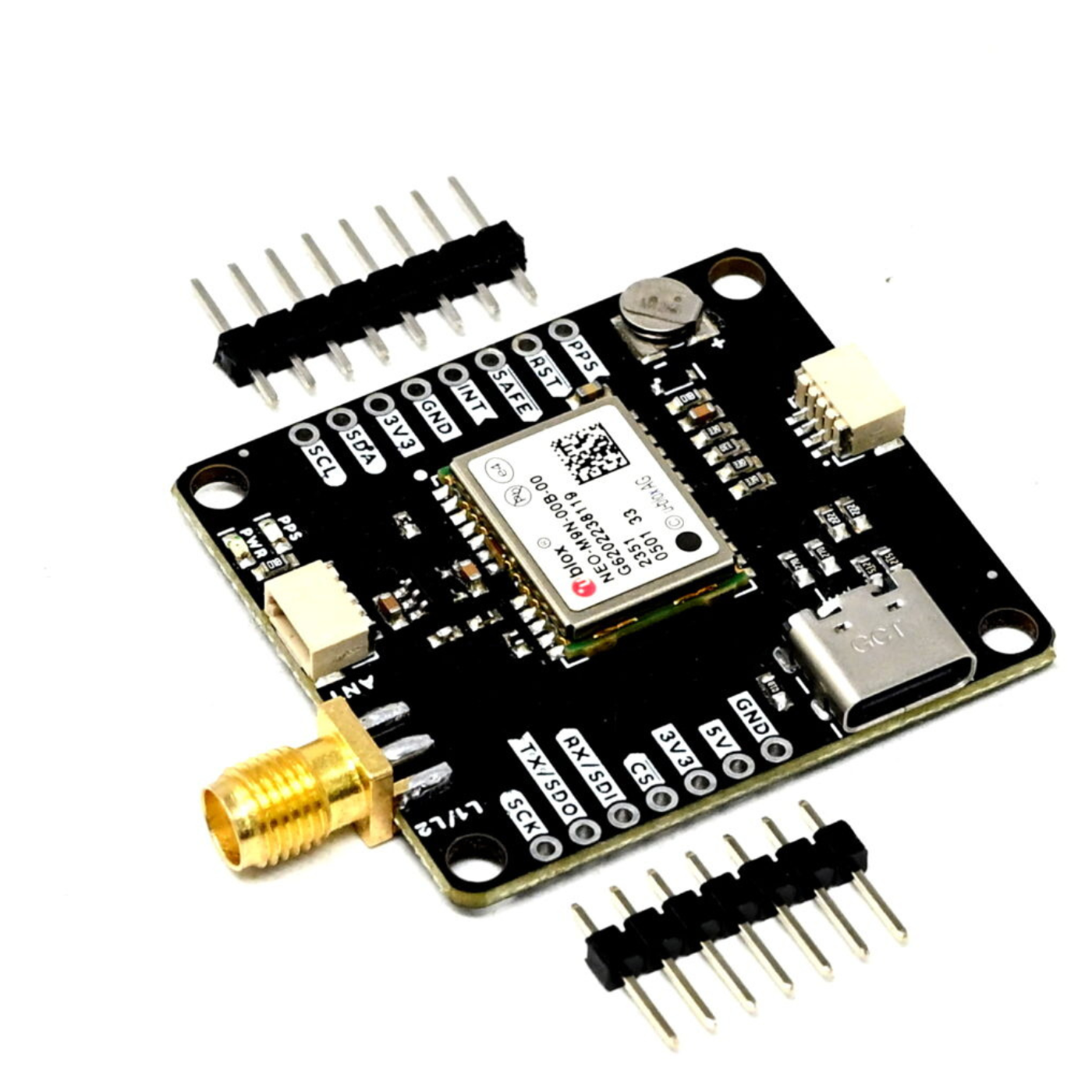

SmartElex NEO-M9N GPS Breakout Board with GNSS Module & SMA Connector
Couldn't load pickup availability
The SmartElex NEO-M9N GPS Breakout Board is a high-performance GNSS receiver module designed for reliable and accurate positioning. Built around the powerful u-blox M9 engine, this board supports GPS, GLONASS, Galileo, and BeiDou constellations simultaneously, ensuring fast and stable location tracking even in challenging environments.
This NEO M9N GPS Breakout Board delivers up to 1.5-meter accuracy and supports multiple interfaces including UART and I2C, making it easy to integrate with microcontrollers like Arduino, Raspberry Pi, and other embedded systems.
It also features advanced jamming and spoofing detection for secure operation, and an onboard rechargeable battery for quicker hot starts, ensuring you get fast fixes every time. Perfect for projects involving vehicle tracking, autonomous robots, and drone navigation, this Smart GPS Breakout Board offers exceptional performance with minimal setup effort.
| Specification | Details |
|---|---|
| Item Type | GPS Breakout |
| Maximum Altitude (m) | 80,000 |
| Max Velocity | 500 m/s |
| Velocity Accuracy | 0.05 m/s |
| Heading Accuracy | 0.3 degrees |
| Time Pulse Accuracy | 30 ns |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
