SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board - Buy Online in India

SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board

Rs 1,199/-
- 38%
Rs 1,199/-
Rs 1,945/-
Save Rs 746/-
🪙
RC REWARDS Earn 11 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 8 left in stock

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFAC0232
  • High-accuracy I2C thermocouple amplifier with built-in cold and hot junction sensors.
  • Features the MCP9600 chip for precise temperature measurements.
  • Measures both ambient and target temperatures with 0.0625ºC resolution and ±1.5ºC accuracy.
  • Easy plug-and-play setup — no soldering or voltage translation needed.
  • Comes with screw terminals for simple thermocouple wiring.
  • Includes four configurable temperature alerts via I2C interrupt.
  • Supports low-power and burst operation modes for portable applications.
Robocraze Academy Limited Time Offer
SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board -Electronic Modules -Breakout Boards -Robocraze
SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board
Rs 1,945/- Rs 1,199/-

SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board

Rs 1,945/- Rs 1,199/-

SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board

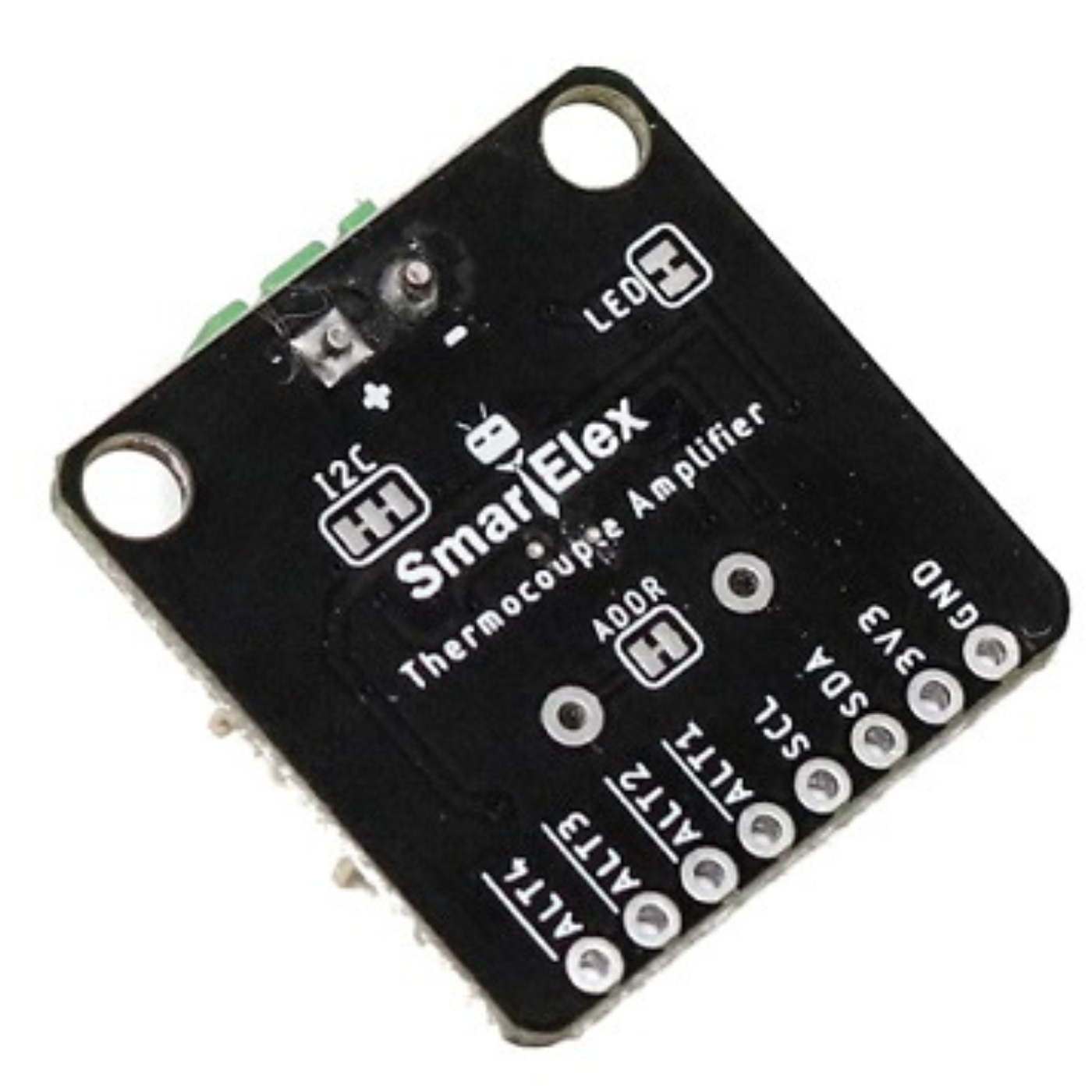

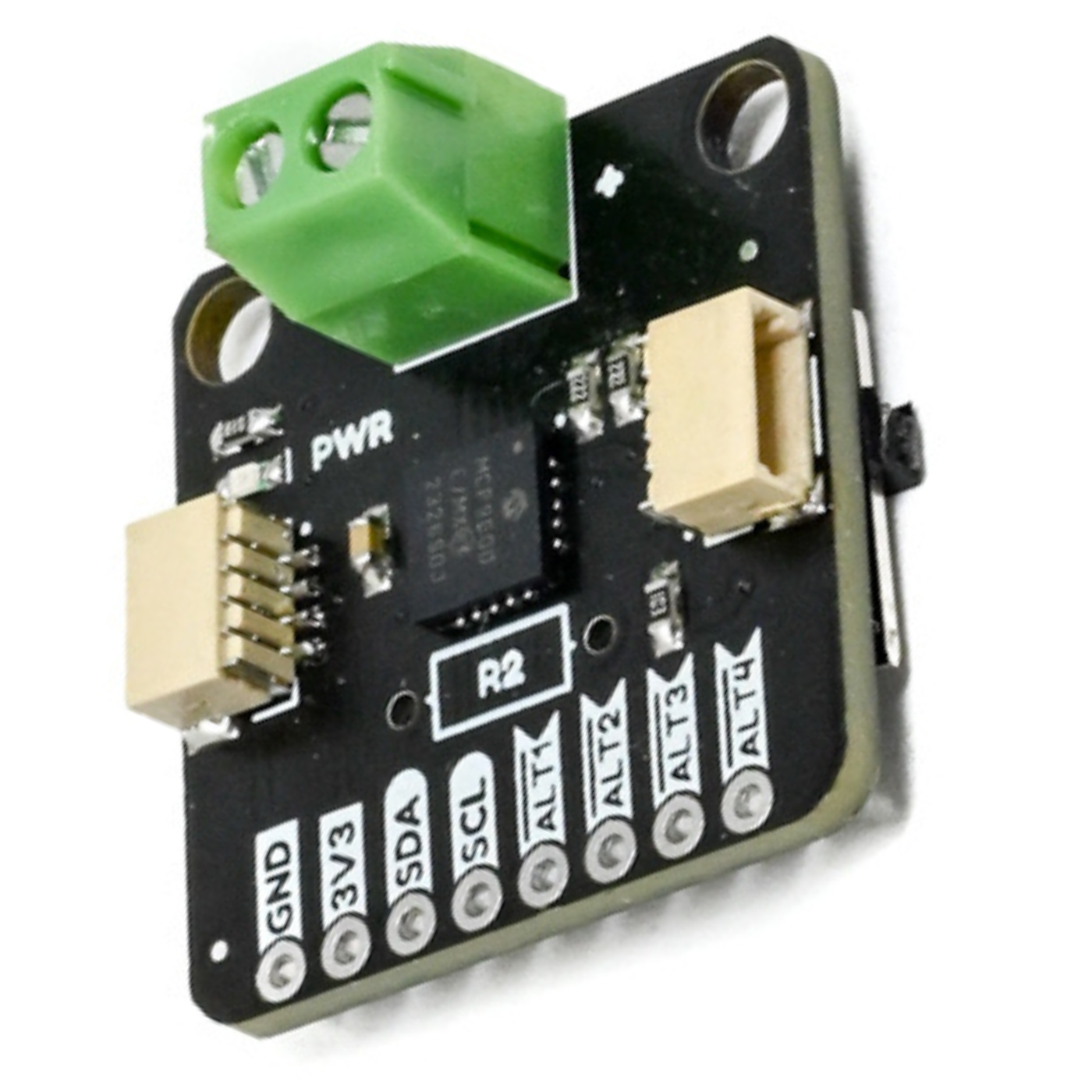

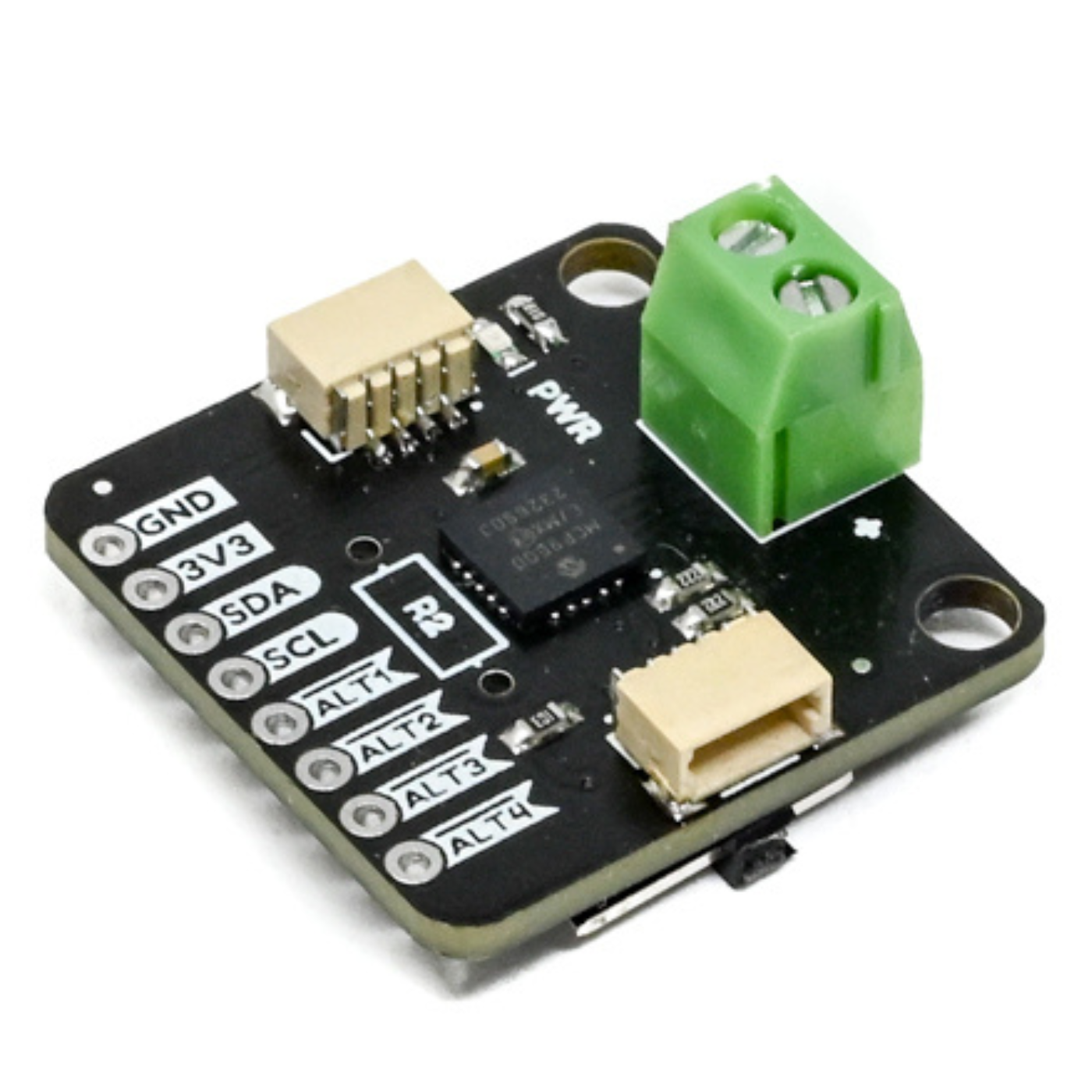

The SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board is a high-precision temperature sensing module designed for effortless integration into your projects.

Powered by the MCP9600 chip, this board reads both ambient and thermocouple temperatures with a fine resolution of 0.0625ºC and an accuracy of ±1.5ºC.

It features an easy-to-use I2C interface, eliminating the need for soldering or voltage conversion.

The onboard screw terminals allow quick thermocouple connections, making it suitable for diverse applications — from monitoring kitchen appliances to controlling industrial furnaces.

With four configurable temperature alerts and low-power modes, the MCP9600 breakout not only enhances accuracy but also optimizes power efficiency for portable or embedded systems.

Features:

  • MCP9600: Thermocouple Amplifier
  • Uses an I2C interface.
  • Temperature Range: -200ºC to 1350ºC.
  • Operating voltage range is 2.7V to 5.5V.
  • Four Onboard Temperature Alerts
  • Resolution: 0.0625ºC.
  • Screw Terminal Connector
  • ADDR Jumper for changeable I2C addresses (the default address is 0x60).
  • 2 Molex PicoBlade Connectors

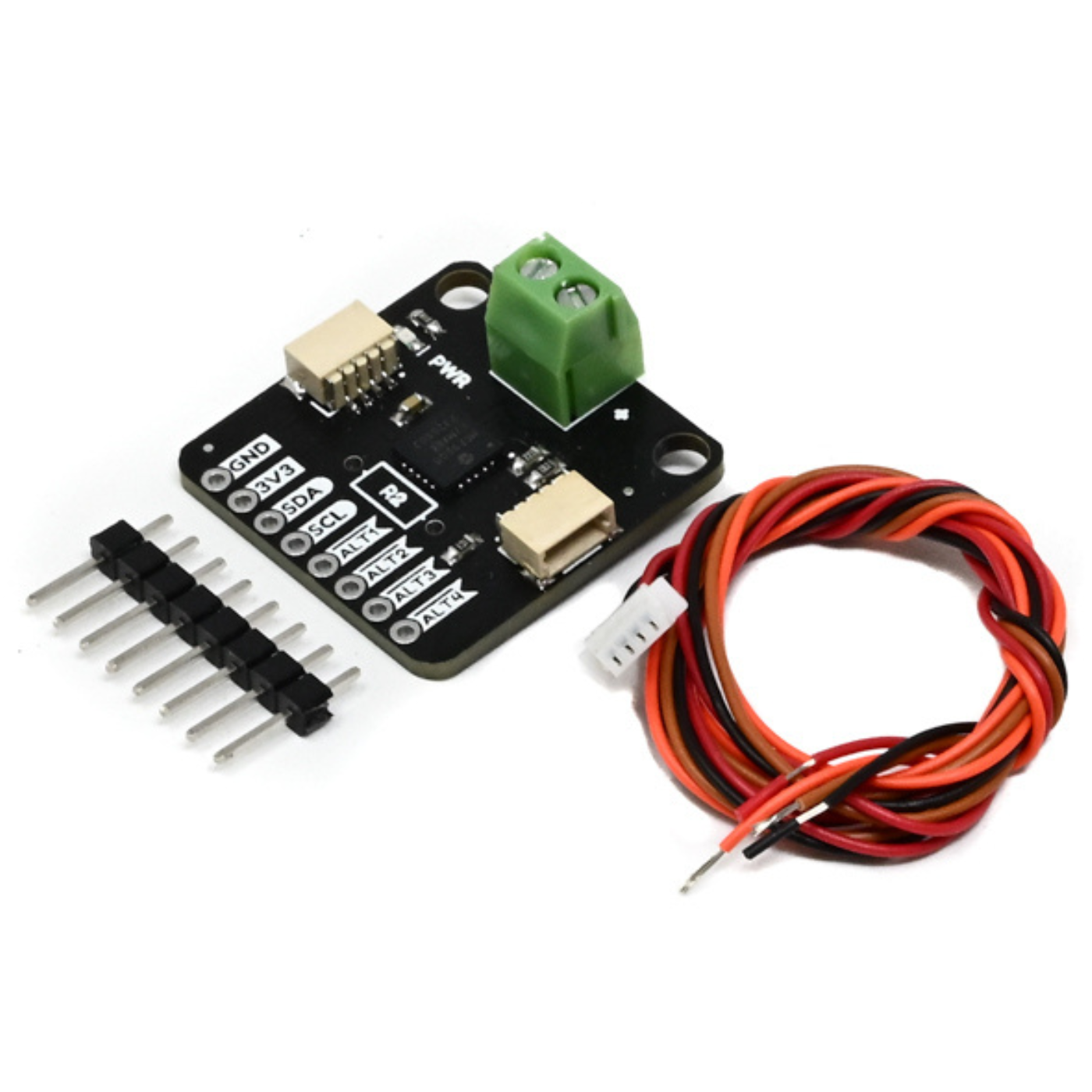

Package Includes:

  • 1 x SmartElex MCP9600 I2C Thermocouple Amplifier Breakout Board

Specifications:

Specification Details
Model Thermocouple Amplifier
Model No. MCP9600
Voltage Rating (V) 2.7 to 5.5
Resolution 0.0625°C
Length (mm) 25.4
Width (mm) 25.4

Warranty Coverages:

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.

Warranty Void If:

In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
