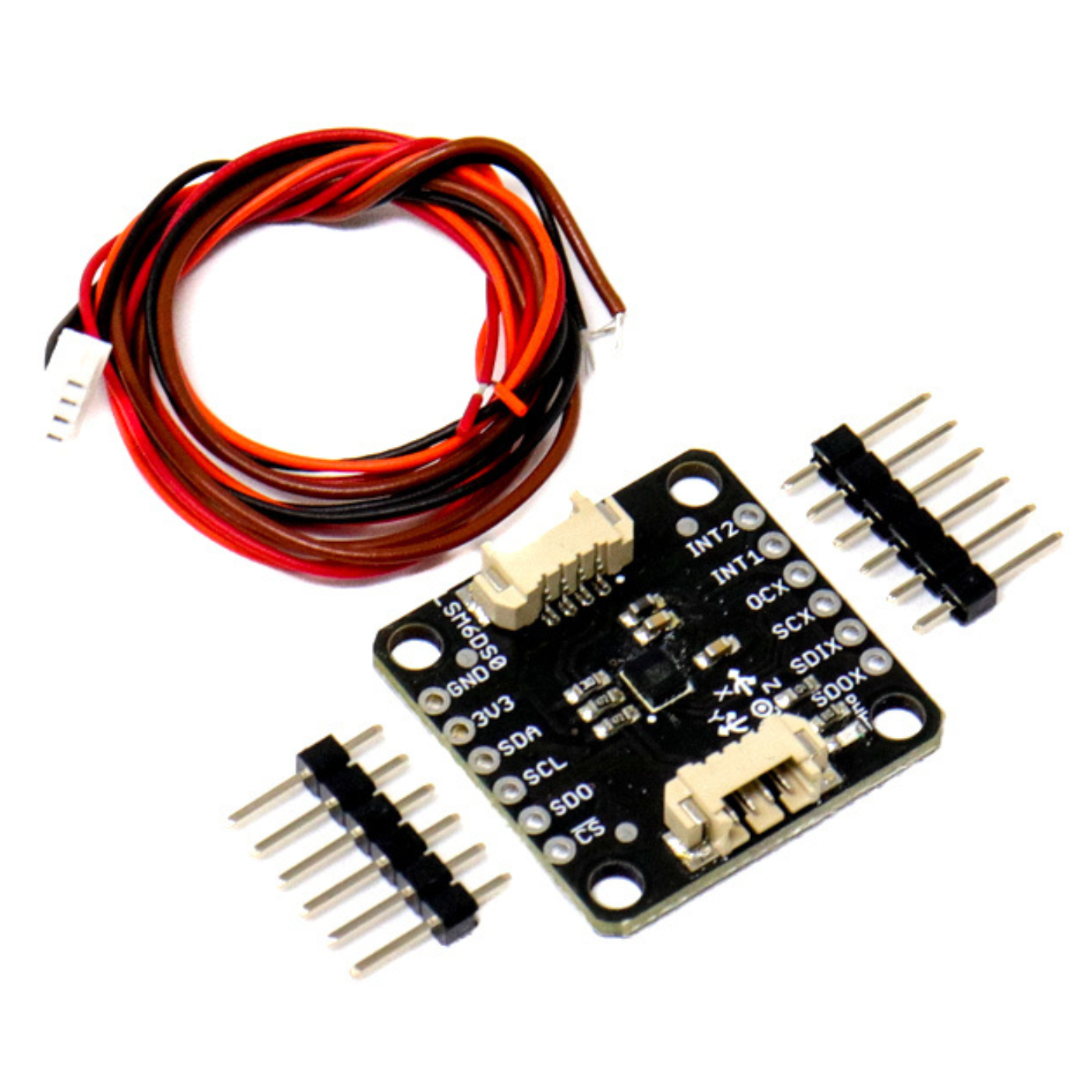

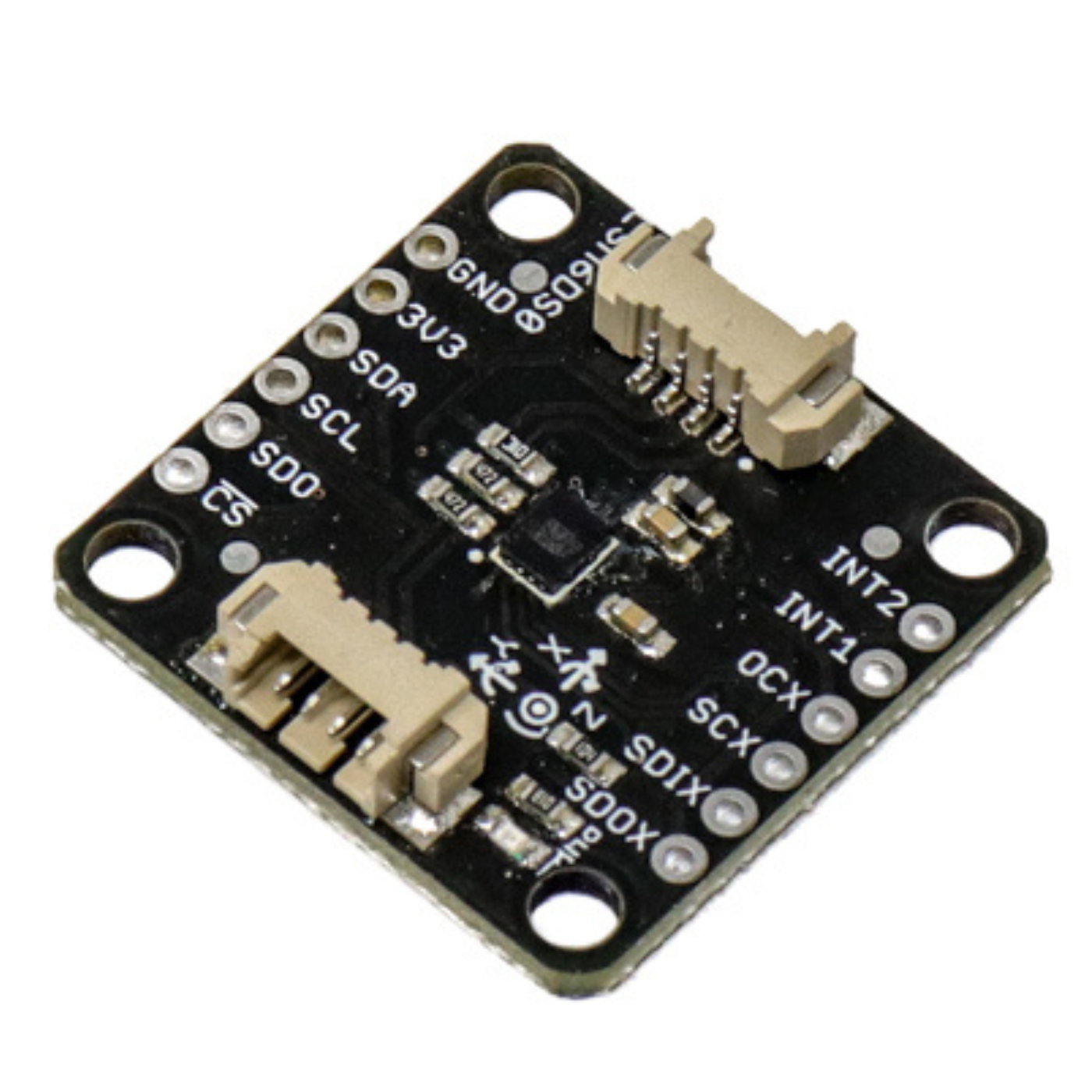

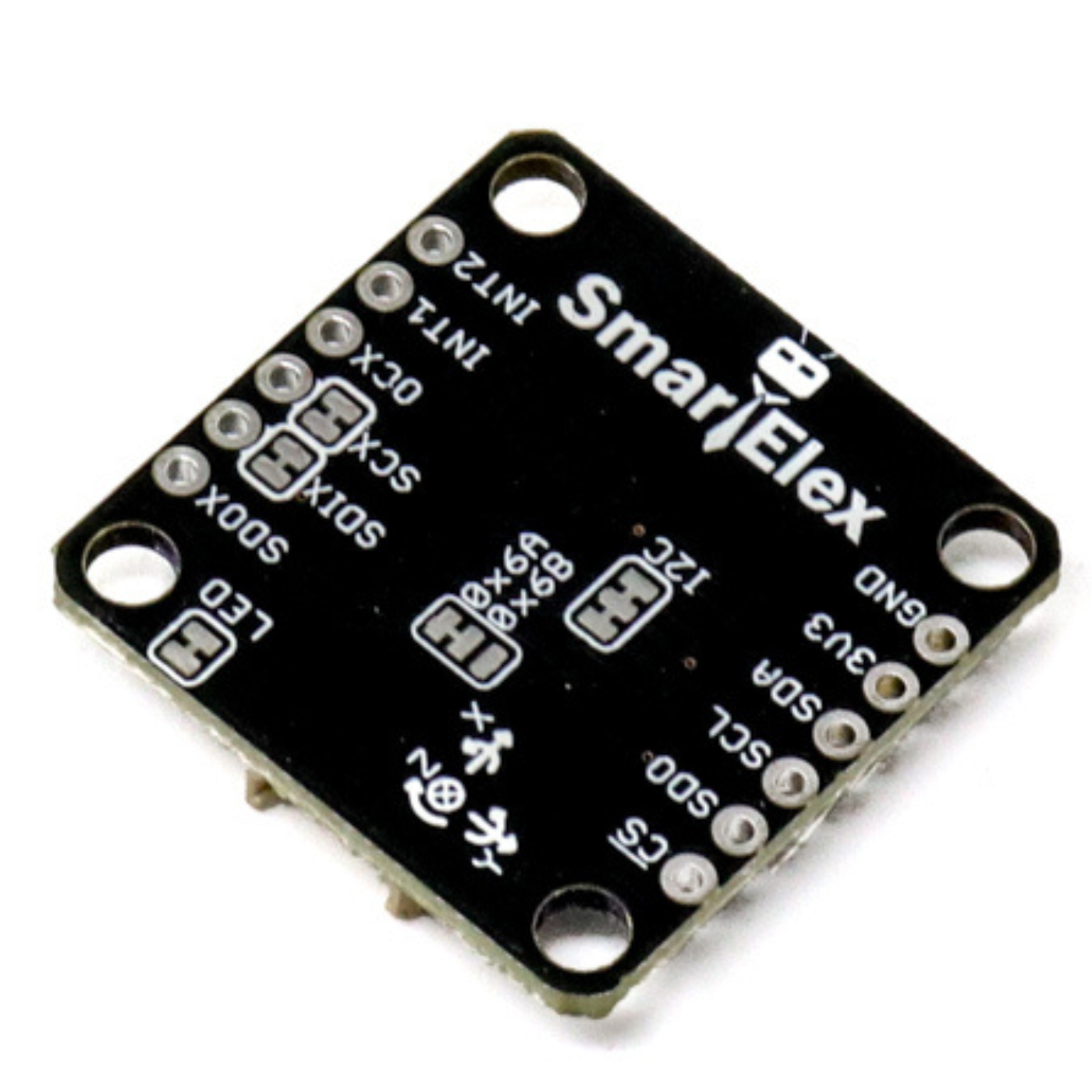

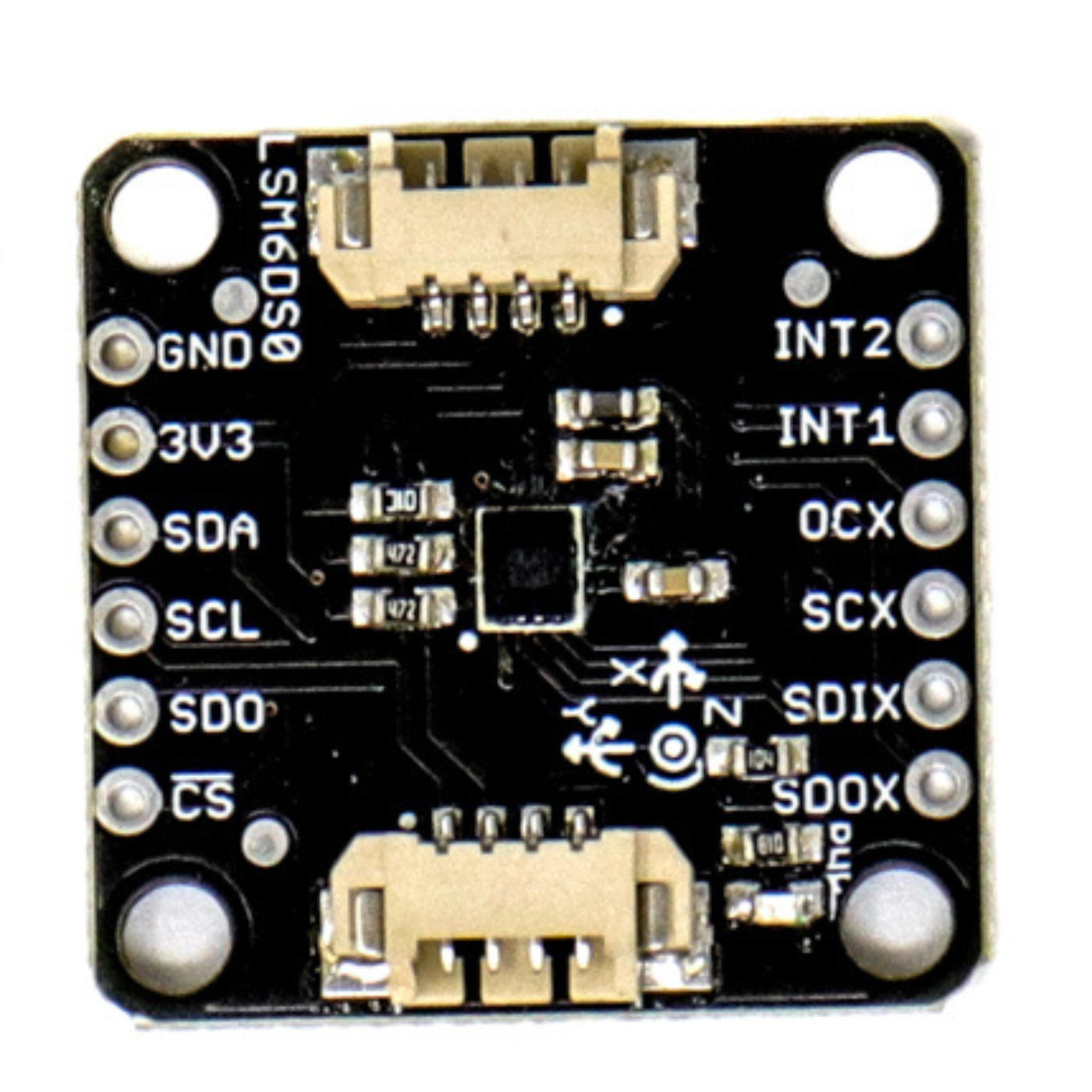

SmartElex LSM6DSO 6 DOF Accelerometer and Gyroscope Sensor Breakout
Couldn't load pickup availability
The SmartElex LSM6DSO 6 DOF Breakout Board is a powerful accelerometer and gyroscope sensor module designed for precise motion and orientation detection.
Built around the advanced LSM6DSO chip from STMicroelectronics, it delivers high-speed data rates up to 6.66kHz and features a massive 9kB FIFO buffer for efficient data storage.
This breakout board can detect motion, tilt, shocks, taps, and even monitor temperature, making it suitable for robotics, wearables, and IoT applications.
With easy connectivity via I2C or SPI, the LSM6DSO Breakout Board ensures flexibility for various embedded systems. Please note that it operates on 3.3V logic levels, so a voltage level shifter is recommended for 5V platforms.
| Specification | Details |
|---|---|
| Model | 6 DOF Breakout |
| Model No. | LSM6DSO |
| Voltage Rating (V) | 1.7 to 3.6 |
| I2C Address | 0x6A, 0x6B (default) |
| Accelerometer | ±2/±4/±8/±16 g full scale |
| Gyro | ±125/±250/±500/±1000/±2000 dps full scale |
| Temperature Sensor | 16-bit resolution |
| PCB Size (L x W) mm | 25.40 x 25.40 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
