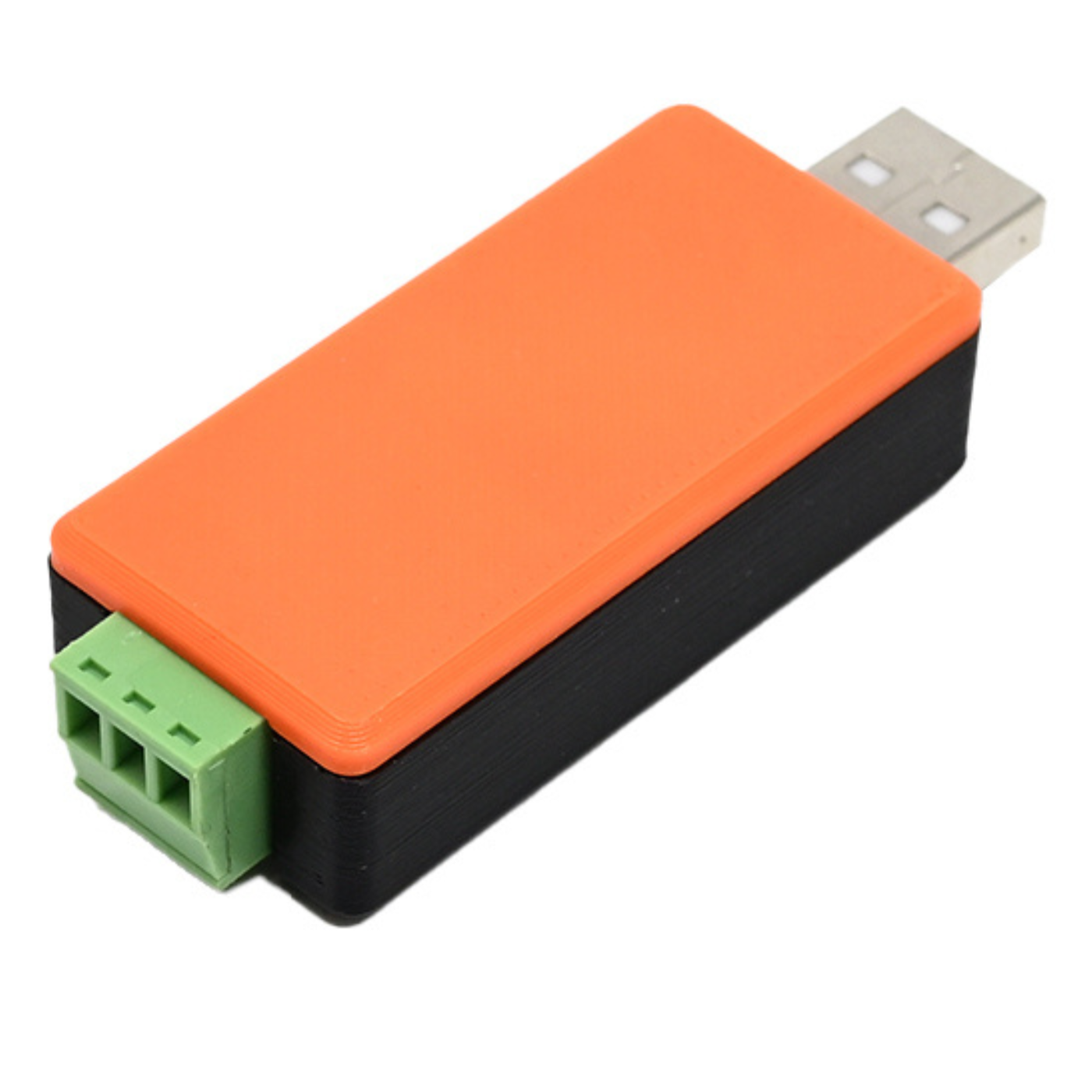

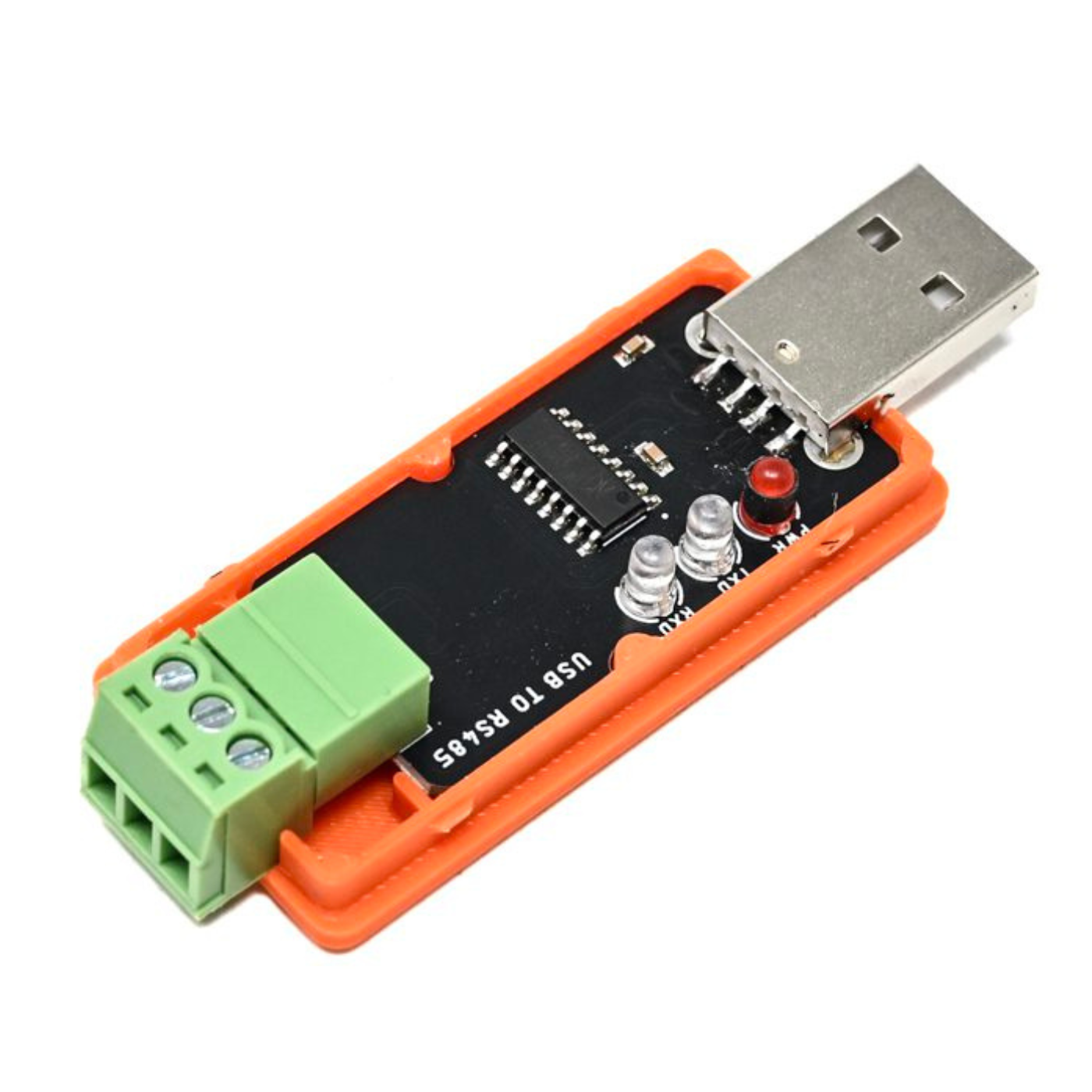

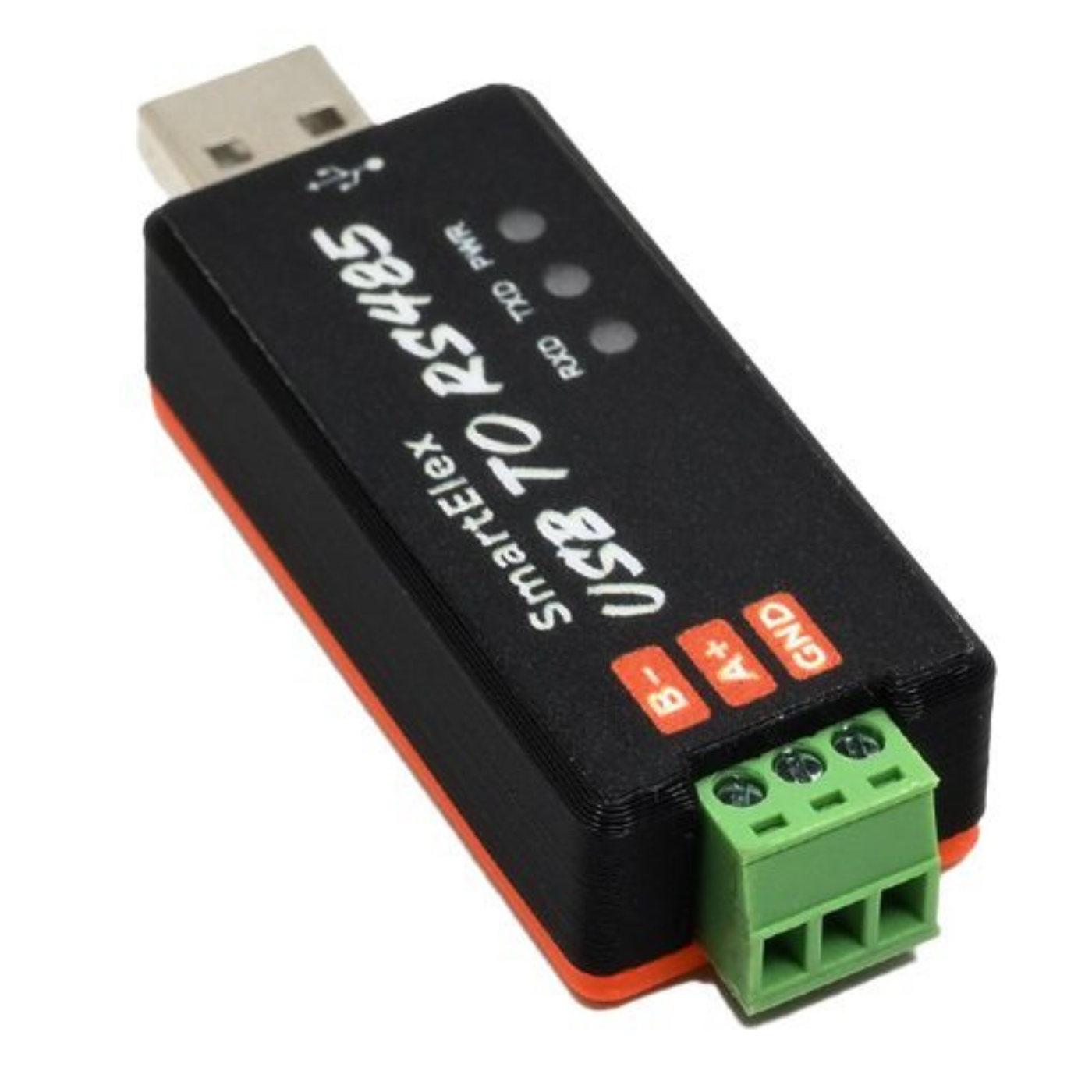

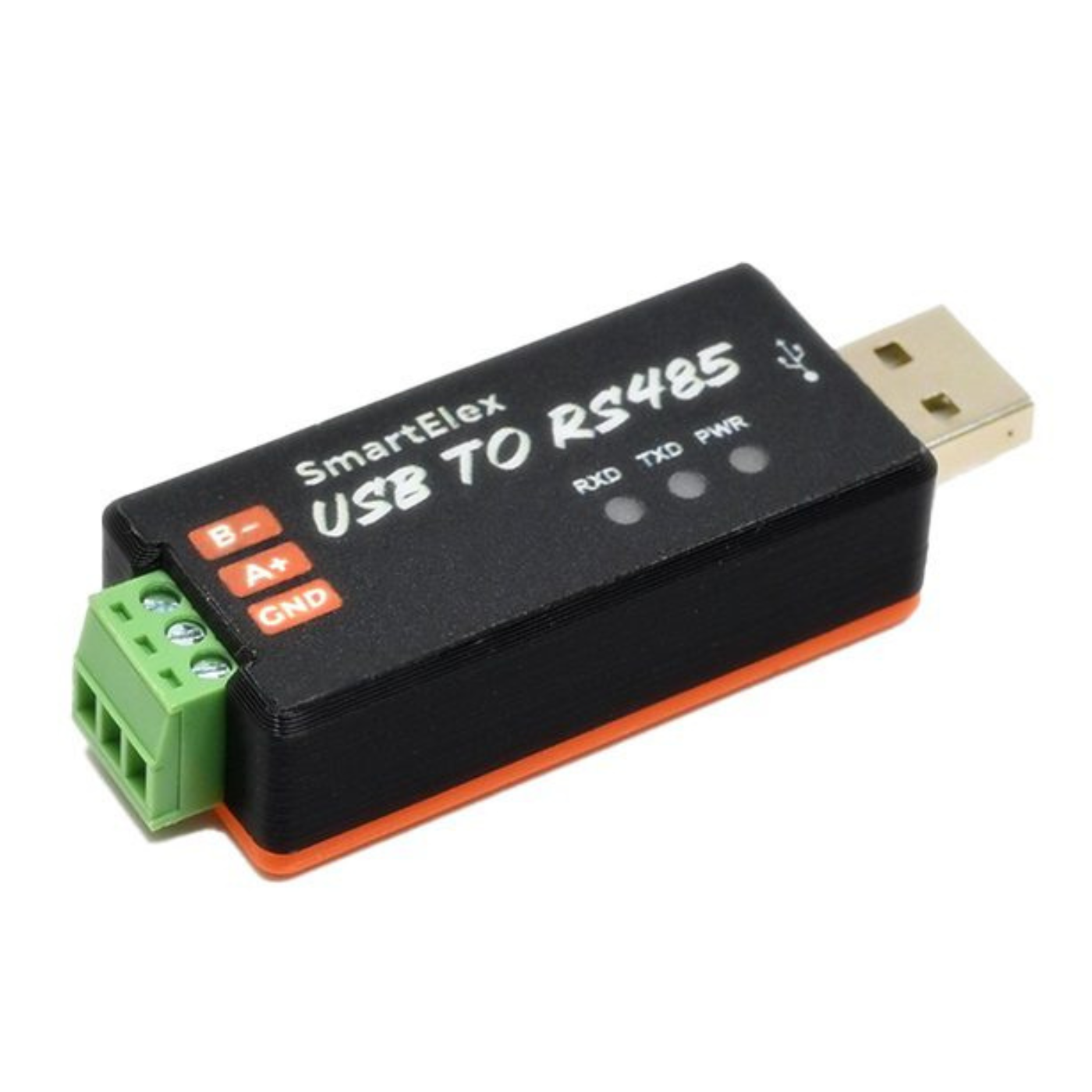

SmartElex Industrial USB TO RS485 Bidirectional Converter Programmer Module with original CH340C Chipset
Couldn't load pickup availability
The SmartElex Industrial USB to RS485 Bidirectional Converter is a reliable solution for industrial communication needs, designed to deliver stable and efficient data transfer between USB and RS485 interfaces.
Powered by the original CH340C chipset, this USB converter ensures seamless bidirectional communication with high-speed performance.
Its rugged, industrial-grade design includes advanced protection features like ESD protection, lightning suppression, and overcurrent safeguards, ensuring durability in demanding environments.
With broad compatibility across multiple operating systems and easy integration using the RS485 to USB converter driver, this module is ideal for engineers, automation professionals, and industrial applications requiring dependable serial connectivity.
| Specification | Details |
|---|---|
| Item Type | Programmer Module |
| Based On | USB TO RS485 |
| Voltage Rating (V) | 5.0 |
| USB Type | Type-A |
| Chipset | CH340C |
| Baud Rate | 300 bps to 3 Mbps |
| Operating Temperature (°C) | -15 to 70 |
| Operating Humidity (%) | 5 RH to 95 RH |
| Maximum Output Current | 500mA |
| Length (mm) | 70 |
| Width (mm) | 25 |
| Height (mm) | 17 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
