SmartElex E22-400T33S UART 433Mhz LoRa Module - Buy Online in India

SmartElex E22-400T33S UART 433Mhz LoRa Module

Rs 2,192/-
- 27%
Rs 2,192/-
Rs 2,999/-
Save Rs 807/-
Incl. GST (No Hidden Charges)
Please hurry! Only 10 left in stock

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: TIFCC0313
  • High-performance LoRa UART module based on SEMTECH RF chip.
  • Operates in 433MHz frequency (410.125~493.125MHz supported).
  • TTL level output with wide voltage support: 3V–5.5V.
  • Features low power consumption, compact size, and fast LoRa spread spectrum transmission.
  • Supports wake-on-air, wireless configuration, automatic relay, carrier monitoring, and communication key functions.
  • Customizable for development projects with adjustable communication length settings.
  • Ideal for LoRa wireless module applications in IoT, remote monitoring, and smart devices.
Banner

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
SmartElex E22-400T33S UART 433Mhz LoRa Module -IOT & Wireless -LoRa Modules -Robocraze
SmartElex E22-400T33S UART 433Mhz LoRa Module
Rs 2,999/- Rs 2,192/-
SmartElex E22-400T33S UART 433Mhz LoRa Module -IOT & Wireless -LoRa Modules -Robocraze
SmartElex E22-400T33S UART 433Mhz LoRa Module -IOT & Wireless -LoRa Modules -Robocraze
SmartElex E22-400T33S UART 433Mhz LoRa Module -IOT & Wireless -LoRa Modules -Robocraze
SmartElex E22-400T33S UART 433Mhz LoRa Module -IOT & Wireless -LoRa Modules -Robocraze

SmartElex E22-400T33S UART 433Mhz LoRa Module

Rs 2,999/- Rs 2,192/-
Description

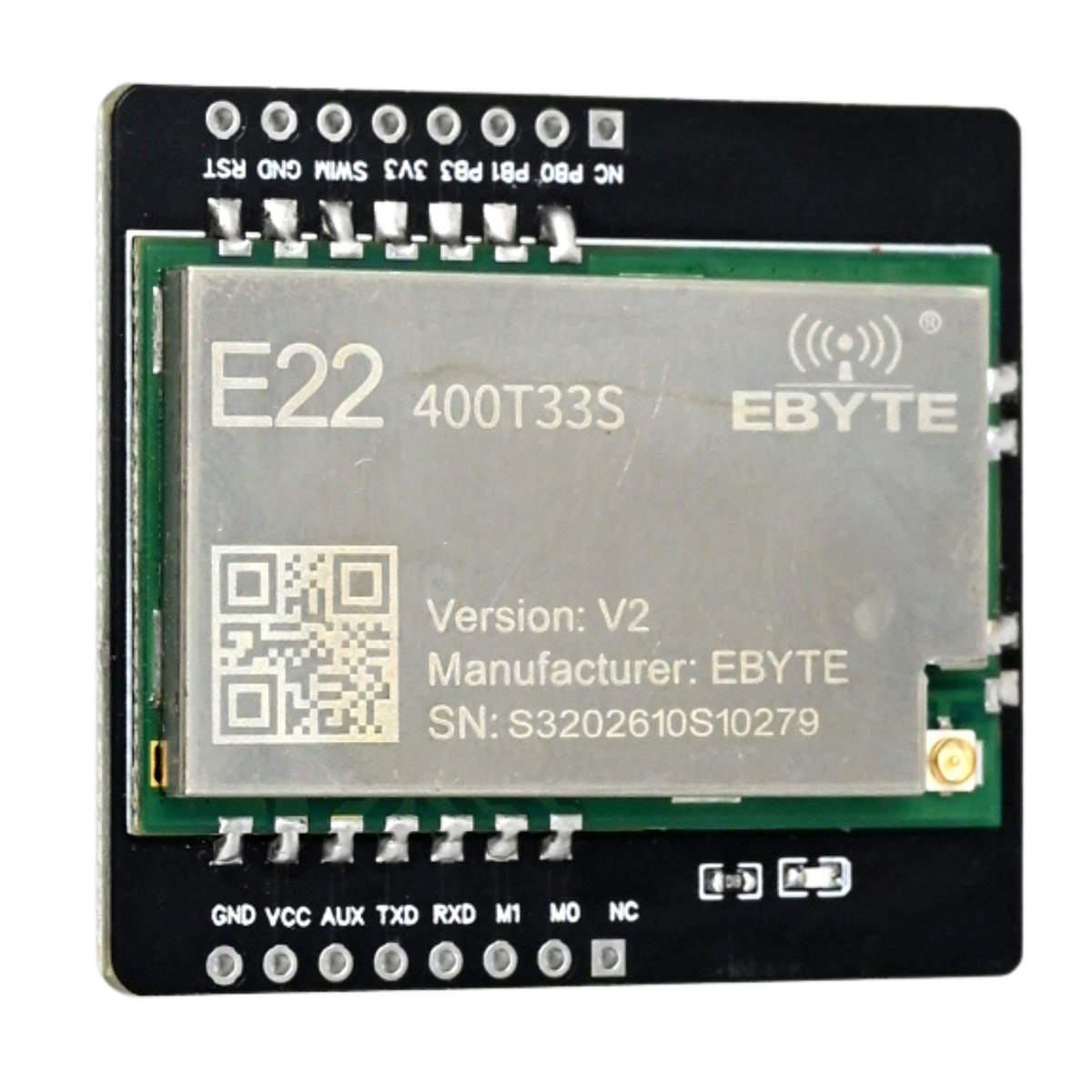

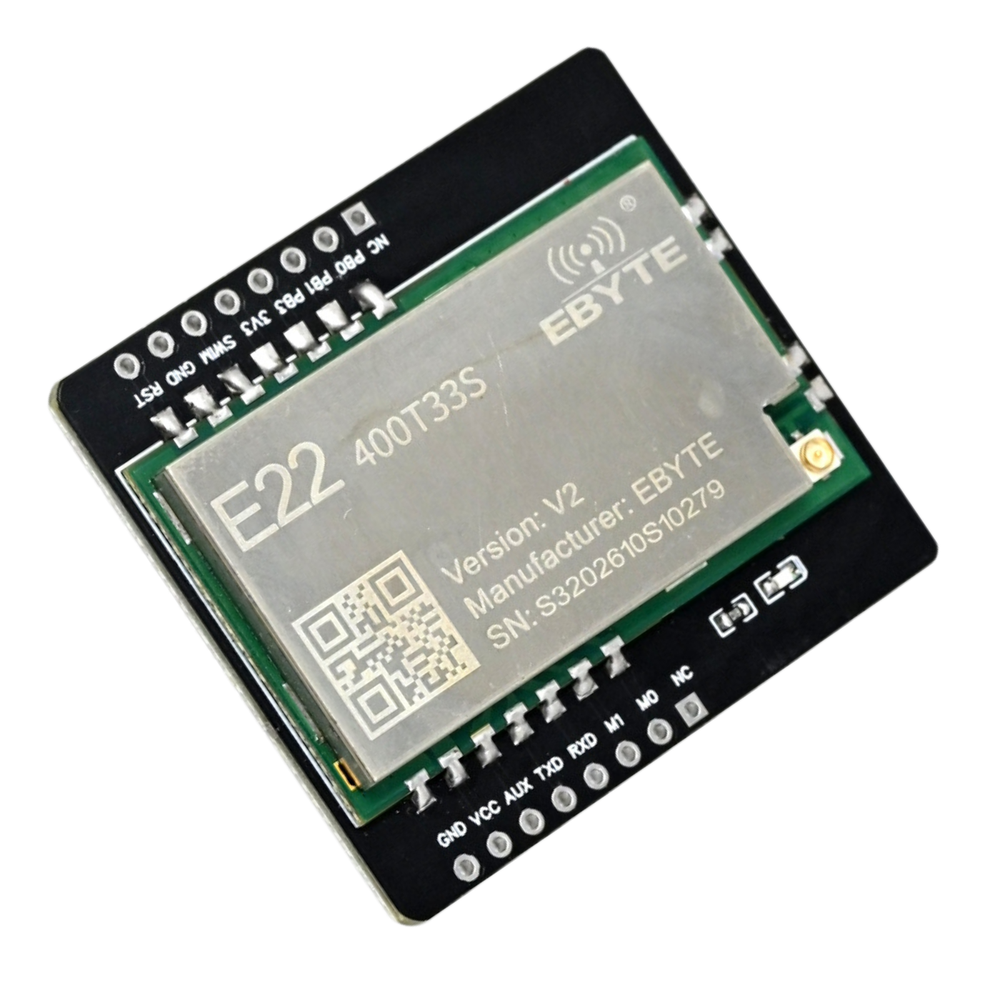

SmartElex E22-400T33S UART 433Mhz LoRa Module

The SmartElex E22-400T33S UART 433MHz LoRa module is a next-generation LoRa wireless module designed for reliable and long-range communication. Built on the high-performance SEMTECH RF chip, it operates in the 410.125–493.125MHz frequency range with a default frequency of 433.125MHz.

The module supports TTL level output and a flexible supply voltage of 3V to 5.5V, making it perfect for battery-powered or low-power IoT applications. Utilizing advanced LoRa spread spectrum technology, this LoRa UART module delivers faster data transmission, lower power consumption, and a compact design.

Key features include wake-on-air, wireless configuration, carrier monitoring, automatic relay, communication key support, and adjustable communication length, offering developers a versatile solution for smart devices, remote monitoring, and other LoRa wireless module projects.

Features:

  • Under ideal conditions, the module's built-in PA+LNA allows for a communication distance of 16km.
  • Supports data transfer rates of 2.4K to 62.5kbps.
  • Support A power source ranging from 2.3 to 5.5 volts can provide optimal performance.
  • Support the global license-free ISM 433MHz frequency band, as well as the 470MHz meter reading frequency band.
  • The industrial-grade standard design allows for long-term operation at temperatures ranging from -40 to +85°C.
  • The module has a maximum power of 2W (33dBm), and the transmission is longer and steadier.
Specifications

Package Includes:

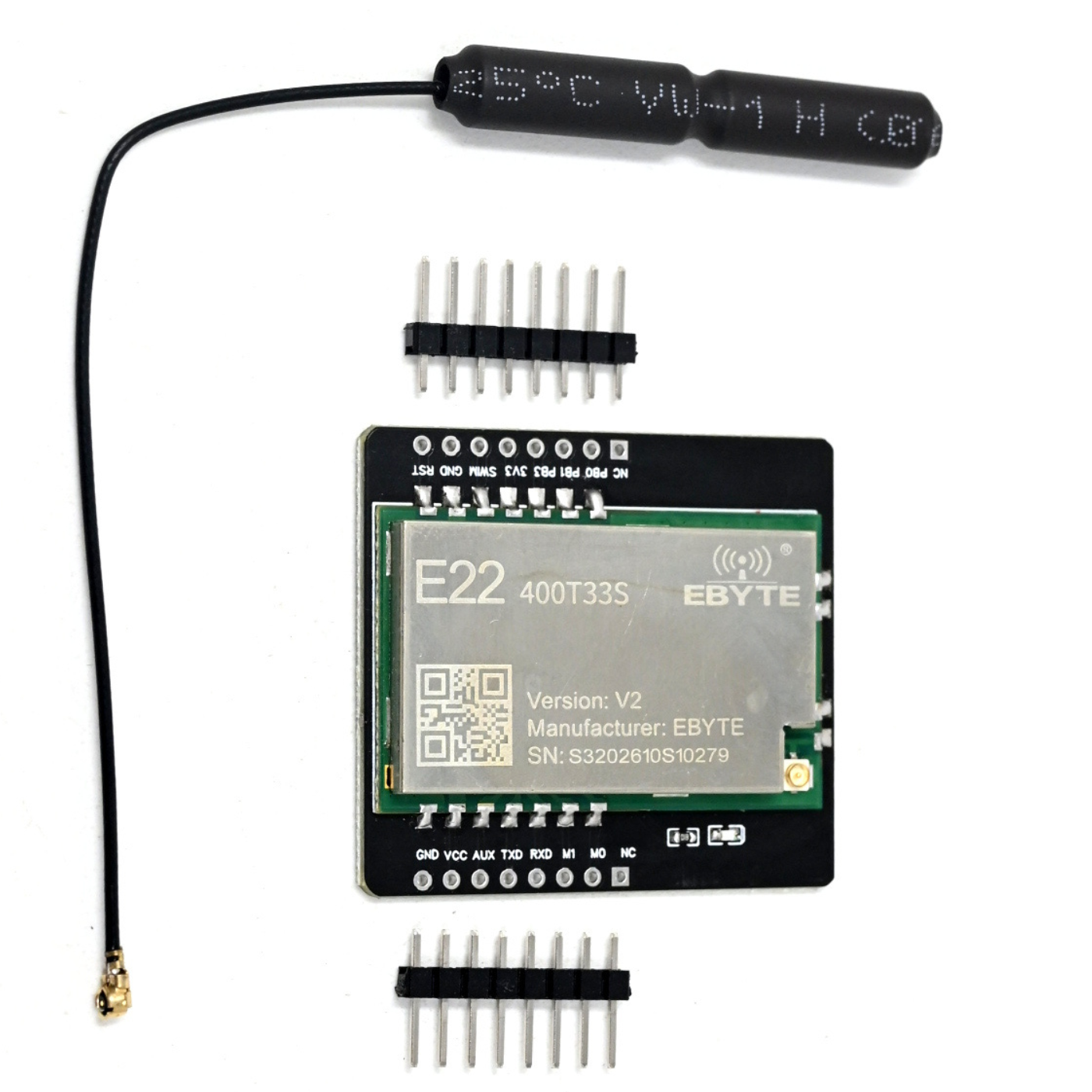

  • 1 x SmartElex E22-400T33S UART 433Mhz LoRa Module

Specifications:

Specification Details
Item Type Breakout Board
Operating Voltage (V) 3.3 – 5.5
Frequency Range (MHz) 410 – 493 (Default: 433)
Transmit Power (dBm) 33.0 ± 0.5
Receive Sensitivity -147 ± 1.0 dBm
Communication Distance Up to 16 km
Air Data Rate (Kbps) 2.4 – 62.5
Communication Level 3.3V TTL
Transmit Current (mA) 850 – 1200
Receive Current (mA) 15
Sleep Current (µA) 2
Operating Temperature (°C) -40 to +85
