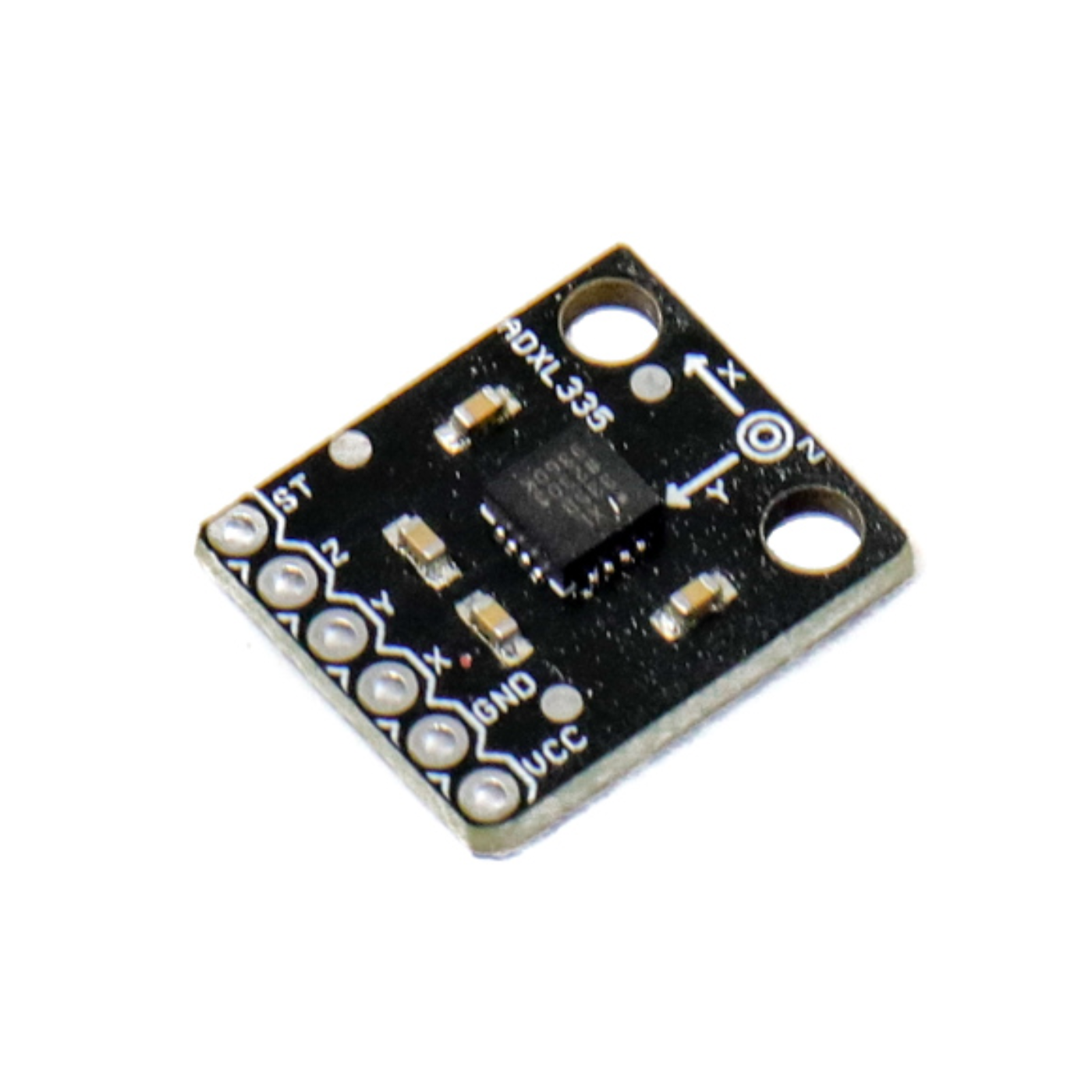

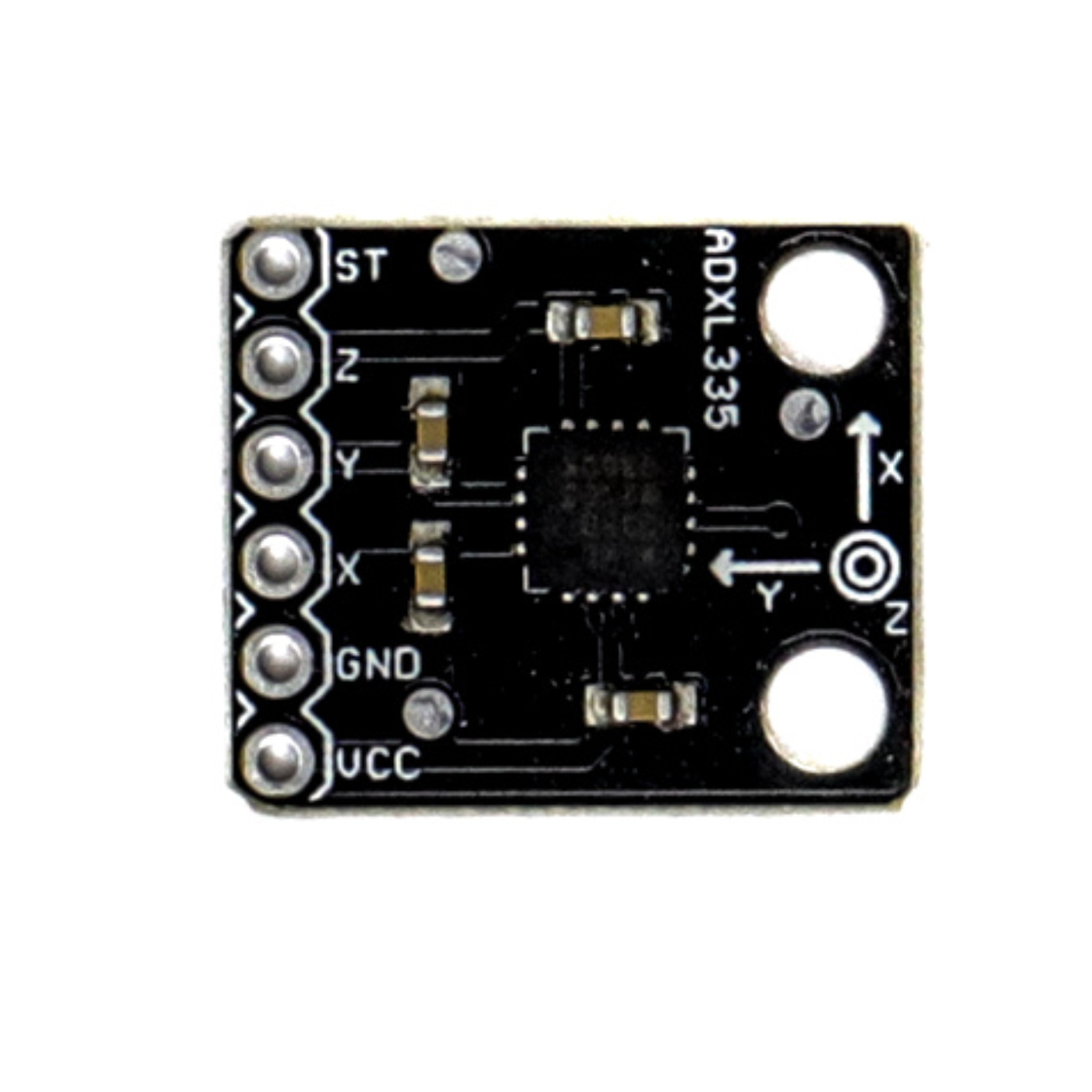

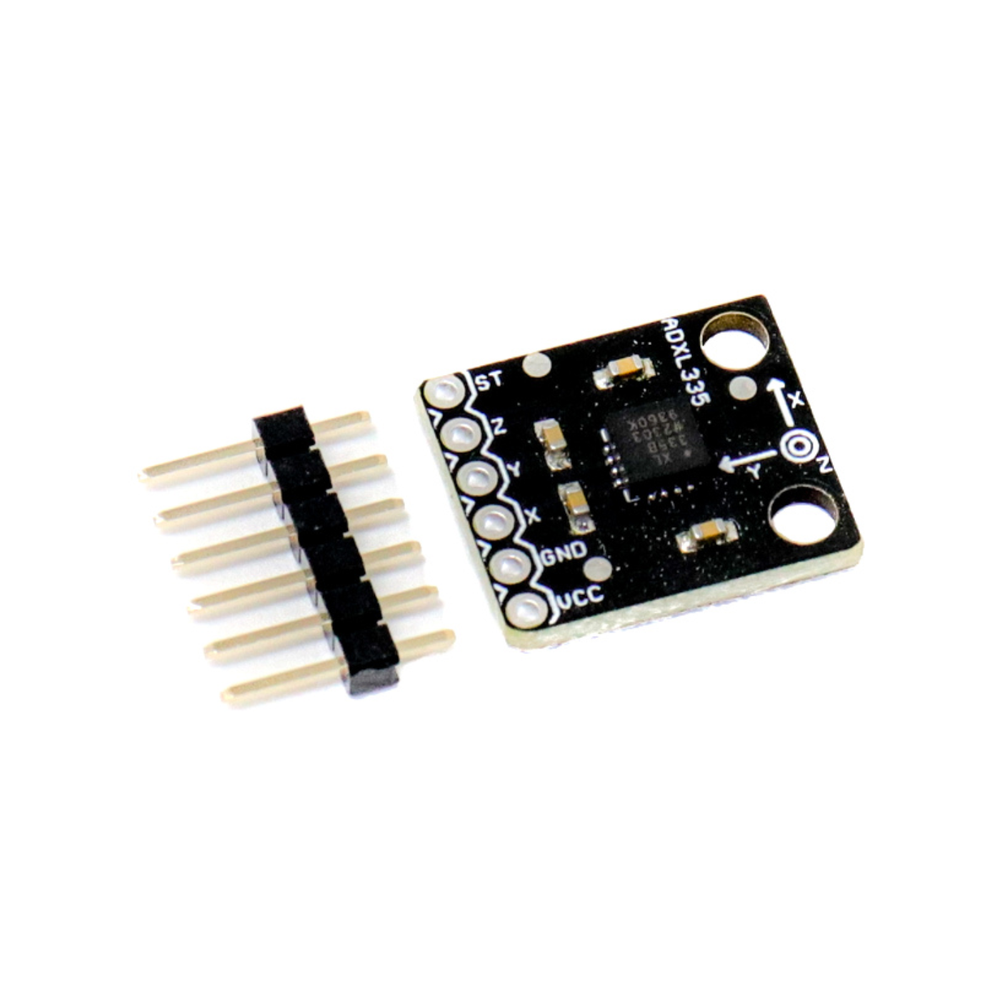

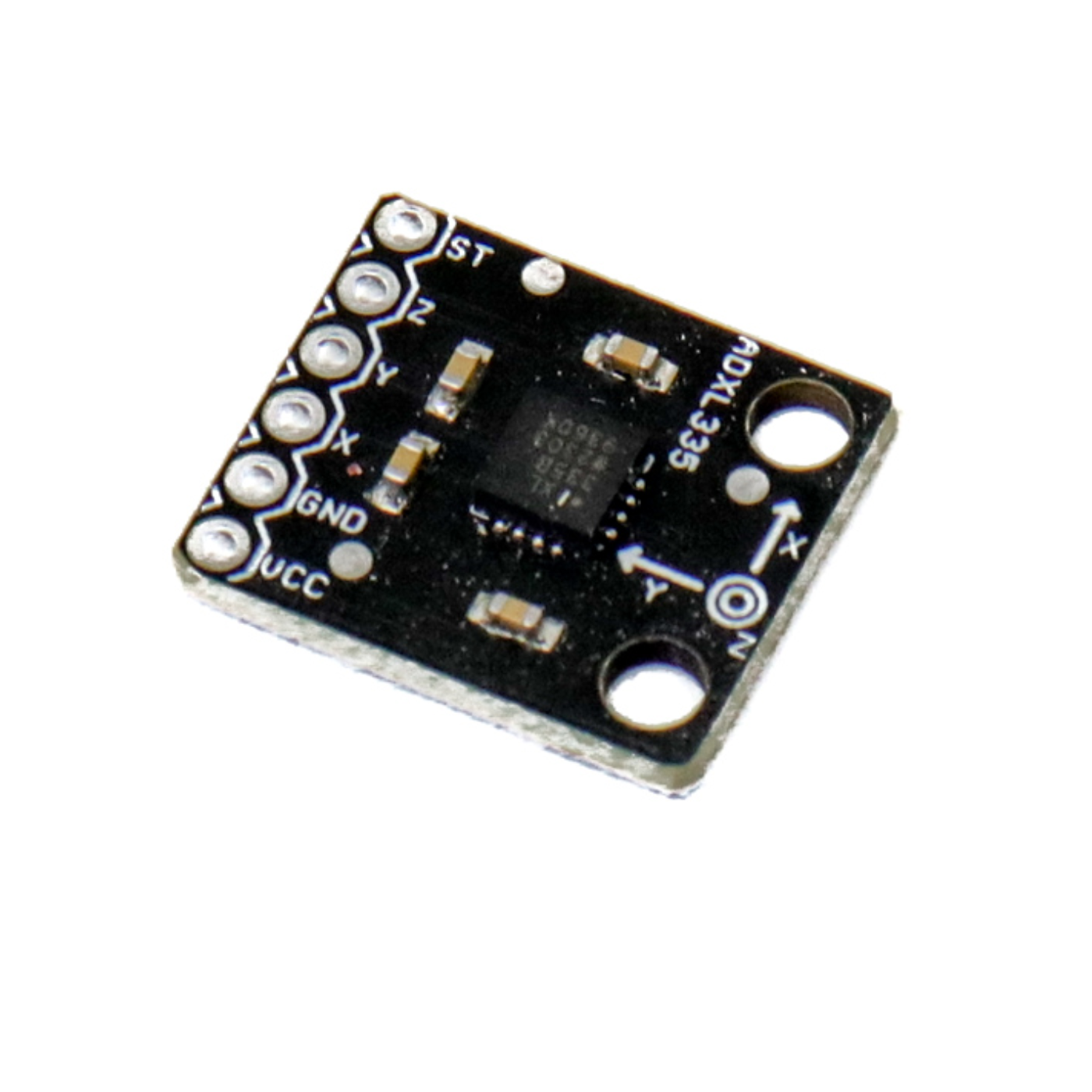

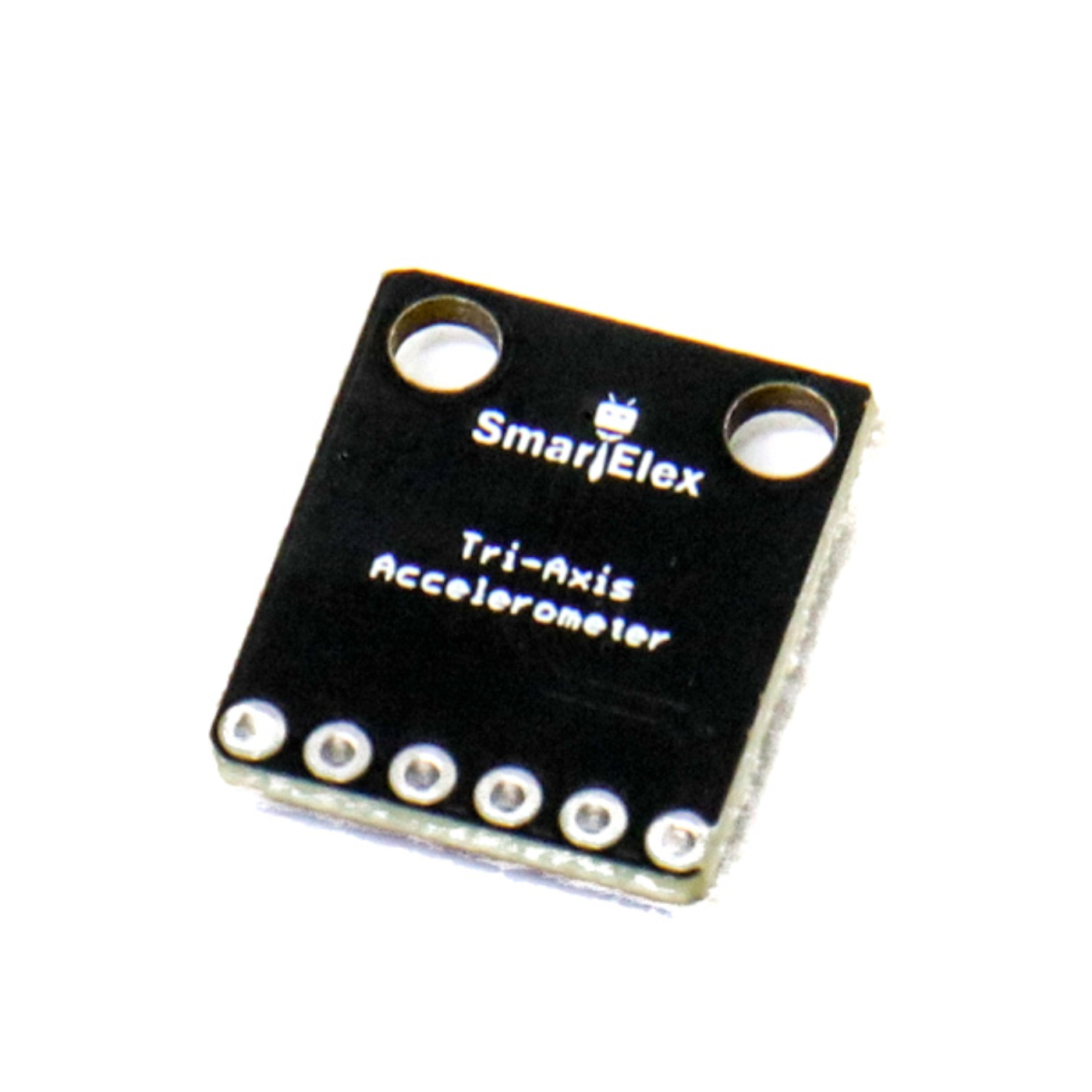

SmartElex ADXL335 Triple Axis Accelerometer Breakout
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The SmartElex Triple Axis Accelerometer Breakout – ADXL335 is a compact and easy-to-use sensor that measures movement and tilt in three directions (X, Y, and Z). Whether you’re working on a robot, gaming controller, or motion-sensitive project, this triple axis accelerometer breakout helps you detect orientation, vibration, and acceleration with high accuracy.
Built using the reliable ADXL335 sensor from Analog Devices, this 3-axis accelerometer delivers stable and precise readings while consuming very little power (around 320µA). It can measure motion within a range of ±3g, making it suitable for both slow tilts and quick directional changes.
This ready-to-use triaxial accelerometer module works on a supply voltage between 1.8V and 3.6V. It provides smooth analog outputs for each axis, allowing easy integration with Arduino, Raspberry Pi, and other microcontrollers. Compact, efficient, and beginner-friendly - it’s the perfect choice for learning and experimenting with motion detection.
| Model | Triple Axis Accelerometer Breakout |
|---|---|
| Model No. | ADXL335 |
| Voltage Rating (V) | 1.8 to 3.6 |
| Current Consumption (mA) | 0.35 |
| PCB Size (L × W) mm | 17.70 × 15.24 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
