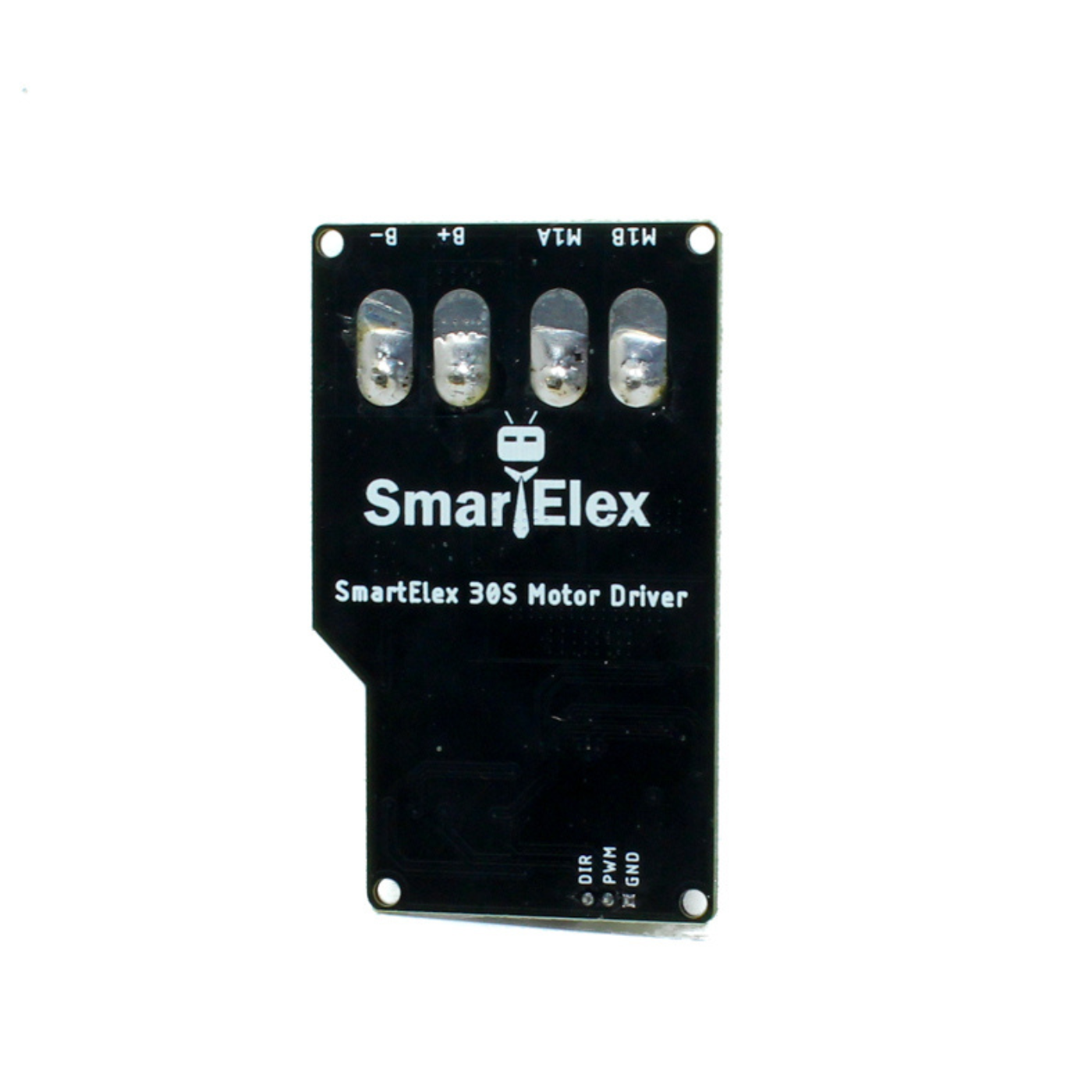

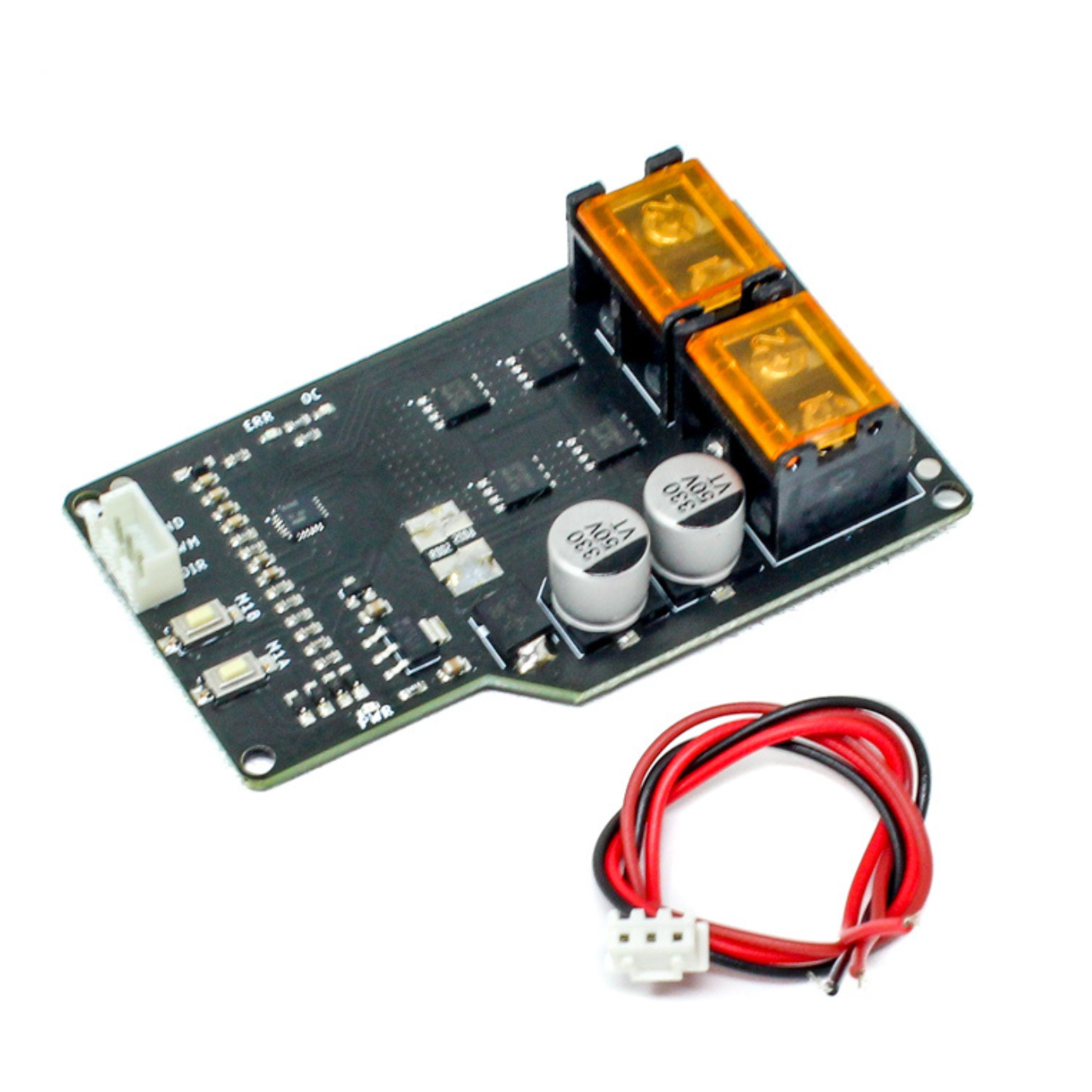

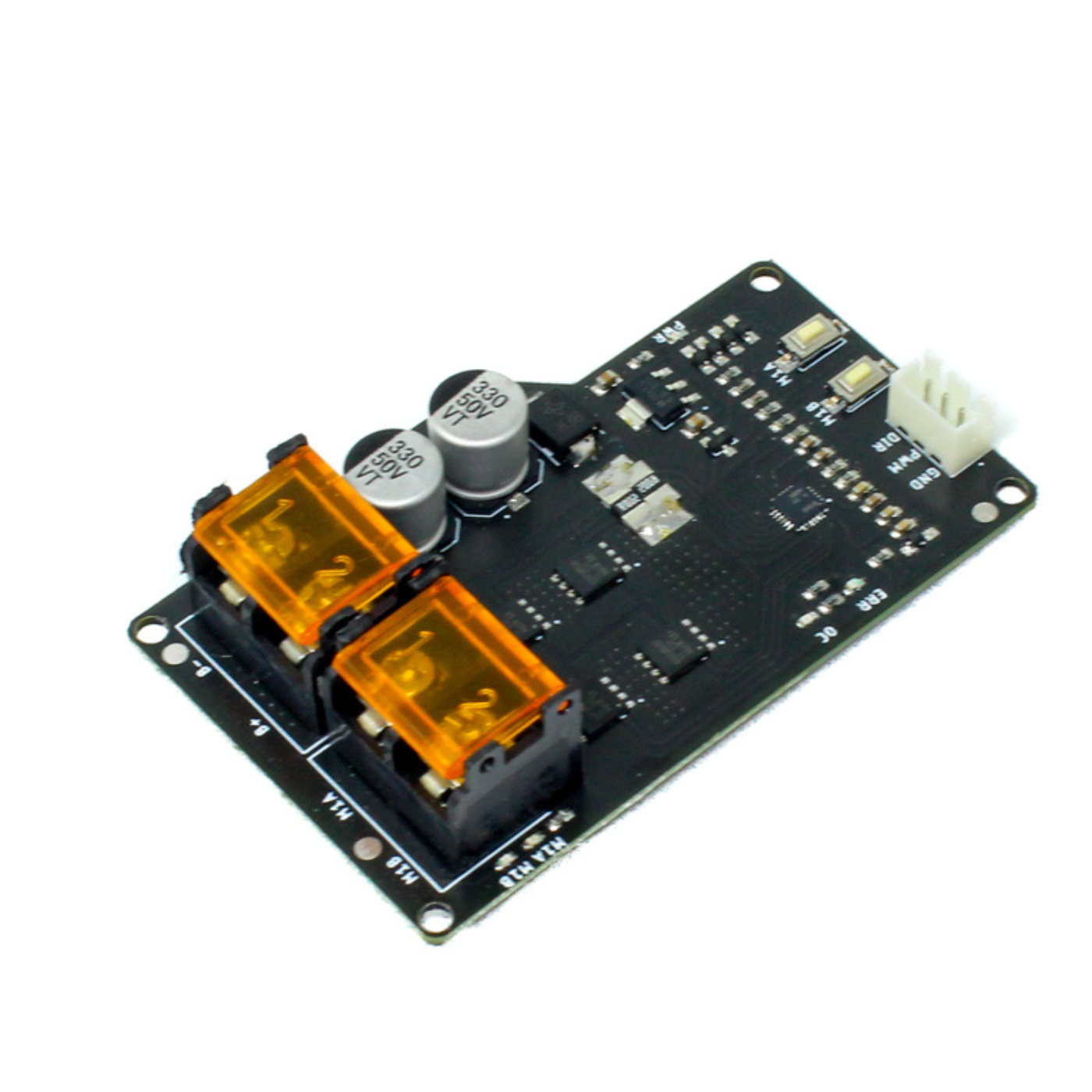

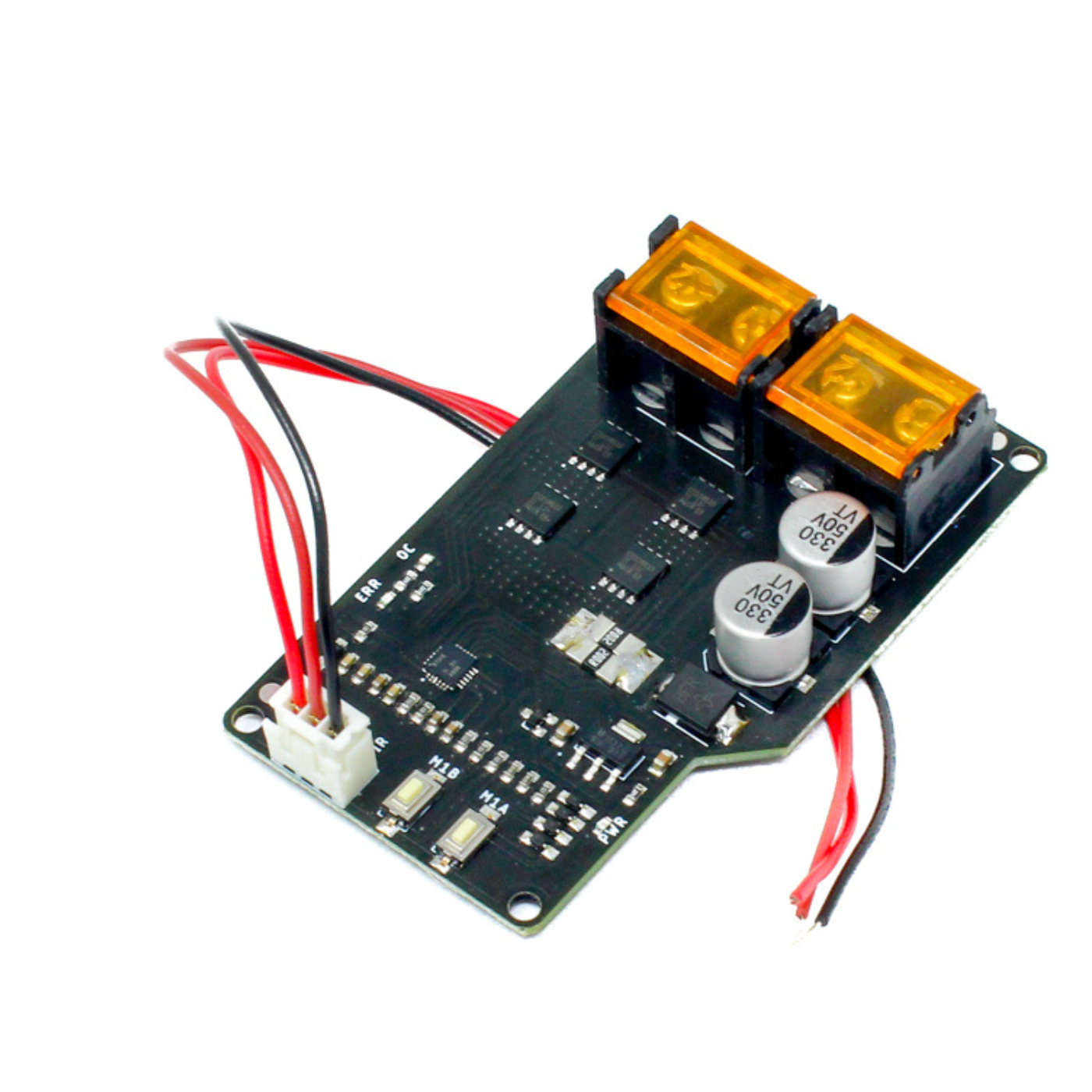

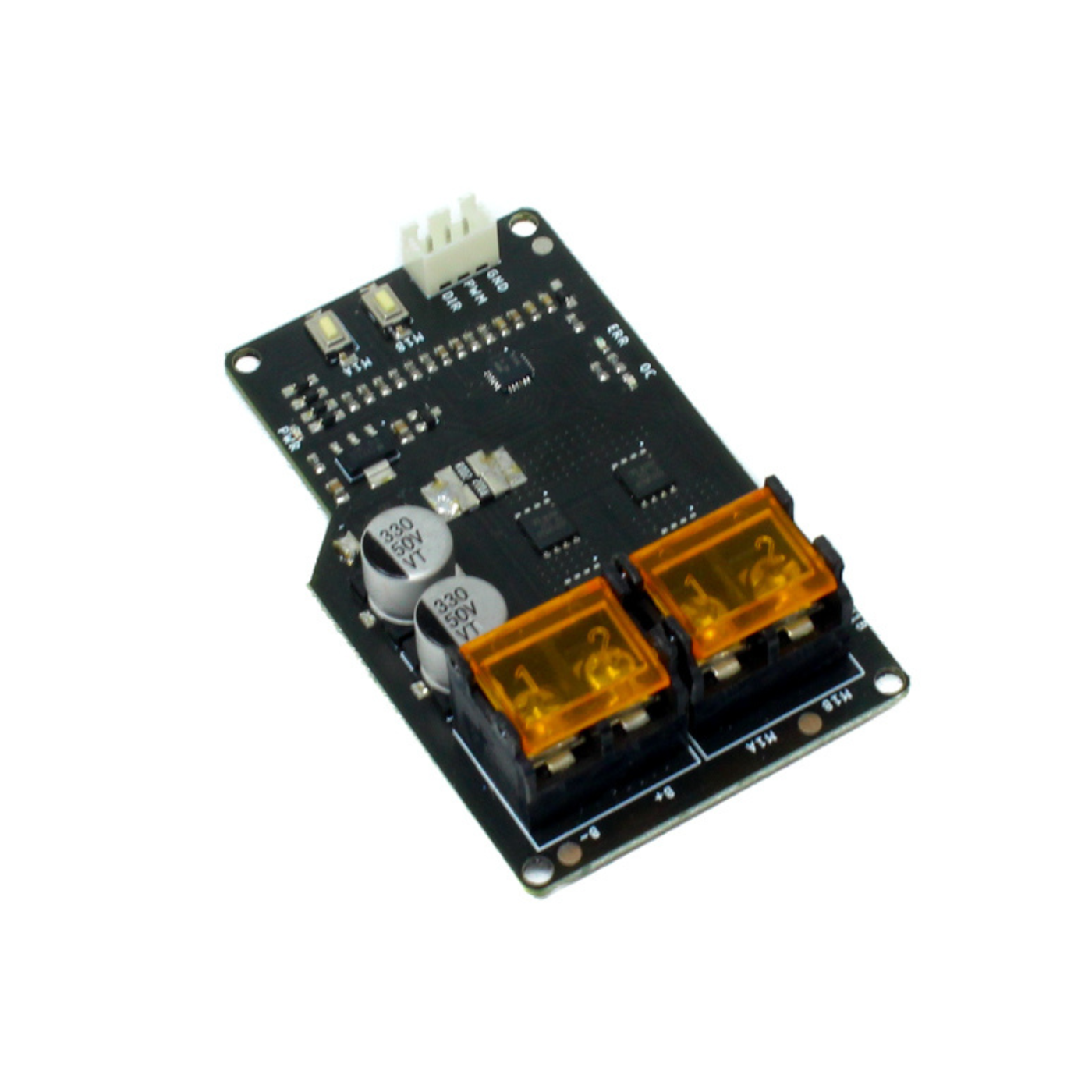

SmartElex 30S Single Channel 30A DC Motor Driver
Couldn't load pickup availability
The SmartElex 30S DC Motor Driver is a high-performance motor driver designed to control powerful DC motors with efficiency and precision. Capable of delivering 30A continuous current and handling peak loads up to 85A for 2 seconds, it’s built for demanding applications like robotics, automation, and electric vehicles.
Supporting motor voltages from 7V to 28V, this module allows smooth bidirectional control, making it ideal for developers who need a reliable and robust motor controller.
Engineered with built-in overcurrent protection and status indication, the SmartElex 30S ensures safety and durability even under heavy loads. Its TTL-PWM input compatibility allows seamless interfacing with microcontrollers such as Arduino, Raspberry Pi, or ESP32.
Whether you’re upgrading your robot’s drivetrain or working on an industrial motion control project, this motor driver provides the power and stability you can trust.
| Specification | Details |
|---|---|
| Model | Motor Driver |
| No. of Channels | 2 |
| Continuous Current (A) | 30 |
| Input Voltage (V) | 7 to 28 |
| Peak Current (A) | Up to 85 |
| PWM Frequency (Hz) | 490 |
| Length (mm) | 82 |
| Width (mm) | 50 |
| Height (mm) | 17 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
