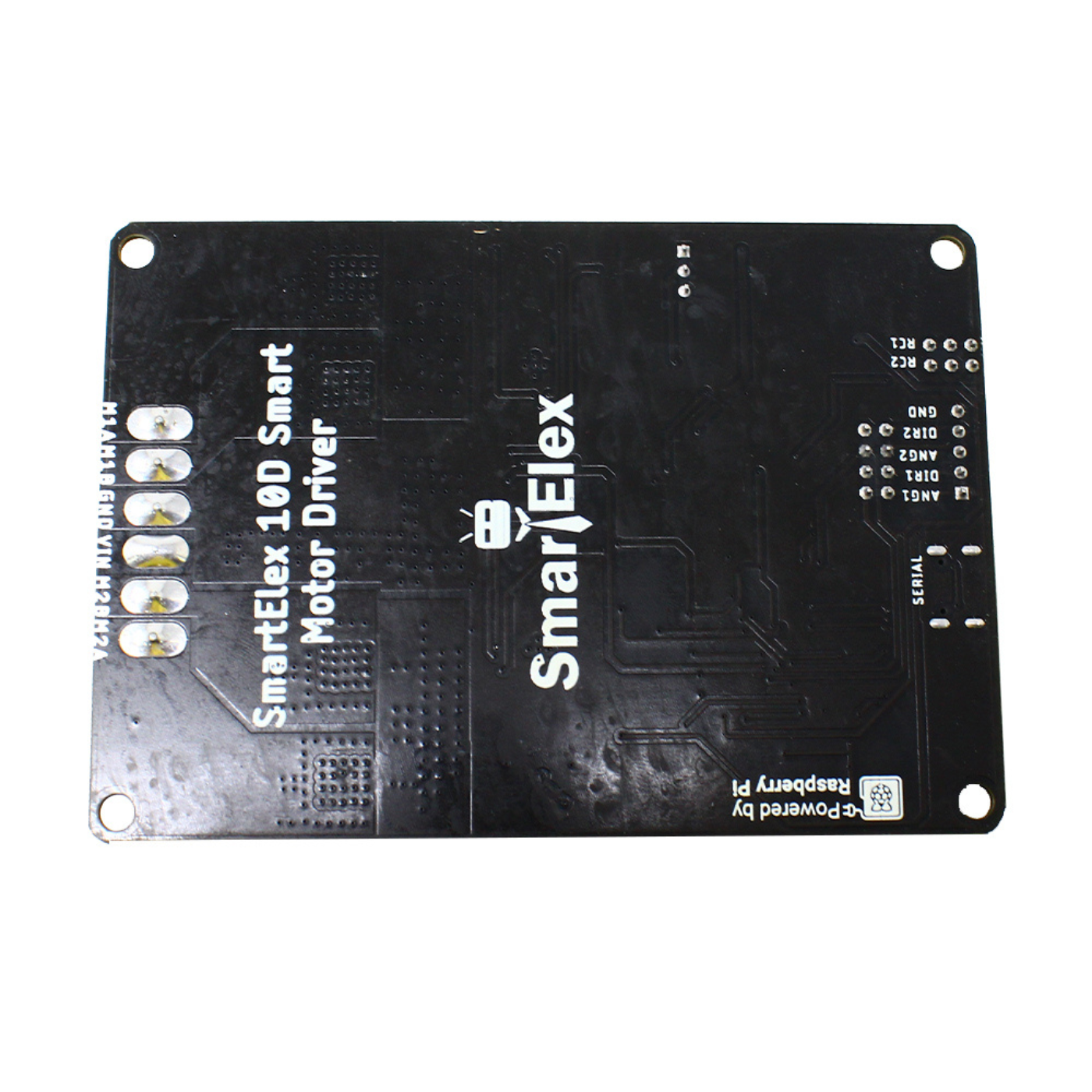

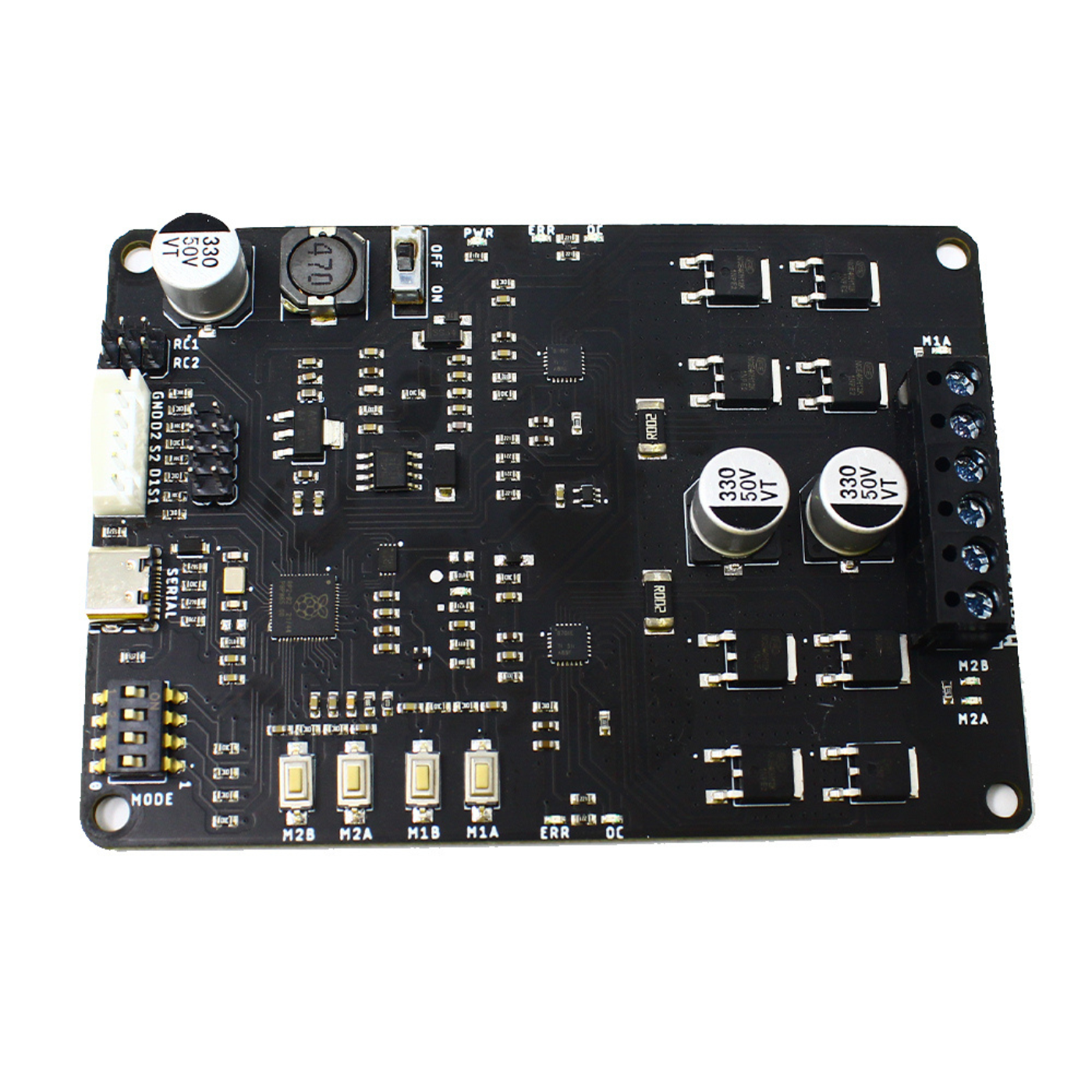

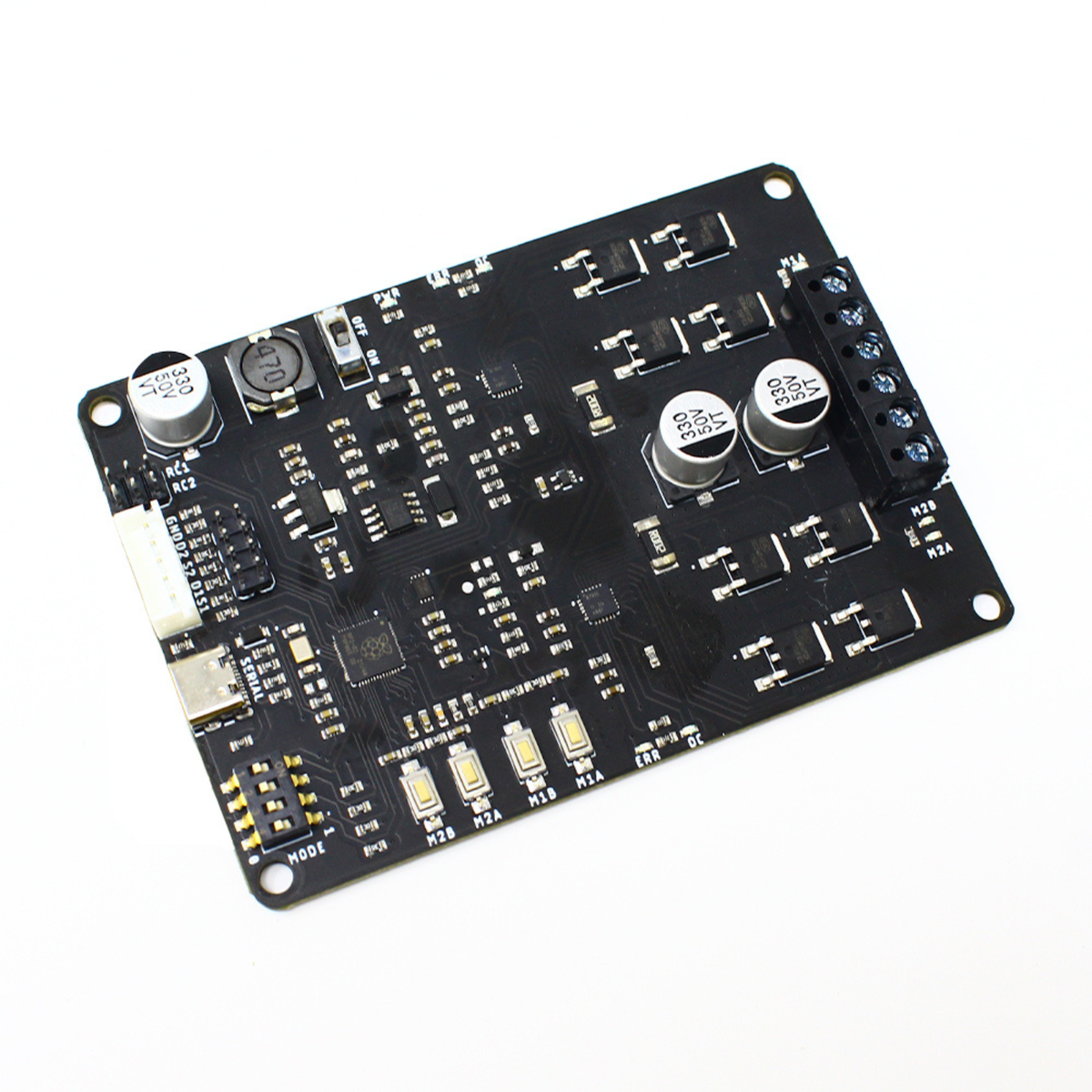

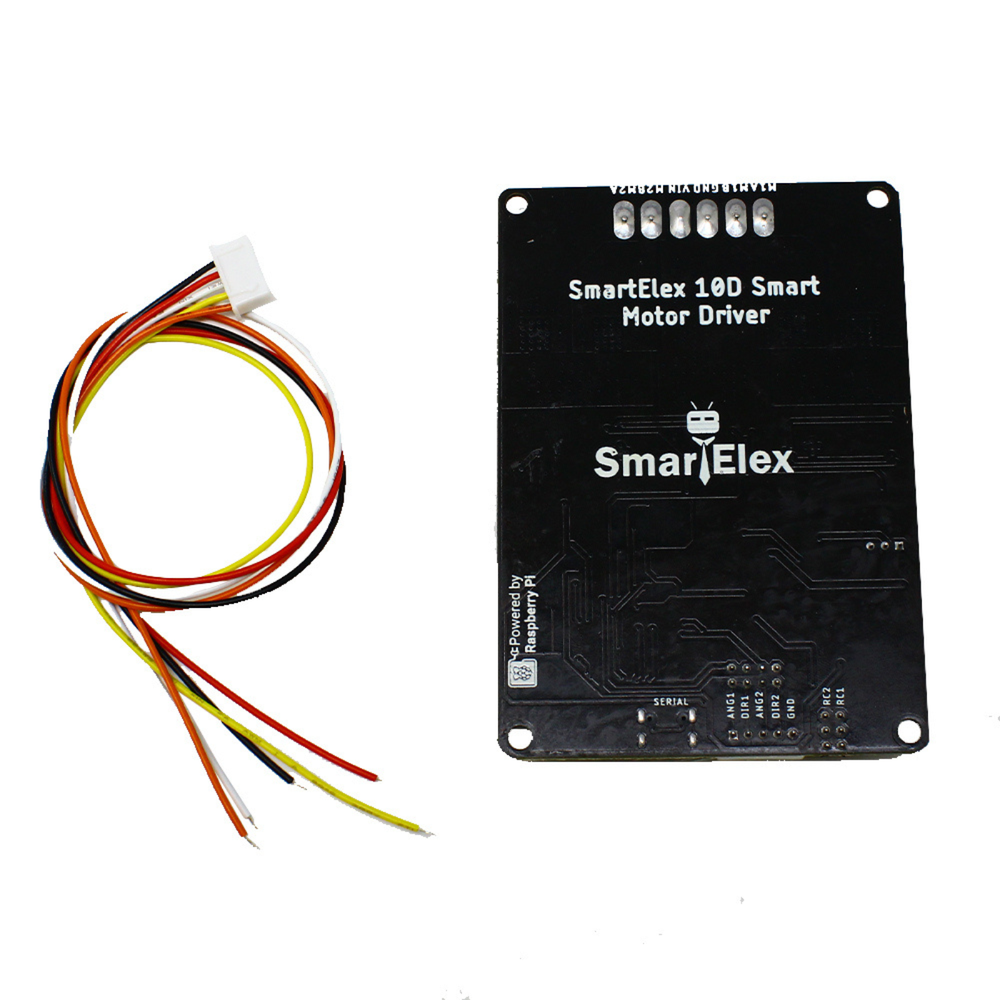

SmartElex 10D Dual Channel Motor Driver Powered by Raspberry Pi
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The SmartElex 10D Smart Motor Driver is a powerful dual-channel motor driver designed to control brushed DC motors with precision and efficiency. It supports both PWM and RC control modes, making it ideal for robotics, RC vehicles, and automation projects.
With a built-in 5V 3A buck converter and wide input voltage range (7V–22V), this motor driver ensures stable performance even under demanding loads. Capable of handling continuous currents up to 10A and peak currents up to 30A, it’s perfect for high-torque motors used in racing robots, combat bots, and mobile platforms.
Built-in current limiting, over-temperature protection, and plug-and-play compatibility with Raspberry Pi make it a dependable choice for makers and engineers alike.
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
