M5 Stack SERVO2 Module 16 Channels - 13.2 (PCS9685)

M5 Stack SERVO2 Module 16 Channels - 13.2 (PCS9685)

Out of stock

Regular price Rs. 1,709
Regular price Rs. 2,081 Sale price Rs. 1,709
Sale Sold out 18% off Best Price Guaranteed
You save Rs. 372 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

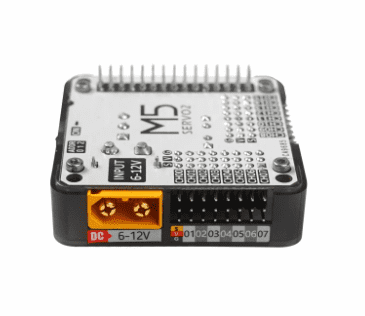

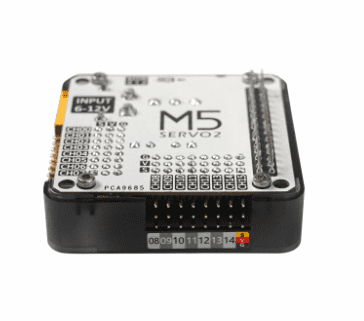

  • 16x actuator drive channel
  • 2X power indicator
  • I2C address adjustable
  • External DC power supply input: 6-12V
  • DC connector type: XT60
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection
Trust Badge 1 Trust Badge 2 Trust Badge 3

M5 Stack SERVO2 Module 16 Channels - 13.2 (PCS9685)

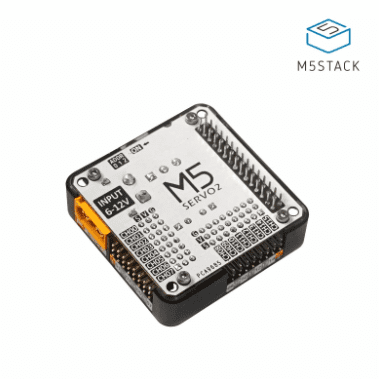

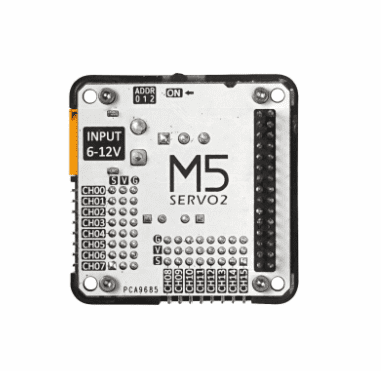

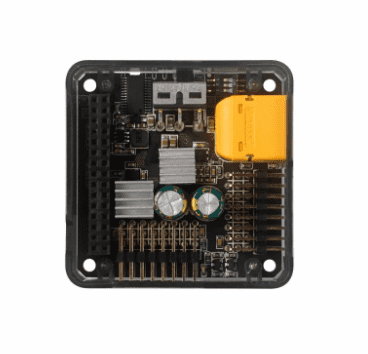

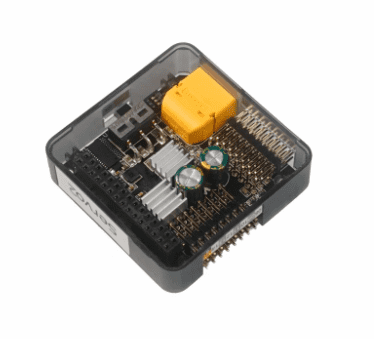

SERVO 2 is an updated servo driver module in the M5Stack stackable module series. It uses a PCA9685 16 channel PWM controller to control 16 channel servos at the same time. The power input is 6-12V DC and two SY8368AQQC chips are used for voltage reduction.

The maximum total power output of a dual-channel is 35W (5V / 3.5A * 2), and the maximum output power of a single-channel is 25W (5V / 5A). When the battery base is used for the power supply, the maximum output power is 5V / 2A. The module communicates with the host directly through I2C (the default address is 0x40) however the I2C address can be changed(0x40 - 0x47) through the dial switch. This also means that multiple Servo 2 modules can be stacked and used simultaneously. There is a power switch on the board to control the power supply of Servo 2.

Note: The module must use the external power supply of the DC interface when driving the servo. When using the AXP192 power management chip's main control (such as CORE2), the M-BUS power mode needs to be configured as an input when the program is initialized.

Applications:

  • Humanoid robot
  • Bionic multi-joint robot
  • 3-axis steering gear pan tilt

Package Includes:

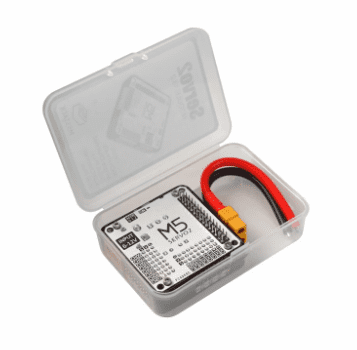

1x Servo2 Module
1x XT60 power cable(11.5cm)

Specifications:

Dimensions 54.2 x 54.2 x 13.2mm
Weight 28gm
