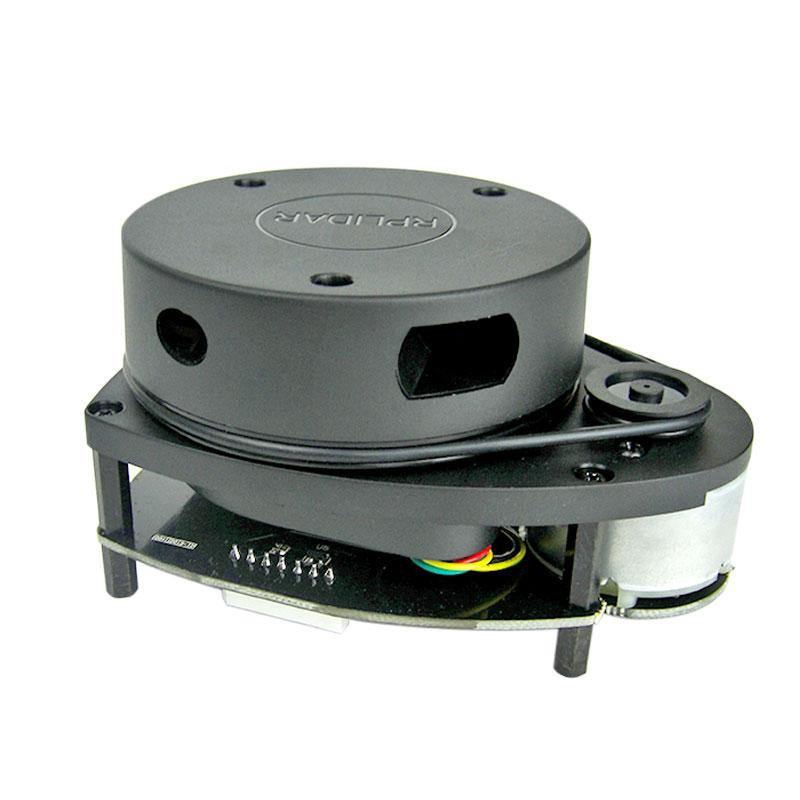

RPLiDAR A1M8 360 Degree Laser Range Finder
RPLiDAR A1M8 360 Degree Laser Range Finder – 6m (Radius Range) is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360-degree scan within a 6-meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling.
What are the applications of RPLiDAR laser range finder?
- Home service /cleaning robot navigation and localization.
- General robot navigation and localization.
- Smart toy’s localization and obstacle avoidance.
- Environment scanning and 3D re-modeling.
- General simultaneous localization and mapping

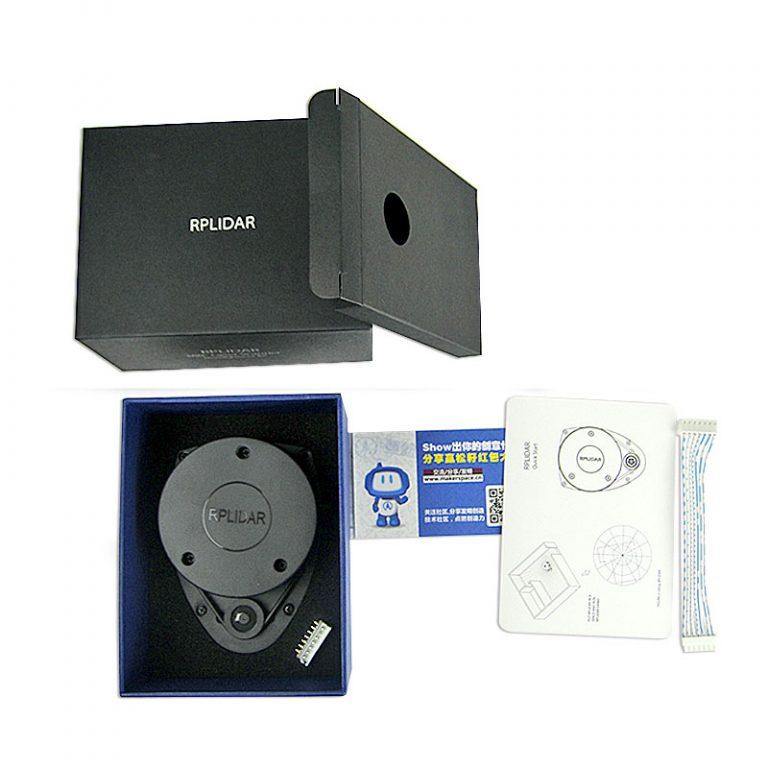

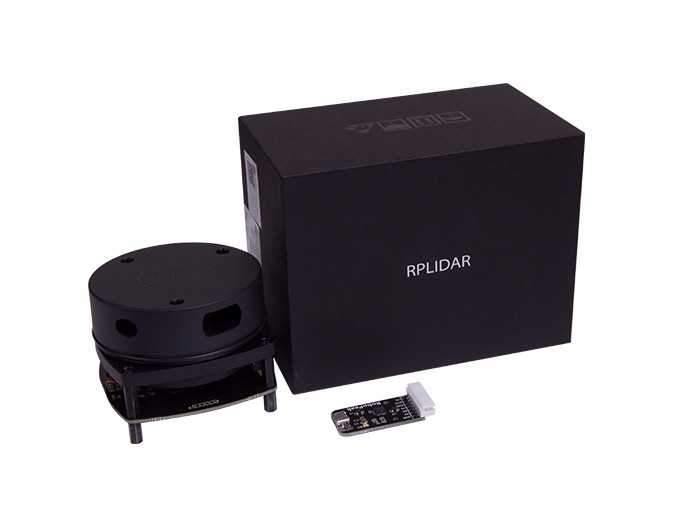

Package Includes:
- 1 x RP LIDAR A1M8 360 Degrees Laser Range Finder.
- 1 x Interfacing Controller and Connecting Cable.
LiDAR Specifications
| Distance Range | (Radius): 0.15m to 6m, white objects (Diameter Range – 12m) |
| Angular Range | 0 ~ 360º |
| Distance Resolution | < 0.5mm |
| Sample Duration | 0.5ms |
| Sample Frequency | 2000 – 2010Hz |
| Scan Rate | 1 ~ 10Hz, Typical 5.5Hz |
| Dimensions | 6 x 7 x 9 cms |
| Weight | 200 grams |
