Robocraze
RC522 RFID 13.56MHZ Reader Writer Module
RC522 RFID 13.56MHZ Reader Writer Module
Regular price
Rs. 76
Regular price
Rs. 128
Sale price
Rs. 76
Unit price
/
per
You save Rs. 52 |
Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Submit your Bulk Enquiry Here
- MF RC522 for contactless communication
- 56MHz card chip
- Compact and low-cost
- Ideal for smart meters
- Supports 13.56MHz protocols
- Easy integration into readers
RC522 RFID 13.56MHZ Reader Writer Module
This RC522 RFID Card Reader Module 13.56MHz is an MFRC522-based Module that can be used in a wide range of applications. RC522 is the highly integrated RFID card reader and writer that works on non-contact 13.56mhz communication, is designed by NXP with a low power consumption, low cost, and compact size read and write chip, and is the best choice in the development of smart meters and portable hand-held devices.
RFID Cards are frequently used as personal identifiers in personnel management or access control systems. This is a version of the popular ISO format identity card. The RFID technology is used for sensing and identifying tagged people and objects for access control, automation, and a whole range of different applications.
Also, check thePN532 NFC-Near Field Communication RF-ID V3 Module.
Application:
- Smart home project
- Voice broadcast access control system
- Attendance punch card system
- Can be used in RF communication and identification applications.
- Automatic billing systems
- Verification/Identification system
- Access control systems
Also, check RFID Access Control Door Lock .

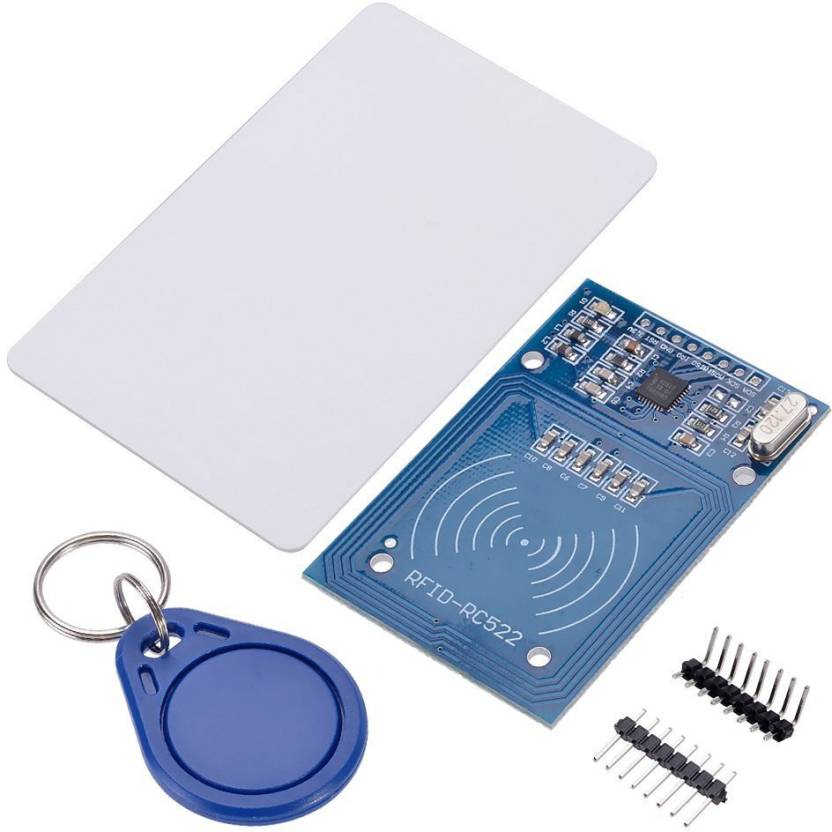

Package Includes:
- 1 x RFID RC522
- 1 x RFID Card
- 1 x RFID Key Chain
- 2 x Pins
Specifications:
| Operating Voltage | DC 3.3V |
| Operating Current | 13-26mA |
| Idle Current | 10-13mA / DC 3.3V |
| Sleep Current | 80uA |
| Peak Current | 30mA |
| Operating Frequency | 13.56MHz |
| Module interface | SPI |
| Data transfer rate | Maximum 10Mbit/s |
| Reader Distance | ≥ 50mm / 1.95" (mifare 1) |
| Dimension | 40mm*60mm(L*W) |
Video Tutorial:
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Share
Found a better price?
Let us know!
We'll try to match the price for you
-
⚡ Dispatched within 24 hours
-
💰 Earn RC Coins on every purchase
-
🚚 Free shipping on orders above Rs 500/-
-
🛠️ Dedicated Technical Support Team
1
/
of
4
Customer Reviews
Based on 6 reviews Average Rating 5.00 stars out of 5.00/ 5
Filter 6 Reviews with 5 star rating (6)
5
Filter 0 Review with 4 star rating (0)
4
Filter 0 Review with 3 star rating (0)
3
Filter 0 Review with 2 star rating (0)
2
Filter 0 Review with 1 star rating (0)
1
- Reviews
- Questions
- Sumit S. Sumit
- satyam S. satyam
07-11-2022Good range
They read card up to 30-40 mm from the reader
- chetan das C. D. chetan d. 07-11-2022
Great for programming 13.56 mhz cards
All are necessary recourses are available on the internet. Works as expected.
- bhimesh B. bhimesh 07-11-2022
Good value and performance
All 3 units worked.
- anirudh A. anirudh 07-11-2022
Home Assistant
Nice
- Sanjay S. Sanjay 07-11-2022
Worth Buying
I could get these to work just the way i want.
Verified Customer
dumbledore D. dumbledore 10-06-2023
D. dumbledore 10-06-2023 Question asked: can we rewrite the uid of these readers and change it according to our requirements
can we rewrite the uid of these readers and change it according to our requirements
Answers
12-06-2023
No, the RFID RC522 MFRC module does not support rewriting the UID of RFID tags/cards, but you can rewrite the data on RFID tags/cards using the RFID RC522 MFRC module.
Bhavik B. Bhavik 26-05-2023
B. Bhavik 26-05-2023 Question asked: Is this rfid scanner compatible with arduino uno?
Is this rfid scanner compatible with arduino uno?
Answers
29-05-2023
Hello, yes, the RFID-RC522 MFRC RFID scanner is compatible with Arduino Uno.
Verified Customer
RakeshTen R. RakeshTen 12-06-2022
R. RakeshTen 12-06-2022 Question asked: Is it possible for one arduino nano to control/read from two rfid card reader at the same time?
Is it possible for one arduino nano to control/read from two rfid card reader at the same time?
Answers
29-05-2023
Hello, yes, it is possible for one Arduino nano to control/read from two RFID card reader at the same time.
