- Standard: IEEE 802.3at-2003 PoE
- Input voltage: 37–57V DC, Class 4 device
- Output power: 5V DC/4A
- Fully isolated switched-mode power supply
- Integrated Fan Control and 25mm x 25mm Brushless Fan
- Plug-and-Play Compatibility with Raspberry Pi 3 B+ and Pi 4

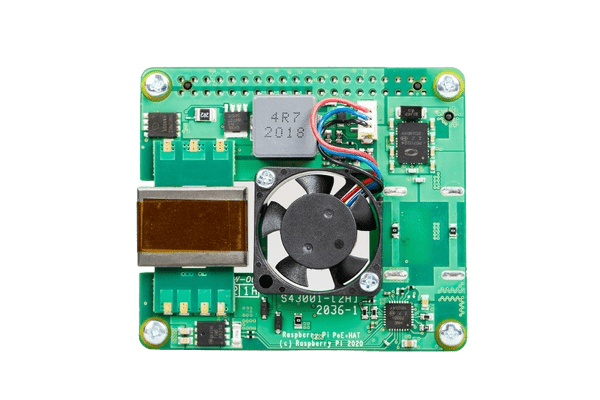

Raspberry PI POE+Hat for 3B+ and Pi 4
The Raspberry Pi PoE+ HAT is an add-on board for Raspberry Pi computers with PoE pins. It can only be used with the Raspberry Pi 3 Model B+ and Raspberry Pi 4 Model B. It is used to power Raspberry Pi via an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet network. The HAT also includes a fan that will cool the Raspberry Pi processor.
No modification to the main Raspberry Pi board is needed for this product to work. Please ensure that your Raspberry Pi’s software is up to date for all functionality to be available.
Note: Robocraze is the authorized seller of Raspberry Pi products in India. Therefore even if you are in Bangalore, Hyderabad, Kerala, Mumbai, or Pune, you can buy Raspberry Pi POE+HAT online from Robocraze at the comfort of your homes.
Package Includes:
1 x Raspberry PI POE+ Hat for 3B+ and Pi 4.
Specifications:
|
Power Over Ethernet(POE) |
IEEE 802.3at-2003 PoE |
|
Input voltage |
37–57 V DC, Class 4 device |
|
Output voltage |
5V DC |
|
Output power |
4 A |
|
Compatibility |
RPI 3B+ and RPI 4 |
|
Operating temperature |
0 °C to +50 °C |
|
Cooling |
25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling |
|
Length |
65mm |
|
Width |
56.5mm |
|
Height |
14mm |
|
Weight |
32gm |
ADDITIONAL RESOURCES
Before Installing the HAT go through Safety Instructions given in the datasheet
