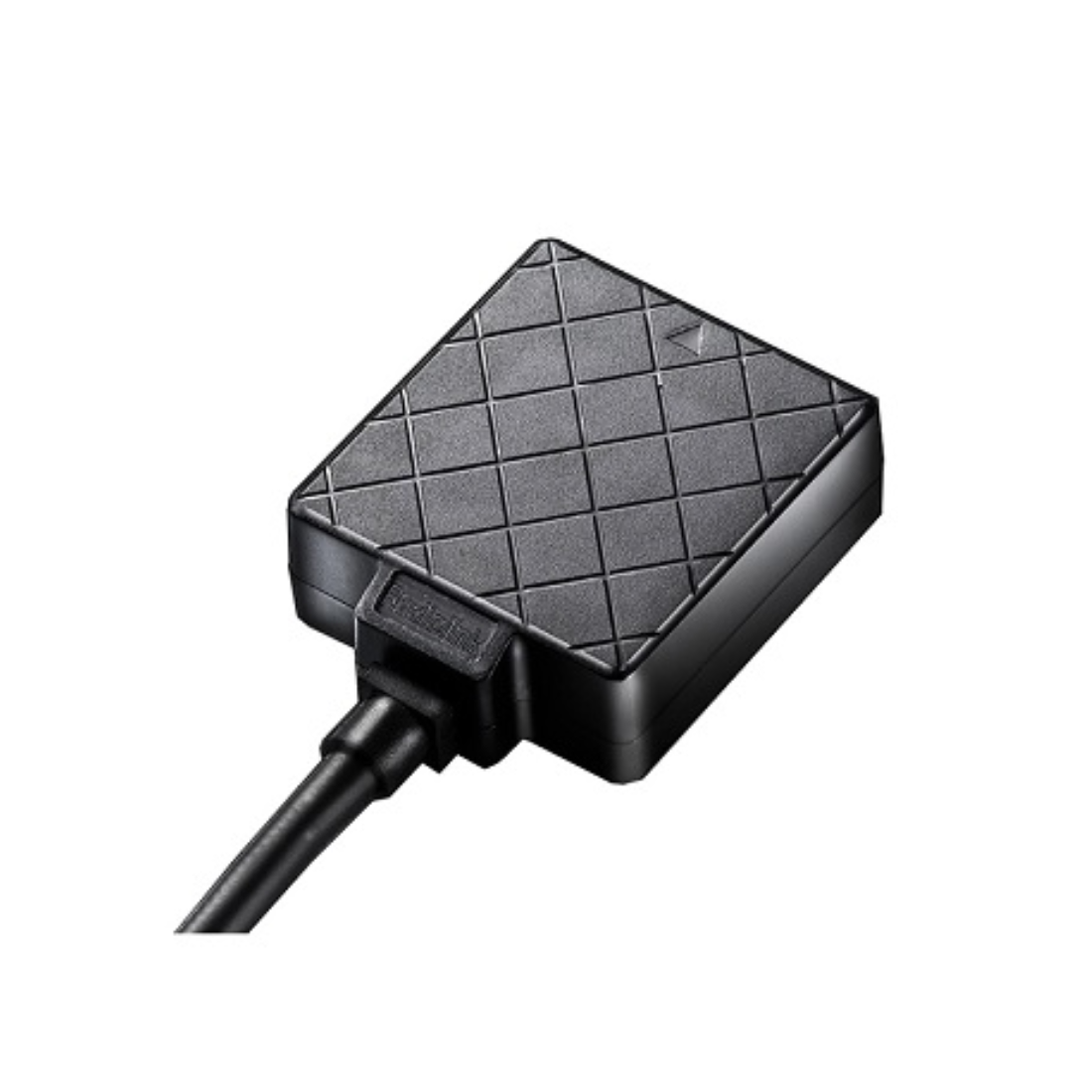

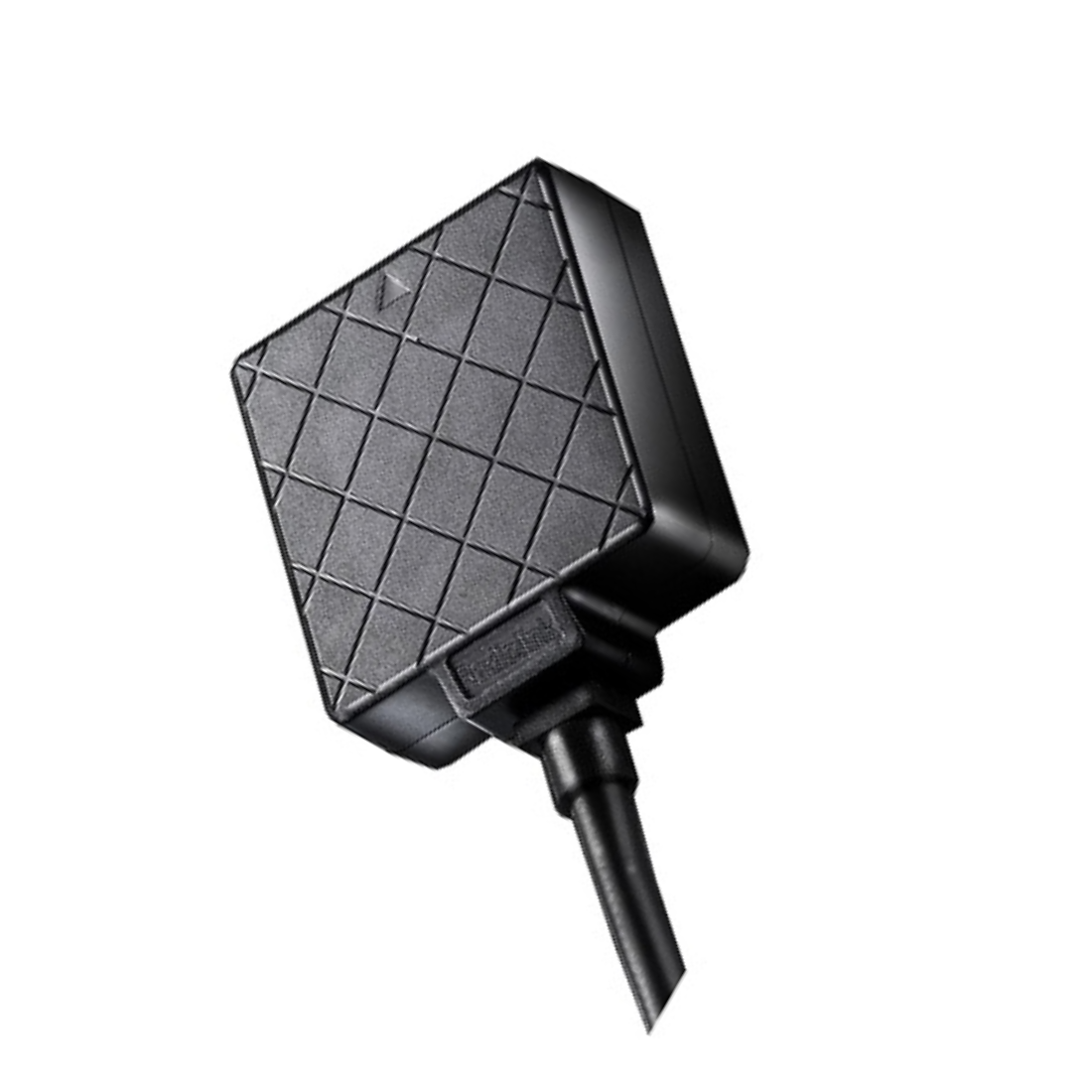

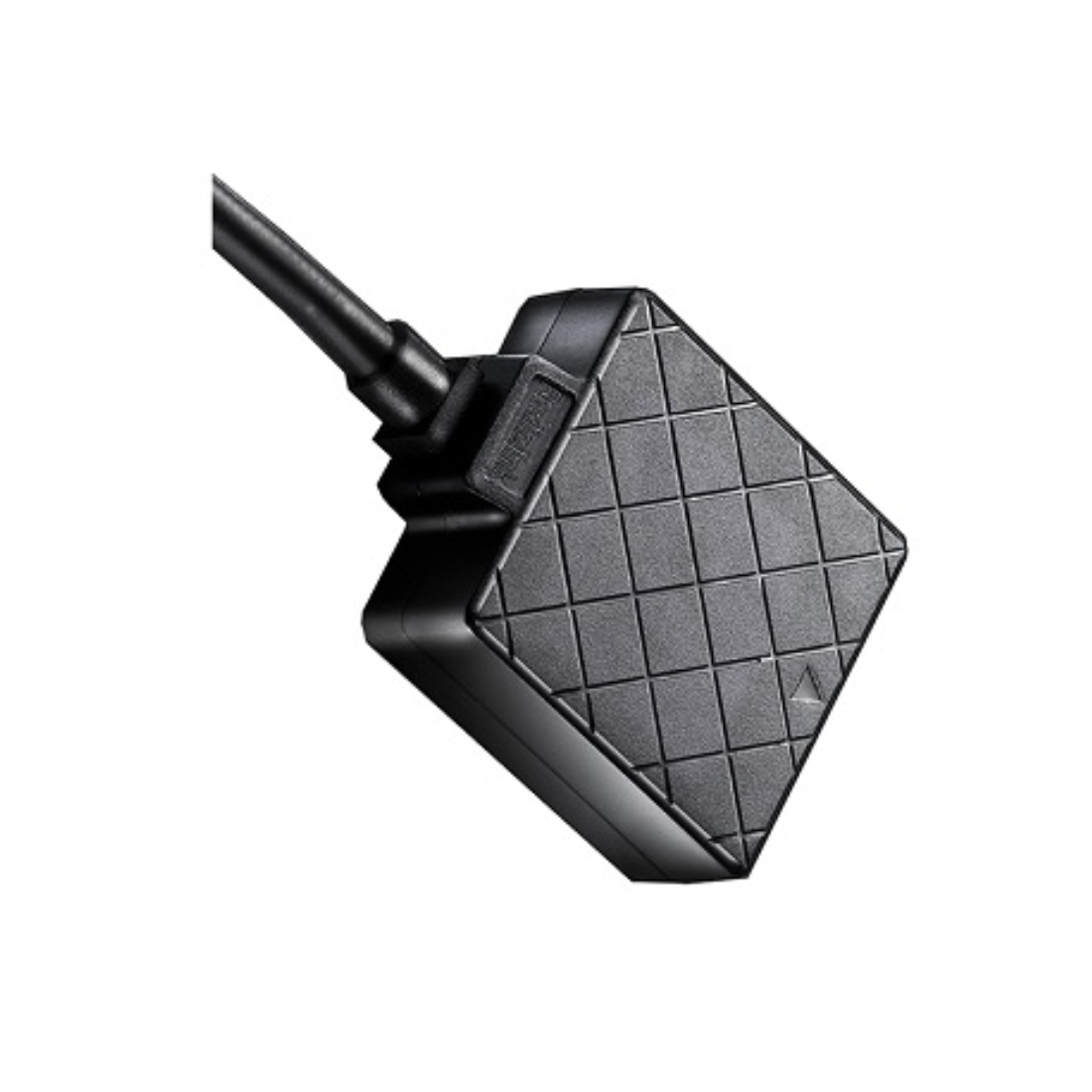

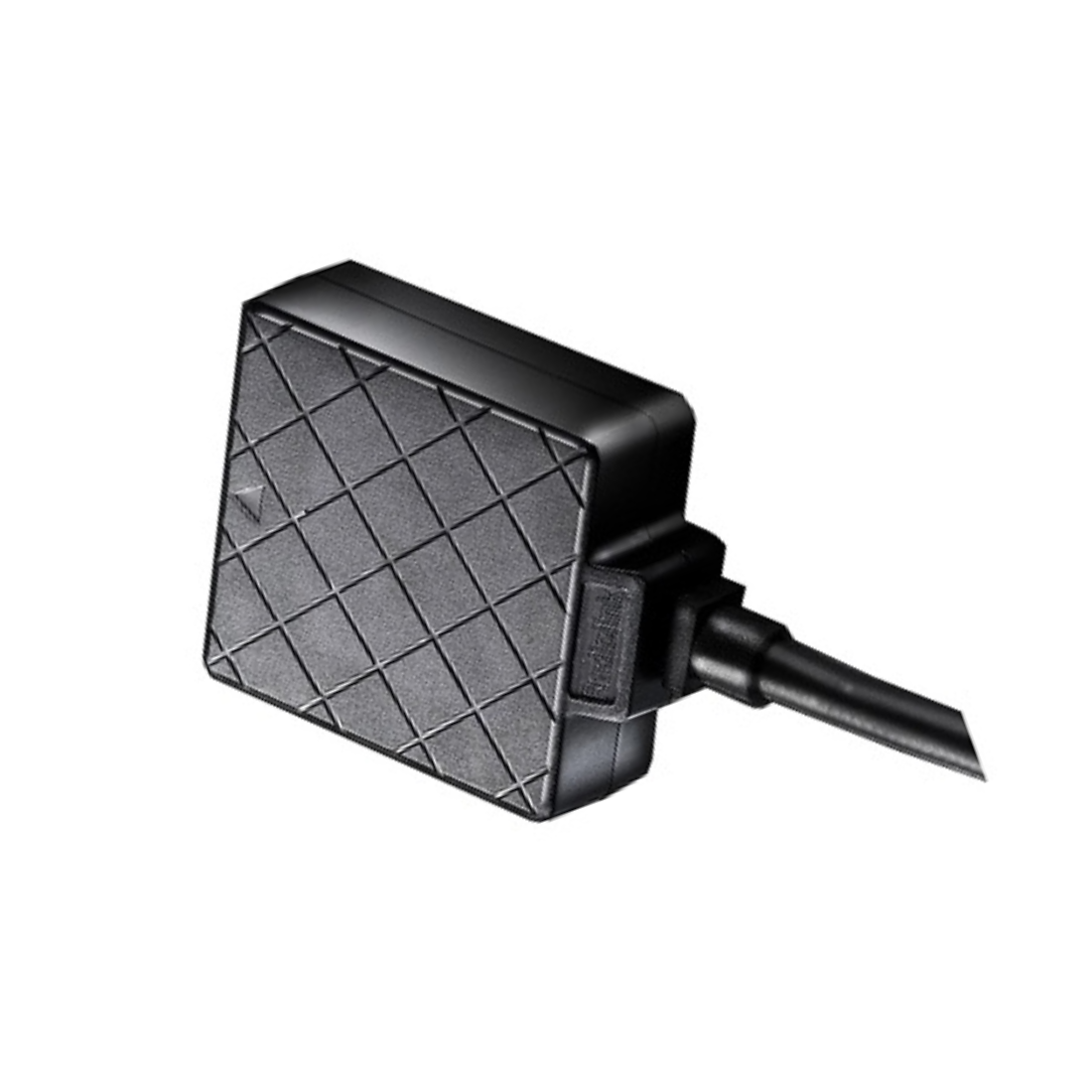

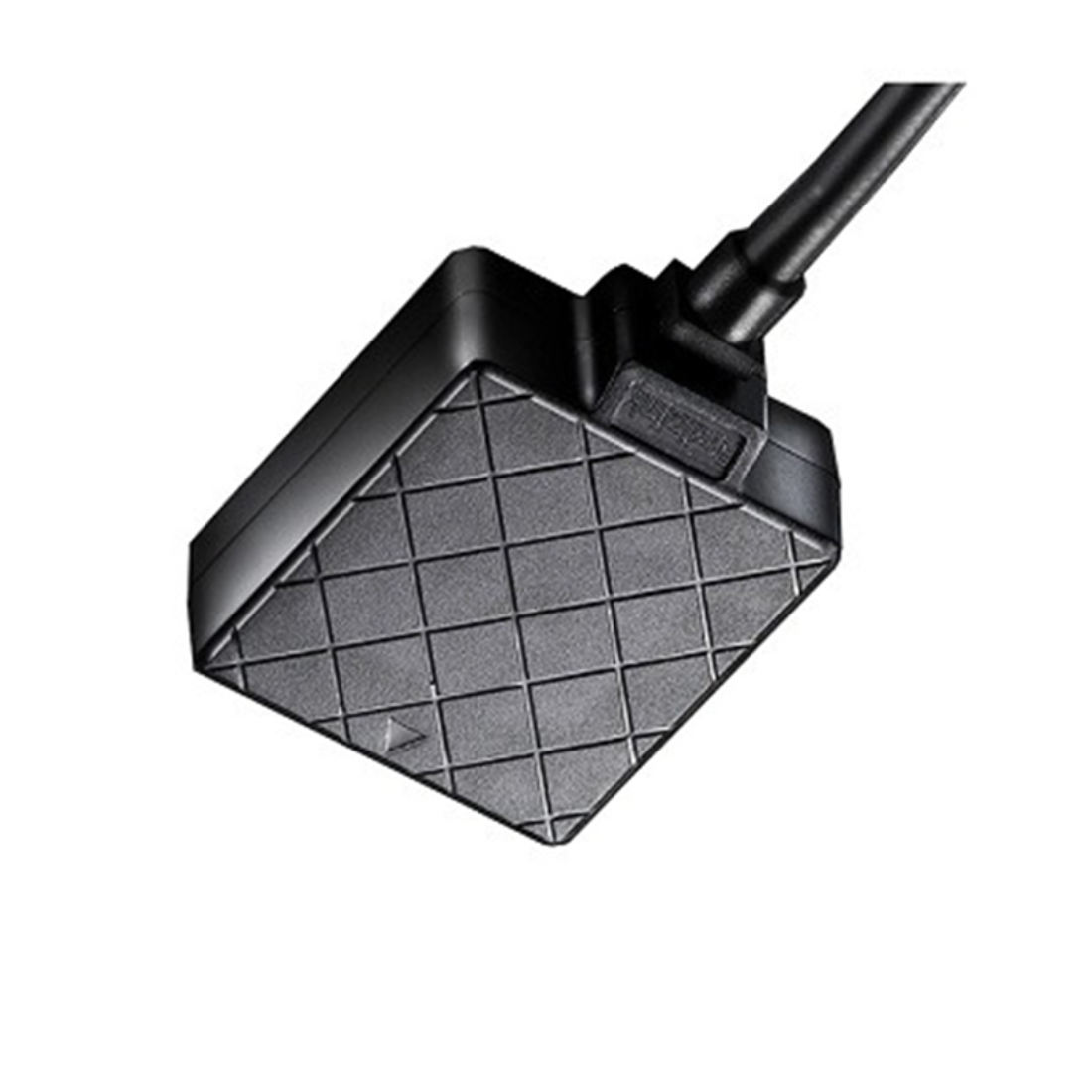

The Radiolink TS100 V2.0 Mini GPS Module is a compact and high-precision positioning solution designed for RC drones, UAVs, and autonomous flight systems. Built for reliable performance, this mini GPS module provides accurate real-time location tracking, ensuring improved navigation and enhanced flight safety.
Integrated with a built-in digital compass, the TS100 V2.0 Mini GPS delivers precise directional data, enabling stable flight control, return-to-home functionality, waypoint navigation, and autopilot operations. Its optimized antenna design ensures faster satellite acquisition and strong signal stability, even in environments with potential interference.
Designed for seamless compatibility with Pixhawk flight controllers and Radiolink transmitters, this lightweight GPS module is easy to install on quadcopters, fixed-wing aircraft, and multi-rotor platforms. The Radiolink TS100 V2.0 Mini GPS Module is an excellent choice for drone enthusiasts and professionals seeking dependable navigation performance in a compact form factor.
Radiolink MINI M8N GPS TS100 Configuration:
- Equipped with u-blox UBX-M8030 (M8) GPS decoder chip with 72-channel reception capability.
- Integrated Infineon MMIC BGA715L7 power amplifier for enhanced signal performance.
- Delivers better accuracy and stability compared to standard single GNSS 7N modules.
- Supports simultaneous dual GNSS operation for improved positioning reliability.
- Compatible with GPS/QZSS L1 C/A, GLONASS L1OF, and BeiDou B1 signals.
- Supports SBAS L1 C/A systems including WAAS, EGNOS, and MSAS.
- Built-in QMC5883L geomagnetic sensor based on similar technology to Honeywell HMC5983.
- Features 2.5 dBi high-gain ceramic antenna for strong signal reception.
- Includes Murata Surface Acoustic Wave Filter (SAWF) for improved signal filtering.
- Designed for stable performance with strong anti-interference capability.
Features:
- Supermini Size – Compact and lightweight design ideal for small drone and UAV builds.
- Excellent Performance – Provides fast satellite lock with stable and accurate positioning.
- Worry-free Practice – Ensures reliable GPS tracking for safe and confident flight operations.
