Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car - Robocraze

Radiolink FREE SHIPPING BEST PRICE GUARANTEED

Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car - Buy Online in India

Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car

Rs. 1,939; ~~Rs. 2,499~~; Rs. 1,939; (-22%)
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 2 left in stock

Quantity:

SKU: TIFQC0139

Operate your airplane, car, or drone smoothly from up to 3.4 km away, giving you freedom and flexibility during outdoor adventures.
Advanced DSSS and FHSS technologies ensure stable and uninterrupted signal connection, even in crowded radio environments.
Supports both SBUS and PWM outputs, making it easy to connect with different RC models and providing versatility in system setup.
With a high precision of 4096 resolution and 0.25µs per section, enjoy quick and responsive control for precise maneuvering.
Monitor real-time information such as signal strength, receiver voltage, speed, and GPS data when used with telemetry sensors and compatible transmitters.
Small size and low weight (10g) allow easy integration into any RC project without adding bulk or affecting flight dynamics.

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car

~~Rs. 2,499~~ Rs. 1,939

Quantity:

Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car

~~Rs. 2,499~~ Rs. 1,939

Description
Specifications
how to use Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car
How To
FAQ
Shipping & Return

Description

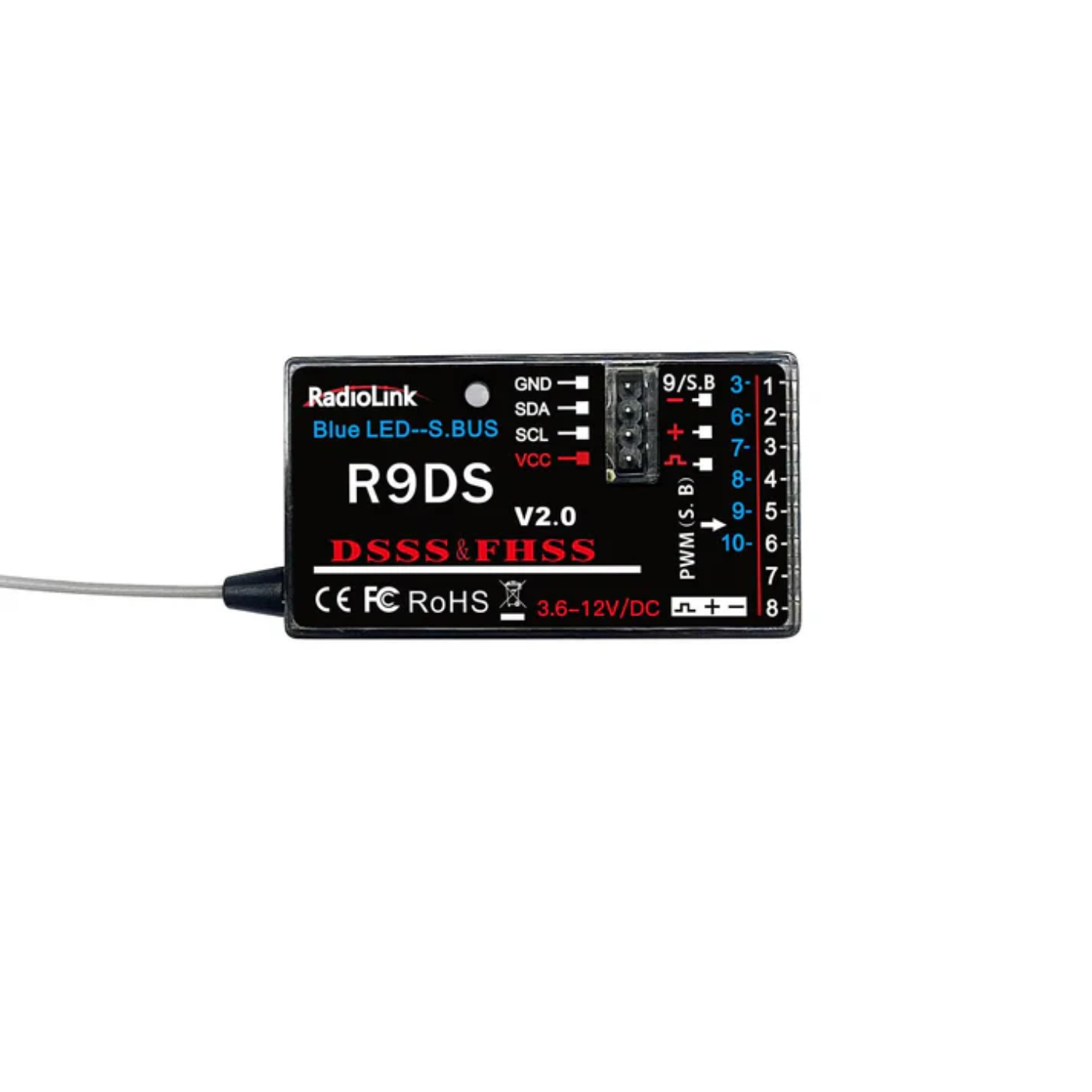

Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver For Drones, Airplane, Car

The powerful and reliable RC Receiver, Radiolink R9DS. Whether you are flying an airplane, driving an RC car, or piloting a multirotor, this receiver makes controlling your devices easier and more precise. Featuring advanced SBUS and PWM signal output options, it works seamlessly with Radiolink transmitters like AT9, AT9S, AT9S Pro, AT10, and AT10II, giving you great flexibility in setting up your system.

Imagine controlling your model from over 3 kilometers away without losing connection. The Radiolink R9DS makes it possible thanks to its long-range capability and strong anti-interference technologies like DSSS and FHSS. Whether you are searching for a high-performance drone receiver or a durable rc car receiver, this 2.4GHz RC Receiver keeps your connection stable and responsive even in challenging environments.

Designed for serious hobbyists and professionals alike, the Radiolink R9DS is a compact yet powerful 10 channel rc receiver. Its robust design ensures reliable performance in various applications, from casual fun to competitive racing or complex drone flights. If you want uninterrupted, precise control, this receiver is the perfect addition to your RC setup.

Features

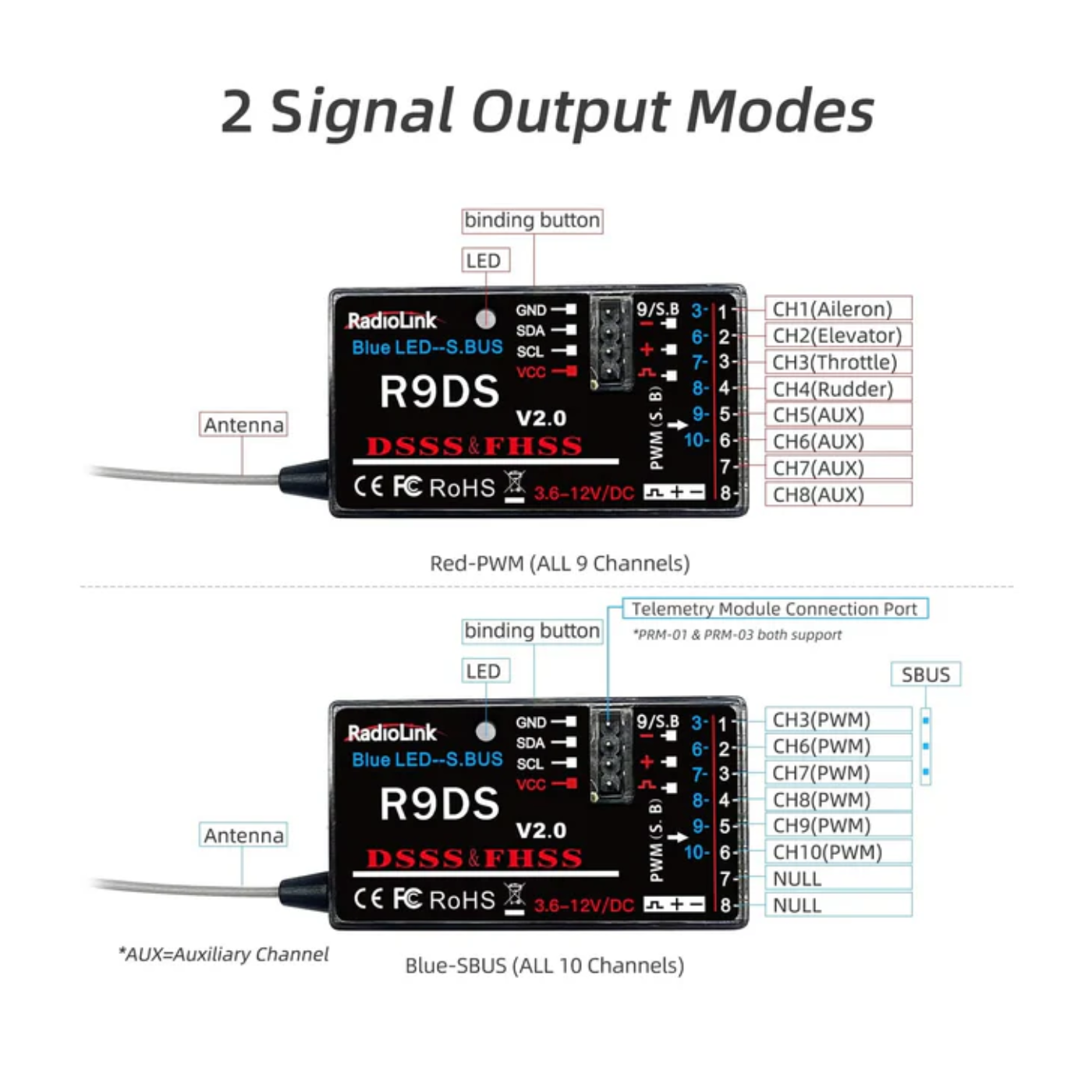

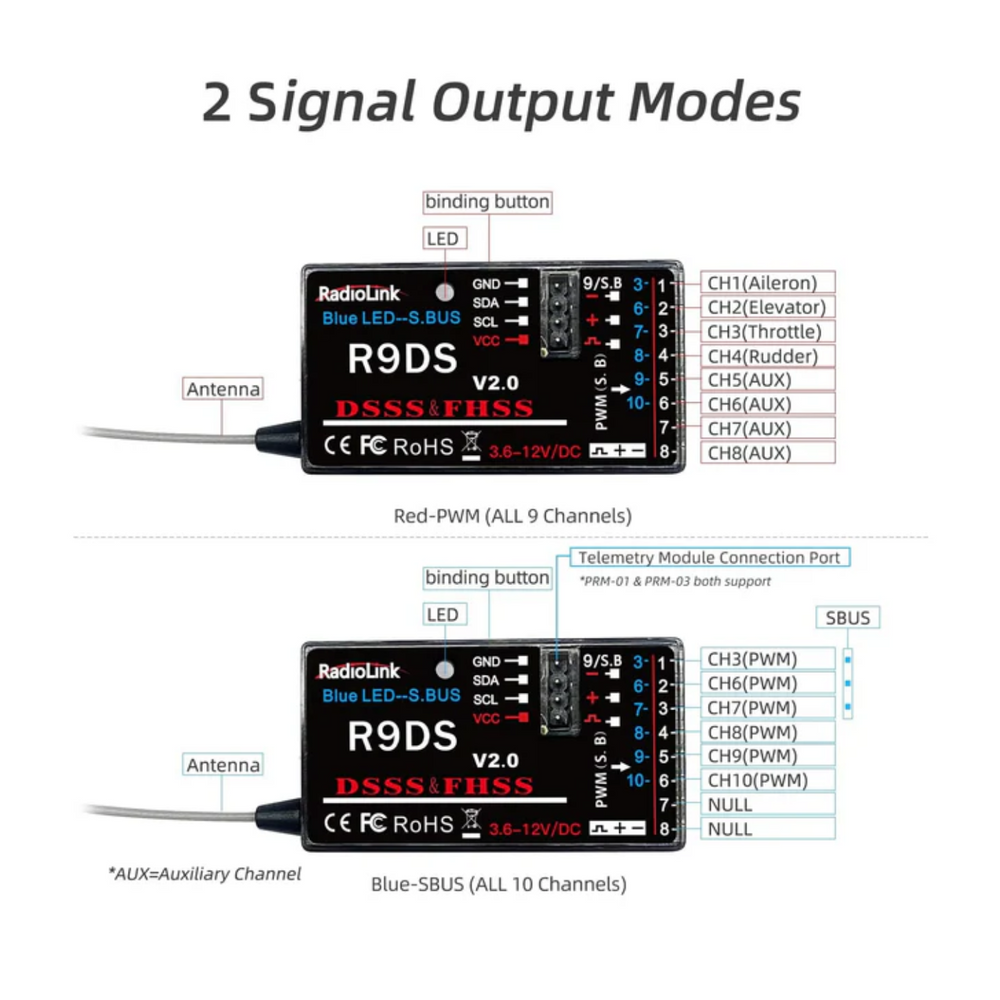

Dual Signal Output (SBUS & PWM): Supports both SBUS and PWM signal outputs simultaneously, providing flexibility for various control setups. In SBUS mode, it offers 10 channels, while in PWM mode, it provides 9 channels.
Long-Range Control: Control distances of up to 3.4 km in open environments, ensuring stable and responsive control even at considerable distances.
Advanced Anti-Interference Technology: Utilizes DSSS & FHSS spread spectrum technologies to minimize signal interference, ensuring reliable communication in challenging environments.
High-Precision Response: Features a 4096 resolution ratio with 0.25µs per section, providing quick, low-latency connections and precise control for the user.

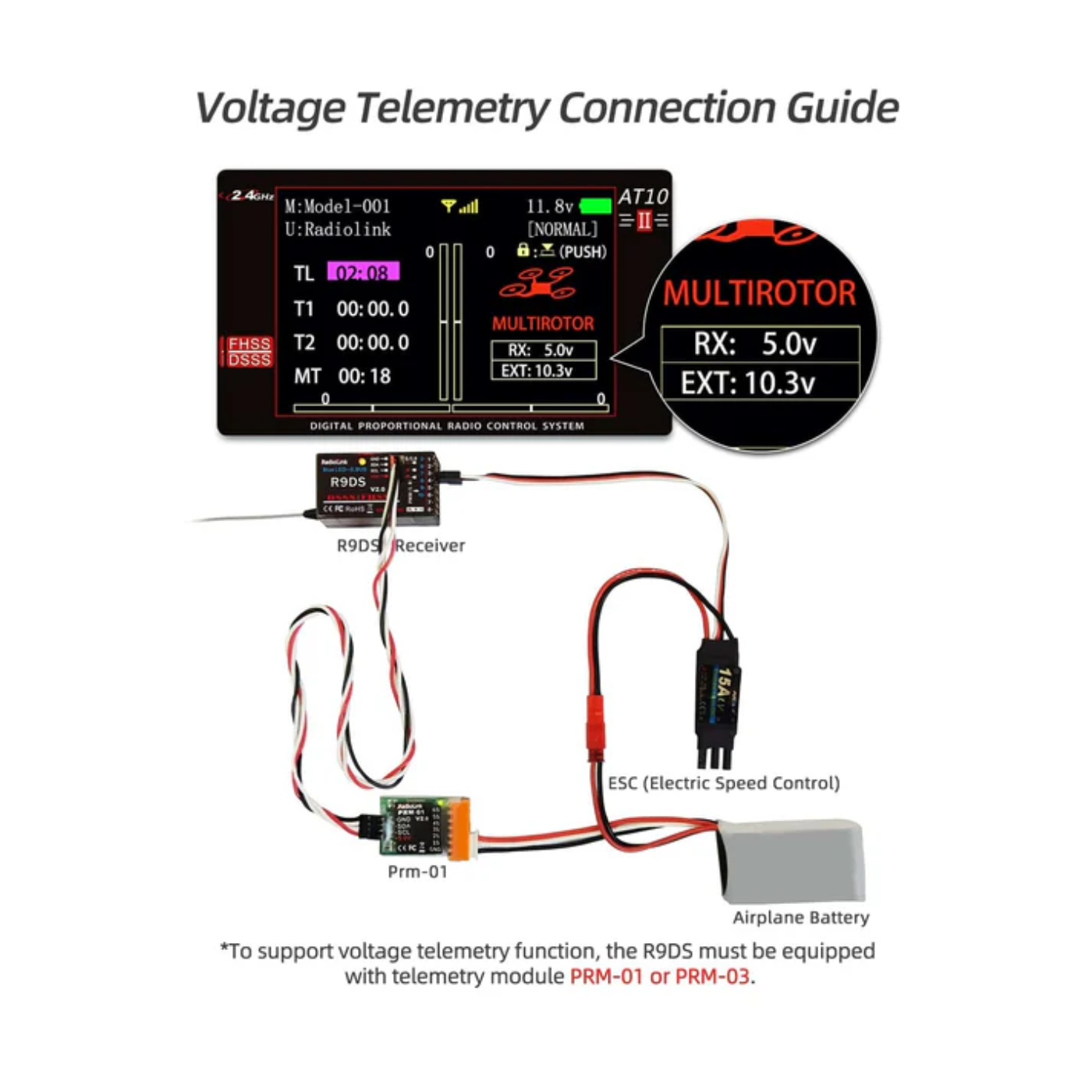

Telemetry Support: Integrates telemetry sensors to monitor signal strength and receiver voltage. When paired with telemetry modules like PRM-01 or PRM-02, it can provide additional data such as GPS information, speed, and voltage on compatible transmitters.
Compact Design: Weighs approximately 10g and measures 43 x 24 x 15 mm, making it lightweight and easy to integrate into various RC models without adding significant weight.
Wide Voltage Compatibility: Operates within a voltage range of 4.8V to 10V, allowing compatibility with a variety of power setups.
Easy Binding Process: Features a straightforward binding process with a single button press, simplifying the setup and pairing with compatible transmitters.

Specifications

Package Includes

1 x Radiolink R9DS RC Receiver 10 Channels 2.4GHz RC Receiver

Specifications

Signal	SBUS, PWM
Channel	PWM 9 Channels, SBUS 10 Channels
Control Distance	900 meters on the ground and 3400 meters in the air (2.11 miles) (Maximum range may vary depending on local regulations as tested in an area free of obstructions and interference)
Working Voltage	3.6V – 12V (new test)
Working Current	38–45mA (Input Voltage: 5V)
Size	43 × 24 × 15 mm
Weight	10 g

How To

1. How to bind the Radiolink R9DS RC Receiver 10 Channels with a compatible transmitter?

Press and hold the bind button on the Radiolink R9DS RC Receiver 10 Channels while powering it on—the LED will flash rapidly to indicate bind mode. Activate bind mode on your compatible transmitter to initiate pairing. Once the LED turns solid, the 2.4GHz RC receiver is successfully linked and ready for use. This secure connection ensures reliable, low-latency control across all ten channels.

2. How to install the Radiolink R9DS Receiver for drones, airplane, or car?

Connect the Radiolink R9DS Receiver to your flight controller, ESC, or servo using PWM, SBUS, or PPM as required by your setup. Ensure correct alignment of signal, power, and ground wires to prevent damage. This receiver for drones, airplanes, and cars supports multiple protocols for flexible integration. Secure the receiver with foam or tape to minimize vibration interference in high-speed applications.

3. How to configure failsafe settings on the Radiolink R9DS 2.4GHz RC Receiver?

With your transmitter powered on, position the control sticks and switches to your desired safe state—such as zero throttle and neutral surfaces. Then, press and hold the bind button on the R9DS for 3–5 seconds until the LED flashes differently, confirming failsafe programming. This ensures the 2.4GHz RC receiver defaults to these positions during signal loss, enhancing safety for drones, airplanes, and cars.

4. How to check the range and signal quality of the Radiolink R9DS receiver for drones and cars?

Use your transmitter’s range check function to test the effective operating distance of the Radiolink R9DS receiver. For drones and airplanes, perform the test in an open field with no RF interference, ensuring stable control up to several hundred meters. For cars, verify consistent response across varied terrain and near obstacles. Monitor RSSI values via telemetry or OSD to confirm strong 2.4GHz connectivity throughout the test.

FAQ

1. What is the Radiolink R9DS RC Receiver used for?

The Radiolink R9DS RC Receiver is a versatile and reliable choice for a wide variety of models, from drones and airplanes to RC cars. As a 10 Channels RC Receiver, it offers a stable connectivity and fast response. This ensures you have smooth control over your vehicle at all times.

2. How many channels does the Radiolink R9DS support?

The Radiolink R9DS is a full-featured 10 Channels RC Receiver that gives you plenty of options for your builds. These multiple channels provide many connection points for controlling flight surfaces, motors, and auxiliary functions. This makes it ideal for advanced RC setups.

3. Can the Radiolink R9DS Receiver be used for both drones and RC cars?

Yes, it is extremely versatile! This R9DS Receiver for drones, cars, and airplanes is designed to handle a wide range of RC applications. Whether you are flying a complex quadcopter or driving a high-speed car, you can count on its consistent performance.

4. What frequency does the Radiolink R9DS operate on?

This high-quality 2.4GHz RC Receiver uses advanced DSSS and FHSS technology to create a robust and reliable link. This technology provides excellent signal transmission and helps to ensure minimal interference. This allows you to fly or drive with confidence.

5. Is the Radiolink R9DS compatible with all Radiolink transmitters?

Yes, the R9DS RC Receiver is designed to work seamlessly with a range of popular Radiolink transmitters. This includes models like the AT9, AT9S, AT10, and AT10II. This wide compatibility ensures seamless connectivity for all kinds of RC enthusiasts.
