Radiolink R6DSM Mini Drone Receiver 2.4Ghz 10 Channels For Racing Drones, Quadcopter Aircrafts

Radiolink R6DSM Mini Drone Receiver 2.4Ghz 10 Channels for Racing Drones, Quadcopter Aircrafts

The Radiolink R6DSM is a high-performance mini drone receiver designed for mini FPV racing drones, quadcopters, and small aircraft. This compact micro RC receiver supports 2.4GHz signal transmission and offers 10 channels, making it perfect for precise control in tight spaces. With a small size and lightweight design, it easily fits into any mini drone build without adding bulk.

This receiver drone mini model supports both SBUS and PPM outputs, providing compatibility with a wide range of flight controllers. It offers reliable performance with advanced DSSS and FHSS protocols, ensuring stable connections and minimal interference up to 600 meters in open areas. The detachable antenna makes installation flexible, ideal for small drone setups.

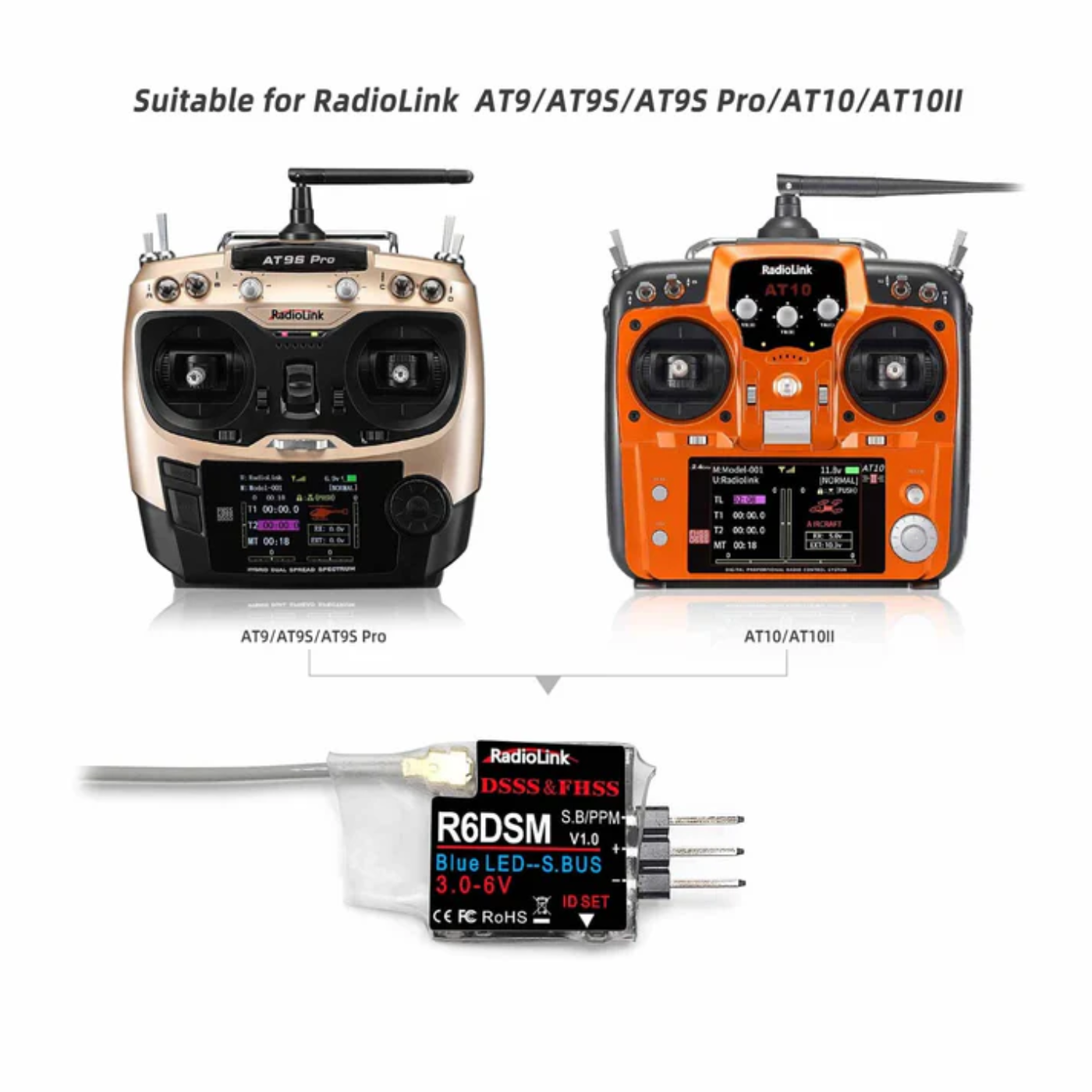

Compatible with Radiolink transmitters such as AT9S, AT9S Pro, AT10, and AT10II, the R6DSM is the perfect choice for drone enthusiasts looking for a dependable and efficient solution to control their mini drones with real-time telemetry feedback during flights.

Features

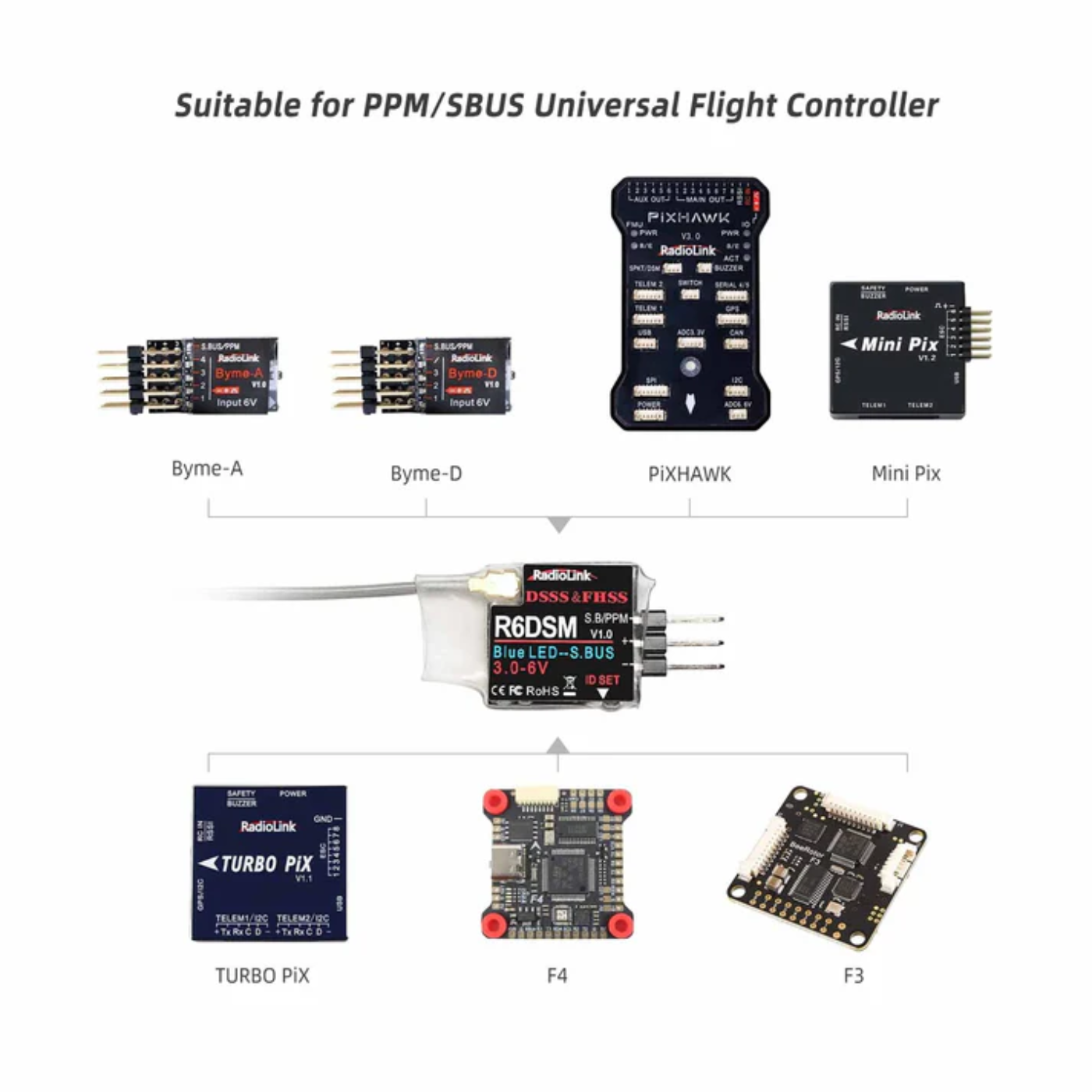

• 10-Channel SBUS/PPM Output: Supports both SBUS and PPM signal outputs, ensuring compatibility with a wide range of flight controllers like PIXHAWK, Mini Pix, Turbo Pix, and APM.
• Advanced Spread Spectrum Technology: Utilizes DSSS (Direct Sequence Spread Spectrum) and FHSS (Frequency Hopping Spread Spectrum) hybrid protocols with 16-channel pseudo-random frequency hopping and QPSK modulation. This combination provides superior anti-interference performance, ensuring stable and reliable signal transmission.
• Real-Time Telemetry: Equipped with real-time RSSI (Received Signal Strength Indicator) telemetry, allowing users to monitor signal strength and system status during flights, enhancing safety and performance.

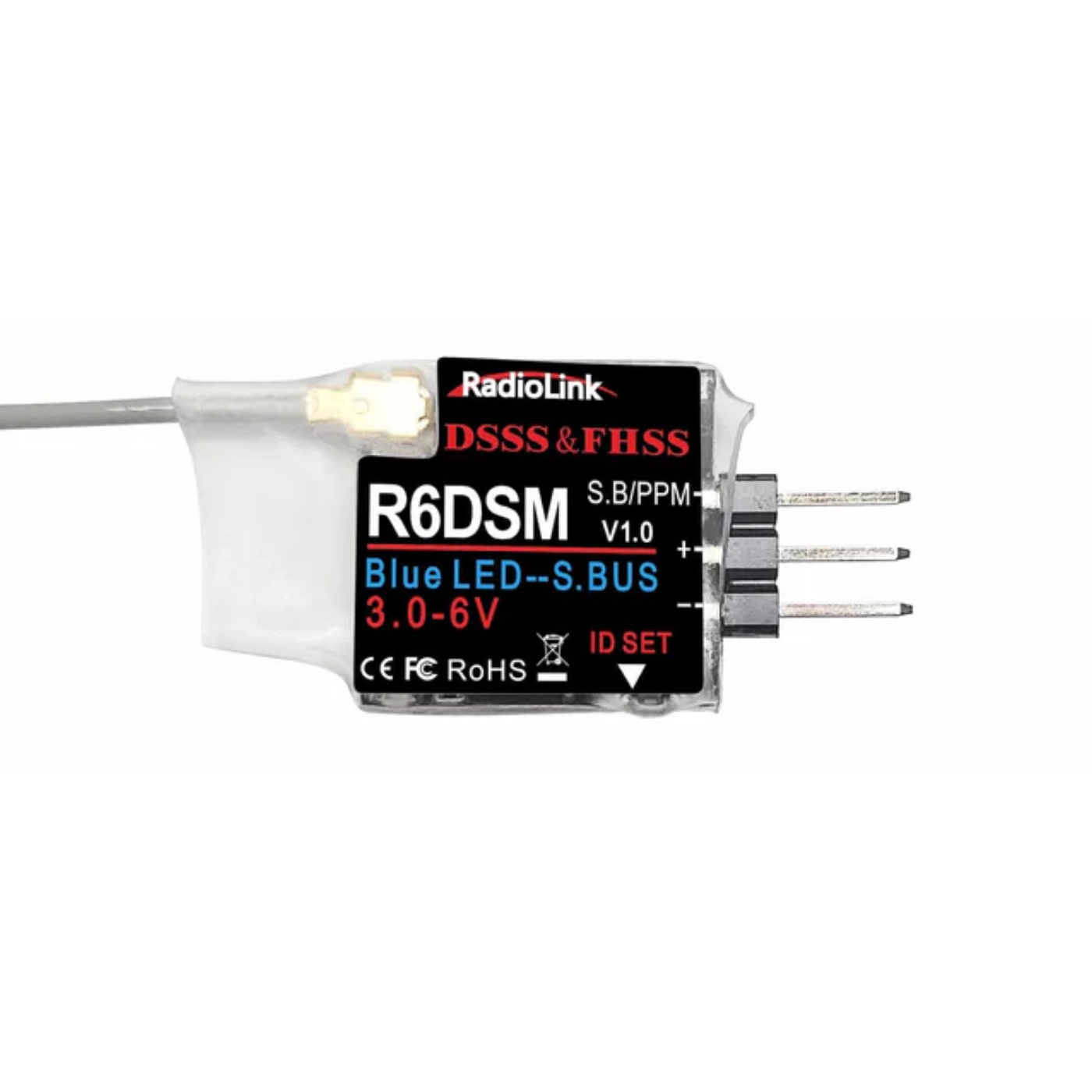

• Ultra-Compact and Lightweight: Measuring just 15×13 mm and weighing only 1.5g, the R6DSM is designed for mini drones, minimizing added weight and fitting seamlessly into compact builds.
• Wide Operating Voltage Range: Operates within a voltage range of 3.0V to 6.0V, with a current consumption of 38–45mA at 5V, providing flexibility across various drone setups.
• High Precision Control: Features a 4096-section resolution with 0.25μs per section, offering precise control inputs for smooth and responsive flight dynamics.
• Extended Control Range: Achieves a maximum control distance of up to 600 meters in open, interference-free environments, depending on local regulations and conditions.
• Quick Bind and Anti-Polarity Protection: Simplifies the binding process with a one-second press of the bind button and includes reverse polarity protection to prevent damage from incorrect connections.

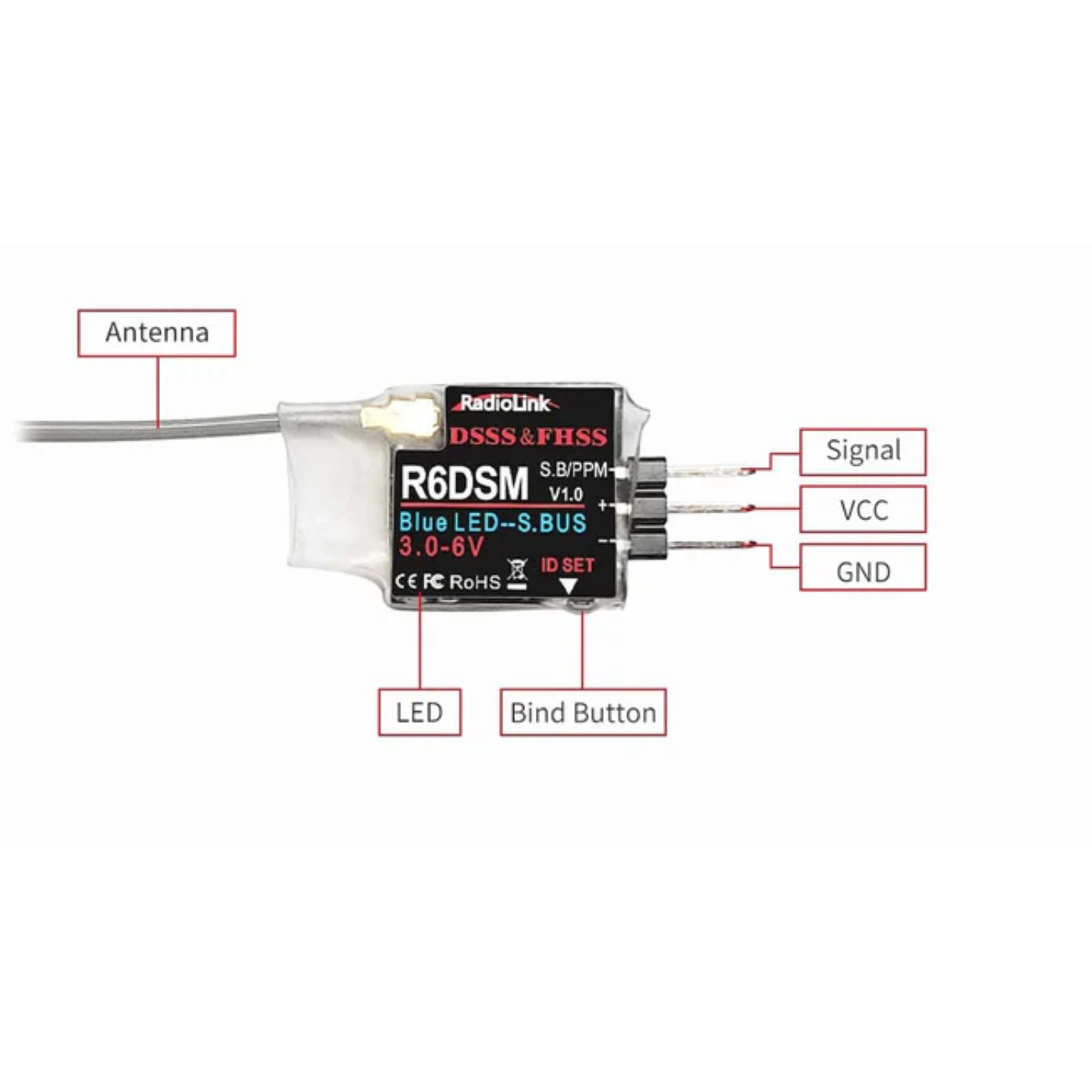

• Detachable Antenna: Features a detachable antenna for flexible installation options, accommodating various drone designs and configurations.
