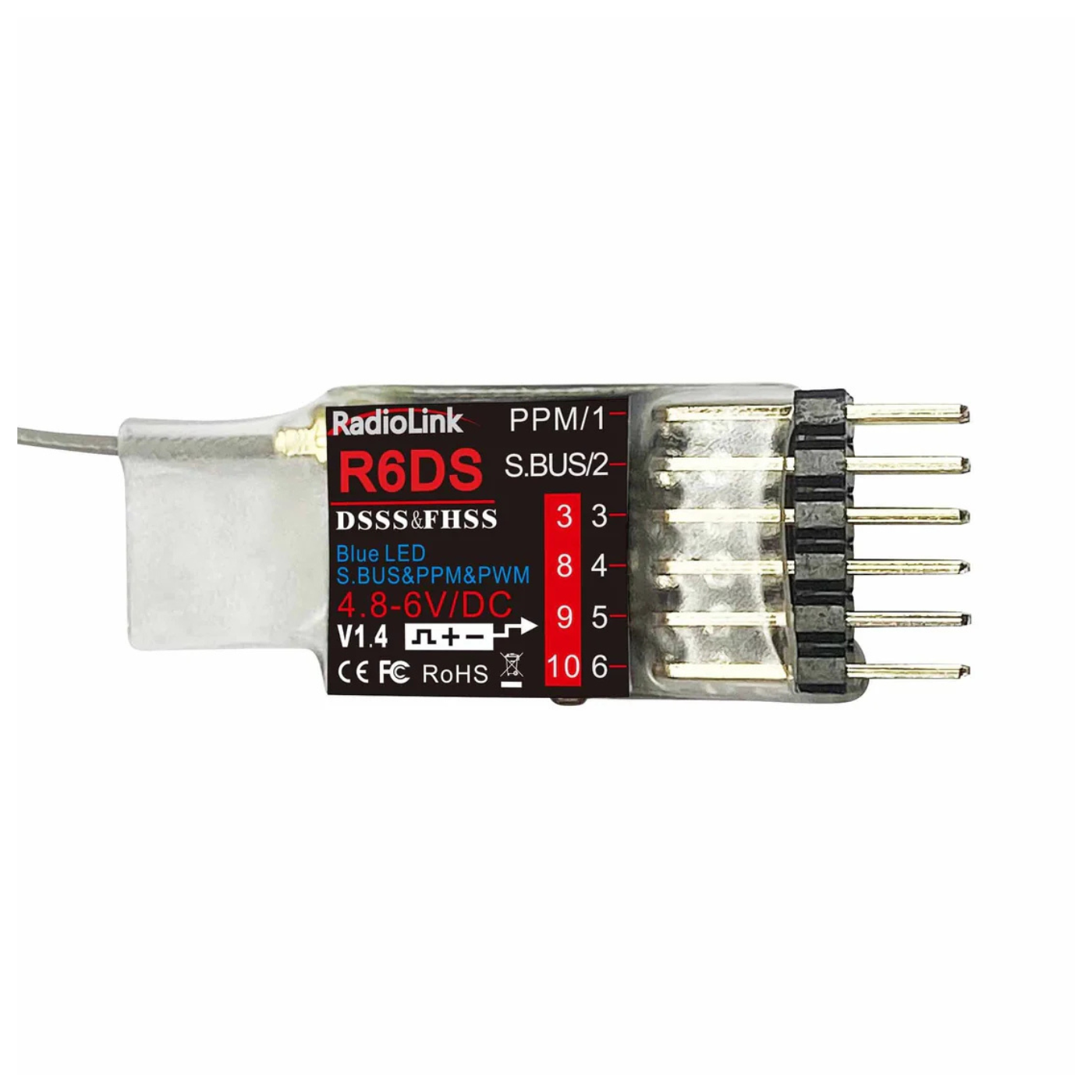

Radiolink R6DS 2.4GHz 6 Channel RC Receiver for Drones, Airplanes
The Radiolink R6DS RC Receiver is designed for reliable, high-performance remote control of drones, airplanes, and fixed-wing aircraft.
Equipped with DSSS & FHSS protocols, it delivers exceptional anti-interference capability, ensuring stable and precise control even in challenging environments.

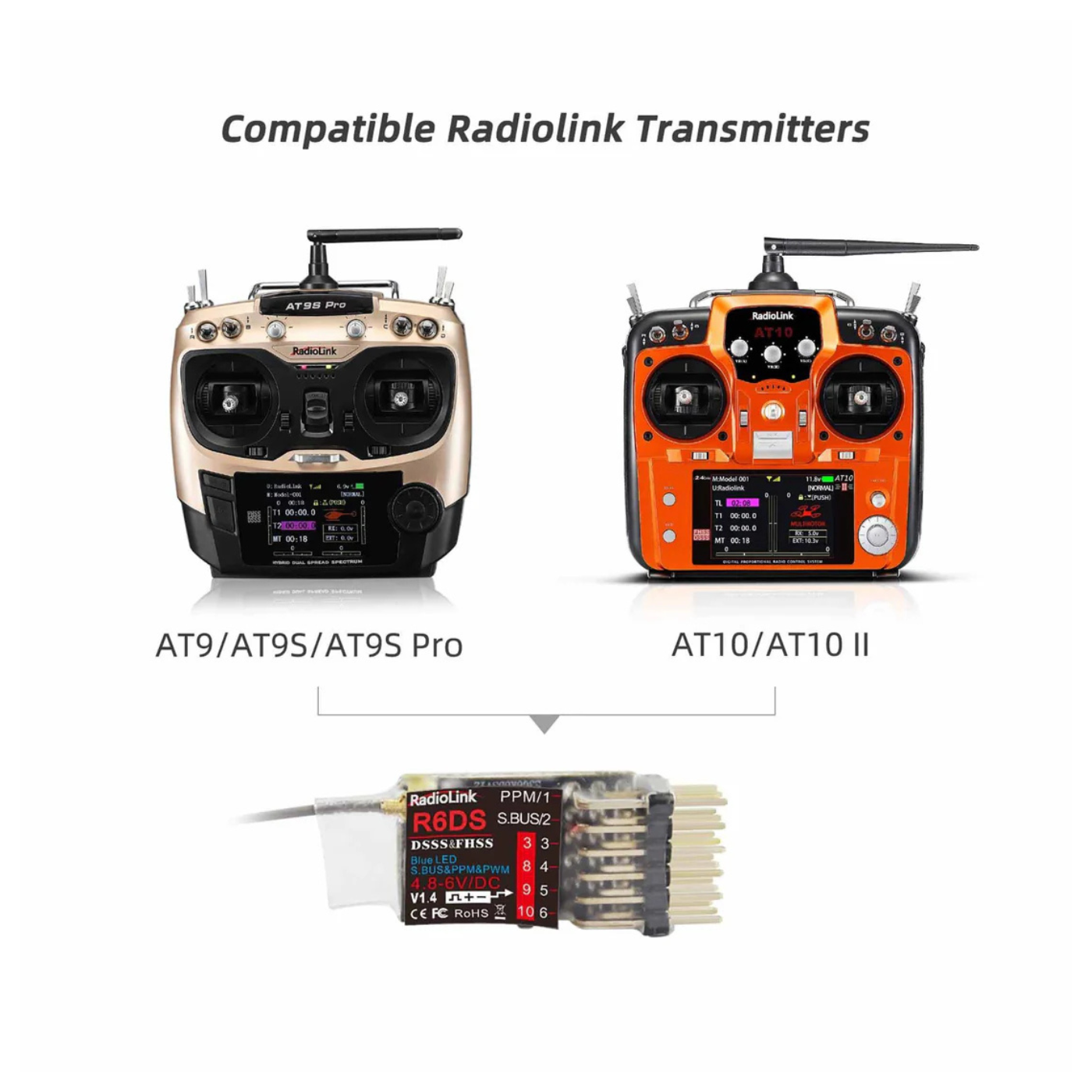

This versatile 2.4GHz RC reciever supports PPM, SBUS, and PWM signal outputs, making it compatible with a wide range of Radiolink transmitters, including AT9, AT9S, AT9S Pro, AT10, and AT10II.
Whether you are flying a drone or a fixed-wing aircraft, the R6DS provides seamless connectivity and accurate response for enhanced flight performance.
For added safety, the reverse polarity protection circuit safeguards the drone receiver from damage if the power connections are mistakenly reversed, giving you peace of mind during installation.
Compact, reliable, and easy to use, the Radiolink R6DS is an ideal choice for both hobbyists and professional RC pilots.
Features
-
Excellent Anti-Interference: Uses DSSS & FHSS pseudo-random algorithm for stable, interference-free control.
-

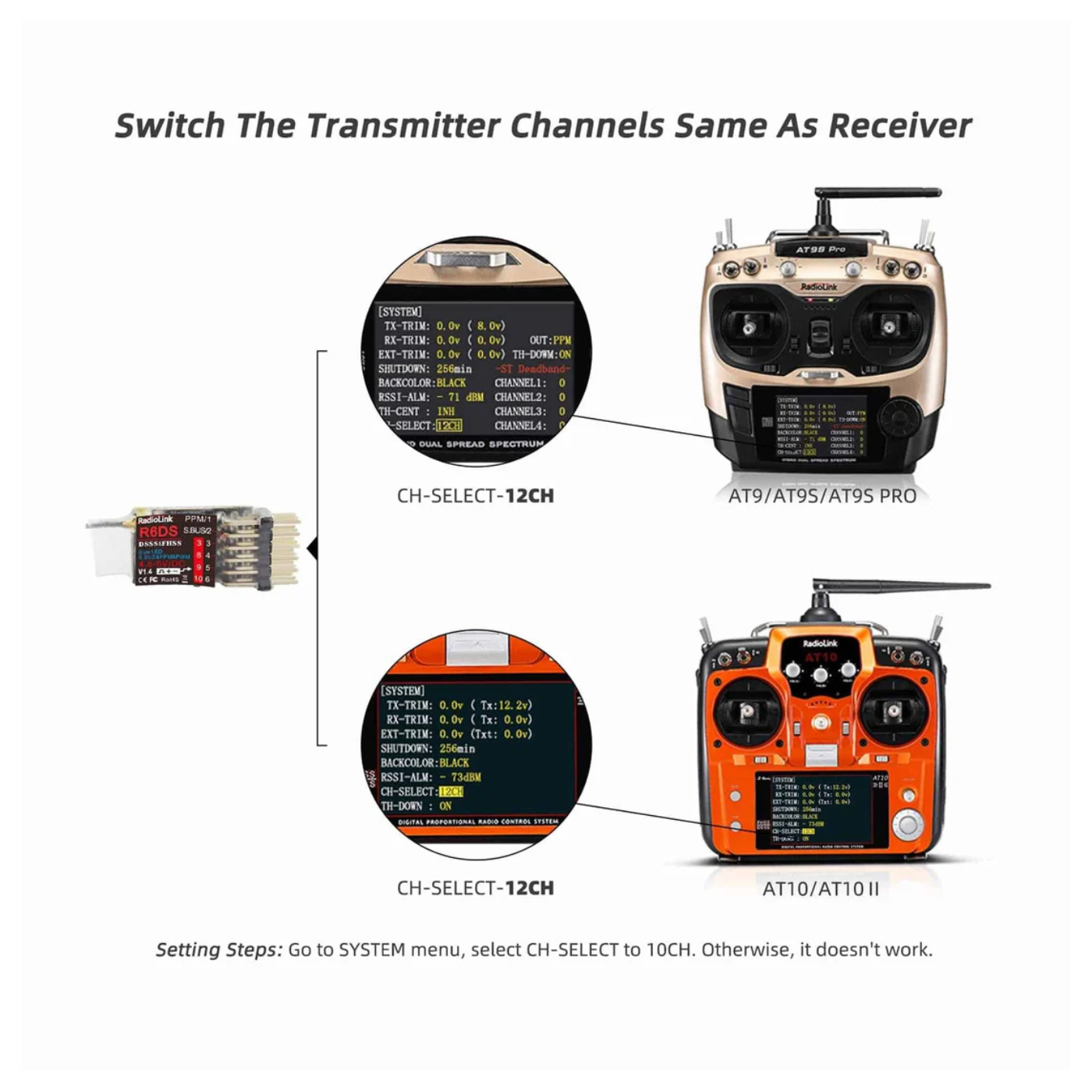

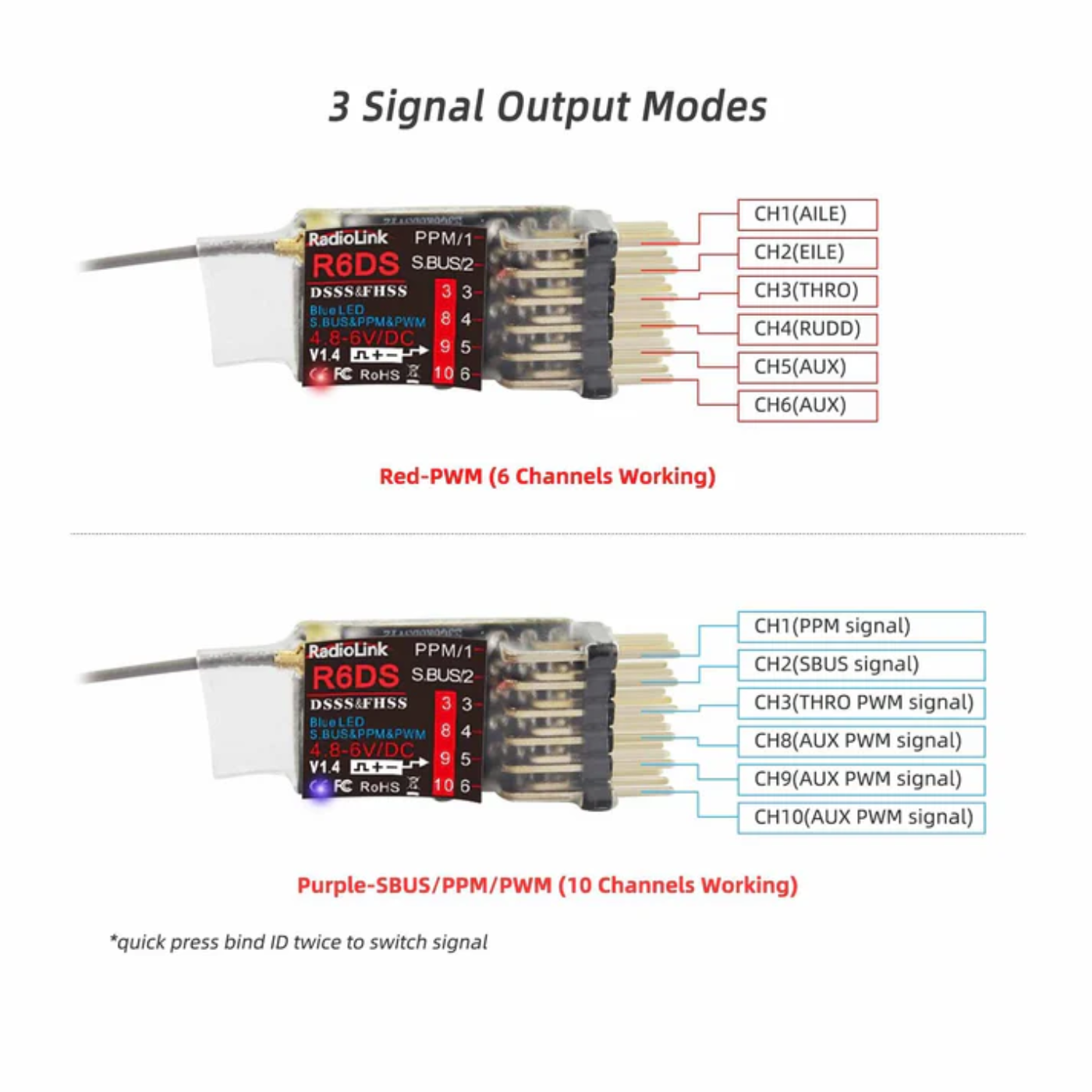

6/10 Channels Support: Compatible with PWM, PPM, and SBUS outputs; ideal for most aircraft. Ensure SYSTEM CH is set to 10CH when using AT10/AT10II.
-
Fast Response: High-resolution ratio of 4096 with 0.5µs stability for low-latency, precise control.
-
Easy Binding: One-second press of the bind button powers up and connects the receiver-no old bind plugs or complex radio settings needed.
-
Anti-Polarity Protection: Safeguards the receiver from damage if the power is connected incorrectly.
