PWM DC Motor Speed Controller
PWM DC Motor Speed Controller
- Regular price
- Rs. 249
- Sale price
- Rs. 249
- Regular price
-
Rs. 499 - Unit price
- per
50% off
- ⚡ Dispatched within 24 hours
- 🚚 Free shipping on orders above Rs 500/-
- 💰 Earn RC Coins on every purchase
- 🛠️ Dedicated Technical Support Team
People Also Buy

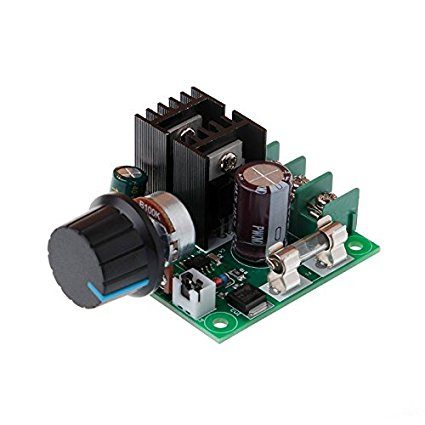

9V-50V 10A PWM DC Motor Speed Controller
This is the 9V-50V 10A PWM DC Motor Speed Controller, The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.
This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz.
Features:
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
Package Includes:
1 x 9V-50V 10A PWM DC Motor Speed Controller
Specifications:
| Input supply voltage | 9V - 50V DC |
| Control Power | 0.01 – 500W |
| Static Current | 0.02A (Standby) |
| PWM Duty Cycle | 10% - 100% |
| PWM frequency | 13kHz |
1. What is a PWM DC Motor Speed Controller?
- The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.
2. How does PWM affect motor speed?
- The motor will run at a speed halfway between zero and full speed if we switch the power on and off quickly enough. A PWM controller does exactly that it turns on the motor in a series of pulses. Pulse Width Modulation is used to control the motor speed by varying (modulating) the width of the pulses.
3. How does PWM control speed of DC motor?
- Pulse width modulation speed control works by driving the motor with a series of “ON-OFF” pulses and varying the duty cycle, the fraction of time that the output voltage is “ON” compared to when it is “OFF”, of the pulses while keeping the frequency constant.
