- Accurate temperature measurement using PT100 RTD sensors
- Supports 2-wire, 3-wire, and 4-wire RTD configurations
- Powered by MAX31865 for optimized signal processing
- SPI communication for easy microcontroller integration
- Operates at 3.3V or 5V
- Built-in calibration and fault detection
- Ideal for industrial, laboratory, and precision applications
PT100 RTD 3-Wire Temperature Sensor Breakout Board with MAX31865 Amplifier - 7Semi

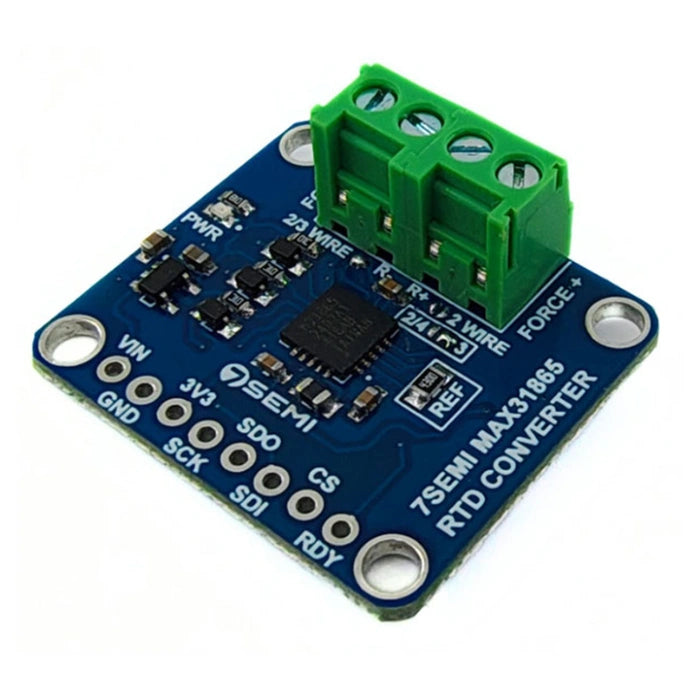

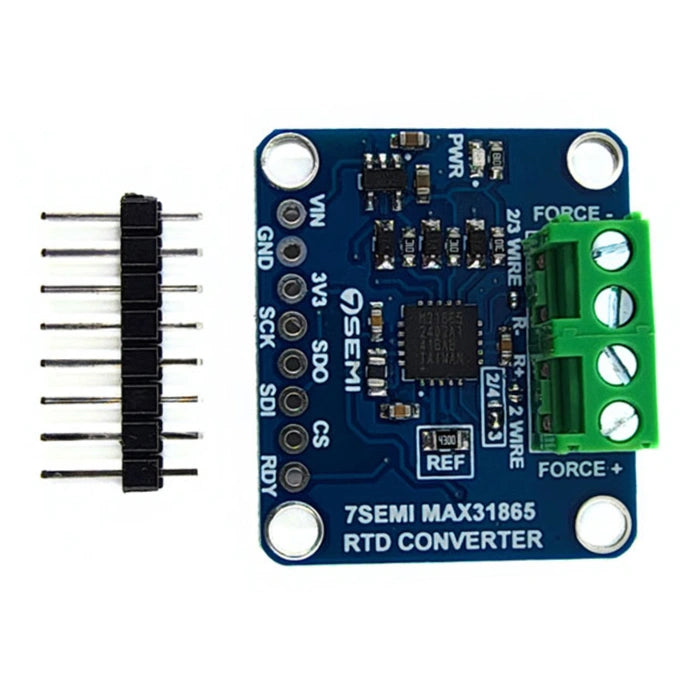

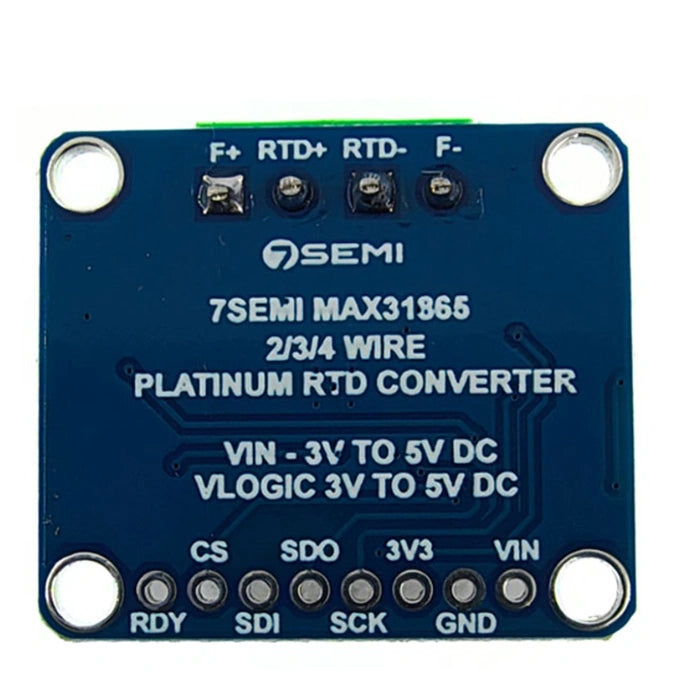

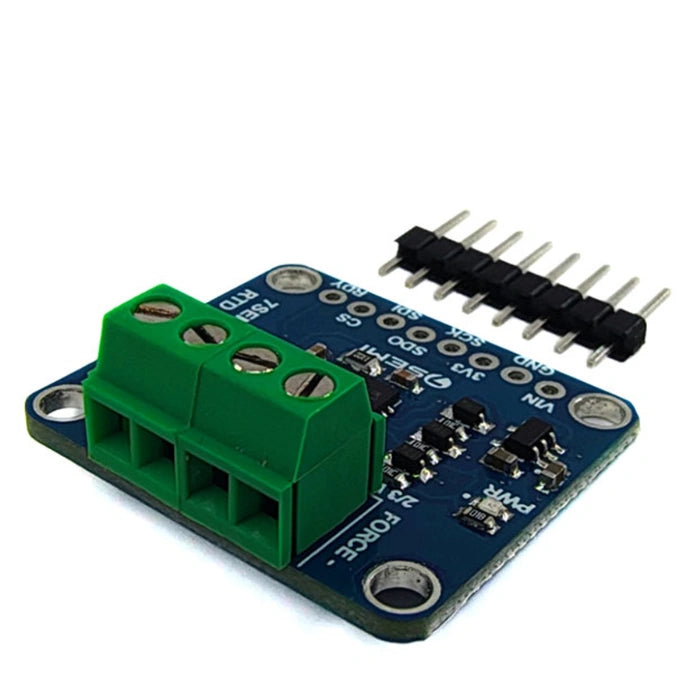

The 7Semi PT100 RTD 3-Wire Temperature Sensor Breakout Board combines industrial-grade precision with ease of integration. Powered by the MAX31865 RTD-to-digital converter, it accurately measures temperatures using PT100 RTDs, with full support for 2-wire, 3-wire, and 4-wire configurations.
The board communicates through an SPI interface and operates at both 3.3V and 5V, ensuring compatibility with a wide range of microcontrollers like Arduino, Raspberry Pi, and ESP32. With built-in calibration features and fault detection, it ensures consistent, reliable readings in industrial, laboratory, and research applications.
Features:
-
Industrial-Grade Precision: Utilizes PT100 RTD for highly accurate and stable temperature sensing.
-
Optimized Signal Processing: Features the MAX31865 amplifier for precise low-resistance measurement.
-
Flexible RTD Compatibility: Supports 2-wire, 3-wire, and 4-wire PT100 sensor setups.
-
SPI Communication: Easily interfaces with microcontrollers like Arduino, Raspberry Pi, etc.
-
Dual Voltage Operation: Works with 3.3V or 5V systems for broader project compatibility.
-
Calibration Support: Includes built-in calibration features for long-term accuracy.
-
Fault Detection: Detects sensor disconnections and over-temperature conditions.
- Versatile Applications: Suitable for industrial, laboratory, and research environments.
Package Includes:
- 1 x 7Semi PT100 RTD 3-Wire Temperature Sensor Breakout Board with MAX31865 Amplifier
Specifications:
| Feature | Specification |
|---|---|
| Sensor Compatibility | PT100 RTD (3-Wire Configuration) |
| Interface | SPI (Serial Peripheral Interface) |
| Temperature Range | -200ºC to +850ºC |
| Signal Processing | MAX31865 Precision Signal Conditioning |
| Resolution | 0.1°C (depending on sensor and setup) |
| Operating Voltage | 3.3V or 5V |
| Power Consumption | Low Power |
| Dimensions (LxWxH) | 3 x 2.6 x 1 cm |
| Mounting Type | Through-hole or surface-mount pins |
| Weight | 6 g |
| Temperature Accuracy | High accuracy with PT100 RTD sensors |
