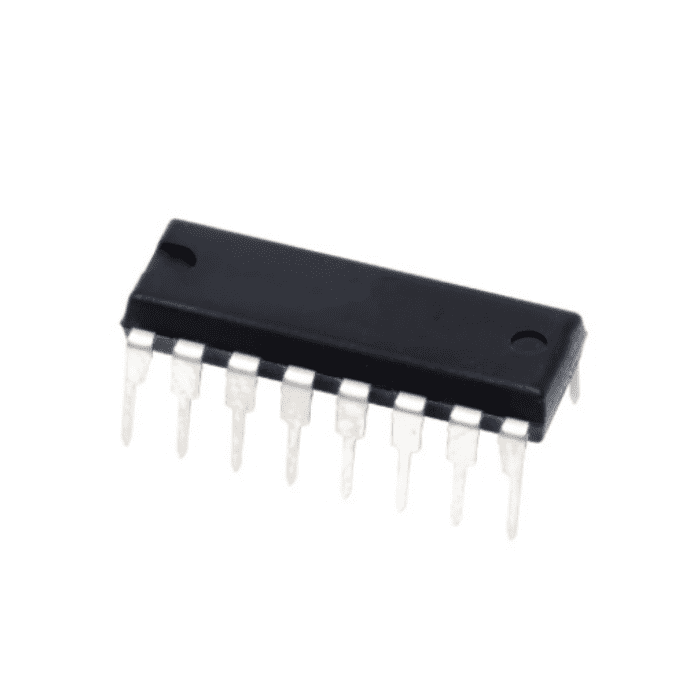

Presettable synchronous BCD decade counter IC - 74HC160

Presettable synchronous BCD decade counter IC - 74HC160

Regular price Rs. 18
Regular price Rs. 21 Sale price Rs. 18
Sale Sold out 14% off Best Price Guaranteed
You save Rs. 3
Incl. GST (No Hidden Charges)
Size
  • Synchronous counting and loading
  • Two count enable inputs for n-bit cascading
  • Positive-edge triggered clock
  • Asynchronous reset
  • Output capability: standard
  • ICC category: MSI

Presettable synchronous BCD decade counter IC - 74HC160

The 74HC Series 74HC160 is a high-speed Si-gate CMOS device and is pin-compatible with low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC160 are synchronous presettable decade counters which feature an internal look-ahead carry and can be used for high-speed counting.

Synchronous operation is provided by having all flip-flops clocked simultaneously on the positive-going edge of the clock (CP). The outputs (Q0 to Q3) of the counters may be preset to a HIGH or LOW level. A LOW level at the parallel enable input (PE) disables the counting action and causes the data at the data inputs (D0 to D3) to be loaded into the counter on the positive-going edge of the clock (providing that the set-up and hold time requirements for PE are met).

Preset takes place regardless of the levels at count enable inputs (CEP and CET). A LOW level at the master reset input (MR) sets all four outputs of the flip-flops (Q0 to Q3) to LOW level regardless of the levels at CP, PE, CET, and CEP inputs (thus providing an asynchronous clear function). The look-ahead carry simplifies the serial cascading of the counters. Both counts enable inputs (CEP and CET) must be HIGH to count. The CET input is fed forward to enable the terminal count output (TC). The TC output thus enabled will produce a HIGH output pulse of a duration approximately equal to a HIGH-level output of Q0. This pulse can be used to enable the next cascaded stage.

Pinout:

Pinout Of 74HC160 IC

Symbol  Pin  Description
MR   1 Asynchronous master reset (active LOW)
CP   2 Clock input (LOW-to-HIGH, edge triggered)
D0, D1, D2, D3   3, 4, 5, 6 Data input
CEP 7 Count enable input
GND   8 Ground (0 V)
PE  9 Parallel enable input (active LOW)
CET  10 Count enable carry input
Q0, Q1, Q2, Q3  14, 13, 12, 11 Flip-flop output
TC  15 Terminal count output
VCC   16 Supply Voltage

Applications:

  • Television sets
  • Home-sound sets
  • Multimedia systems
  • All mains-fed audio systems
  • Car Audio (boosters).

Package Includes:

Selected qty of IC - 74HC160

Specifications:

Series  74HC
Function Presettable Counter
Product Type Counter Shift Registers
Counter Type Presettable
Number of Circuits 1
Propagation Delay Time 37 ns
Supply Voltage 2V - 6V
Operating Temperature -55°C - +125°C
Mounting Type Through Hole

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1.What is 74HC160 IC?

  • The 74HC160 is a presettable synchronous decade counter with an internal look-ahead carry. Synchronous operation is provided by clocking all flip-flops at the same time on the clock's positive going edge (CP). The counters' outputs (Q0 to Q3) can be adjusted to HIGH or LOW. A LOW at the parallel enable input (PE) disables the counting operation and causes the data from the data inputs (D0 to D3) to be loaded into the counter on the clock's positive edge.

2.What is the function of the 74HC160 IC?

  • The 74HC160 is a synchronous BCD decade counter with inputs for preset and clear. It can count up to 9 before returning to 0. When the preset input is enabled, the user can load a specific value into the counter. When the clear input is activated, it resets the counter to zero.
