  • This is PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable
  • Supports RS-232 serial interface with Programmable baud rate from 75 bps to 12 Mbps
  • Compatible with the RS422/RS485 interface
  • Extensive flow control mechanism like adjustable high/low watermark level, automatic hardware or software flow control, and inbound data buffer overflow detection.
  • The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB
  • The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD’s FT232RQ USB to Serial
  • Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V
  • It is USB 2.0 full speed compatible. The USB side of the cable is USB powered.

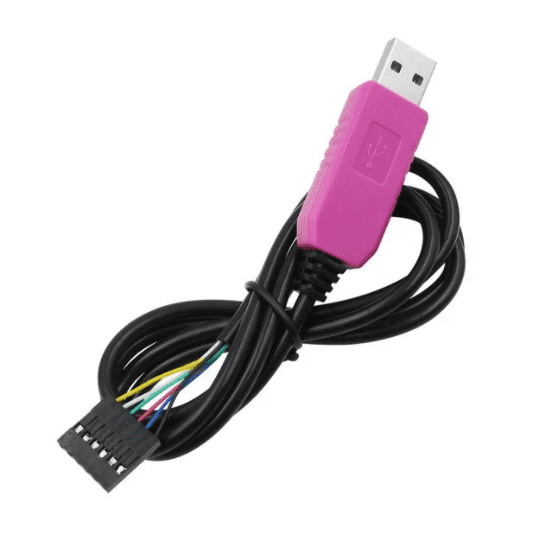

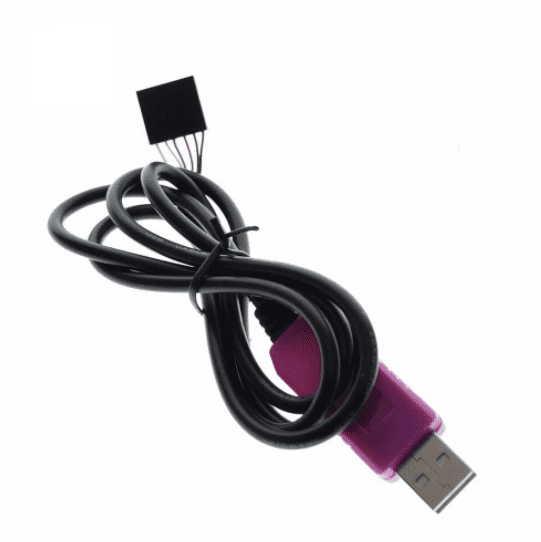

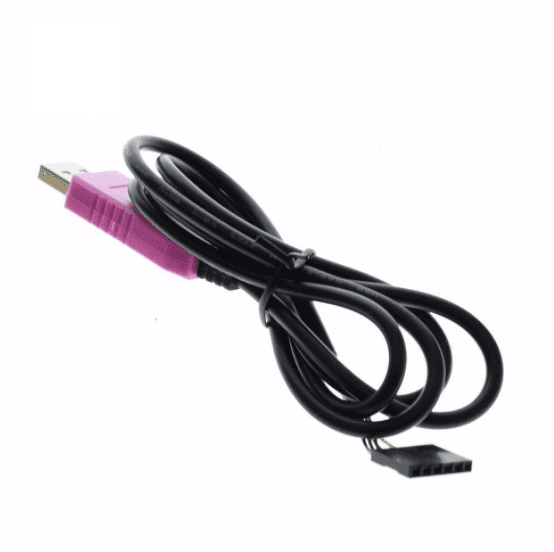

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable is a low-cost and high-performance USB-to-Serial Bridge Controller. It can provide a convenient solution for connecting an RS-232. In addition, it is useful for the full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host.

The PL-2303HXD‘s highly compatible drivers could simulate the traditional COM port on most operating systems. So it allows the existing applications based on COM port to easily migrate and be made USB ready. This product is designed for laboratory, product testing, low-cost MCU communications, and other applications.

Features:

  • Interface: USB to RS232 TTL
  • Chipset: PL2303HXD by Prolific Technology
  • Compatibility: Works with Windows XP/Vista/7/8/8.1 and Android OTG
  • Baud Rate: Programmable from 75 bps to 12 Mbps
  • Flow Control: Supports hardware and software flow control
  • Power Supply: Provides +5V power output
  • Cable Length: Typically around 1 meter
  • Compliance: Full compliance with USB Specification v1.
  • RS422/RS485 Interface: Supports RS422/RS485 interface
  • LED Indicators: Includes LED indicators for power and data transmission status

Applications :

  1. Single-chip upgrade solution for Legacy RS232 devices to USB interface
  2. USB to RS232 converters/cables/dongles
  3. Healthcare/Medical USB Interface Data Transfer Cable
  4. Personal Infotainment/Media Player Docking USB Interface
  5. Cellular/PDA USB Interface Data Transfer Cable
  6. Serial-over-IP Wireless Solution
  7. USB Barcode/Smart Card Readers
  8. GPS/Navigation USB Interface
  9. Point-of-Sale (POS) Terminals/Printers
  10. PC Docking Station/Port Replicators
  11. Industrial/Instrumentation/Automation Control USB Interface
  12. USB Modem/Wireless/Zigbee USB Interface

Package Includes:

1 x PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable

Specifications:

Input Supply voltage

3.3 ~ 5 V
Connector type

USB To TTL RS232
Total cable length

80cm
Weight

32gm
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-56%
CP2102 USB to TTL Converter-Robocraze

CP2102 USB to TTL Converter

Rs. 109
Rs. 247 Rs. 109
Incl. GST (No Hidden Charges)
Sale
-37%
FTDI 232 Mini USB to TTL Converter-Robocraze

FTDI 232 Mini USB to TTL Converter

Rs. 94
Rs. 149 Rs. 94
Incl. GST (No Hidden Charges)
Sold out
-24%
Witty Fox - ESP Programmer | USB to TTL Converter-Robocraze

Witty Fox - ESP Programmer | USB to TTL Converter

Rs. 219
Rs. 289 Rs. 219
Incl. GST (No Hidden Charges)
Sold out

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What does a USB to TTL converter do?

  • The USB-TTL module is a low-cost method of converting a TTL signal to a USB interface. When connected to a PC USB port, the USB-TTL module detects and installs itself as a native COM port, making it compatible with any existing serial communication application.

2. What is the primary function of the PL2303HXD cable?

  • The primary function of the PL2303HXD cable is to act as a bridge between RS-232 serial devices and USB ports, enabling easy communication between the two.

3. Which operating systems are compatible with this cable?

  • The cable is compatible with various operating systems, including Windows XP, Vista, 7, 8, 8.1, and Android OTG.

4. What is the supported baud rate range for this cable?

  • The cable supports a programmable baud rate from 75 bps to 12 Mbps.

5. What are some common applications for the PL2303HXD cable?

  • This cable is ideal for laboratory use, product testing, low-cost MCU communications, and other applications requiring serial communication.
