Owon HDS272S 70 MHz Handheld Digital Multimeter
Owon HDS272S 70 MHz Handheld Digital Multimeter
Low stock: 5 left
Regular price
Rs. 22,433
Regular price
Rs. 29,999
Sale price
Rs. 22,433
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 1000/- OFF
RC1000
When you shop for ₹ 20000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Oscilloscope + multimeter + waveform generator, multifunction in one
- Equipped with a 3.5-inch high-resolution, high-contrast color LCD screen, this is a three-in-one multifunctional device with oscilloscope, multimeter and signal source.

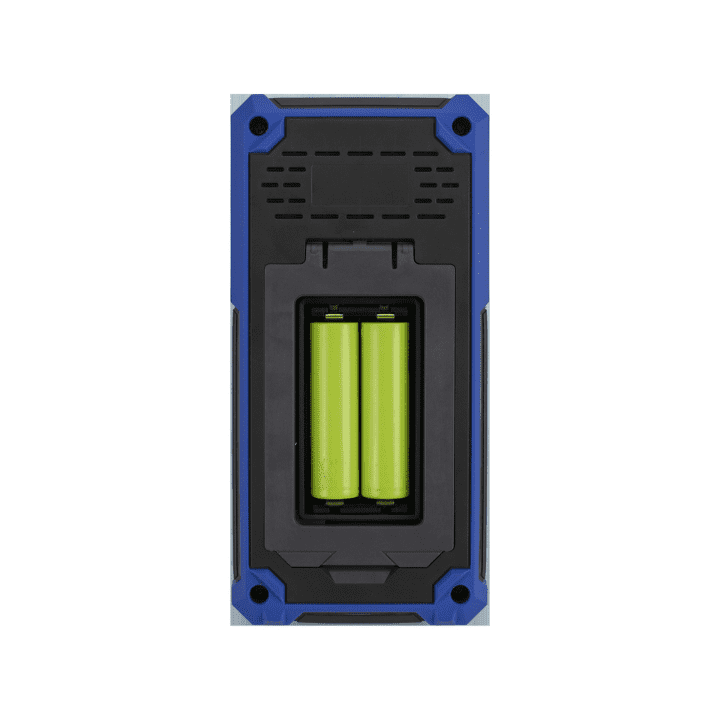

- It is equipped with 18650 battery, the comprehensive power consumption is less than and equal to 3W, and can work continuously for about 6 hours.
- Made of high-quality ABS plastic, it is safe, durable, and equipped with a Type-C interface, supports power bank power supply, supports PC connection, supports SCPI communication function and self-calibration function.
- It is suitable for engineering, car repair and so on.
| This product is not available for store pickup. Apologies for the inconvenience caused |
Owon HDS272S 70 MHz Handheld Digital Multimeter

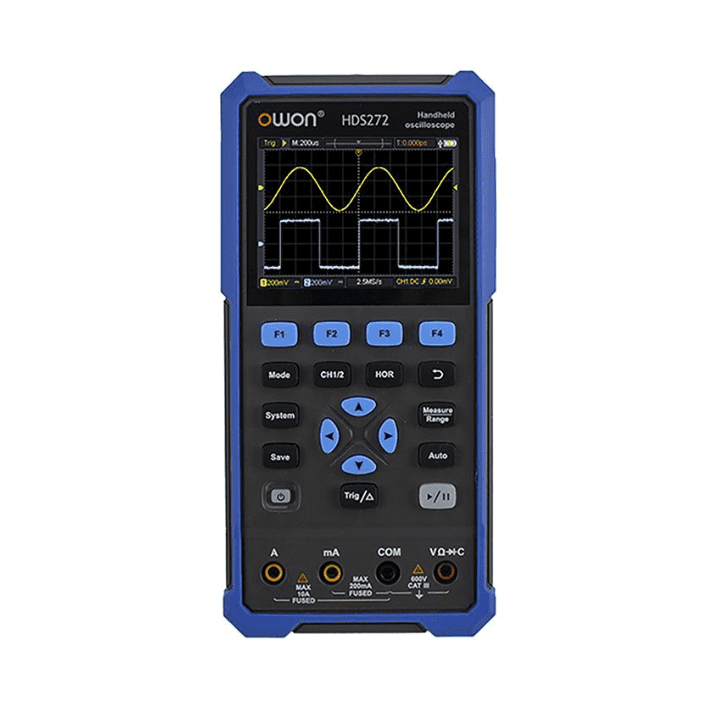

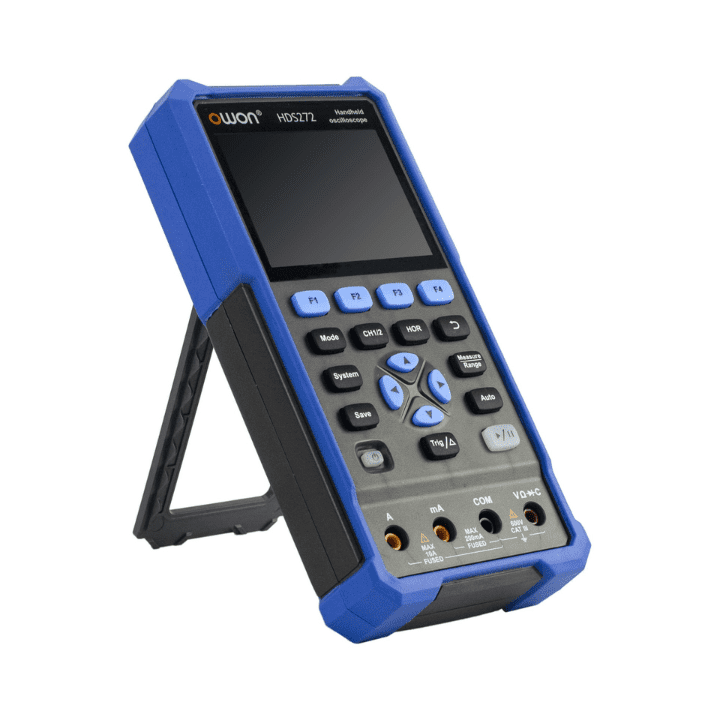

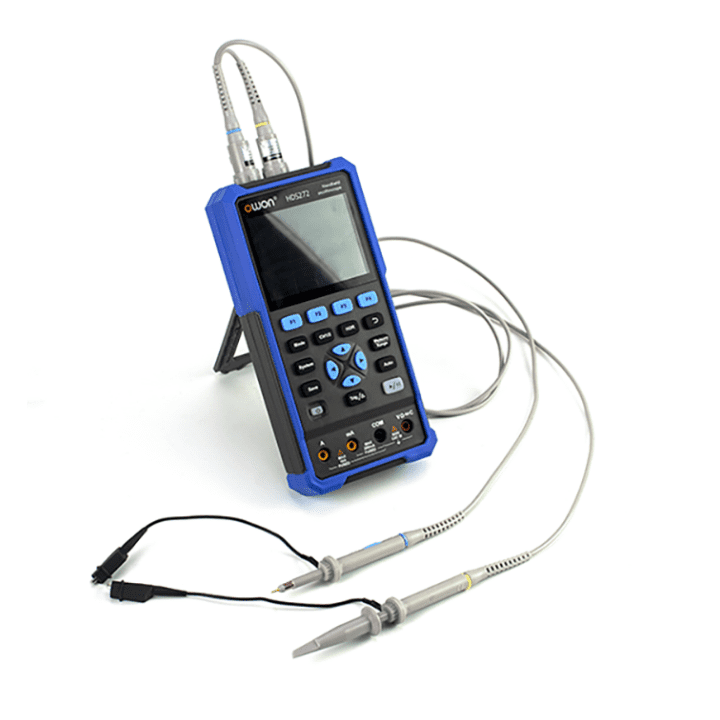

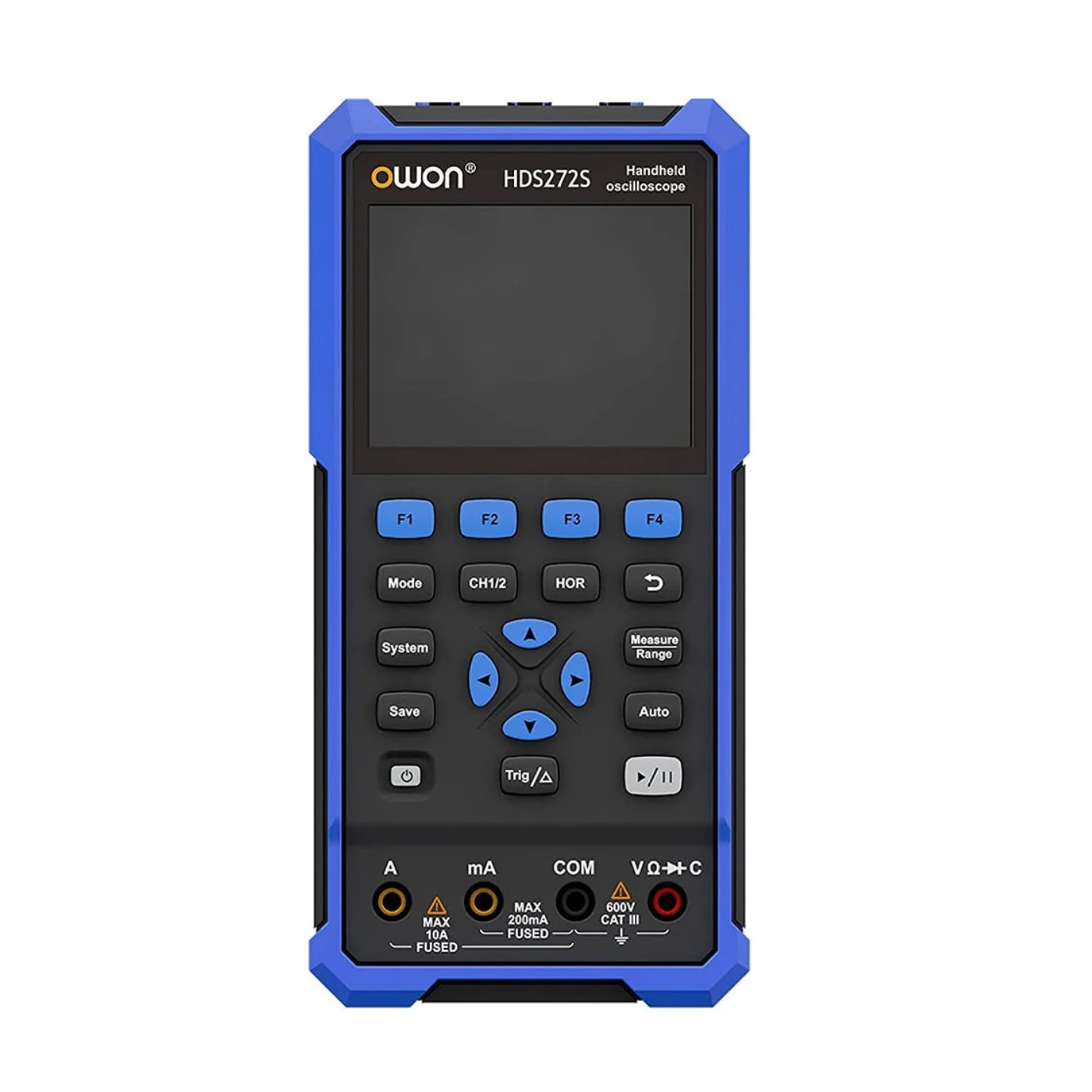

The HDS272S is a portable dual-channel oscilloscope that can also be used as a multimeter and a function generator. The meter sports a 3.5" high-contrast colour display suitable for outdoor use and it runs on a pair of 18650 batteries, good for up to 6 hours of continuous use. You can hook up the meter to a PC host with USB-C to use it with Owon's desktop software, control it via SCPI or to use it with a power bank.

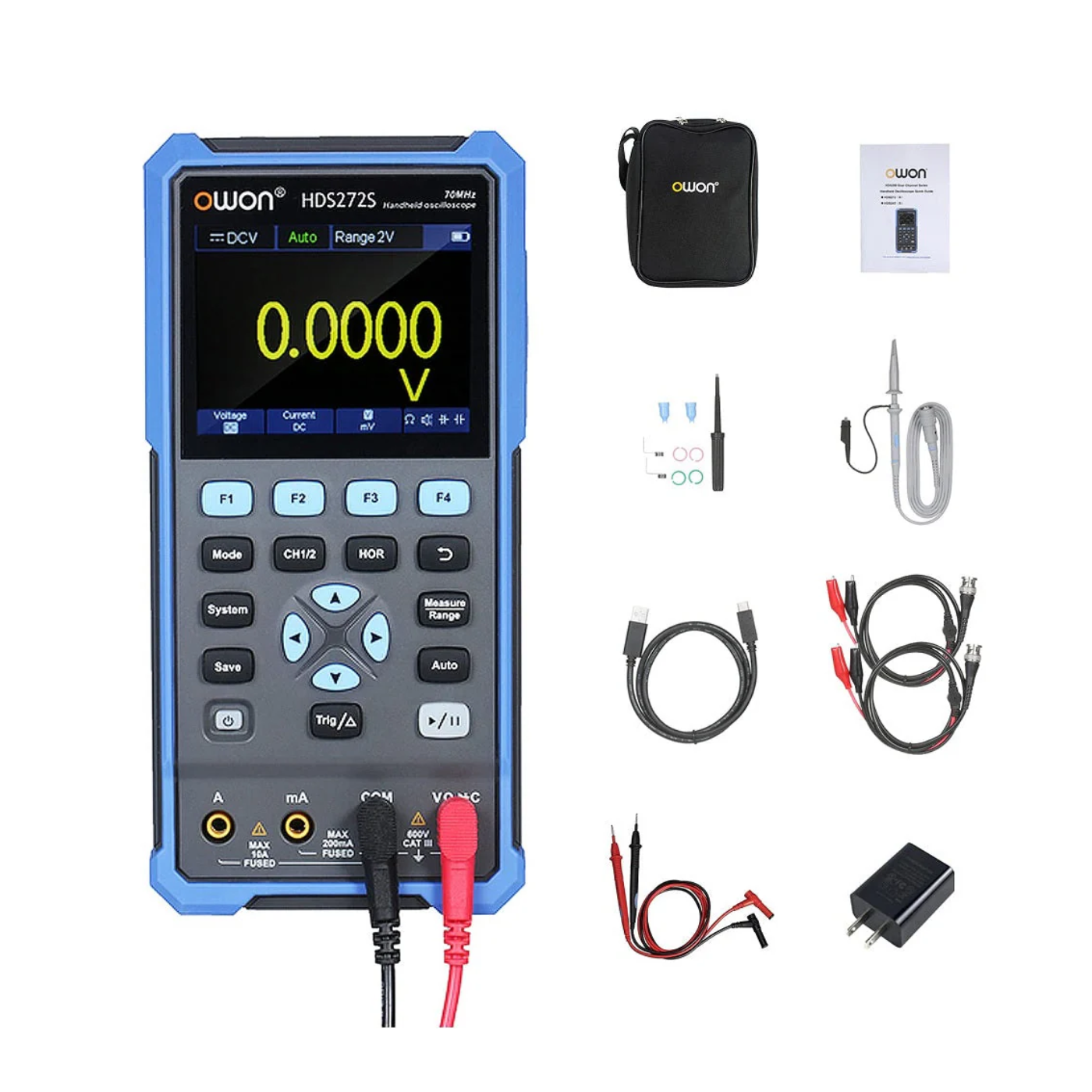

Package Includes:
- 1 x Owon HDS272S 70 MHz Handheld Digital Multimeter
Specifications:
| Oscilloscope | ||
|---|---|---|
| Bandwidth | 70 MHz | |
| Channels | 2-ch Oscilloscope + 1-ch Generator | |
| Sample Rate | 250 MSa/s | |
| Acquisition Model | Normal, Peak detect | |
| Record Length | 8K | |
| Display | 3.5-inch LCD | |
| Waveform Refresh Rate | 10,000 wfrms/s | |
| Input Coupling | DC, AC, and Ground | |
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF | |
| Probe Attenuation Factors | 1X,10X,100X,1000X,10000X | |
| Max. input Voltage | 400 V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) | |
| Bandwidth Limit (typical) | 20 MHz | |
| Horizontal Scale | 5 ns/div - 1000 s/div, step by 1 - 2 - 5 | |
| Vertical Sensitivity | 10 mV/div - 10 V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge | |
| Trigger Modes | Auto, Normal, single | |
| Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |
| Communication Interface | USB Type-C | |
| Multimeter | ||
| Max. Resolution | 20,000 counts | |
| Testing Mode | Voltage, Current, Resistance, Capacitance, Diode, and Continuity test | |
| Input Impedance | 10 MΩ | |
| Max Input Voltage | AC 750 V, DC 1000V | |
| Max Input Current | DC: 10A AC: 10A | |
| Diode | 0 - 2 V | |
| Waveform Generator | ||
| Frequency Output | Sine | 0.1 Hz - 25 MHz |
| Square | 0.1 Hz - 5 MHz | |
| Ramp | 0.1 Hz - 1 MHz | |
| Pulse | 0.1 Hz - 5 MHz | |
| Arbitrary | 0.1 Hz - 5 MHz | |
| Sampling Rate | 125 MSa/s | |
| Channel | 1-ch | |
| Amplitude Range | 20 mVpp - 5 Vpp | |
| Waveform Length | 8K | |
| Vertical Resolution | 14 bits | |
| Output Impedance | 50Ω | |
