Raspberry Pi
Official Raspberry Pi M.2 HAT+
Official Raspberry Pi M.2 HAT+
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Connects M.2 devices to Raspberry Pi.
- Supports PCIe 2.0 with up to 500 MB/s transfer speed.
- Compatible with M.2 M key 2230/2242 form factors.
- Supplies up to 3A power.
- Features power and activity LEDs.
- Includes ribbon cable, stacking header, and spacers.

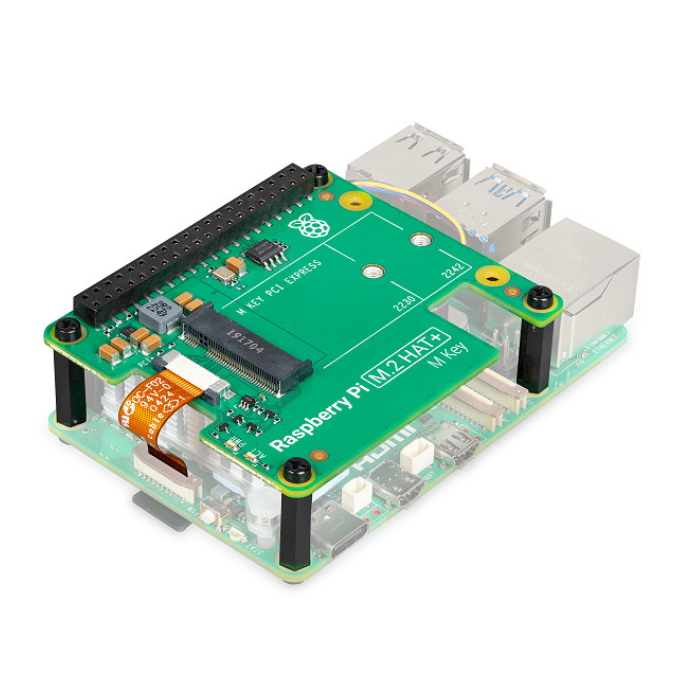

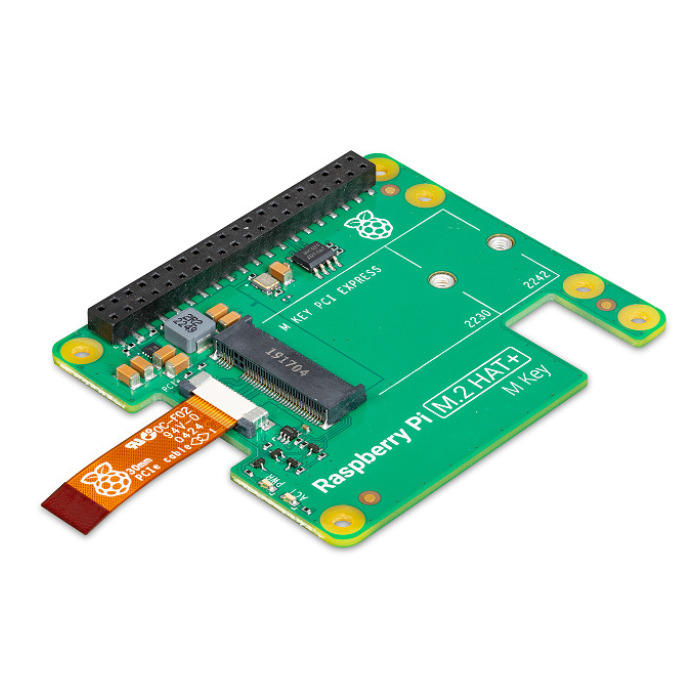

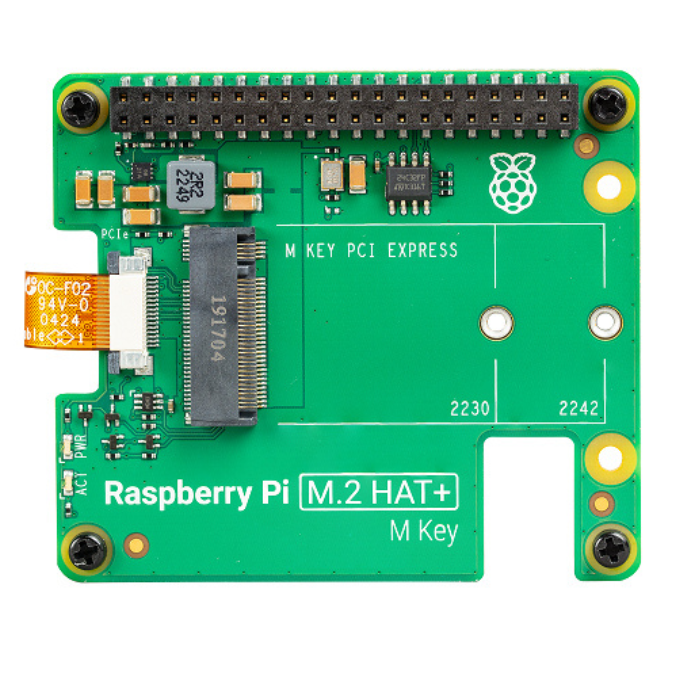

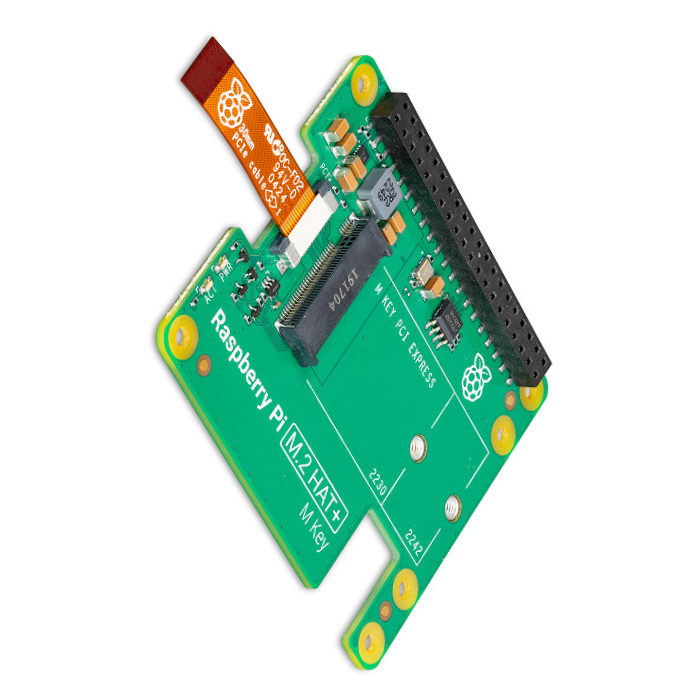

Official Raspberry Pi M.2 HAT+
The Raspberry Pi M.2 HAT+ connects M.2 peripherals like NVMe drives and AI accelerators to the Raspberry Pi 5’s PCIe 2.0 interface, supporting data transfers up to 500 MB/s. The Raspberry Pi HAT+ features a 16-pin FPC connector and supports M.2 M key devices in 2230 and 2242 form factors. With up to a 3A power supply, it enhances performance for demanding applications. The Raspberry Pi M.2 HAT+ is auto-detected by Raspberry Pi software and comes with a 16mm stacking header and spacers for easy installation with the Active Cooler.
Key Features
- Connects M.2 devices like NVMe drives and AI accelerators.
- Supports data transfers up to 500 MB/s.Compatible with M.2 M key 2230/2242 form factors.
- Supplies up to 3A power.
- Auto-detected by Raspberry Pi software.
- Easy installation with stacking header and spacers.
Package Includes
1 x Official Raspberry Pi M.2 HAT+
Specifications
| Specification | Details |
|---|---|
| Item Type | HAT |
| Model Type | Pi M.2 HAT+ |
| Interface | Single-lane PCIe 2.0 (500 MB/s peak transfer rate) |
| Device Compatibility | M.2 M key devices, 2230 or 2242 form factor |
| Power Supply | Up to 3A to connected devices |
| LEDs | Power and activity LEDs |
| Specification Compliance | Raspberry Pi HAT+ specification |
| Included Accessories | Ribbon cable, 16mm stacking header, threaded spacers and screws, knurled double-flanged screw |
