- Official Arduino Vision Shield with Ethernet
- Designed for use with the Arduino Portenta H7
- Enables embedded computer vision applications
- Ethernet connectivity for reliable cloud communication
- Integrated microphone for sound event detection
- Ideal for AI, machine vision, and IoT edge computing

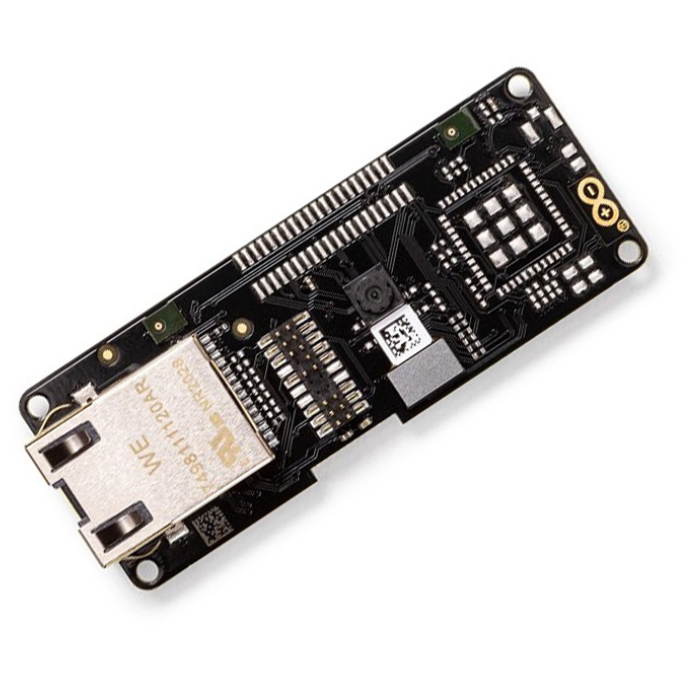

Official Arduino Portenta Vision Shield with Ethernet Connectivity
The Official Arduino Portenta Vision Shield with Ethernet Connectivity is a powerful hardware expansion designed to bring advanced industrial features to your Arduino Portenta projects.
Specifically built for the Portenta H7, this shield enables embedded computer vision capabilities, allowing you to deploy AI-powered image and sound recognition at the edge.
With a built-in microphone for audio event detection and Ethernet connectivity for stable data transmission to the Arduino Cloud or custom infrastructure, the Portenta Vision Shield is ideal for IoT, automation, and smart surveillance applications.
Unlock the full potential of your Portenta board with this robust and scalable vision solution.
Arduino Portenta Vision Shield Pinout:
Features:
-
The OpenMV for Official Arduino editor is used to perform image recognition algorithms on a 320×320-pixel camera sensor utilizing a Portenta core.
-
Use a 100 Mbps Ethernet connector to connect your Portenta H7 to the wired Internet.
-
Two inbuilt microphones for directional sound detection record and analyze sound in real time.
-
JTAG connector: Use an external programmer to perform low-level debugging or customized firmware updates on your Portenta board.

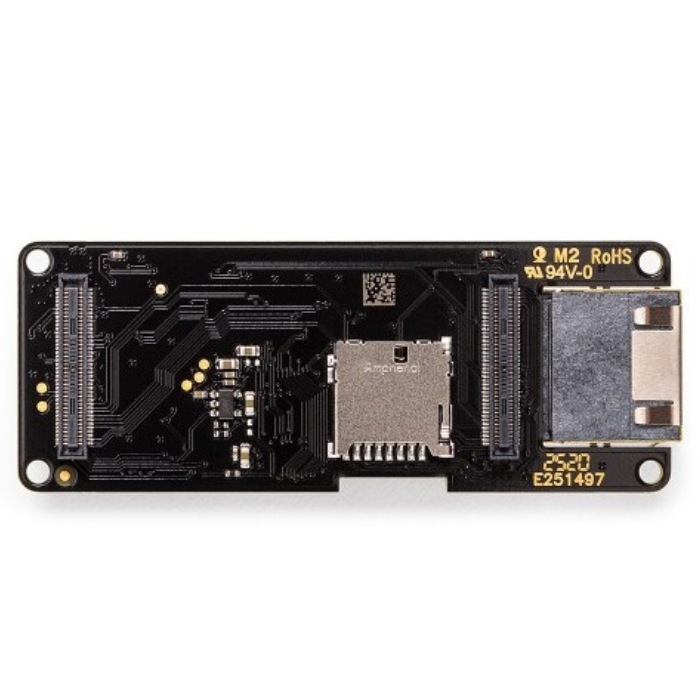

- SD-Card connector: save collected data on the card or read configuration files.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x Official Arduino Portenta Vision Shield with Ethernet
Specifications:
| Specification | Details |
|---|---|
| Item Type | Shield |
| Model Type | Ethernet Shield |
| Model No. | ASX00021 |
| Camera Details | HM-01B0 Low Power Camera |
| Connectivity | Ethernet |
| Interface | Portenta HD Connectors, JTAG |
| Microphone | 2 x MP34DT06JTR |
| Storage | SD card |
| Length (mm) | 66 |
| Width (mm) | 25 |
| Height (mm) | 1 |
| Weight (g) | 11 |
