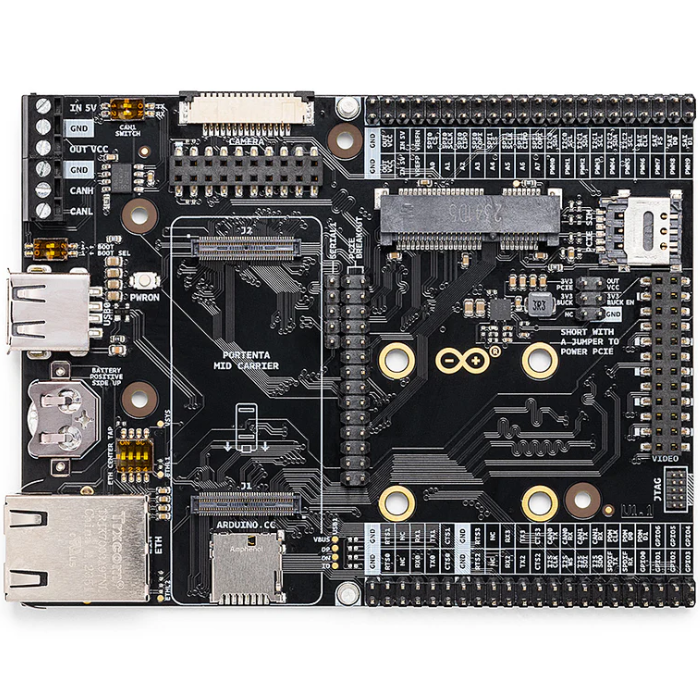

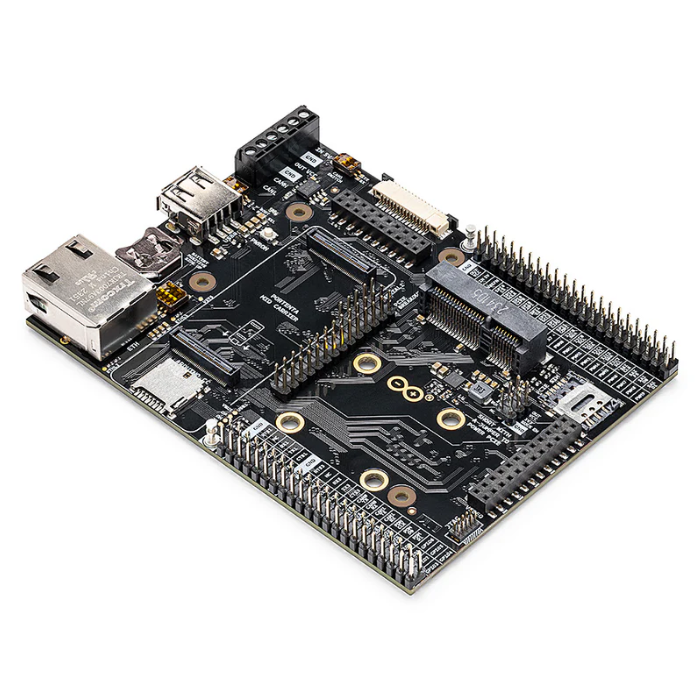

Official Arduino Portenta Mid Carrier Development Board - ASX00055 - Buy Online in India

Package Includes:

• 1 x Official Arduino Portenta Mid Carrier Development Board

Specifications:

1. How to connect the Arduino Portenta Mid Carrier Development Board to a Portenta module?

You can attach your Portenta module to the Arduino Portenta carrier board by carefully aligning the high-density headers and pressing down firmly until fully seated. This setup provides easy access to all I/O pins and enables expansion options for prototyping and industrial projects. Always ensure power is disconnected before mounting or removing the module.

2. How to use the Portenta Mid Carrier Board for prototyping?

The Portenta carrier board breaks out multiple analog, digital, and PWM pins to accessible screw terminals and headers, making it ideal for rapidly connecting sensors, actuators, and modules. You can use it to develop and iterate your Arduino prototype board project without custom PCBs, supporting both breadboard experimentation and permanent installations.

3. How to power the Arduino Portenta Mid Carrier Development Board?

You can power the Arduino Portenta carrier board through the USB-C port for development or by applying a regulated 5V/12V supply to the VIN screw terminals for standalone operation. This dual power option ensures reliable operation for connected devices and peripheral components during prototyping, with onboard regulation protecting the Portenta module.

4. How to integrate sensors and external devices with the Portenta Mid Carrier Board?

The Portenta carrier board supports I2C, SPI, UART, and GPIO connections via labeled terminal blocks and pin headers. You can connect sensors, displays, and other modules directly using standard cables or terminal wiring to build advanced IoT or industrial prototypes using your Arduino Portenta module as the processing core.

5. How to program and test circuits on the Arduino Portenta Mid Carrier Board?

Once the Arduino Portenta carrier board is connected to a Portenta module, you can use the Arduino IDE to upload sketches via USB-C and test your circuit logic in real time. This enables efficient debugging of circuits and rapid validation of sensor readings or actuator control, streamlining development for your Arduino prototype board projects.

Documentation

1. Schematics
2. Datasheet

For the full technical documentation, tutorials and much more, visit Arduino Docs

1. What is the Arduino Portenta Mid Carrier Development Board used for?

The Arduino Portenta Mid Carrier Development Board offers a streamlined expansion platform for Portenta boards like the H7 and X8, balancing functionality and size. You can use it to prototype industrial, IoT, or edge AI projects without the complexity of larger carriers. It provides essential interfaces in a compact, easy-to-deploy form factor.

2. How does the Portenta Mid Carrier Board differ from the Hat and Breakout boards?

The Portenta Mid Carrier bridges the gap between the minimal Breakout Board and the full-featured Hat Carrier, offering key connections like Ethernet, USB, camera, and display ports. You get more capability than the breakout, but with less bulk than the HAT version. It’s ideal when you need moderate I/O without sacrificing portability.

3. Which Portenta boards are compatible with the Mid Carrier?

The Official Arduino Portenta Mid Carrier Development Board – ASX00055 is compatible with all Arduino Portenta family boards, including the Portenta H7 and Portenta X8. You can mount them securely for reliable signal and power delivery. Its design ensures seamless integration across the Arduino Pro ecosystem.

4. What kind of projects can I build with the Portenta Mid Carrier Board?

This board is perfect for IoT, AI edge computing, robotics, and industrial automation projects that require a balance of connectivity and compactness. You can connect cameras, sensors, and displays while maintaining a small footprint. It’s well-suited for both prototyping and embedded deployment in real-world systems.

5. How do I get started with the Portenta Mid Carrier Development Board?

Connect your Arduino Portenta board to the Mid Carrier and link the setup to your computer via USB-C. Then, use the Arduino IDE or Arduino Pro tools to upload code, debug, and test your hardware. Full pin access and plug-and-play design make it fast and easy to begin development.
