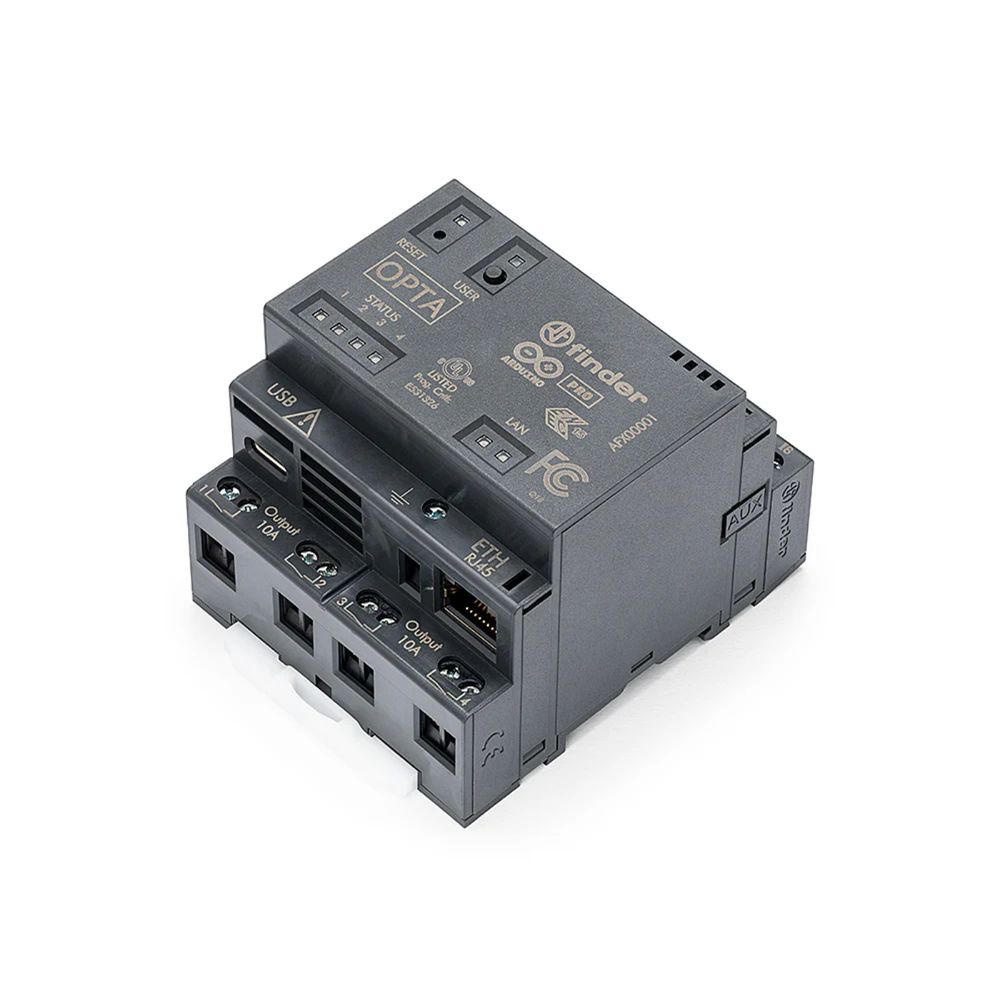

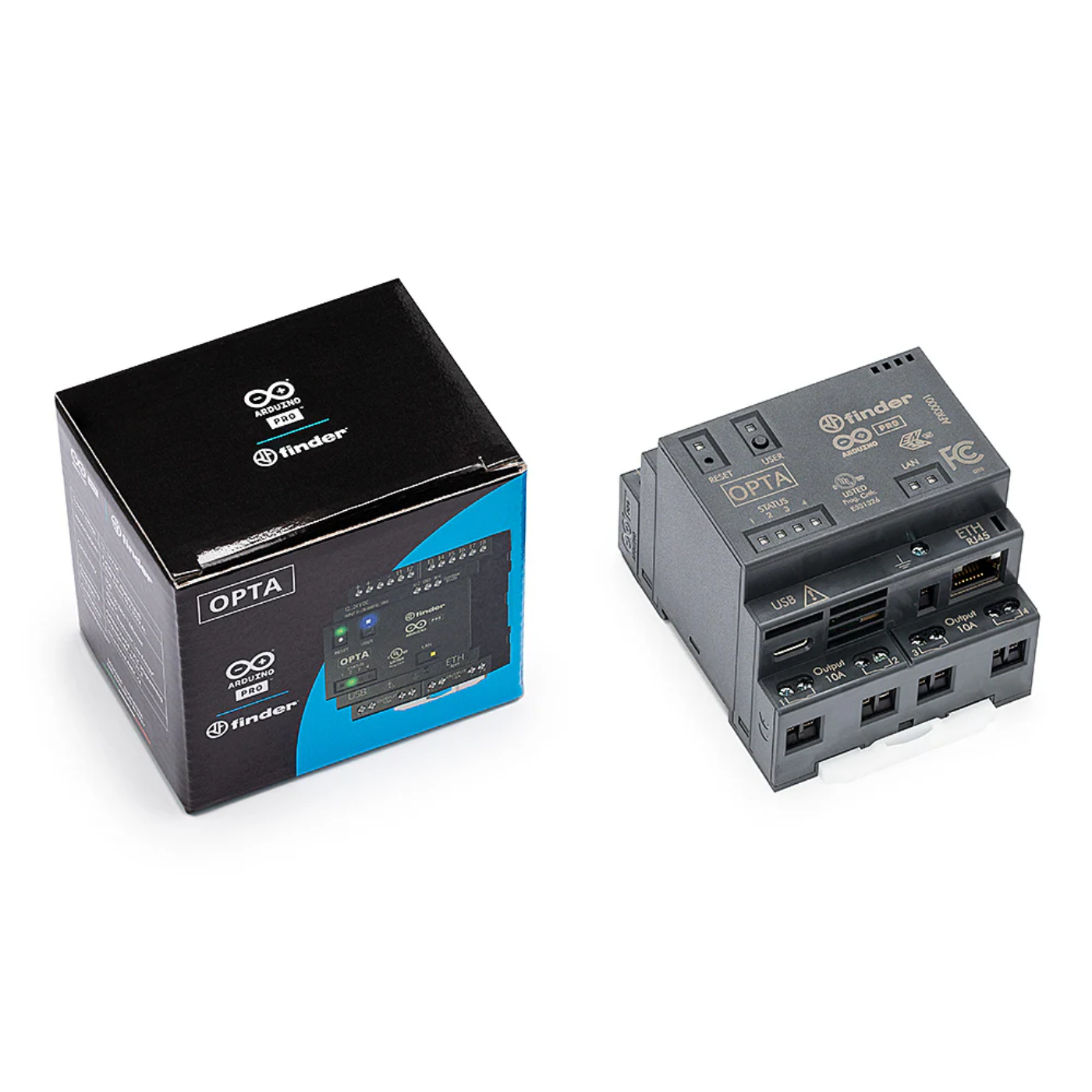

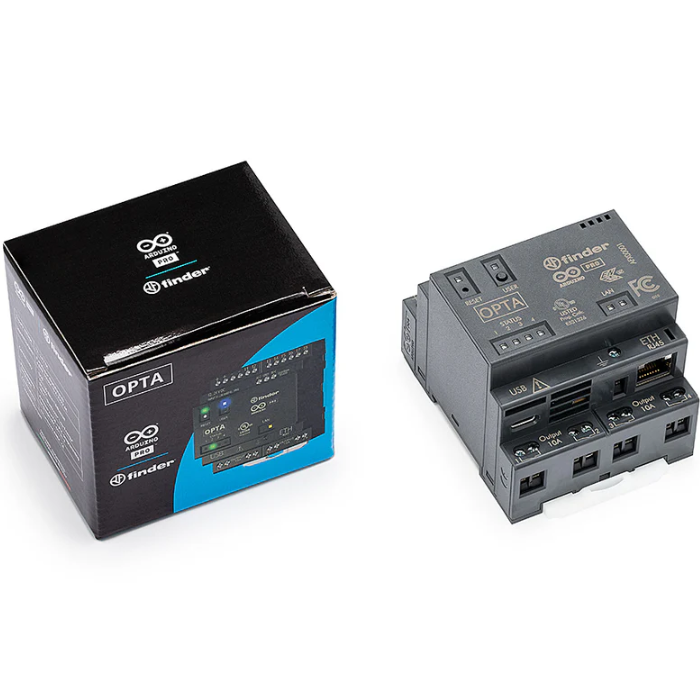

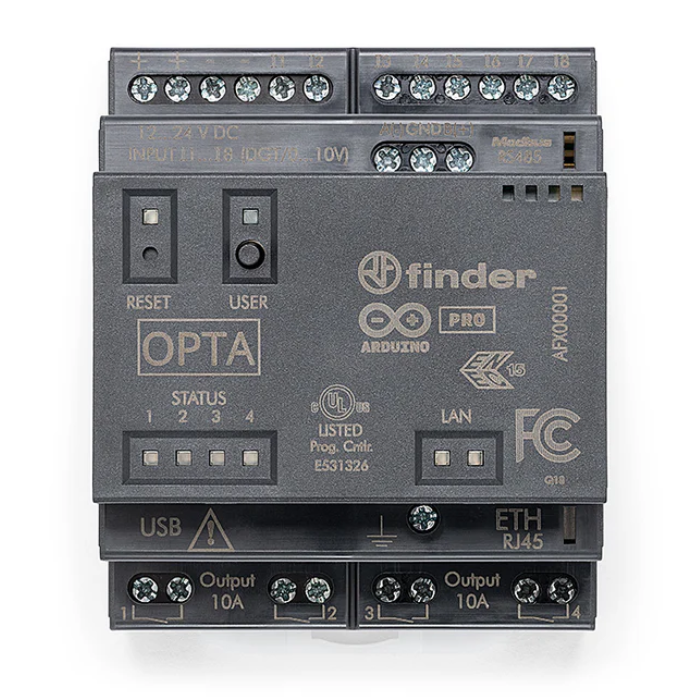

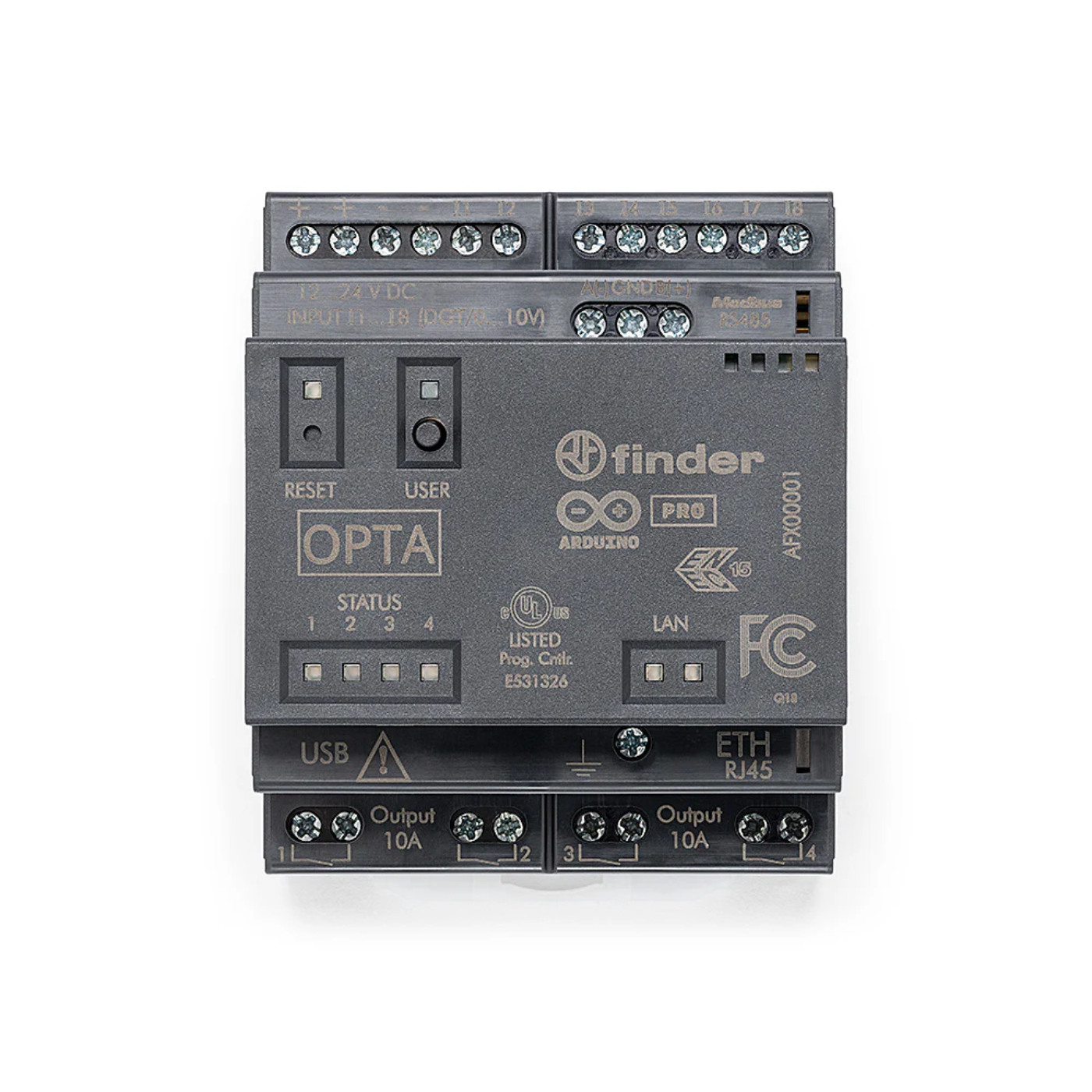

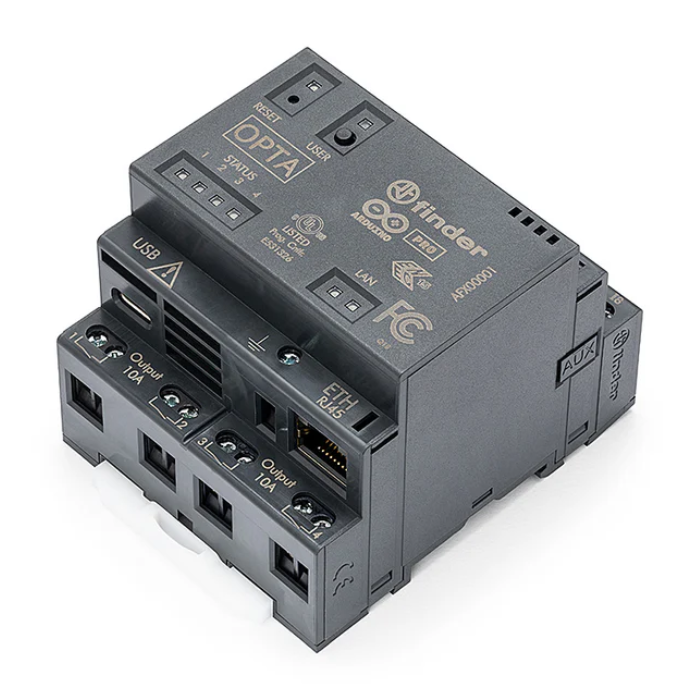

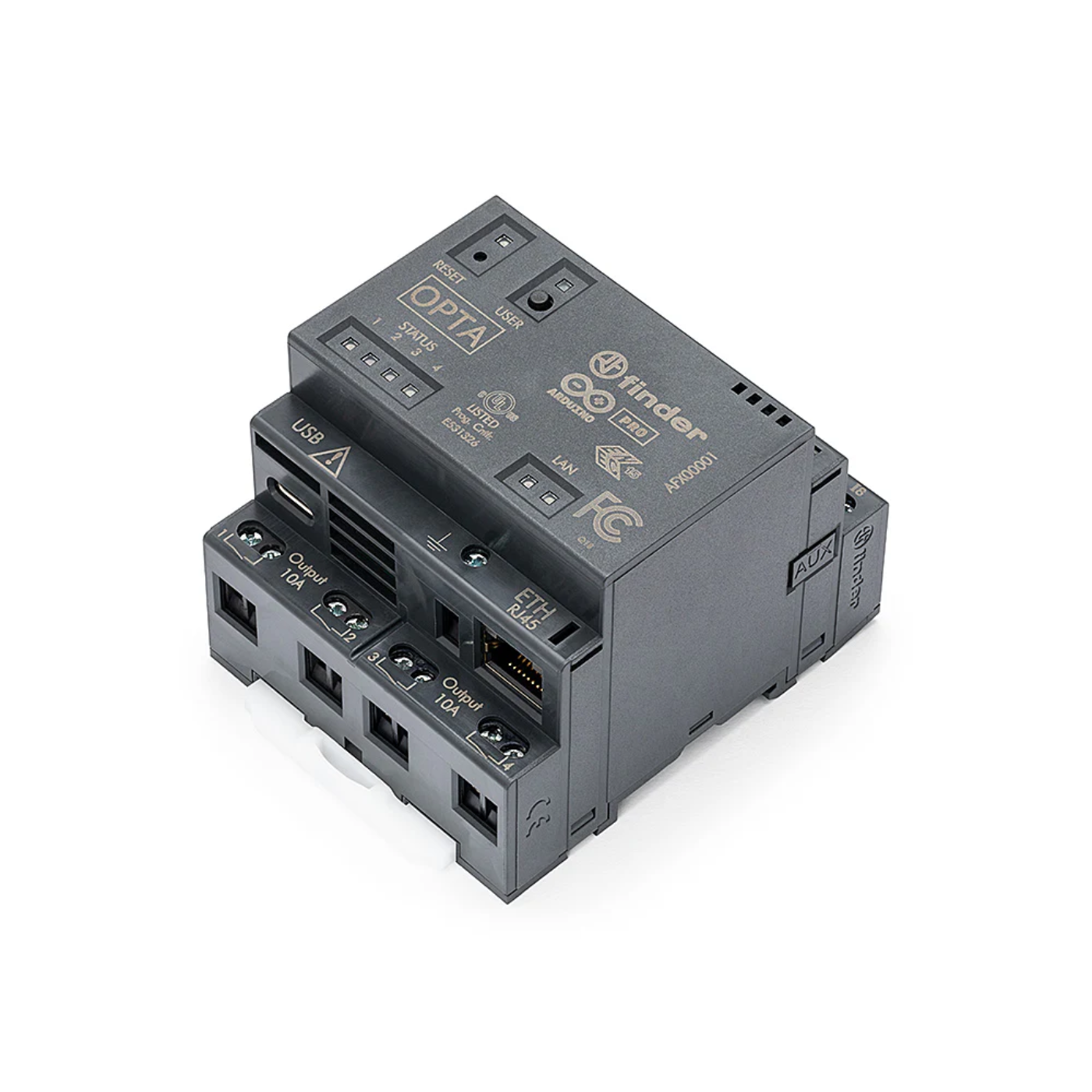

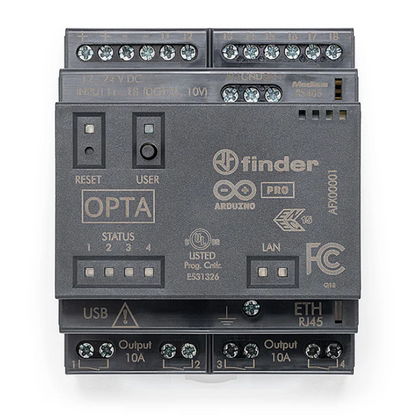

The Official Arduino OPTA RS485 is a professional-grade micro-PLC (Programmable Logic Controller) tailored for Industrial IoT applications.
Developed in collaboration with Finder, a leader in industrial and building automation, the OPTA offers a reliable, scalable solution for automation professionals.
It seamlessly supports both traditional Arduino sketches and standard PLC programming languages such as Ladder Logic Diagram (LD) and Function Block Diagram (FBD), making it accessible to both embedded developers and PLC engineers.
Powered by a robust STM32H747XI dual-core Cortex®-M7 and M4 MCU, it is capable of handling real-time control tasks, monitoring systems, and running predictive maintenance operations.
Designed with durability and security in mind, the OPTA RS485 features OTA firmware update capabilities and robust data protection through an onboard secure element compliant with the X.509 standard, ensuring secure communication from edge to cloud.
Features:
Easy Development: Start quickly with ready-to-use Official Arduino sketches, tutorials, and libraries.
PLC Language Support: Compatible with standard IEC 61131-3 PLC languages including Ladder Logic and Function Block Diagram.
Fieldbus Integration: Supports Modbus TCP (Ethernet) and Modbus RTU (RS485) for flexible industrial communication.
Remote Monitoring: Enable real-time data visualization via Official Arduino Cloud dashboards or third-party platforms.
Hardware-Level Security: Built-in secure element with X.509 standard compliance ensures data protection and device authentication.
OTA Updates & Cloud Management: Supports secure over-the-air firmware updates and cloud-based device management.
Powerful Relay Outputs: Equipped with 4 high-power relays, each capable of switching up to 2.3 kW.
Industrial Reliability: Designed with industrial-grade components and backed by Finder’s proven switching technology expertise.
IP Protection: Rated IP20 for indoor applications and cabinet inst allations.
Certified Quality: Complies with key standards and certifications including cULus, ENEC, and CE.
1. How to get started with the Arduino OPTA RS485?
You should connect the Arduino OPTA RS485 to your computer using a USB cable and open the Arduino IDE to install the required core from the board manager. After selecting the correct board and port, upload a basic sketch to verify communication and start building your industrial automation and control projects. The set up process follows standard Arduino conventions with additional support for PLC programming environments.
2. How to use RS485 communication with the Arduino OPTA RS485?
The OPTA RS485 features built-in Modbus RTU communication for robust industrial networking with sensors, PLCs, and actuators. You can leverage the ArduinoModbus library to implement master or slave nodes that send and receive data over the RS485 interface with proper error checking. This efficiently handles half-duplex serial communication across distances up to 1200 meters in electrically noisy environments.
3. How to connect external devices to the Arduino OPTA RS485?
The Arduino OPTA RS485 provides multiple I/O options including digital inputs for switch monitoring and analog outputs for process control via its screw terminal I/O pins. You can establish industrial networks using the onboard RS485 transceiver or add Ethernet connectivity for TCP/IP-based communication in distributed IoT systems. The seamless hardware integration supports mixed architectures combining legacy equipment with modern cloud services.
4. How to program the Arduino OPTA RS485 for automation tasks?
You can develop control logic using either the Arduino IDE for sketch-based development or the Arduino PLC IDE for ladder diagram and structured text programs. The OPTA RS485's microcontroller executes deterministic timing for control operations like switching relays, reading sensor feedback, or implementing complex automation sequences. This reliable performance meets requirements for professional industrial deployments including applications with safety-critical timing constraints.
5. How to connect the Arduino OPTA RS485 to the Arduino Cloud?
You can establish a secure connection from the Arduino OPTA RS485 to the Arduino Cloud platform using its Ethernet port with standard networking protocols. This enables real-time monitoring of process variables, remote management of connected actuators and controllers, plus alarm notification for your devices. The cloud integration is particularly ideal for distributed IoT-based automation installations requiring centralized oversight and historical data logging across multiple sites or systems.
1. What is the Official Arduino Opta RS485 (AFX00001) used for?
The Official Arduino Opta RS485 is a micro-PLC designed for industrial automation and IoT applications, enabling real-time control, monitoring, and predictive maintenance. You can deploy it in systems requiring secure, reliable automation with long-term stability. Its rugged design makes it ideal for professional-grade installations.
2. What makes the RS485 interface important in the Arduino Opta RS485?
The RS485 interface enables robust, long-distance serial communication using Modbus RTU and other industrial protocols, ideal for electrically noisy environments. You can connect multiple sensors, drives, and controllers over a single bus, simplifying wiring in building automation and machinery control systems. It ensures reliable data transfer up to 1200 meters.
3. Which programming languages can be used with the Arduino Opta RS485?
You can program the Opta RS485 using Arduino IDE sketches or IEC 61131-3 standard PLC languages like Ladder Logic (LD), Function Block Diagram (FBD), Structured Text, and Sequential Function Chart. This dual support gives you flexibility whether you're an embedded developer or an industrial control engineer. It bridges the gap between modern coding and traditional PLC workflows.
4. What are the main features and specifications of the Opta RS485 (AFX00001)?
The Opta RS485 features a STM32H747XI dual-core ARM Cortex MCU, 8 digital/analog inputs, 4 relay outputs, onboard Ethernet, USB-C programming, 1 MB RAM, and 16 MB flash memory. It includes an ATECC608B secure element and meets cULus, ENEC, and CE standards. This makes it a powerful, secure, and compliant solution for industrial use.
5. Can Opta RS485 be integrated with cloud platforms for remote monitoring?
Yes, the Opta RS485 supports secure integration with Arduino Cloud for real-time dashboards and remote monitoring, as well as third-party IoT platforms. You can visualize data, trigger alerts, and perform diagnostics from anywhere. This enables scalable, cloud-connected automation with secure device management.
6. Is the Opta RS485 suitable for building automation and energy monitoring?
Absolutely—this device is ideal for building automation, energy monitoring, anomaly detection, and data logging. You can monitor HVAC systems, lighting, power usage, and environmental sensors with high reliability. Its robust PLC design and versatile connectivity make it perfect for intelligent facility management.
7. What security measures are present in the Arduino Opta RS485?
The Opta RS485 includes an onboard ATECC608B secure element compliant with X.509, enabling hardware-level encryption and secure authentication. You get protection against tampering, secure OTA firmware updates, and encrypted communication. These features safeguard your industrial automation systems from cyber threats and unauthorized access.
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
