Official Arduino make your Uno Kit

Official Arduino make your Uno Kit

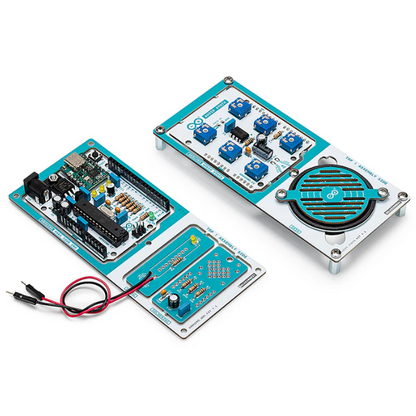

The Arduino Make Your UNO Kit offers a unique, hands-on experience for learning the fundamentals of electronics and soldering by guiding you through the assembly of your very own Arduino UNO board.

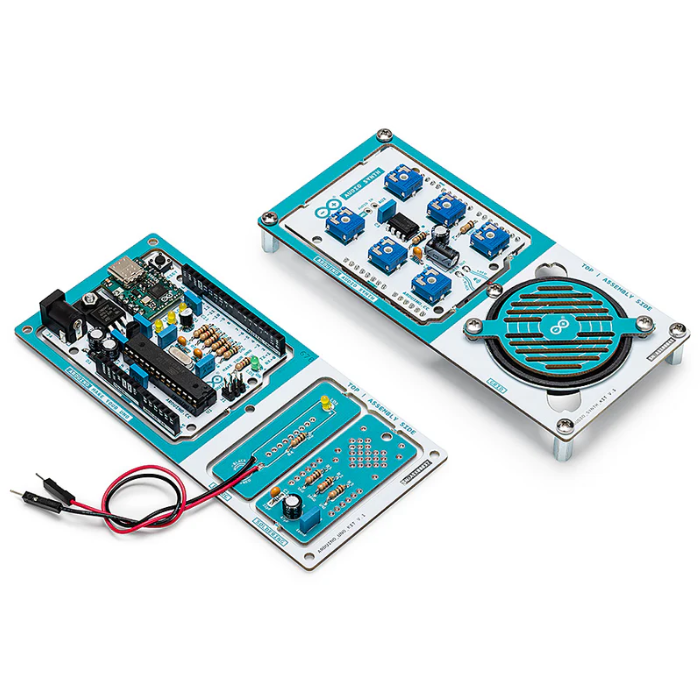

This comprehensive Arduino kit includes all the necessary electronic components, PCBs, and mechanical parts to build not only a fully functional Arduino UNO but also an audio synthesizer shield.

With detailed online instructions, video guides, and a 3D interactive viewer, this Arduino Uno kit is designed for beginners to confidently mount each component and then explore their creativity by programming the board and making music with the synth. Please note that soldering iron and solder are not included.

Features:

• Build your own fully functional Arduino UNO board and a unique audio synthesizer shield from individual components

• Includes the ATmega328P microcontroller, a USB-C serial adapter board, plus all necessary resistors, capacitors, LEDs, potentiometers, and connectors for both projects.

• Specifically designed to introduce and develop soldering skills and a fundamental understanding of electronic circuits.

• Access a dedicated platform with detailed video tutorials, an interactive 3D assembly viewer, and programming instructions.

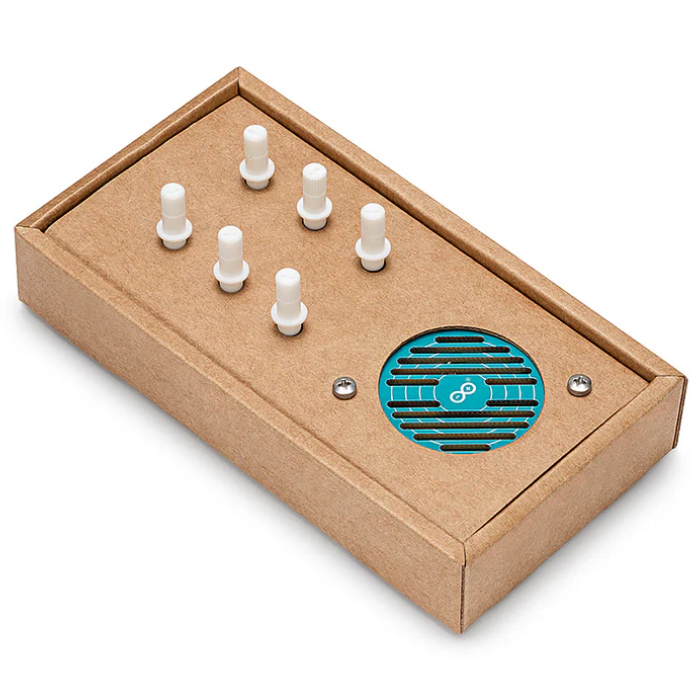

• The kit's packaging is creatively designed to be repurposed as a custom enclosure for your assembled audio synthesizer.

• Thoughtfully includes a selection of common spare components to aid the learning process and cover any mishaps.

• All necessary spacers, screws, and nuts are provided for a clean and sturdy final assembly of your projects.

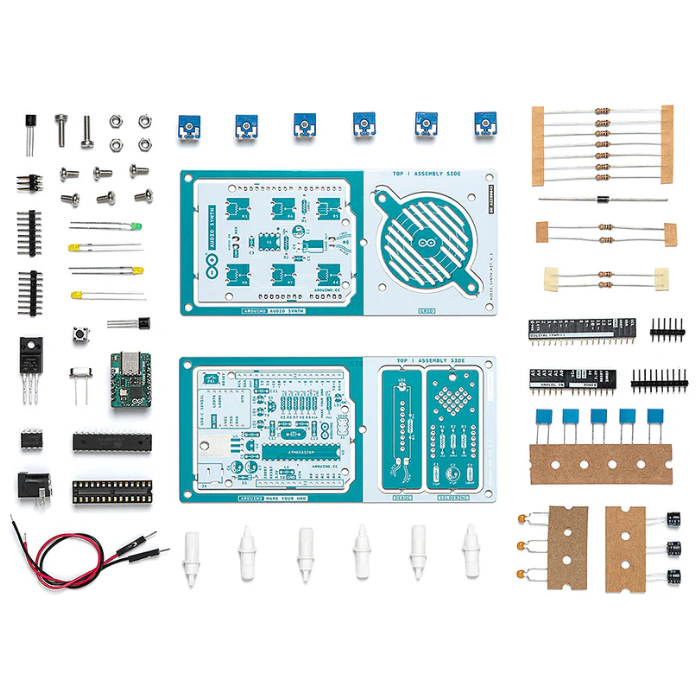

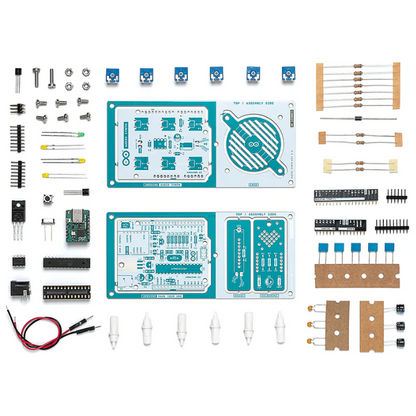

Package Includes:

Official Arduino make your Uno Kit

• 1 x Make Your UNO PCB
• 1 x USB C Serial Adapter Board
• 7 x Resistors 1k Ohm
• 2 x Resistors 10k Ohm
• 2 x Resistors 1M Ohm
• 1 x Diode (1N4007)
• 1 x 16MHz Crystal
• 4 x Yellow LEDs
• 1 x Green LED
• 1 x Push-Button
• 1 x MOSFET
• 1 x LDO (3.3V)
• 1 x LDO (5V)
• 3 x Ceramic capacitors (22pF)
• 3 x Electrolytic capacitors (47uF)
• 7 x Polyester capacitors (100nF)
• 1 x Socket for ATMega 328p
• 2 x I/O Connectors
• 1 x Connector header 6 pins
• 1 x Barrel jack connector
• 1 x ATmega 328p Microcontroller

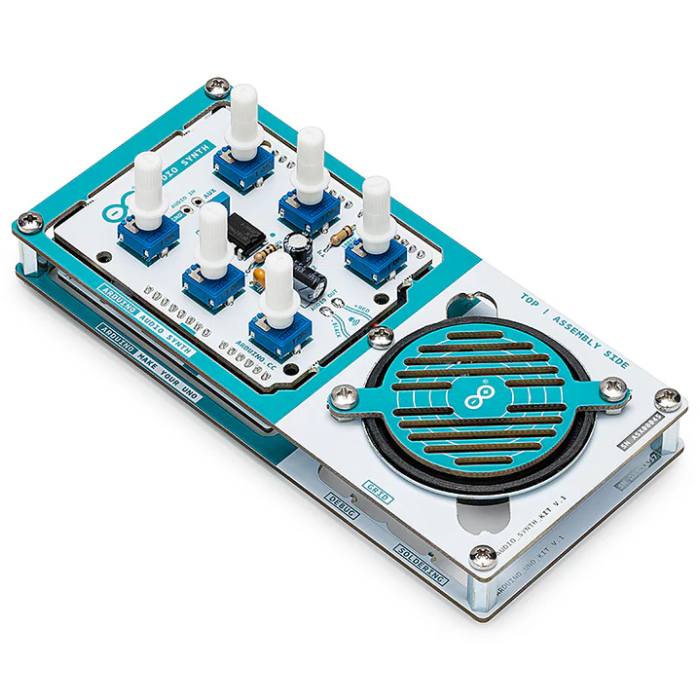

Official Arduino Audio Synth

• 1 x Audio Synth PCB
• 1 x Resistor 100k Ohm
• 1 x Resistor 10 Ohm
• 1 x Audio amplifier (LM386)
• 1 x Ceramic capacitors (47nF)
• 1 x Electrolytic capacitors (47uF)
• 1 x Electrolytic capacitors (220uF)
• 1 x Polyester capacitor (100nF)
• 4 x connectors pin header
• 6 x potentiometer 10k Ohm with plastic knobs

Spare parts

• 2 x Electrolytic capacitors (47uF)
• 2 x Polyester capacitor (100nF)
• 2 x Ceramic capacitors (22pF)
• 1 x Push-Button
• 1 x Yellow LEDs
• 1 x Green LED


Mechanical parts

• 5 x Spacers 12mm
• 11 x Spacers 6mm
• 5 x screw nuts
• 2 x screws 12mm

Specifications:
