Octal D-Type Transparent Latch IC - 74HC573

Octal D-Type Transparent Latch IC - 74HC573

Regular price Rs. 22
Regular price Rs. 26 Sale price Rs. 22
Sale Sold out 15% off Best Price Guaranteed
You save Rs. 4 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Typical propagation delay: 18 ns
  • Wide operating voltage range: 2 to 6 volts
  • Low input current: 1 µA maximum
  • Low quiescent current: 80 µA maximum
  • Compatible with bus-oriented systems
  • Output drive capability: 15 LS-TTL loads
Trust Badge 1 Trust Badge 2 Trust Badge 3

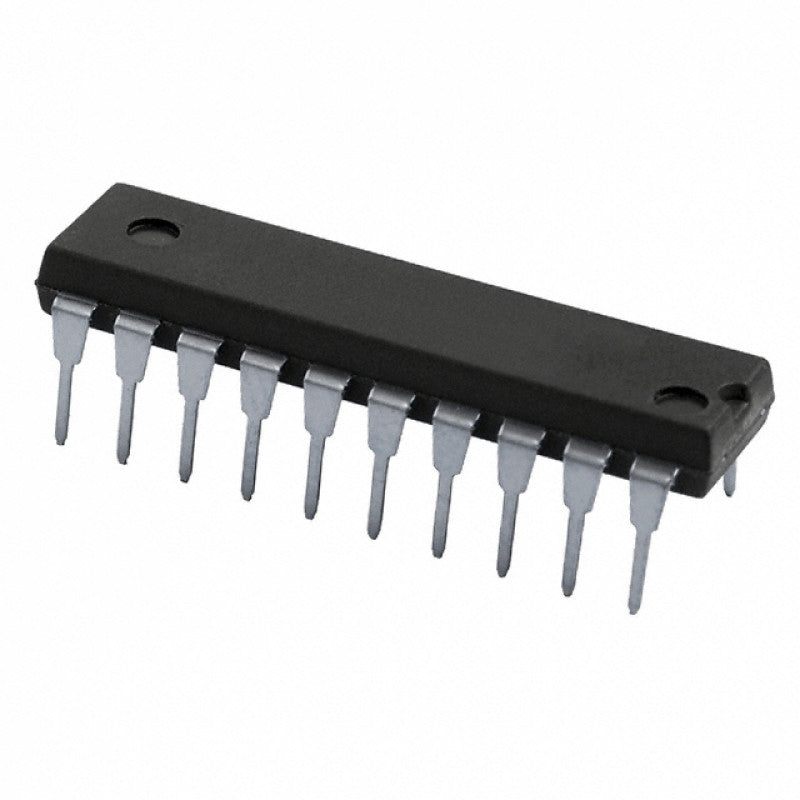

Octal D-Type Transparent Latch IC - 74HC573

The 74HC Series 74HC573 IC high-speed octal D-type latches utilize advanced silicon-gate P-well CMOS technology. They possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system.

When the LATCH ENABLE(LE) input is HIGH, the Q outputs will follow the D inputs. When the LATCH ENABLE goes LOW, data at the D inputs will be retained at the outputs until LATCH ENABLE returns HIGH again. When a HIGH logic level is applied to the OUTPUT CONTROL OC input, all outputs go to a HIGH impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. The 74HC logic family is speed, function, and pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and the ground.

Pinout:

Pinout Of 74HC573 IC

Package Includes:

  • 1 x IC - 74HC573

Specifications:

Supply Voltage (VCC − 0.5 to + 7.0V
Input Voltage (VIN) −1.5V to VCC + 1.5V
Output Voltage (VOUT) − 0.5 to VCC + 0.5V
Clamp Diode Current (IIK, IOK) ± 20 mA
DC Output Current, per pin (IOUT) ± 35 mA
DC VCC or GND Current, per pin (ICC) ± 70 mA
Storage Temperature Range (TSTG) − 65°C to + 150°C
Power Dissipation (PD) (Note 4) 600 mW
S.O. Package only 500 mW
Lead Temperature (TL) (Soldering 10 seconds)  260°C
