NEO-M9N GPS Breakout Board for Precision GNSS Positioning - 7Semi
NEO-M9N GPS Breakout Board for Precision GNSS Positioning - 7Semi
Low stock: 4 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

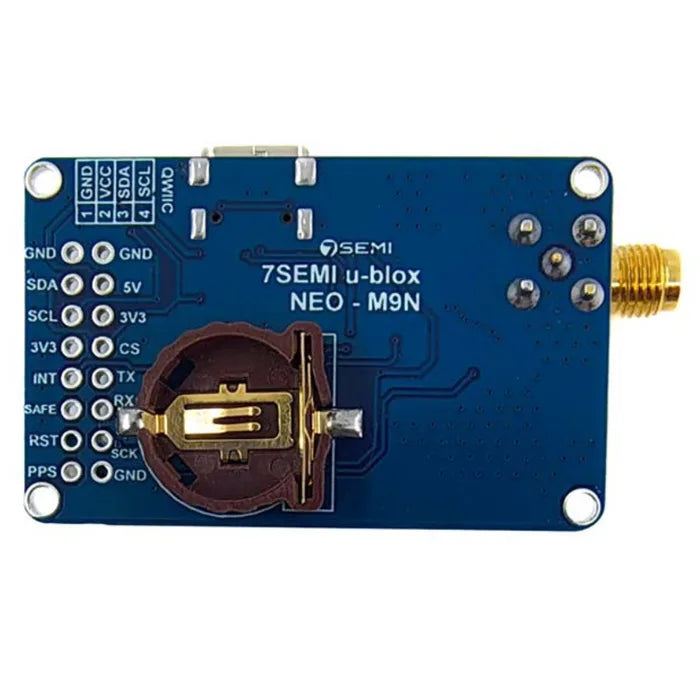

- Hot start in just ~2 seconds due to the onboard rechargeable battery.
- Concurrent tracking of GPS, GLONASS, Galileo, and BeiDou ensures higher accuracy and coverage.
- Built-in spoofing and jamming detection protects critical positioning data.
- Easily configure geofencing, spoof detection, and more using Arduino or u-centre software.
- Supports NMEA, UBX, and RTCM protocols over both UART and I2C interfaces.
- Ideal for drones, robotics, and navigation systems where space and precision matter.
NEO-M9N GPS Breakout Board for Precision GNSS Positioning - 7Semi

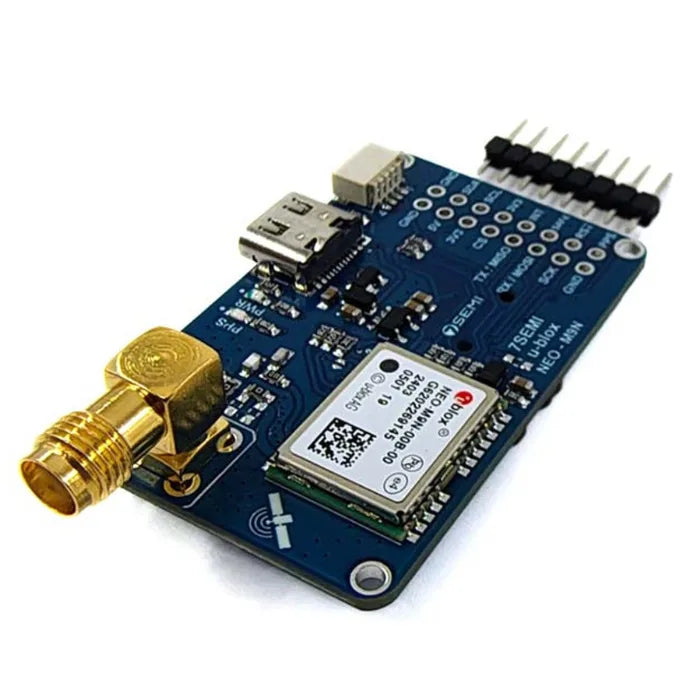

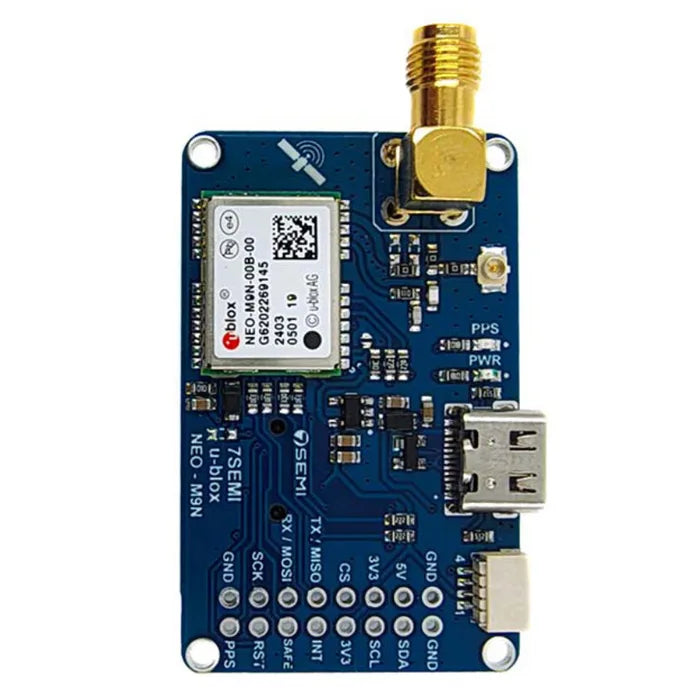

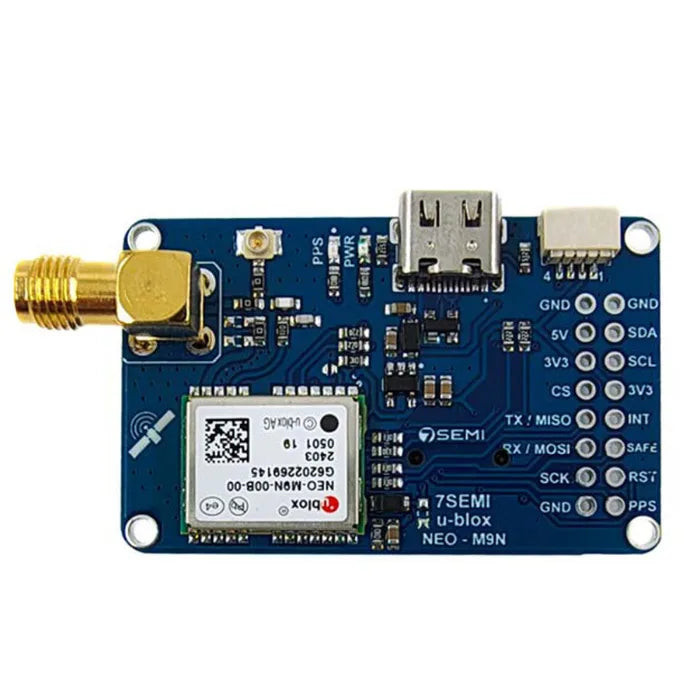

The 7Semi NEO-M9N GPS Breakout Board is a compact GNSS module designed for high-precision positioning. Powered by the u-blox NEO-M9N chip, it supports concurrent tracking of GPS, GLONASS, Galileo, and BeiDou for faster and more accurate location data. With position update rates up to 25Hz, it’s ideal for drones, robotics, and navigation systems. It operates on 3.3V and offers I2C and UART interfaces, making it easy to integrate with various development boards and embedded systems.
Features
-
High-Precision GNSS Receiver: Supports GPS, GLONASS, Galileo, and BeiDou with ~1.5m accuracy.
-
Fast Position Fixes: Onboard rechargeable battery enables hot start in just 2 seconds.
-
Anti-Jamming & Anti-Spoofing: Detects and alerts to jamming or spoofing events for secure operation.
-
Flexible Connectivity: Supports NMEA, UBX, and RTCM protocols via UART or I2C.
-
Configurable Features: Customise with geofencing, spoofing detection, and more via Arduino Library or u-centre.
- Broad Compatibility: Perfect for drones, robotics, and applications requiring real-time precision GNSS data.
Package Includes
1 x 7Semi NEO-M9N GPS Breakout Board
Specifications
| GNSS Support | GPS, GLONASS, Galileo, BeiDou (Concurrent reception) |
| Accuracy | ~1.5 meters (CEP) |
| Position Update Rate | Up to 25 Hz |
| Startup Time | Hot start in ~2 seconds |
| Power Supply | 3.3V |
| Dimensions (LxWxH) | 5.5 x 3 x 1.3 cm |
| Weight | 11 gm |
| Interfaces | UART, I2C |
| Protocols Supported | NMEA, UBX, RTCM |
| Security Features | Jamming and spoofing detection |
| Configuration Options | Geofencing, spoofing alerts, custom setup via Arduino or u-center |
| Use Cases | Drones, robotics, navigation systems, high-precision tracking |
